NMD100 Dispenser Buying Tips for ATM Service Providers

If you manage a multi-brand ATM network, keeping your cash dispensing modules reliable is non-negotiable. The NMD100 dispenser—originally developed for Glory/NMD ATM platforms—has become a preferred choice among independent ATM deployers, parts distributors, and refurbishment shops worldwide. With a dispensing speed of 7 notes per second, Intelligent Double Detection (IDD) technology delivering less than 0.01% error rates, and broad compatibility across NCR, Wincor, Tranax, Triton, and Genmega platforms, this friction-feed cash dispenser delivers the performance-per-dollar ratio that procurement managers genuinely care about.

​

​

Understanding the NMD100 Dispenser: Features and Benefits

What Makes This Module Stand Out Technically?

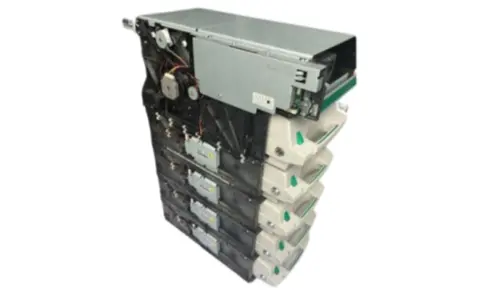

The NMD100 is a fast, large-capacity dispenser that is based on the Talaris friction-feed architecture. It works with up to four cassette setups, and each one can hold about 3,000 notes. This gives field workers a lot of options when they are sending out a lot of notes. Bundle display can hold up to 50 notes per transaction, which keeps lines short in busy stores. The unit is powered by a 24V DC supply and can talk to other devices via RS232 or USB. This makes it easy to connect to existing ATM controllers.

The full configuration includes all the parts that a service team might need:

• A007538 – NMD100 Four-Channel Movement with Cash Cassette, the core mechanical transport unit
• A008545 – CMC200 Central Control Board, which governs all dispensing logic and error reporting
• A008646 – ND200 Module (part number A004296 stepper motor), the primary drive component most frequently replaced in aging units
• A011025 – NFC200 Control Board Assembly for communication between the module and the ATM host
• A004348 – NC301 Cash Cassette, rated for roughly 3,000 notes and compatible across supported platforms
• A007484 / A007483 – BOU and BCU Modules responsible for note transport and jam detection
• A007446 – NMD Movement Power Supply PS126, delivering regulated 24V DC to mechanical components
• A011263 – NQ300 Module and A008909 – NS Module rounding out the sensor and reject path assembly
• A019207 – RV301 Recycling Bin for units deployed in recycling-capable configurations

These benefits directly address the two biggest problems that operators say they have: unplanned downtime due to worn-out delivery parts and the difficulty of getting parts for ATMs from different brands. For the NMD100 dispenser, it is very helpful to be able to get all of your parts from a single source, from the ND200 stepper motor to the CMC200 board.

Comparing NMD100 with Other Dispenser Models

NMD100 vs. NMD200 and Other Friction-Feed Modules

The NMD200 is the bigger brother or sister in the same family of Products. It's made for full-function bank branch ATMs that need more cassettes and faster flow while they're running all the time. The NMD100 is better because it has a smaller footprint, costs less per unit, and works with many systems that aren't in the Glory environment. This is especially true for older Tranax MB1000/1500/1700 and Triton 9600 deployments where it's getting harder to find new modules.

Technicians in the field always give the NMD100 high marks for how stable its IDD sensor calibration is. By reading voltage thresholds across optical sensors, the IDD system can tell the difference between single notes, double feeds, and tape-damaged currency. Its MCBF (Mean Cycles Between Failure) is more than 100,000 cycles when 1,000 mixed-condition notes are used in a burst test. That number is about the same as OEM-spec parts, but the total cost of ownership is a lot less.

When the NMD200 is better: high-density branch deployments that need six or more tapes; or places where Glory host software needs the more advanced features of the newer platform.

How to Choose the Right Dispenser for Your ATM Service Needs?

Matching the Module to Your Fleet Profile

Before you place an order, make a map of your actual fleet. An IAD with 40 Genmega G1500 units and 20 NCR 5877 machines would benefit greatly from having a module that can be dropped into both without having to do any fancy software work. That's exactly what the NMD100 dispenser can do.

Before making your final choice, think about these buying criteria:

• Transaction throughput: At 7 notes per second with 50-note bundle capacity, this unit handles convenience store volumes comfortably. If your ATMs process peak daily transactions above 800, verify cassette refill schedules rather than assuming the module is the bottleneck.
• Compatibility verification: Confirm the specific ATM model variant. Wincor Procash 2050xe and 1500xe installations, for example, may require minor bracket adjustments—something a supplier with multi-brand technical documentation can clarify before shipping.
• Sub-component availability: Prioritize suppliers who carry the ND200 stepper motor (A004296) independently. This component accounts for the majority of wear-related failures and being able to replace it without swapping the entire movement saves significant cost.
• Total cost of ownership: A refurbished NMD100 module in excellent condition with a 30-day warranty is often the rational choice for IADs maintaining aging Tranax or Triton fleets, where deploying a brand-new module in a machine nearing end-of-life creates a value mismatch.

When these criteria are used consistently, they cut down on both mistakes made during procurement and surprises after installation.

Procurement Tips: Where and How to Buy the NMD100 Dispenser?

Sourcing Intelligently in a Fragmented Market

The market for ATM parts is still broken up. There are OEM channels for Glory and NMD parts, but they have long lead times and prices that are set up for full-machine service contracts rather than independent operators. Expert IADs usually get their parts from specialized ATM parts suppliers who keep a constant supply of both new and used modules.

Check these things about a provider when you're judging them:

• In-stock confirmation: The NMD100 dispenser should be available immediately, not on a four-to-six-week production lead time. Emergencies don't wait.
• Warranty terms: A minimum 30-day warranty with documented online support is the baseline. Suppliers unable to provide video remote support for multi-brand installation guidance add hidden labor costs to every order.
• Shipping capability: Confirm the supplier offers air freight for urgent orders. Cross-border logistics is a genuine constraint, and a supplier with established sea, land, and air shipping channels—ideally located near a major transport hub—reduces that risk materially.
• Bulk pricing structure: For distributors carrying NMD100 inventory to serve downstream customers, negotiated tiered pricing based on quarterly volume is worth formalizing in a supply agreement.

The RM NMD100 module is made in Shenzhen with quality controls that are ISO9001-certified. It comes in both brand-new and refurbished conditions, and there is stock ready to ship right now.

Troubleshooting and Optimizing Your NMD100 Dispenser Performance

Common Failure Patterns and How to Address Them

Most problems with friction-feed cash dispensers can be traced back to three things: worn-out transport rollers, bad IDD sensor calibration, and stepper motor step-loss. Taking care of these issues before they happen instead of after the fact keeps ATM service where it should be.

The tightness on the timing belt should be checked often. Even a small amount of belt slip leads to misfeeds at high speeds, which cause jam errors that field teams often mistake for note quality. Solenoid door diverters should react in 50ms or less; if they take longer, it means there is a mechanical bind or the solenoid is wearing out. The ND200 module (A004296) is the stepper motor assembly that most often causes step-loss mistakes. For fleets with more than 15 NMD100 units, it's a good idea to have one extra per service truck.

In places with a lot of transactions, paper dust builds up quickly in sensor prism areas. Most of the false-rejection errors that happen in retail ATMs can be avoided by cleaning the optical sensor path in the A009206-3 BOU101-L4 extended module with compressed air once a month.

Conclusion

The NMD100 dispenser is still one of the most flexible friction-feed cash dispensing units that can be used with a variety of ATM brands. It can play 7 notes per second, has double-feed error rates of less than 0.01%, and works with platforms from NCR 56xx to Genmega G1500. This makes it a good choice for IADs, parts dealers, and repair operations. A strong supply chain is one that gets its parts from a supplier that offers a wide range of subcomponents, such as the ND200 stepper motor, the CMC200 control board, and the NC301 cassettes.

FAQ

Which ATM brands is the NMD100 dispenser compatible with?

It has been confirmed that the NMD100 works with platforms from NCR 56xx/58xx, Wincor Procash, Tranax MB1000/1500/1700, Triton 9600, and Genmega G1500, as well as Glory/NMD ATMs. Some versions may need small technical changes; check with your provider before placing your order.

What is the most frequently replaced component in the NMD100?

The most common substitute part is the ND200 stepper motor module (part number A004296). By getting this sub-part separately, you can avoid having to pay for changing the whole movement unit.

Is a refurbished NMD100 module reliable enough for active deployments?

Yes, refurbished units that are supplied in great shape and have had their IDD sensors re-calibrated and their transport mechanisms MCBF-tested work just as well as new units in medium- to high-volume deployments. At the very least, you should have a 30-day warranty with live help.

What warranty and support should I expect from a reputable supplier?

As standard, there is a 30-day guarantee that covers mechanical problems and video remote help for multi-brand installation advice. Suppliers who can provide expert data in more than one language are even more useful for global business.

How quickly can replacement parts ship for urgent ATM repairs?

Suppliers you can trust that have NMD100s in stock can ship them by air freight within 24 to 48 hours. At the point of inquiry, make sure that the item is in stock and that there are shipping options.

Source Your NMD100 Dispenser Through RM — Trusted Supplier Since 2008

RM has been a seller of ATM parts for more than 20 years. They have been an NMD100 dispenser provider for more than five years and have ISO9001-certified production in Shenzhen. We now have both brand-new and used modules in stock. They come with a 30-day warranty and full live expert help. Our team responds within 24 hours, whether you need a replacement module for a single unit or a bulk purchase agreement for parts like the ND200 stepper and NC301 cassettes. To get a price right away, Contact Us at Tony at Tony@atm-part.com.
