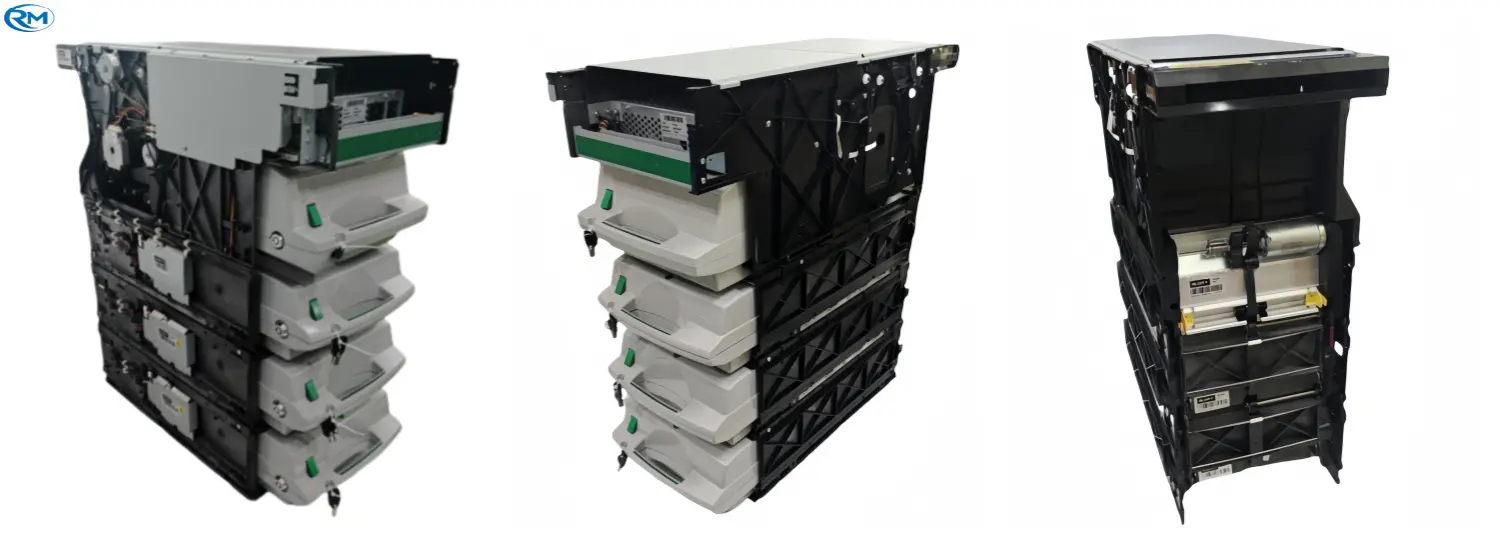

NMD 100 Dispenser

NMD 100 Dispenser - Professional ATM Cash Dispensing Solution

The NMD 100 Dispenser conveys enterprise-grade execution with noteworthy specialized details that make it perfect for high-volume ATM operations. This progressed cash apportioning unit works at 7 notes per moment with bundle introduction capacity up to 50 notes per exchange. Supporting up to 4 cassette setups, each holding around 3,000 notes, the product features Intelligent Double Detection (IDD) technology ensuring <0.01% error rates. Built with high-precision optical sensors and 24V DC power supply, this dispenser meets rigorous UL-certified electrical safety standards while supporting multi-currency profiles simultaneously.

​​​​​​​

Technical Specifications

Complete Configuration Components

Our dispenser comes with comprehensive component configuration:

• A007538: NMD100 Four-Channel Movement with Cash Cassette
• A019207: RV301 Recycling Bin
• A004348: NC301 Cash Cassette
• A008545: CMC200 Central Control Board
• A011025: NFC200 Control Board Assembly
• A007484: BOU Module
• A009206-3: BOU101-L4 Extended Version
• A007483: BCU Module
• A007446: NMD Movement Power Supply PS126
• A011263: NQ300 Module
• A008646: ND200 Module
• A008909: NS Module

Key Applications and Use Cases

High-Volume Retail Environments

Your retail ATM areas request dependable execution. The allocator handles changing note qualities without sticking, maximizing uptime in comfort stores and travel centers where each diminutive of downtime implies misplaced revenue.

Bitcoin & Cryptocurrency BTMs

The compact impression and secluded cassette framework make this unit idealize for two-way Bitcoin ATMs. You get prompt, high-value withdrawal capabilities basic for crypto-fiat conversions.

Gaming & Casino Redemption Systems

Casino situations require exactness and speed. The quick apportioning capability and multi-denomination bolster guarantee fast payout of correct rewards whereas keeping up strict review trails for high-value inventories.

Superior Quality Control Standards

Quality control centers on mechanical exactness and sensor calibration. Basic assessment incorporates IDD sensor calibration with voltage edges recognizing between single notes, twofold notes, and tape. Timing belt pressure avoids slippage amid high-speed operations, whereas solenoid activation testing guarantees door diverters react inside 50ms.

Industry standard burst testing involves 1,000 mixed-condition notes to verify Mean Cycles Between Failure (MCBF) exceeding 100,000 cycles. This rigorous testing ensures your NMD 100 Dispenser meets the highest reliability standards.

Our Competitive Advantages

With over 5 a long time of specialized involvement giving sub-modules and save parts, we offer total piece parts accessibility. Our 3,000 sq.m office incorporates devoted shape rooms, infusion molding offices, support offices, and quality control departments.

ISO9001-2008 certification backs our standardized administration frameworks. We keep up 15-20 working day lead times with 24-hour reaction times for request and online back. Ocean, arrive, and discuss transportation alternatives guarantee adaptable conveyance worldwide.

Frequently Asked Questions

Q: What's the main difference between NMD 50 and NMD 100?

A: The NMD 100 features upgraded electronics, faster processing speeds, and enhanced IDD firmware for more accurate polymer note handling compared to the older NMD 50.

Q: How often should feed tires be replaced?

A: Replace pick and feed tires every 50,000 to 100,000 transactions or annually during preventive maintenance to prevent dispense errors from rubber glazing.

Q: What does a 'Double Detect' error indicate?

A: This indicates thickness sensor variance exceeding calibrated thresholds, implying stuck notes. Frequent occurrences with new notes require firmware reference value recalibration.

Q: Can the unit handle polymer currency?

A: Yes, the product handles polymer notes with specific firmware updates and friction roller kits designed for slicker polymer surfaces.

Q: How do I safely clear note jams?

​​​​​​​A: Power down first, open transport guides using green release levers, and pull notes in drive path direction. Never use sharp tools near optical sensors or plastic gears.

Q: What's the recommended maintenance schedule?

A: Perform preventive maintenance every 50,000 transactions including tire replacement, sensor cleaning, and belt tension verification.

Q: Can you provide customization services?

A: Yes, we customize existing modules according to your needs, including hardware modifications and multilingual settings.

Contact Us

Ready to use the NMD 100 Dispenser to upgrade your ATM performance? Contact us at Tang@atm-part.com for pricing and availability information today.
