Why Choose TP27 Printer for ProCash and CINEO ATMs?

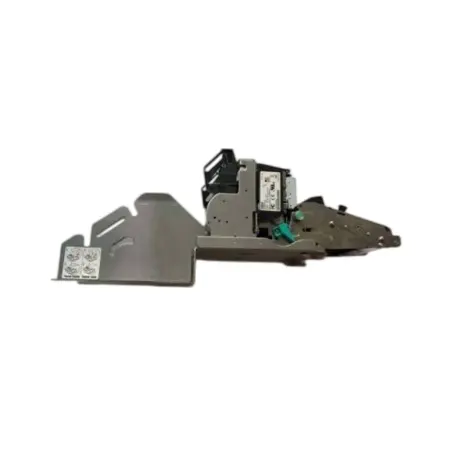

If you manage a fleet of Diebold Nixdorf ATMs, you already know that printer failures rank among the highest-priority service calls. The TP27 printer module — part number 01750256247 / 1750256247 — is the thermal receipt and journal printing solution purpose-built for ProCash and CINEO series ATMs, including the Cineo C4060. With 203 dpi resolution, print speeds exceeding 150mm per second, and a cutter mechanism rated for over one million cycles, this module keeps your ATMs compliant, operational, and customer-ready around the clock.
​​​

Overview of TP27 Printer Module in ATM Applications

What Makes the TP27 Built for ProCash and CINEO Environments?

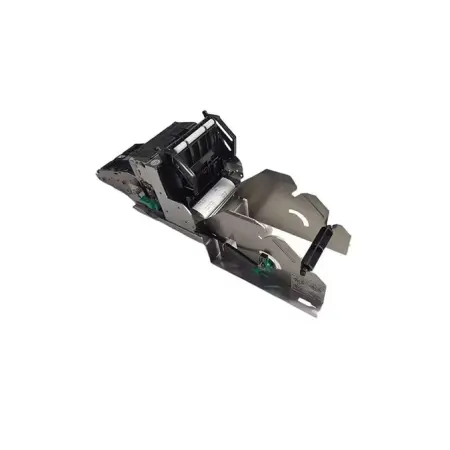

The TP27 receipt printer module uses direct thermal printing, which means it doesn't need any ink refills and can save you money on supplies. The SHEC TL80 print head (part number 01750256692) prints clear text and images on 80mm thermal paper with densities ranging from 55g to 80g. This is a useful range that works with different types of paper in different markets.

Because it works with both USB and V.24 (serial) interfaces, the module is WOSA/XFS driver compatible. This means that current ATM software stacks like ProBase or Agilis don't need to be changed much. Real-time monitoring of paper-low and paper-out conditions is done by dual-sensor arrays. Low power consumption in the idle state lowers operating costs during off-peak hours. The metal-alloy gearing and reinforced polycarbonate chassis take the heat and vibration that come with being in an ATM 24 hours a day, seven days a week. These specs directly mean shorter Mean Time To Repair (MTTR) and fewer unplanned service calls for procurement managers looking at thermal receipt printers for Wincor Nixdorf ATMs.

How the TP27 Printer Module Enhances ATM Performance

Breaking the Bottlenecks That Drive Up Downtime

Most of the time, ATM repair teams are sent out because of slow print speeds or paper jams. When a journal printer stops working, an ATM might not work at all. This is because officials in many markets require constant transaction logging as a condition of audit compliance. Both issues are fixed by the TP27 printer module at the hardware level.

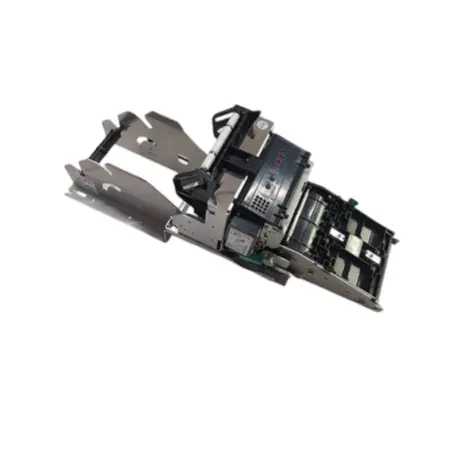

At over 150mm per second, the print speed can handle busy times for withdrawals in big city branches without holding up the transaction line. The auto-cutter mechanism is rated to make more than a million cuts, which means it lasts longer than many other modules per cycle. The platen roller controls the stiffness of the rubber to keep the paper from slipping as it is fed. This directly affects the accuracy of the print length and stops the misfeeds that cause sensor error codes.

The module also lets you update the firmware through the ATM's diagnostic interface, so performance can be re-adjusted when operating conditions change. This is especially useful for ATMs in outdoor drive-throughs where changes in humidity and temperature can affect how the paper works.

Comparing the TP27 Printer with Other ATM Printer Modules

How the TP27 Holds Up Against Alternative Thermal Modules

When purchasing new ATM receipt printers, procurement managers usually look at the print quality, the sturdiness of the cutter, the connection options, and the total cost of ownership. Here's how the TP27 stacks up against similar units in each of those groups:

• Print Resolution: The TP27 operates at 203 dpi, which renders legible grayscale check images on deposit confirmation receipts — a requirement for intelligent deposit systems. Lower-resolution modules at 150 dpi show visible degradation on graphic-heavy receipts.
• Cutter Durability: The guillotine-style cutter rated at over one million cuts compares favorably against entry-level modules where cutter fatigue becomes a maintenance issue within months of deployment in high-volume environments.
• Interface Flexibility: Support for both USB and V.24 serial connectivity makes the TP27 deployable across older ProCash hardware generations and newer CINEO installations without adapter modifications.
• Paper Compatibility: Acceptance of thermal paper from 55g to 80g density gives operators flexibility when sourcing consumables across different regional markets.

Because of these benefits, the TP27 printer module is a good choice for IADs and distributors who manage mixed ATM fleets to buy in bulk. Repairs are cheaper when you can get separate parts like the print head, feed motor, control board, and gear kits instead of having to buy whole module systems every time the machine needs to be serviced.

All of these features lower the total cost of ownership and make it easier for operators of big Diebold Nixdorf ATM farms to get extra parts.

Seamless Setup and Troubleshooting of TP27 Printer Module

Installation, Common Errors, and How to Resolve Them

To connect the TP27 to a ProCash or CINEO ATM, the controller board's dip switch settings must be matched to the ATM's PC core configuration. This is an important step that is often missed and leads to communication problems between the two devices. For both USB and V.24 connections, you need to choose a different wire harness. Before installing, you should check this against the wiring instructions for the ATM type.

Some common problems in the field and how to fix them are:

• Persistent sensor errors: Paper dust accumulates on optical sensors near the paper path entry and exit points. Clean with compressed air and isopropyl alcohol. If errors continue, recalibrate through the ATM's diagnostics menu.
• Cutter not retracting after a jam: Manually rotate the cutter gear release wheel on the module's side panel to retract the blade. Stripped plastic gears require cutter module replacement.
• Vertical white lines on receipts: Individual heating elements on the thermal head have failed resistance thresholds. Thermal head resistance testing identifies failed elements; replacement of the SHEC TL80 unit resolves this.

Sensor errors that keep happening: Near the entry and exit points of the paper path, paper dust builds up on optical sensors. Isopropyl alcohol and compressed air can be used to clean. If the errors keep happening, use the ATM's diagnostics menu to reset it.

Procurement Insights: Buying TP27 Printer Modules for Your ATM Fleet

What B2B Buyers Should Know Before Placing an Order

We have both brand-new and carefully refurbished TP27 printer module units in stock, and they come with a 30-day warranty and live tech help. Units that have been refurbished to Level 4 standards, which include replacing the platen roller, cutter blade, and heat head, work well in banking settings. Cleaning doesn't meet this standard by itself, and buyers should ask for proof of refurbishment when looking at refurbished stock.

RM, which has been around since 2008 and is ISO 9001-2008 approved, sells the TP27 receipt printer module along with all eight sub-component groups, such as print heads, paper feed motors, control boards, gear kits, and more. With more than 20 years of experience making ATM parts and a 3,000-square-meter factory in Shenzhen, RM keeps a steady supply of parts in stock and sends them by sea, air, and land freight to meet urgent needs. Orders for modules usually take 15 to 20 working days to arrive, but emergency service calls can be sent quickly by fast air. Through yearly framework deals, bulk price models are available. These lower the cost per unit for distributors and IADs that handle large amounts of procurement.

Conclusion

The TP27 printer module is a well-designed thermal printing device that has been used in ProCash and CINEO ATMs. Its 203 dpi resolution, high-speed output, million-cut cutter rating, and wide range of interface compatibility meet the most important reliability and compliance needs of ATM operators, distributors, and bank procurement teams. Total cost of ownership stays reasonable over the life of the module because sub-components can be bought separately. RM is a reliable supplier for companies that manage large Diebold Nixdorf ATM fleets because it has the infrastructure to offer goods, the expert support to help customers, and the ability to check the quality of its Products.

FAQ

What ATM models is the TP27 compatible with?

Wincor Nixdorf ProCash series ATMs and CINEO series ATMs, such as the Cineo C4060, can work with the TP27. The ATM's PC core interface configuration should be checked to make sure it works with certain sub-variants.

What is the expected print head lifespan?

The SHEC TL80 print head can handle between 100 and 150 km of printed paper. Using cheap thermal paper with a lot of rough particles shortens this lifespan by a large amount. The density of the paper should be between 55g and 80g.

Can refurbished units meet banking compliance standards?

Yes, as long as the unit has been refurbished to Level 4 and the platen roller, cutter blade, and heat head have all been replaced. Before launch, ask your provider for instructions on how to refurbish.

How quickly does RM respond to technical support requests?

RM answers questions and pleas for online help within 24 hours. For more complicated installation or problem situations, you can also get video online help.

What interfaces does the TP27 support?

The module has interfaces for both USB and V.24 serial. In order for the control board's dip switches to work, they must match the ATM's PC core configuration.

Ready to Source the TP27 Printer Module? Contact RM Today

There are both new and used TP27 printer modules in stock at RM. They come with a 30-day guarantee and quick online technical help. RM is a reliable source for TP27 printer modules. They have been making ATM parts for over 20 years and are ISO 9001 certified. They offer steady quality at low bulk prices. To get a bulk quote or talk about a long-term supply agreement, email Tony@atm-part.com.
