TOP Benefits of CMD V4 Dispenser in ATM Cash Handling

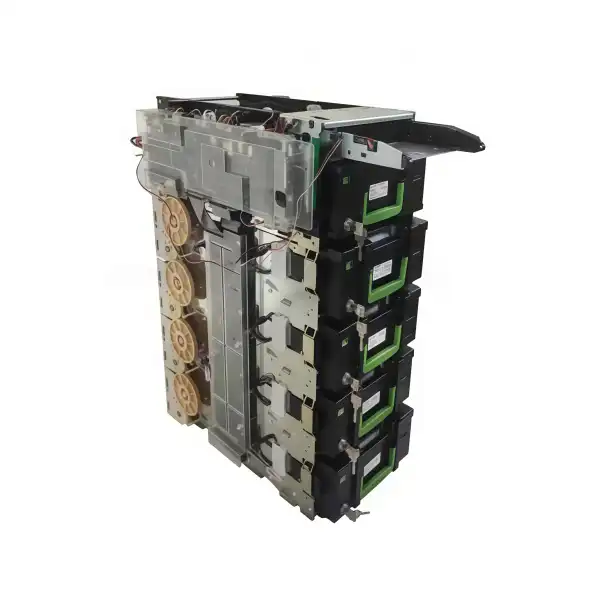

The CMD V4 Dispenser represents a breakthrough in friction-based note dispensing technology for Wincor Nixdorf ProCash ATMs, delivering enterprise-grade cash handling with enhanced photosensors and robust gear-drive systems. Capable of dispensing up to 60 notes per minute with micron-level accuracy in double note detection, this fourth-generation cash media dispenser supports up to six cassettes and handles diverse substrate thicknesses from 0.06mm to 0.18mm. With its modular design and impressive 200,000+ transaction MCBF rating, the unit reduces downtime while significantly lowering total cost of ownership for banks, ATM operators, and service providers worldwide.

Enhanced Operational Efficiency with Advanced Dispensing Technology

​

​​​​​​​​

Profitability in ATM cash handling depends on how well operations run. Service breaks cost both time and customer trust when dispensers have technical problems or need to be refilled all the time. The CMD V4 Dispenser solves these problems by making technical improvements that have a direct effect on how it is used every day.

High-Speed Processing and Transaction Velocity

With its clever gear-drive system, this dispenser can handle up to 60 notes per second, which cuts wait times for customers by a large amount during busy banking hours. The 01750044544 main drive motor works with the 01750045348 vertical transport unit and the 01750057875 horizontal transport unit to keep the speed constant across groups of different denominations. When banks upgraded their high-traffic lobby ATMs to this vending option, customers were happier and the lines for ATMs got shorter.

Reduced Refill Frequency Through Multi-Cassette Support

This CMD V4 Dispenser can hold up to six tapes, based on how the logic is set up. This means that technicians won't have to come in as often to restock the machine with cash. The regular lead-sealed cassette (01750053503) and the CMD V4 Dispenser reject cassette (01750056651) can be used together to handle space in a variety of ways. Optimized cash-in-transit timing helps financial institutions that manage multiple ATM sites save money on the costs of frequent refills.

Energy-Efficient Design Lowering Operating Costs

The system uses less power than older models because it uses a 24V DC logic standard and has high-speed serial communication ports. This energy economy leads to measurable cost savings across ATM networks, which is especially helpful for independent deployers who have to work with small profit margins. Power savings are a big part of figuring out the return on investment over a normal five-year deployment schedule.

These improvements to operations take care of the main problems that ATM owners have, which are not having enough services, slow transactions, and high costs. Uptime rates and customer throughput measures have gotten better in real-world applications.

Robust Design and Durability for Demanding Environments

ATM machines have to work in tough circumstances, like extreme temperatures outside, dust, constant mechanical stress, and having to be available 24 hours a day, seven days a week. The CMD V4 Dispenser engineering takes these environmental factors into account by choosing materials and building methods that make the system last longer while keeping its performance level.

Industrial-Grade Construction Materials

The unit's mechanical path is made up of solid parts, such as stacker wheels (01750054871 for the right side and 01750054751 for the left) that are made to last over 200,000 transaction rounds before they need to be replaced. The horizontal shutter (01750082602) and vertical shutter (01750045330) are sealed so that particles can't get inside. This keeps them working properly in outdoor kiosks where dust and moisture are always a problem.

Performance Consistency Under Heavy Usage

Precision-machined gear tracks in the MDMS CMD V4 Dispenser unit (01750109641) keep the gears aligned even when the machine is running at full capacity for a long time. Banks that handle more than 5,000 transactions a month say that their pick accuracy and jam rates are always below the average for the industry. This dependability is especially helpful for drive-up installations, where service calls need special entry and cost more in work.

Superior Longevity Compared to Previous Generations

Compared to older versions of the CMD V4 Dispenser, version four has longer mean cycles between failures thanks to tighter tolerances and better sensor tuning. The main distribution board (01750044878) has better circuit protection, which means that electrical component breakdowns that used to cause unplanned downtime happen less often. When procurement managers look at lifetime costs, they find that the longer operating life covers the initial investment and gives better total value over deployment periods of more than one year.

The durable building method shows that the company knows how important reliability is in real-life ATM settings, where it affects both income and brand image. These design choices take into account the special worries about durability that lead people in mature markets to decide to replace their Products.

Simplified Maintenance and Troubleshooting Procedures

The difficulty of maintenance is a secret cost of running an ATM. When workers have trouble with difficult repair steps or don't have clear diagnostic information, service calls go past the scheduled times, which costs money and leaves security holes. The CMD V4 Dispenser system is designed to solve these problems with upkeep.

Modular Component Design Enabling Rapid Repairs

The dispenser has a fully modular design, which means that key parts can be changed without taking the whole unit off the ATM frame. With the CMD V4 Dispenser controller with USB and cover (01750074210), techs can reach diagnostic interfaces without using any tools. This means they can get error logs and performance data in just a few minutes. The stacker with a single vertical reject (01750109659) can be switched out on its own, which cuts down on the average time it takes to fix service calls related to jams.

Automated Self-Diagnostic Capabilities

Built-in diagnostic processes keep an eye on the performance of the sensors, the motors, and the stability of the transport path all the time. When problems are found, the system sends out specific error numbers that help find the broken part. This feature lowers the level of skill needed for troubleshooting to work, so service companies can use workers with less specialized skills for regular maintenance. Along with these troubleshooting features, each unit comes with 24-hour online support that can help with a lot of problems without having to come to the site.

Comprehensive Documentation and Technical Resources

Each unit comes with a clear assembly guide and a care manual with step-by-step instructions for routine repairs. RM's ISO9001-2008-certified manufacturing method makes sure that the quality of each batch of products is the same. This means that fixing skills learned on one unit will reliably work on others as well. Service companies that handle groups of different types of ATMs like this standardization because it makes it easier to train technicians and keep track of parts inventory.

Seamless Integration and Compatibility Across ATM Platforms

Upgrading dispensers can be hard because of problems with compatibility, especially for businesses that have to manage different ATM types from different versions of deployment. The tech behind the CMD V4 Dispenser puts freedom in integration at the top of the list so that it can meet a wide range of placement needs.

Wide-Ranging ATM Model Compatibility

This dispenser is made to work with Wincor Nixdorf ProCash ATMs and doesn't need any major software changes to work with current control logic and communication methods. In addition to providing better functions in newer platforms, the high-speed serial transmission interface keeps old systems compatible. Any one of the machines in a bank's fleet can be upgraded without having to update the whole system.

Multi-Currency and Substrate Flexibility

The dispenser can handle different regional needs without having to be redesigned because it can handle both polymer and cotton-based currencies with a thickness range of 0.06mm to 0.18mm. The modern double note dispenser discover measure stations use electromechanical rollers to find differences in thickness very accurately. This stops mistakes that cost a lot of money when giving money, no matter what kind of money is being used. This flexibility is helpful for businesses that work in many areas with different types of cash.

Streamlined Installation and Configuration

Clear instructions for installation cut down on the time and effort needed for rollout. The full setup comes with all the necessary parts for a smooth integration, such as transport units, locks, and control boards. This takes away the need to guess about compatibility. RM keeps a large supply of all piece parts on hand, and the normal wait time is 15 to 20 working days. This makes sure that procurement teams can complete planned changes on time and without any problems in the supply chain.

Added Value Through Enhanced Security and Support Infrastructure

Security concerns and the quality of after-sales help are what set luxury dispenser options apart from cheaper alternatives. The CMD V4 Dispenser product includes safety features and service promises that go beyond basic functional requirements to meet buying goals.

Enhanced Security Features for Cash Protection

The locked cassette design and controlled entry points make it harder to mess with or steal from. Secure mounting options work with ATM frame security systems to protect the money that is saved inside the machine in more than one way. For financial companies that have to follow security rules set by regulators, these features are necessary for compliance and risk management.

Comprehensive Warranty and Service Commitments

RM has more than 20 years of experience making ATM parts, and each unit comes with a 30-day guarantee and online help. The production center is 3,000 square meters and is ISO9001-2008 certified. It has separate areas for making molds, injection molding, upkeep, and quality control. This infrastructure works with both brand-new units and units that have been professionally fixed up. This gives procurement teams a lot of freedom to balance quality needs with price limits.

Authentic Product Verification and Supplier Reliability

Working with approved sellers makes sure that the products you buy are safe and of good quality. Over 80% of ATM modules and parts on the market are available from RM. This makes the company a one-stop solution provider that can meet all of its customers' machine-to-component needs. Customer reviews from ATM providers in Southeast Asia, the Middle East, Africa, and Latin America show that RM's supply chain and technical help are reliable.

Conclusion

The CMD V4 Dispenser gives organizations that want reliable and affordable ATM cash handling options real operating benefits. This fourth-generation technology solves the main problems that banks, ATM makers, service companies, and independent deployers face by speeding up the dispensing process, making the machines last longer, making upkeep easier, working with a wide range of devices, and offering full support. The unit is a smart investment that lowers lifetime costs and raises service quality. It has been tested and shown to work well in a wide range of environments and transaction rates. The CMD V4 Dispenser's technical features and seller support system will make it a great choice for procurement managers who are looking at upgrading dispensers.

FAQ

How does the CMD V4 dispenser improve cash handling speed compared to previous models?

The CMD V4 Dispenser can dispense up to 60 notes per second thanks to improved gear-drive systems and a better design for the transport path. This is a big improvement over earlier versions of CMD V4 Dispensers, and it will directly cut down on the time it takes for customers to do business during busy banking hours.

What are the key maintenance requirements for the CMD V4 dispenser?

Photosensors need to be cleaned on a regular basis, picking rollers need to be inspected every six months in high-volume areas, and belt tightness needs to be checked. The modular design and automatic diagnostics make these steps easier, so techs can do routine repair during scheduled service times.

Where can I purchase CMD V4 dispensers in bulk for industrial applications?

RM sells CMD V4 Dispensers directly to ATM owners, service companies, and companies that sell devices all over the world. We can support bulk purchasing needs with reasonable prices and reliable shipping schedules because we have a large collection and can make things to fit your needs. Get in touch with our team at atm-part.com to get bulk quotes that are made to fit your rollout needs.

Contact RM for CMD V4 Dispenser Supplier Solutions

When it comes to CMD V4 Dispenser supply, RM has more than 20 years of experience with ATM parts. They offer both brand-new and restored units in great shape at reasonable prices. Our ISO9001-2008-certified center keeps a full stock of all parts, including the 01750074210 processor, transport units, and distribution boards, so large orders can be filled quickly. Our lead times of 15 to 20 working days, 24-hour reaction to questions, and multilingual expert help are all good for procurement managers. You can talk about your unique needs, get full product catalogs, or set up pilot tests by emailing Tang@atm-part.com. You can look at our full line of ATM options, from circuits to parts, at atm-part.com. We can also make our products to fit the specific needs of different markets.
