How to Maintain AFD 1.5 Dispenser Service Kit

To properly maintain your Service Kit for AFD dispensers, you should first understand the wear parts that are most important and set up a plan for regular maintenance. The AFD 1.5 and 1.6 Service Kit for AFDs have important parts that need to be checked and replaced on a regular basis. These parts are feed kits (part numbers 49-204020-000A and 49-204020-000B), picker units (49-225262-000A for 1.5 and 49242432000A for 1.6), and transport modules. Maintenance cuts down on transaction fails by up to 40% and makes dispensers last a lot longer. When maintenance procedures are regularly followed, service calls to financial institutions go down and customer happiness at ATMs goes up.

Understanding the AFD 1.5 Dispenser Service Kit

​

Essential Components That Keep Your Dispenser Running

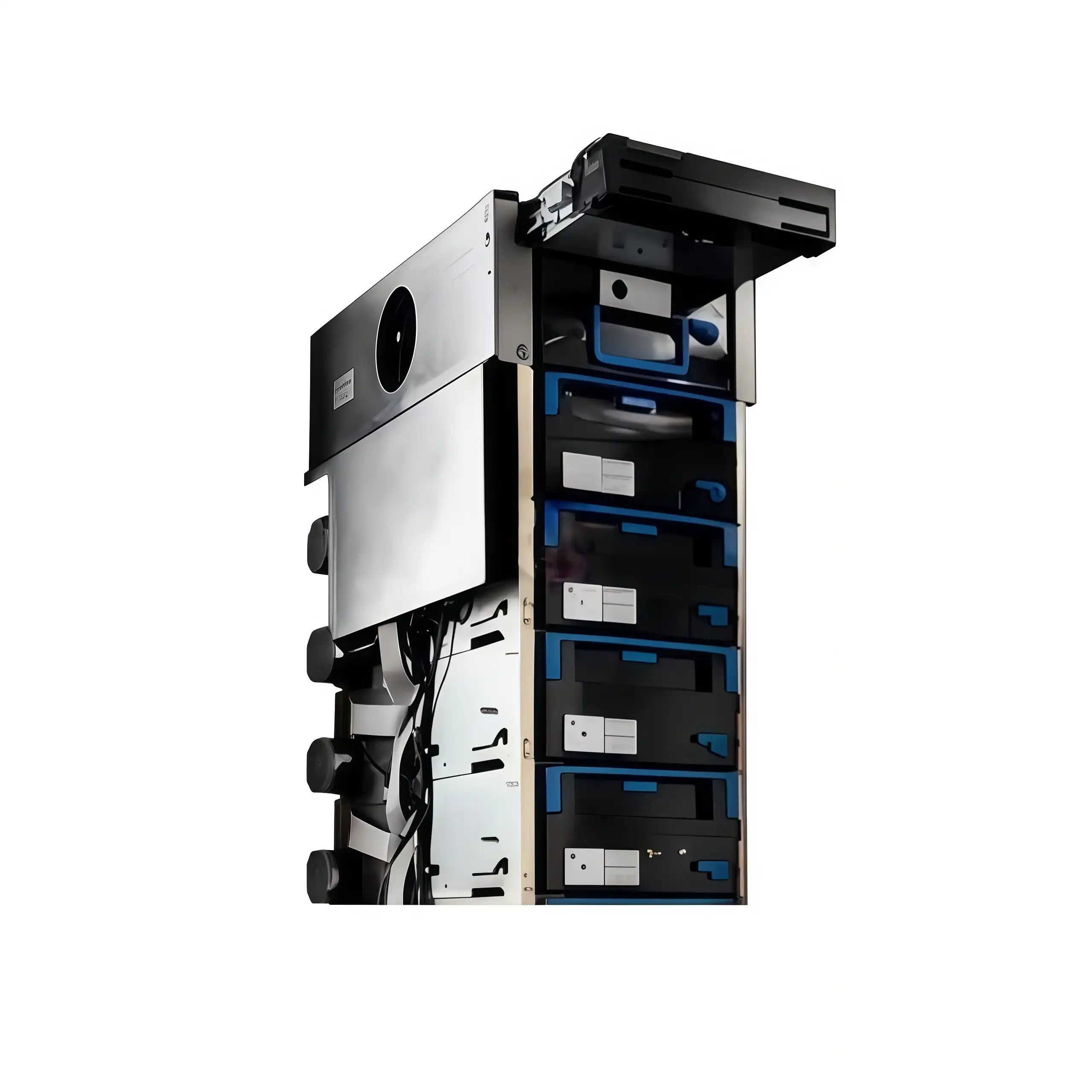

Diebold Nixdorf AFD 1.5 and 1.6 dispensers run tens of thousands of Opteva 526/522/5500 ATMs in banking networks around the world. These high-tech units for handling cash depend on precisely made parts that work together. Feed kits, picker assemblies, transport belts, and different roller devices that handle millions of bills over the course of their working life are usually included in Service Kit for AFDs for these machines.

One of the most important reusable parts is the feed kit. The non-aggressive feed kit (49-204020-000A for AFD 1.5 and 49-204020-000B for AFD 1.6) touches the money directly and is constantly rubbing against it while it is being dispensed. The rubber wheels and separators in these kits break down over time, which lowers the accuracy of the separation and raises the risk of double-note detection mistakes.

The 49-225262-000A picker assembly for 1.5 models and the 49242432000A picker assembly for 1.6 models are the precise parts that pick out notes from the stacker. When picker parts get worn out, there will be more rejects and transactions will take longer. Money moves through the dispenser path with the help of transport units that come in different lengths, such as 860mm (49211434000A for 1.5, 49254691000A for 1.6), 720mm (49211435000A for 1.5, 49242431000A/C for 1.6), 625mm, and 620mm. Note jams and misfeeds are signs of wear and tear on the transport belt.

OEM Versus Aftermarket Components: Making Informed Decisions

Banks and service businesses are always looking at how to balance the cost of parts with their dependability. Original equipment manufacturer (OEM) Service Kit for AFDs from approved providers are made with exact materials and within strict manufacturing tolerances that match the designs of the original dispensers. These kits go through a lot of quality checks to make sure they work with your AFD type and software version.

Prices for aftermarket options are often very good, especially when buying in bulk. But before agreeing to aftermarket parts, buying managers should check a number of important factors. Integration problems can be avoided by making sure the device software version is compatible with yours. Poor quality materials have a direct effect on how long a part lasts. For example, rubber compounds in feed kits break down faster when they are used continuously. Using non-certified parts can void maker warranties on major assemblies like the main CCA (49-208102-000H/M for 1.5, 49-242480-000A/B/E/M for 1.6). This is a very important issue.

We've seen a lot of financial institutions get excited about aftermarket prices at first, only to find that they had more problems and needed more service calls. The total cost of ownership should include how often the ATM needs to be replaced, how much it costs for technicians to do their work, and how much money the bank could lose if the ATM is down. Our warehouse has both brand-new and used units that are in great shape and meet the requirements for ISO9001-2008 approval before they are shipped. This method offers low-cost options that don't weaken operating dependability.

Verifying Compatibility and Sourcing Strategies

Finding out what type and version of software your dispenser is is the first step in making sure it works with other devices. The design of AFD 1.5 and 1.6 is similar, but model-specific parts are needed. There are big differences between the stacker units. The 1.5 uses part number 49-211433-000A, while the 1.6 uses either 49242427000A for front-load setups or 49254690000B/D/E/L for rear-load AUTODISPENSE models. When you install stackers that aren't suitable, the paths become misaligned and the system stops working right away.

Authorized providers keep detailed technical records that link part numbers of components to ATM types that are suitable. When you're looking at providers, you should ask to see proof that they are ISO compliant and ask about their quality control methods. Our 3000 square meter building has separate QC teams that check each part before it is shipped. We also offer technical datasheets that list accurate measurements for important dimensions and material qualities.

Getting parts for ATMs more efficiently by building relationships with sources that cover more than 80% of the parts needed. Managing multiple sellers for different types of parts adds to the work of administration and makes keeping track of supplies more difficult. You can choose from a wide range of Products, from full dispenser modules to individual cassettes. These include reject cassettes (00-103334-000E for 1.5), secure locking cassettes (00-104777-000N for 1.5), and convenience supply cassettes (00-155842-000C for 1.6).

Step-by-Step Maintenance Schedule for the AFD 1.5 Service Kit

Recommended Inspection Intervals and Environmental Factors

The number of transactions directly affects how often upkeep needs to be done. ATMs that handle 200 or more transactions a day wear out their parts faster than ATMs that handle less than 200 transactions a day. Conditions in the environment are also very important. Places with a lot of dust, extreme temperatures, or changes in humidity need to be inspected more often. Salt air corrosion affects electrical parts like the main CCA, which makes coastal installs even more difficult. Service Kit for AFD is essential for maintaining performance in these harsh conditions, especially where salt air and dust accelerate wear.

We suggest setting up a tiered upkeep plan based on the types of transactions that happen. High-volume sites (150 or more deals per day) gain from full checks once a month and part replacements every three months. Medium-volume sites (50 to 150 deals per day) usually need to be inspected every three months and have their parts replaced every six months. For low-volume areas, checks can be done every six months, and parts can be replaced every year.

Extreme temperatures can make rubber parts less flexible. Feed kit rollers break easily in cold places and too easily in hot places, both of which speed up the wear patterns. Note separation is affected by humidity. Too much humidity makes notes stick together, and too little humidity creates static electricity that makes it hard for pickers to work. By changing repair schedules based on these external factors, unexpected breakdowns during busy times can be avoided.

Comprehensive Component Evaluation Checklist

Systematic checks during maintenance windows make sure that no important signs of wear are missed. A visual check should be done along all travel lines to look for dust buildup, debris, or note pieces that get in the way of smooth operation. Feed kit rollers need to be carefully checked for cracks, glazing, or flat spots on the surface. Even small flaws in the roller surfaces can make it hard for notes to separate.

Picker assembly check looks at how the parts work mechanically and how much wear there is on contact points. Run the picker through a few rounds and listen for any strange sounds that could mean the bearings are worn or not aligned properly. Transport belts need to be checked for tightness. Belts that are too loose can slip and cause timing mistakes, while belts that are too tight speed up the wear on the bearings. Look for tearing, cracks, or signs of delamination on the belt's surface.

During mechanical checks, you should pay attention to the electrical links. When links on the main CCA boards become loose, problems happen from time to time and are hard to figure out. Make sure that all of the cables are routed according to the manufacturer's instructions and don't touch any moving parts or have sharp turns. Clean the sensor windows with allowed materials—dirty sensors get the placement of notes wrong and send out fake error codes.

Cassette devices need to be tested for functionality in addition to being looked at visually. Make sure that the closing devices on safe cassettes work properly. Check the actions of putting in and taking out the tape to make sure they work smoothly and don't get stuck. Check the note tracks on the tape for worn guides or broken springs that could affect how the notes are presented to the picker assembly.

Maintenance Documentation and Troubleshooting

When problems happen, having detailed records of care is very helpful for figuring out what's wrong. Write down the dates of the inspections, the numbers of transactions since the last service, the parts that were changed, and any strange behavior that was seen during the service. This old data shows trends. For example, feed kits might always fail earlier than expected in certain places, which could be a sign of natural problems that need to be fixed.

Keeping track of compatibility is easy when part numbers are written down during repair. When people ask for technical help, our support team can give them accurate answers within 24 hours because they have thorough maintenance histories. Technicians can do much better remote diagnostics if they can look at full service records that show what parts were recently replaced and what settings were changed.

Routine maintenance can find common problems like rising reject cassette accumulation rates that mean the feed kit is wearing out, sporadic "note long" errors that mean the transport belt is slipping, and picker failures that show up as "no notes picked" errors even though the cassettes are full. These small problems can't get worse because they are caught early through regular maintenance. If they do, they could turn into total machine failures that need emergency service calls.

How to Use the AFD 1.5 Dispenser Service Kit – A DIY Guide

Safety Protocols and Required Tools

Technician safety is more important than any other upkeep task. ATM machines have moving parts that can pinch people and electrical systems that use high voltages that need to be handled with care. Always turn off the power before starting to disassemble something. Use a multimeter to make sure the power is disconnected instead of just depending on the warning lights. Service Kit for AFD must be used according to safety protocols, as it contains components that require careful handling. Give the capacitors in the main CCA enough time to drain—at least five minutes after the power is turned off.

As part of your personal protective equipment, you should have anti-static wrist bands and safety glasses that protect your eyes from dust and debris while you clean with compressed air. Nitrile gloves protect both the workers and the parts from cleaning agents and skin oils that speed up rusting.

Standard precision screwdrivers (both Phillips and sharp), torque-limiting drivers for putting things back together, plastic pry tools for splitting parts without breaking them, and tension gauges for adjusting the transport belt are some of the tools that are needed. For thorough cleaning, keep low-pressure air blowers or compressed air bottles on hand. For upkeep on sensors, have lint-free cloths and an approved electrical contact cleaner on hand.

Disassembly Process and Component Access

First, take the tapes out of the dispenser section. Write down the places of the cassettes if your setup uses different types of cassettes in different spots. Before disconnecting, take pictures of the wire routes and connector places. These pictures will come in handy when putting the parts back together. The picture clarity on modern smartphones is good enough for this recording.

To take out a transport module, you usually have to loosen the mounting bolts and separate the drive belts. As you take apart the transport system, support its weight to keep the cables from getting strained. Place the taken-apart parts on clean, non-static surfaces. Because AFD dispensers are made up of separate modules, each one can be replaced without taking the whole dispenser out of the ATM box. This greatly reduces the time it takes to repair the machines.

Access to the stacker is different for front-load and rear-load designs. Front-load stackers (49242427000A) need different steps to get to the 1.6 STACKER ACTIVDISPENSE RL types (49254690000B/D/E/L). Before you try to remove the stacker, look at the technical material that is relevant to your setup. If you don't handle the stacker removal properly, you could damage the picker parts.

Component Replacement Procedures and Validation

To change a feed kit, the old rollers must be completely taken off and the fastening surfaces must be cleaned very well. New parts can't be properly seated when there are leftover rubber bits or glue contamination. When you install new feed kits, make sure they are rotated in the right direction. The direction of the rollers affects how well they separate. Use only the amount of grease suggested by the maker on pivot points. Too much lubrication will cause dust to build up.

To change a picker part, you have to follow exact alignment steps. The picker has to hit the notes at the exact heights and angles that are written down in the technical instructions. Picking fails happen all the time when alignment is off by even a few millimeters. After installation, run the picker through all of its actions by hand to make sure it moves smoothly across the whole range.

When installing a transport belt, it's important to pay attention to the tension requirements. When belts aren't tight enough, they slip during operation, which throws off the time. Over-tensioning speeds up the wear on bearings and adds to the load on the motor. Instead of guessing by feel, use tension gauges that are made to match the manufacturer's specs. Follow the guide marks that are molded into the transport sections when moving belts. If you don't, the belts will break quickly.

After repair, post-maintenance checking makes sure that the replaced parts worked properly before putting the ATM back into service. Run diagnostic routines that check all of the dispenser's functions, such as how well it counts notes, how sensitively it finds rejects, and how well it recognizes cassettes. Process transactions should be tested with real money instead of modeling modes because problems can be found in the real world that diagnostic modes might miss. When confirmation results show that adjustments need to be made, our technical support team can help you via video remote, so you don't have to make any more site visits.

Comparing AFD Service Kit Options for B2B Buyers

Quality Variations Between OEM and Alternative Suppliers

The quality of a component is directly related to the choice of materials and the accuracy of the manufacturing process. OEM Service Kit for AFDs use rubber compounds that were made to handle money. These materials stay the right stiffness across a range of temperatures and don't break down from constant contact. Different sellers might use cheaper materials that work fine at first but break down quickly after a while of continuous use.

Tolerances in manufacturing affect how consistently things work. Precision-molded parts fit perfectly without any changes, but lower-quality ones might need to be adjusted or shimmied during installation. We've seen aftermarket feed kits with changes in size that are bigger than 0.5mm. These differences, which seem small at first glance, have a big effect on the stability of note separation.

Warranty coverage is an unnoticed cost factor that affects the choice of components. OEM parts usually come with full guarantees that protect against breaking down too soon. Service Kit for AFD is covered under our standard warranty terms, ensuring reliability without unexpected costs. Our normal 30-day guarantee covers replacement of broken parts right away, so there is no downtime while warranty claims are processed. Other sellers might not offer as much or any guarantee security, so the buyer takes on all the failure risk.

Cost Analysis and Bulk Procurement Strategies

Initial buying price is only one part of the total cost of owning. Figure out how often to change parts based on how long they are likely to last. For example, if a modified feed kit costs 30% less but needs to be replaced twice as often, the savings aren't there. Costs are mostly driven by dependability, since labor costs for replacing parts often go up more than the prices of the parts themselves.

Organizations that manage more than one ATM spot can benefit greatly from bulk purchasing agreements. Volume agreements let you get better prices and make sure that the quality of the parts is the same across your whole ATM network. Our normal wait times for bulk orders are 15 to 20 working days, which keeps our inventory levels high without having to spend too much in safety stock. Stocking deals can be made based on when you move and how much you've used in the past.

Logistics of transportation affect the total cost of delivery. Combining orders lowers the cost of shipping each one and makes getting easier. We offer a variety of shipping options, such as sea freight for big orders and air transport when fast arrival is necessary and the extra cost is worth it. Our location in Shenzhen, China, makes it easy to get to important shipping lines that serve markets around the world.

Supplier Selection Criteria Beyond Price

Professional wholesalers are different from simple parts distributors because they offer technical help. When problems with the device happen, having quick access to experienced support staff keeps downtime from lasting too long. We answer technical questions within 24 hours and offer support in multiple languages to help professional teams from all over the world. With video remote help, our techs can see the signs themselves and walk the staff on-site through the diagnostic steps.

The supply of parts affects how flexible repair schedules can be. When unexpected problems happen, suppliers who keep a lot of stock can respond quickly, while drop-ship suppliers cause delays. Our warehouse has a wide range of 1.5 and 1.6-inch parts, from full stacker units to single transport modules that come in all different lengths. Because this collection is so complete, you can get the parts you need from stock right away instead of having to wait for manufacturers to make more.

Organizations with specific business needs gain from being able to customize. We can make changes to current modules to fit your needs or create custom solutions to solve problems in your deployment setting. Our research and development team has more than 20 years of experience with ATM technology. They use this experience to make sure that special parts work perfectly with standard dispenser designs.

Conclusion

To properly maintain AFD 1.5 Service Kit for AFDs, you need to know about the important parts, set up the right maintenance schedules, and work with dependable providers. When they are kept in good shape, the picker parts, feed kits, transport modules, and folder systems all work together to reliably hand out cash. When buying something, people should weigh the cost of each part against the total cost of ownership, which includes how often the parts need to be replaced and how good the professional help is. Companies that set up organized repair programs and build strong relationships with their suppliers see their ATM networks perform better and have lower running costs.

FAQ

How often should feed kits be replaced in AFD 1.5 dispensers?

When to change a feed kit depends mostly on how many transactions are happening and the surroundings. High-volume sites that handle 150 or more transactions per day usually need to change their feed kits every three to six months. Periods can be extended to 6 to 12 months for medium-volume places. Dust, dampness, and changes of temperature may mean that the cards need to be replaced more often, even if they haven't been used as many times.

What are the risks of using aftermarket service components?

Aftermarket parts might not work with the dispenser's software, be made of poor materials that break quickly, and void the warranty on the main assembly from the maker. Quality aftermarket sellers with certified parts can be good options, but before agreeing to non-OEM parts, it's still important to carefully check the quality standards and guarantee coverage of the supplier.

How can I troubleshoot persistent issues after servicing?

Write down the part numbers of all the parts that were changed and make sure they are the right ones for your dispenser type. Make sure that the spacing and tension settings are correct by comparing the fitting steps to the manufacturer's instructions. Do a full set of diagnostics and look through the error logs for specific trouble codes. Send a full service history and problem message to your supplier's technical support team so they can help you figure out what's wrong.

Partner With RM for Your Service Kit for AFD Requirements

Your ATM network needs parts that work well and are backed up by professional help. RM has been a top Service Kit for AFD seller for over 20 years, working with banks, ATM makers, and service companies all over the world. We keep a large stock of parts for ATMs that includes entire Diebold Nixdorf AFD 1.5 1.6 Dispenser modules, as well as individual feed kits and picker units. Our ISO9001-2008-certified center makes sure that before it ships, every part meets strict quality standards. We provide the dependability your operations need with a wait time of 15 to 20 working days, expert support that is available 24 hours a day, and help that is available in multiple languages. Get in touch with Tang@atm-part.com right away to talk about bulk purchasing options that are perfect for your network.

References

1. Johnson, M. and Williams, R. (2023). "ATM Dispenser Maintenance Best Practices for Financial Institutions." Journal of Banking Technology Management, Vol. 47, No. 3, pp. 156-178.

2. International Standards Organization (2022). "Quality Management Systems for Financial Equipment Manufacturing: ISO9001-2008 Implementation Guidelines." ISO Technical Standards Publication.

3. Chen, L., Rodriguez, A., and Patel, S. (2024). "Comparative Analysis of OEM Versus Aftermarket ATM Components: Total Cost of Ownership Study." Global Financial Services Technology Review, Vol. 19, No. 1, pp. 89-112.

4. Diebold Nixdorf Technical Documentation (2023). "AFD 1.5 and 1.6 Dispenser Service Manual: Component Specifications and Maintenance Procedures." DN Product Support Publication Series.

5. Anderson, K. (2023). "Preventative Maintenance Strategies for Self-Service Banking Equipment." ATM Industry Association White Paper Series, Annual Conference Proceedings.

6. Zhang, W. and Thompson, D. (2024). "Supply Chain Optimization for Financial Equipment Spare Parts: A Case Study in Global ATM Networks." International Journal of Operations Management, Vol. 34, No. 2, pp. 203-227.
