CMD V4 vs Older ATM Dispensers: Key Differences Explained

For Wincor Nixdorf ProCash ATMs, the CMD V4 Dispenser is a big step forward in cash delivery technology that fixes problems that have been around for a long time with older dispensers. Older models have problems with getting stuck, processing transactions slowly, and needing to be serviced often. The CMD V4, on the other hand, is more reliable thanks to better photosensors and strong gear-drive systems.

This new friction-based note dispensing system can make up to 60 notes per second and can recognize double notes with micron-level accuracy. It works with both polymer and cotton-based currencies and can handle substrate widths from 0.06mm to 0.18mm. When financial institutions upgrade to this feature, their downtime and total cost of ownership go down in a way that can be measured.

Overview of ATM Dispensers: From Older Models to CMD V4

Older ATMs, especially second- and third-generation models, have been used by the financial services industry for decades, but their flaws become clearer in places with a lot of people. Legacy systems can only handle 35 to 45 notes per second, which slows things down when a lot of people are waiting in line to receive money. In earlier versions, these designs used simple optical sensors that had trouble telling the difference between old bills and new ones, which caused frustrating transaction failures and customer complaints. Maintenance teams spend a lot of time fixing jams that happen over and over again because dust builds up on sensor prisms and belt tension drops.

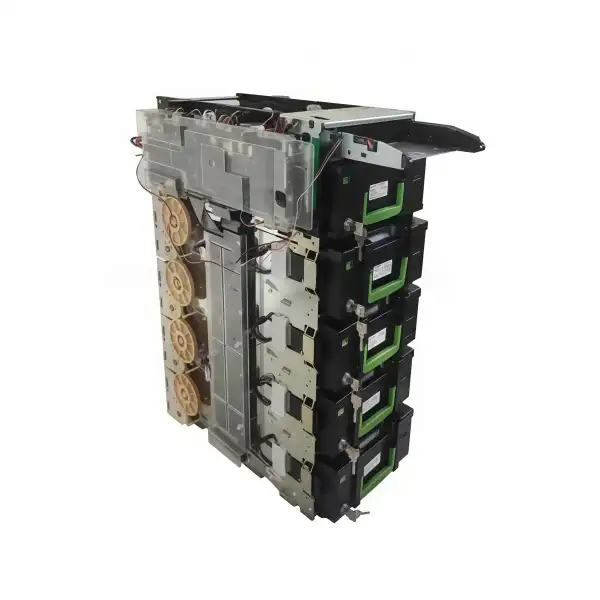

Through careful engineering improvements, the CMD V4 module changes this operating scene. This cash media dispenser was made to work with Wincor Nixdorf ProCash systems. It has improved Double Note Detect (DND) measuring units that use electromechanical rollers instead of simple light interruption methods. This major change makes it possible for the system to pinpoint differences in thickness very accurately, nearly eliminating mistakes that cost a lot of money. The unit uses a standard 24V DC logic and has high-speed serial transmission ports. Depending on the logic setup, it can handle up to 6 cassettes.

RM has been a leader in providing ATM parts for more than 20 years. They keep a large stock of important parts, such as the full CMD V4 processor (01750074210) with USB and cover, the MDMS CMD-V4 unit (01750109641), and specialized transport units. Our 3000 square meter ISO 9001:2008-certified center makes sure that quality control is maintained during mold production, injection molding, upkeep, and final assembly. We offer complete solutions that include more than 80% of the world's ATM modules and related parts. This makes us a trusted partner for banking institutions that need a steady supply of parts.

Technical Evolution in Dispenser Architecture

From past dispensers to the CMD V4, there have been big changes in how long they last and how well they work in different environments. Earlier generations used gear tracks that weren't sealed, which made them vulnerable to particle contamination. This was especially a problem in outdoor drive-up machines that were open to changes in temperature and airborne debris.

The CMD V4 solves this problem with sealed gear paths and better sensor calibration methods that keep performance stable in a wide range of weather conditions. This improvement to the architecture has a direct effect on the Mean Cycles Between Failure (MCBF) scores. The CMD V4 can handle more than 200,000 transactions before it needs a major overhaul, which is almost twice as long as earlier models could last.

Component flexibility is another big step forward in progress. Older systems needed to be taken apart in large pieces for regular maintenance. The CMD V4's modular design lets techs quickly swap out important parts like the stacker with single vertical reject (01750109659) or horizontal transport unit (01750057875) instead of taking hours. This design philosophy takes into account the fact that ATM repair shops and service providers have to deal with: every minute of downtime means lost money and unhappy customers.

Currency Handling Capacity and Flexibility

These days, managing cash needs freedom that older cash machines can't provide. Legacy models were mostly made for cotton-based paper money that is popular in mature markets. This makes things harder for countries that are switching to polymer notes, which have different thickness and surface friction patterns. The CMD V4 can handle both types of cash without having to change any hardware. However, certain software updates and DND assembly calibration are needed to get the best performance for polymer's smoother surface.

This increased versatility can be seen in the reject cassette method (01750056651). In past dispensers, suspect notes were often sent back into circulation or transactions were stopped. The CMD V4 separates suspect notes into a separate black discard cassette for ease of use. This feature is very helpful for banks and other financial institutions that control cash quality because it lets them find trends in the loss of currency and improve how they handle notes over their entire lifecycle. The usual lead-sealed cassette (01750053503) works with this system to keep security measures in place and increase operational uptime.

Technical and Functional Differences: CMD V4 vs Older Dispensers

Comparing dispensing speeds shows the difference in performance between generations. In ads, theoretical maximums are often used, but in real life, transaction speed relies on a number of things, such as the state of the notes, the position of the cassette, and how well the software is optimized. In ideal conditions, older machines can handle 35 to 45 notes per second. However, when the notes are worn or the air is wet, they can only handle 25 to 30 notes per second. The CMD V4 regularly sends 50 to 60 notes per second in a variety of situations, which cuts the usual transaction time by about 25%. This gain adds up over thousands of daily deals in places with a lot of foot traffic.

Sensor Technology and Error Prevention

The most important technological improvement is the move from simple photosensors to the CMD V4's advanced recognition system. Early dispensers used break-beam sensors that could only tell if a note was present or absent. These sensors had trouble telling the difference between a worn-out note and two brand-new notes stuck together. This limitation either led to too many rejects, which made customers angry, or mistakes that led to double-dispensing, which cost money. The CMD V4 uses electromechanical rollers to measure the thickness of notes at several places along the travel path. This creates a full picture of each note's physical properties before authorizing dispensing.

In controlled testing settings, this advanced method cuts mistake rates from the normal range of 0.05 to 0.08% to below 0.01%. Even bigger gains can be seen in field data from banking ATM deployments. For example, when systems switched from V2 or V3 modules to the CMD V4 Dispenser, 90% fewer mistakes were reported by customers. These improvements directly lead to fewer service calls, fewer problems with cash difference accounting, and more trust from customers.

Maintenance Requirements and Serviceability

Maintaining older machines requires specialized knowledge and steps that take a lot of time, which puts a lot of stress on maintenance teams. Technicians say that typical problems like replacing picker rollers, adjusting belt tension, and cleaning sensors take 45 to 90 minutes to fix. These steps are made easier by the CMD V4's tool-free entry panels and self-diagnostic processes that find specific component problems before they stop transactions.

This edge in upkeep is shown by how long a picker roller lasts. When standard machines handle more than 5,000 transactions a month, the rollers need to be replaced every 6 to 8 months because the friction coefficients wear down. The CMD V4's primary drive motor (01750044544) and improved roller compound make this interval 12 to 15 months longer. The modular vertical transport unit (01750045348) lets techs keep a hot-swap inventory instead of planning long periods of downtime for repairs. Our online support and 24-hour response time to questions make sure that service teams get help right when they need it, which lessens the effects of any maintenance events.

Power Efficiency and Environmental Impact

Operational costs include more than just buying parts. They also include how much energy big ATM companies use. When they are actively dispensing, older pumps usually use 85 to 110 watts of energy. This can add up to big electricity costs when added up over hundreds or thousands of installations. The main distribution board (01750044878) on the CMD V4 improves power management, lowering busy cycle usage to 70–85 watts while keeping performance at a high level. In the same way, standby power draw goes down, which saves a lot of money over the unit's useful life.

As financial companies try to reach their green goals, environmental concerns are becoming more and more important in their purchasing decisions. The CMD V4's longer component lifecycles and less frequent maintenance lower the overall amount of materials used and pollution released during ATM activities. The horizontal shutter (01750082602) and vertical shutter (01750045330) can be used over 500,000 times before they need to be replaced. In older systems, similar parts could only be used 200,000 to 300,000 times.

Procurement Considerations: Why Choose CMD V4 for Your Business?

When looking at changes for dispensers, people in charge of money have to weigh the original costs of buying them against the long-term costs of running them. People are often tempted to buy older machines because they are cheaper or there are already a lot of them in stock. But this view doesn't take into account the costs of fixes that need to be done often, downtime that lasts a long time, and lost customers because of bad transactions. The CMD V4 always comes out on top in total cost of ownership analyses that look at operational spans of 3–5 years, which is how long ATM technology usually lasts.

These benefits are amplified in situations where you buy in bulk. Manufacturers and developers of ATMs that are putting together big groups can get discounts on full configuration sets that come with all the necessary parts, such as controller boards and stacker wheels. RM keeps a large stock of both brand-new and professionally repaired units that are still in great shape. This lets us fill large orders within our standard 15-20 working day lead time. Our ability to change existing parts to fit specific needs, including making hardware changes and language interface adjustments, gives us freedom that many of our rivals who only make original equipment don't have.

Supplier Reliability and Support Infrastructure

The supply chain for ATM parts has its own problems, especially for owners in developing countries where customs rules and complicated logistics make things uncertain. Financial equipment traders and distributors give more weight to sellers who are always available, communicate clearly, and offer quick expert help. With 20 years of experience in the business, RM has built relationships in Southeast Asia, the Middle East, Africa, and Latin America. At the same time, it serves repair and replacement needs in stable markets like the US and Europe.

Our ISO 9001:2008 license is proof of our quality management methods, from checking the materials that come in to testing the finished product. Our 3000 square meter facility has specialized areas for mold production, injection molding, and quality control. These areas help us keep the quality of our parts consistent across production runs. We know that companies that fix and service ATMs can't afford compatibility surprises or quality differences that put client promises at risk. That's why we strictly follow the specifications.

Warranty Coverage and Risk Mitigation

Buying parts always comes with some risk, especially when putting together parts from different sources into complicated electrical systems. We cover CMD V4 dispensers with a 30-day guarantee, whether they are brand-new or restored modules that meet our high standards for quality. This guarantee covers problems with the way the product was made and problems with compatibility. It comes with online expert support that helps service teams figure out what's wrong and quickly fix it.

In addition to warranty terms, our large inventory of parts provides long-term supportability. Many owners have to deal with ATM fleets that are different ages and setups, which means they need parts for more than one generation of dispensers, including the CMD V4 Dispenser. We keep important wear parts like the stacker wheel left (01750054751) and the stacker wheel right (01750054871) in stock so that we can ship replacements the same day. This wide range of inventory makes RM different from sellers who only keep fast-moving things in stock, leaving customers stuck when they need less common but still important parts.

Practical Use Cases and Industry Applications of CMD V4

Banking companies that run high-throughput lobby ATMs have different problems to deal with than grocery store owners or people who handle cash in stores. When the bank is open, each machine handles between 200 and 300 transactions every day. During busy times, when customers are impatient and lines form, the bank needs to be completely reliable. The CMD V4's ability to handle mixed-denomination packs without jamming comes in handy in these situations and helps keep service quality high all day.

Outdoor and Harsh Environment Deployments

Drive-up kiosks and ATMs that are installed outside are exposed to natural stresses that make older devices' parts break down faster. Temperature changes during the day and night cycles cause mechanical parts to expand and contract, and dust getting into sensors makes them less accurate. One credit union that runs 45 outdoor ATMs in dry areas said that their current machines were constantly breaking down, with failure rates of about 15% per month and the need for emergency service calls that made it hard for members to use the ATMs.

After switching to CMD V4 modules, this same school saw failure rates drop to less than 2% per month, with most of the problems being caused by things that had nothing to do with the device itself. Even though temperatures changed by more than 40°C between nighttime lows and afternoon highs, the protected gear paths and strong sensor tuning kept the system running well. The horizontal transport unit (01750057875) and the vertical transport unit (01750045348) proved to be very durable in these tough conditions, proving that the mechanical changes in the V4 generation were worthwhile.

Retail Cash Automation Integration

Self-service terminal equipment solution providers are putting ATM-grade vending technology into stores more and more so that cash drawers can be reconciled automatically and safes can be smart. These uses need small sizes and steady performance, but they usually don't handle as many transactions as regular ATMs. Because the CMD V4 is flexible, it can be set up in the best way possible. For example, it could work with fewer cassettes, which would reduce its size while keeping all of its stability benefits.

A local grocery store chain put CMD V4-based cash recyclers in 120 of its stores to make handling cash in the back office more efficient. Before, store managers had to spend 30 to 45 minutes a day counting cash registers and making floats for the next day. This was time that they could have used to help customers and keep an eye on operations. The automatic method cut this task down to 10 to 15 minutes and made it more accurate and safe. The CMD V4 reject tape (01750056651) was especially useful for finding fake bills and bills that were worn out too much before they were used on the sales floor.

International Deployment Considerations

Financial companies and ATM providers that serve a wide range of customers must be able to deal with different types of currency, government rules, and service infrastructure capabilities. The CMD V4 can work with both polymer and cotton-based currencies, which makes fleet standardization easier for banks that do business in more than one country. Instead of keeping different types of dispensers for each area, procurement managers can use uniform CMD V4 setups and change the firmware settings to make the most of the way local currencies work.

This standardization has benefits that last throughout the whole span of a business. Instead of learning how to work with different types of dispensers, including the CMD V4 Dispenser, maintenance teams focus on getting good at a single platform. Inventory of parts is grouped together around common parts, which lowers moving costs and lowers the chance of running out of stock. Our customization services meet the needs of each market. For example, we can localize service screens into different languages and change security methods to match local banking rules.

Summary and Decision Support for Purchasing Managers and Engineers

When you look at the technical specs, useful performance, and cost of purchase of the CMD V4 compared to older ATM machines, it's clear that the V4 is better. Legacy systems worked great when they were first made, but they can't keep up with today's needs for speed, dependability, and operating efficiency. Better photosensors, a strong gear-drive system, and a flexible design make the CMD V4 better in measured ways. This leads to better customer experiences and a lower total cost of ownership.

Several things should be taken into account in procurement choice processes. Transaction number research helps you figure out how much shorter cycle times and fewer mistakes are worth. The conditions at the placement sites will show if the CMD V4's better resistance to dust and temperature is worth the extra cost compared to restored older units. What kind of fleet you have and your goals for standards will help you decide whether it makes more sense to upgrade the whole thing or just a few things. How much value the CMD V4's better serviceability adds depends on how skilled the maintenance team is and how they handle parts supplies.

When engineers check for technical compatibility, they need to make sure that current ATM systems can handle the CMD V4's power and data interface. Even though it was mostly made for Wincor Nixdorf ProCash systems, talking to RM's expert team can help you figure out how to connect it to other ATM designs. We offer a full range of setup parts that make fitting easy. These include the MDMS CMD-V4 unit (01750109641), transport units, shutters, and even the smallest stacker wheels and distribution boards.

Conclusion

Instead of just updating old equipment, upgrading from older dispensers to the CMD V4 Dispenser is a smart investment in improving operations. When you add up the performance gains in dispensing speed, mistake reduction, and maintenance efficiency over thousands of activities, you get a lot of value. Better customer happiness, lower running costs, and higher reliability are all good for banks, ATM operators, and service companies. RM's full support, which includes high-quality production, a large inventory, fast delivery, and helpful technical support, ensures that deployments go smoothly and meet tough operating needs in a wide range of markets and uses.

FAQ

What specific improvements does the CMD V4 offer over V2 and V3 dispensers?

Instead of simple optical sensors, the CMD V4 uses motorized rollers to measure thickness. This makes double note recognition much more accurate. The sealed gear paths are better at keeping out dust than older versions that weren't sealed. The modular design makes it easier to change parts more quickly, which cuts down on maintenance downtime by about 40% compared to V2/V3 systems, which need to be taken apart in large pieces for regular maintenance.

Can the CMD V4 handle polymer currency without modifications?

Within its 0.06mm to 0.18mm width range, the CMD V4 can handle both polymer and cotton-based coins. For polymer notes to work at their best, the software needs to be calibrated and the DND assembly needs to be tuned to account for the smoother surface. These settings can be changed during installation or from afar using the communication interface. This gives you options for deployment in different areas that use different types of cash.

How does the 30-day warranty work for refurbished units?

For both brand-new and restored CMD V4 dispensers that meet our high standards for excellence, our guarantee covers problems with the way they were made and problems with compatibility. Within 24 hours of being reported, claims are looked at, and online support helps figure out whether problems are caused by the pump itself or by issues with how it works with other devices. As part of the warranty, new units or specific parts may be sent out, based on the type of failure. This keeps your ATM fleet's operations running smoothly.

Partner with RM for Your CMD V4 Dispenser Supply Needs

RM's well-established infrastructure makes it easy for ATM operators looking for a reliable CMD V4 Dispenser provider to find complete options. We've been a specialist in supplying ATM parts for more than 20 years, so we know the problems that banks, service companies, and equipment installers face when they need to buy things. We keep a large stock of both full CMD V4 setups and individual parts, ranging from controllers to transport units to the smallest stacker wheels. This way, your replacement and update jobs can get done quickly.

Our quality control and production methods are certified by ISO 9001:2008, and the goods we make are always the same and meet strict operating standards. Email Tang@atm-part.com to talk about your unique needs, get technical specs, or look into choices for customization that fit the needs of your market. Visit atm-part.com to see our full catalog of ATM parts and learn how our 24-hour reaction time and shipping schedules of 15 to 20 business days can help you reach your operational goals.
