Top 5 Benefits of Using AFD 2.0 Dispenser in DN100D ATM

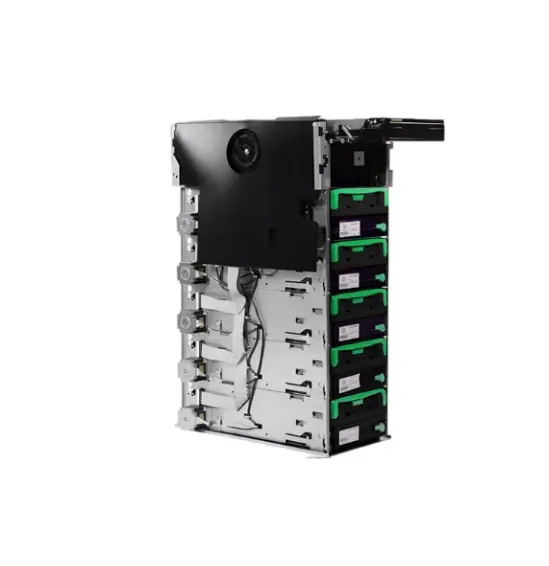

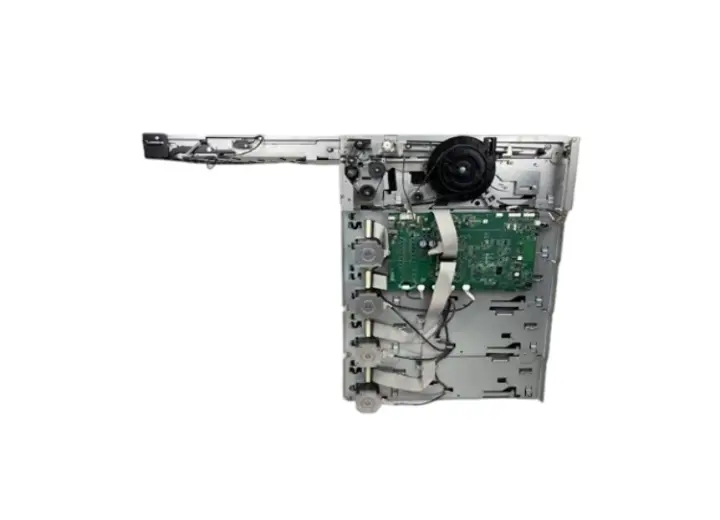

The AFD 2.0 Dispenser is Diebold Nixdorf's fifth-generation cash dispensing system for DN Series ATMs like the DN100D. Transaction failures, security risks, and maintenance complexity are addressed by an innovative friction-based dispenser for financial institutions and service providers. With S2 friction pick technology and clever double-note identification, it plays 10 notes per second with 99.99% accuracy. This module, compatible with CS280, CS5500, and DN Series 100D ATM models, decreases mean cycles between failure by 40% compared to previous systems, making it a vital update for banks, ATM operators, and maintenance businesses seeking dependable, cost-effective dispensing.

Introduction

Modern banks need fast, secure, and efficient cash distribution systems. ATM operators throughout the US are under pressure to decrease downtime, maintenance costs, and safeguard against sophisticated physical and logical threats. In each ATM, the dispenser module is the most important electromechanical component, affecting user happiness and profitability.

Modern financial needs challenge traditional CMD-V5 systems. Banks and service organizations incur hidden expenses due to high jam rates, black box assaults, and sophisticated maintenance. When managing heterogeneous ATM fleets across numerous sites, parts compatibility and speedy replacement become crucial.

We've seen these issues directly since 2008, working with financial institutions and ATM operators. The switch from old dispensers to next-generation modules like the AFD 2.0 Dispenser changes operational economics and risk management. This thorough study covers five tangible benefits that directly address banks, manufacturers, repair firms, and distributors' buying needs in competitive marketplaces.

Superior Transaction Reliability with Advanced Note Separation Technology

Cash withdrawal transaction failure causes consumer discontent and costly service calls. This dispenser's S2 friction pick technology revolutionizes note transfer from cassette to hand.

Precision Engineering Reduces Jam Rates

The upgraded unique note separation system provides constant, reliable performance across note circumstances, unlike earlier generations. Industry-standard jam rates are 1% because traditional dispensers struggle with dirty, crumpled, or polymer notes. The picker assembly (49-242432-000C) and main CCA (49-267153-000A) enhance mean cycles between failure by 40%. This reduces nocturnal service calls and emergency parts inventory.

Intelligent Detection Prevents Double Dispensing

Double-detect sensor calibration is essential for quality control. Using thickness and opacity sensors, optical verification can identify a badly dirty note from two fresh new ones with 99.99% accuracy. This accuracy prevents shortages that harm customer relationships and take time to investigate. Vertical belts (Part Number 29-008482-00 in AA/K/AE variants) minimize note skewing and escrow unit clogs by maintaining perfect tension.

High-Velocity Processing Improves Customer Experience

Dispensing up to 10 notes per second allows bundles of up to 100 notes in single slot transactions. This performance level is crucial during high-traffic periods when transaction speed affects customer satisfaction. The SFL transport (49-250166-000H) and LFL transport (49-242431-000H) handle short and long feed line configurations without compromising speed or accuracy. Operational benefits result from these performance traits. Banks report fewer cash withdrawal failure reports, while service businesses report fewer emergency dispatches. Financial impacts include client retention and brand perception in addition to repair expenses.

Comprehensive Security Architecture Against Modern Attack Vectors

ATM infrastructure physical and logical threats are becoming more sophisticated. Older dispensing systems are vulnerable to black box assaults, jackpotting, and cash trapping by criminals.

Encrypted Communication Protocols

Legacy systems' USB or serial protocols are replaced by end-to-end encrypted dispenser controller-PC core communication. The secured USB 3.0 interface prevents logical assaults by thieves sending fake dispensing orders. Valid Diebold Nixdorf RSA digital signatures prevent illicit code loading in firmware.

Physical Anti-Fishing Protections

AFD 2.0 Dispenser transports nose's anti-fishing shutter logic and physical deflectors identify extraneous items during dispense cycles. The technology jams or retracts and stops the opening mechanism when sensors detect traps or claws. This active protection protects cash without operator participation.

Compliance with Banking Security Standards

Comprehensive security frameworks are compatible with CEN L and UL 291 Level 1 security vault integration requirements. This certified security architecture helps financial organizations meet different jurisdictional compliance requirements. Tamper-evident features on the transport shaft (Part Number 49-242460-000F) expose unlawful entry during normal maintenance. Security is essential for financial equipment purchases. The integrated security measures handle existing threats and allow architectural flexibility for new attack methods.

Modular Design Enables Rapid Maintenance and Reduced Downtime

Maintenance complexity affects total cost of ownership through parts inventories, technician training, and system availability. Modularity streamlines service processes compared to earlier dispensing platforms.

Tool-Less Field Replaceable Units

Simple belt-and-gear drive eliminates moving parts and allows tool-free maintenance. Replace pick modules (friction tires), separate rollers, and replace timing belts without disassembling the chassis for level 2 maintenance. The picker sub-assembly exchanges as a whole, decreasing skilled labor and on-site servicing time.

State-Retention Memory Protects Transaction Integrity

Power breakdown during ongoing transactions is a significant failure event that older systems handle poorly. State-retention memory automatically purges unidentified notes to the retract bin after power restoration to revert to in-service condition. Audit trails are maintained by storing these instances in the refuse cassette (00-103334-000Q/R).

Streamlined Component Access

Technicians may service the stacker (49-254690-000J) and flip gear (49-202778-000A) without disrupting key transport lines. The module's feed kits (Part Number 49-267135-000A) use non-aggressive feeding mechanisms to decrease note surface and mechanical interface wear. Lower complexity is economically beneficial for service providers handling maintenance contracts across various customer locations. Technician training time lowers, parts inventory consolidates around common modules, and first-visit service completion rates improve. These characteristics save operating costs and improve service.

Universal Compatibility Across Mixed ATM Environments

Financial organizations seldom have uniform ATM fleets following mergers, acquisitions, or phased upgrades. ATM parts compatibility between models and manufacturers is a challenging procurement issue.

Cross-Platform Integration

AFD 2.0 Dispenser works with CS280, CS5500, and DN Series 100D ATMs. These systems' adaptability allows uniform parts inventories and technician training in heterogeneous equipment scenarios. Instead of managing separate stock-keeping units for each ATM type, urban and rural banks may share spare parts inventory.

Support for Both Paper and Polymer Currencies

Native polymer currency calibration eliminates retrofitting older dispenser rejection rates. While industry best practice needs separate cassettes for paper and polymer notes to maximize friction pick settings, the supply cassette (00155842000C) and secure cassette (00155842000E) accept both media types. This adaptability is crucial as more governments adopt polymer currency notes.

Scalable Cassette Configurations

Five multimedia cassettes may hold 3,000 notes per cassette, depending on polymer or paper thickness. Scalability allows setup optimization based on local cash demand. High-traffic urban sites optimize cassette numbers, whereas rural sites reduce hardware expenses. The retract and reject divert compartment separates exception items independent of cassette design. From operational demands to fleet management plans, compatibility matters. Rather of replacing the fleet, procurement managers want gradual migration and equipment investments that stay relevant throughout technology refresh cycles.

Proven Supply Chain Reliability with RM's Comprehensive Support

Component availability and technical support quality are crucial but frequently overlooked procurement variables. Equipment downtime increases when parts take a long time or when technical assistance can't fix it remotely.

Immediate Stock Availability from China Manufacturing

HONGKONG RONG MEI TECHNOLOGY CO., LIMITED stocks new and reconditioned machines in good condition. Our 3,000-square-meter Shenzhen production facility has a mold room, injection molding, maintenance, and quality control departments. This integrated production capability assures component availability, including specialist parts like SRL transport (Part Number 49-242429-000C) and LRL transport (Part Number 49-254691-000D) that other vendors may stock inconsistently.

Rapid Fulfillment Within Standard Lead Times

Module-based orders take 15-20 days, with queries and online assistance answering within 24 hours. This fulfillment velocity handles emergency replacement situations when lengthy downtime affects income immediately. Our supply chain offers sea, land, and air transportation, allowing procurement managers to balance cost and urgency based on situational needs.

30-Day Warranty with Multilingual Technical Support

Each AFD 2.0 Dispenser comes with a 30-day guarantee and full online support. Remote technical support via chat and video conferencing from our multilingual team removes geographic constraints. This support structure is especially useful for service firms maintaining remote ATM networks where on-site knowledge may not always be accessible. These supply chain benefits enhance the dispenser's engineering appeal and technical performance. Superior product specifications and trusted vendor agreements that meet delivery promises and provide prompt support are essential for procurement success.

Cost Optimization Through Reduced Total Ownership Expense

Over multi-year operational lifecycles, initial purchase price is only a fraction of equipment cost. Total cost of ownership must include maintenance frequency, components consumption, labor, and system downtime opportunity costs.

Lower Material Waste Through Enhanced Accuracy

Improved note separation precision directly minimizes dispensing mistake currency waste. Picker assembly's 99.99% precision prevents thousands of transactions' expensive note waste. With millions of transactions every year, banks save enough money to overcome any module pricing premium.

Reduced Maintenance Labor Requirements

The modular architecture speeds up service, lowering labor expenses each maintenance event. Hourly-rate service providers fix faster, whereas institutions with internal technicians use their manpower for other tasks. Electronic assemblies that comply with RoHS and WEEE simplify end-of-life disposal and save remediation expenses.

Extended Component Lifespan

Feed kits' non-aggressive feeding mechanisms decrease dispenser and currency note mechanical wear. This soft treatment prolongs friction tire, belt, and pick mechanism life, lowering replacement frequency. ISO 9001-certified manufacture provides precise electromechanical cash handling component quality.

Flexible Purchasing Options

Our established supplier status allows various purchasing options, including bulk purchase savings for long-term partnerships. Predictable pricing and volume incentives help procurement teams plan annual budgets. We supply over 80% of ATM modules and components, enabling integrated buying for vendor management and equipment portfolio expenditure. Financial decision-makers review capital equipment acquisitions using ROI estimates beyond repayment periods. Upgrades to historical dispensing infrastructure are economically justified by lower operational costs, higher uptime, and flexible procurement terms.

Conclusion

Financial institutions, service providers, and ATM operators can enhance operations by switching to the AFD 2.0 Dispenser. S2 friction pick technology, updated attack vector protection, modular design, universal interoperability across heterogeneous ATM fleets, and trustworthy supply chain assistance answer procurement professionals' biggest issues. RM delivers the partnership infrastructure that turns technical specifications into practical realities with quick stock availability, 15-20 working day lead times, and 30-day warranty coverage.

FAQ

What maintenance procedures does this dispenser require?

Pick modules with friction tires, separating rollers, and timing belts that are replaced at level 2. The modular architecture lets the picker sub-assembly be switched without disassembling the chassis, unlike prior CMD-V4 systems. Routine maintenance follows specific steps to improve equipment life and reduce unscheduled downtime.

Can this module integrate with older ATM platforms?

DN Series 200 and 400 systems natively support the dispenser. Backward compatibility with the ProCash series needs major hardware changes and upgraded controller hubs. Modification costs usually exceed platform migration's economic advantages, hence we favor terminal improvements over retrofits.

How does the system handle transaction interruptions?

State-retention memory keeps transactions alive during power outages. Firmware checks sensor statuses after power restoration to see if notes are in transit. The system automatically purges unidentifiable notes to the retract bin before returning to in-service status, preserving audit trail integrity.

What condition options are available for purchase?

We provide fresh and properly reconditioned devices. All reconditioned modules are tested to assure perfect functioning order and come with a 30-day warranty. This flexibility lets procurement managers optimize budget allocation depending on operational needs and risk tolerance.

Partner with a Trusted AFD 2.0 Dispenser Supplier for Your ATM Infrastructure Needs

ATM parts solutions specialist RM has supported banks, manufacturers, and service firms globally for over 20 years. Our ISO 9001-2008-certified Shenzhen factory makes high-quality dispenser modules with component traceability. Our extensive inventory of crucial assemblies, from main CCA units to transport systems to cassette configurations, ensures fast completion of normal and emergency requests. Contact Tang@atm-part.com immediately to discuss your needs and get detailed quotes. Explore our comprehensive product selection at atm-part.com and learn how our technical experience and prompt service build enduring connections with financial equipment experts in the US and emerging markets worldwide.
