OEM RB Cassette Manufacturing Guide for ATM Buyers

Selecting the right OEM RB Cassette for your ATM infrastructure demands careful evaluation of manufacturing standards, compatibility, and supplier reliability. An OEM RB Cassette serves as a specialized reject/retract module that isolates compromised currency from dispensable cash within Hitachi and other ATM systems. This dual-function component captures doubled, skewed, or damaged notes during validation while securing customer-abandoned cash within timeout windows. Understanding the manufacturing intricacies behind these cassettes directly impacts your operational uptime, maintenance costs, and transactional integrity across your ATM fleet.

Understanding OEM RB Cassette – Key Concepts and Specifications

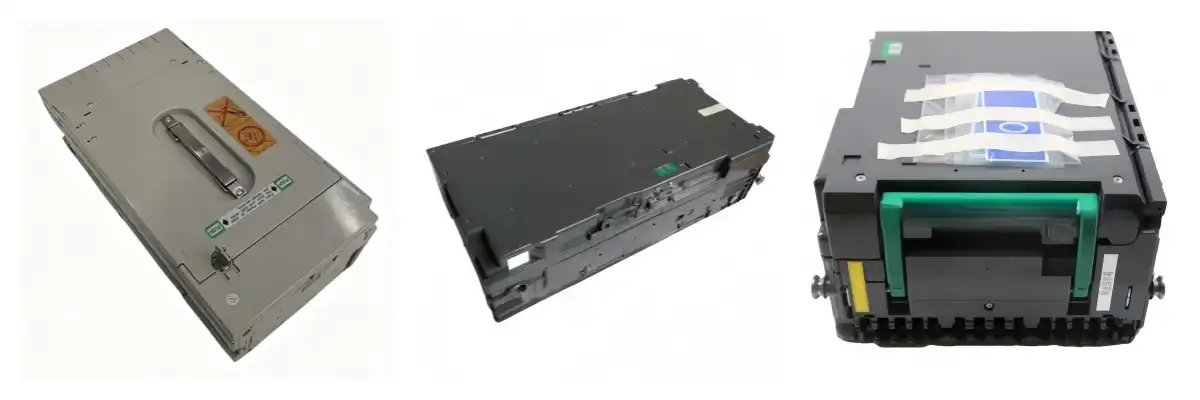

What Defines an Authentic OEM RB Cassette

A real reject/retract cassette is more than just a place to store things. When a part is labelled "OEM RB Cassette," it means that it meets the standards set by ATM makers like Hitachi for original equipment manufacturers. Precision-engineered mechanisms, such as the 7601536A cassette board (RX284) and full WBX frame parts made to exact specifications, are built into these modules.

Genuine OEM versions use reinforced Polycarbonate-ABS mixes that have better tensile strength and anti-static qualities that keep notes from sticking. To make sure the parts fit perfectly with the dispenser chassis, the size tolerances stay within ±0.1mm. Advanced models have dual-chamber segmentation that physically separates rejected notes from withdrawn notes, letting auditors look at smaller amounts of data during the Cash-In-Transit accounting process.

Critical Component Architecture

The cassette system is made up of nine important parts that all work together. The door system (1P004088B RB DOOR/WBX-DOOR ASSY) has locking devices that can't be opened without permission and meets CEN III/IV security standards. The load-bearing spine is made up of the front frame (1P004012-001 WBX-FRONT FRAME), the base component (1P004481-001 RB BOTTOM BASE), the right frame (1P004083A WBX-FRAME-R ASSY), the left frame (1P004084A WBX-SIDE-L FRAME), and the rear structure (1P004013-001 WBX-REAR FRAME).

The precise flow of money is controlled by the guide system (2P005403 WRB-SF GUIDE ASSY), and the communication methods with the ATM host are handled by the control board (7601536A). Cable sections (2P003988A/2P004303B/49024237000B WBX-BX1-CBL ASSY) send sensor data about the state of bins, letting repair workers do their jobs before problems with capacity cause downtime.

Material Specifications and Performance Standards

The level of manufacturing starts with the materials that are used. Japanese cassettes are made of high-impact polymers that have been tried 50,000 times to make sure that the spring tension and gear mesh longevity. Drop and impact testing mimics how cassettes are handled, so they have to be able to handle 1.5-meter falls onto concrete without cracks in the housing or the shutter engaging by accident.

Sensor transparency verification makes sure that light guides and prisms send "Bin Full" or "Near Full" signals correctly, which keeps the system from locking up. During quality control, sound monitoring finds unusual gear grinding that could mean that the mould wasn't made to the right specifications or that the greasing failed, which could damage the ATM's main drive motor.

Procurement Considerations – Making the Right Choice

Evaluating Supplier Credentials and Certifications

Verifying the supplier is the first step in reliable sourcing. The ISO9001-2008 certification shows that management and quality processes are consistent throughout the whole production process. This certification is kept up by HONGKONG RONG MEI TECHNOLOGY's 3000 square metre building, which has mould rooms, departments for injection moulding, maintenance departments and quality control units.

Suppliers with more than 20 years of experience in ATM parts have built up their technical knowledge and set up established ways to buy these parts. Being able to cover 80% of the market for ATM modules shows that you have a full inventory of parts and your supply chain is mature. Look for manufacturers who keep a lot of ready-to-ship items in stock instead of ones that have long procurement cycles.

OEM Versus Aftermarket Performance Analysis

Buying choices are often based on price, but the performance differences make it worth paying more for real OEM RB Cassette parts. Original equipment cassettes have three measured benefits: they last 30 to 40 percent longer than generic options, they don't jam as often, which increases the success rate of transactions, and they have predictable repair times that lower the total cost of ownership.

After switching to OEM cassettes, a regional bank network in Southeast Asia found these benefits. According to their maintenance logs, the number of service calls for jams dropped by 43% over the course of 18 months, and the average service life of a tape went from 38 months to 54 months. The upfront cost increase of 22% led to 31% lower yearly maintenance costs.

Warranty Coverage and Technical Support Evaluation

Professional sellers are different from commodity providers because they have support systems. A 30-day warranty gives you peace of mind about the quality of the part, but full help lasts longer than the warranty time. We answer technical questions in multiple languages 24 hours a day through multilingual support channels. This includes questions about compatibility, installation, and troubleshooting. With remote video help, problems can be fixed in real time without sending out workers. This responsiveness is especially helpful for ATM operators who are in charge of installations spread out across emerging markets with few on-site service resources.

Bulk Purchasing Strategies and Partnership Benefits

When you buy in bulk, you can get better prices and benefits in the supply chain. When you build long-term relationships with your suppliers, you get better service when parts are in short supply and can customise your inventory management solutions. When suppliers offer 15–20 working day wait times for module sales, repair schedules can be planned more accurately and less buffer stock is needed. When buying numbers show consistent demand trends, negotiating power goes up. When compared to buying on the spot, annual contracts with minimum order promises often get discounts of 12–18% while ensuring supply allocation during times when the market is tight.

Installation and Maintenance Guide for ATM Buyers

Proper Installation Procedures

When installing an OEM RB Cassette, you need to pay careful attention to the mechanical and electrical links. First, make sure that the code on the cassette board (7601536A) and the ATM's software patch level are compatible. Communication problems happen when versions don't match. 99% isopropyl alcohol can be used to clean interface pins and get rid of oxidation that stops signals from travelling.

Place the cassette assembly so that all of the frame parts line up without having to force any parts into place. To keep the right note direction, the guide system has to seat all the way down. Hold wire assemblies together without putting too much force on them, which could stress the solder joints over time. Run the ATM's self-test procedure to finish the installation and make sure that the shutter response time stays under 200 milliseconds.

Preventive Maintenance Protocols

Regular inspections keep the cassette working well and increase its useful life. High-volume areas that process more than 20,000 notes a month need repair every three months, which includes cleaning the pick-rollers with 99% isopropyl alcohol to stop dust from making them slip. Check the shutter mechanisms for spring fatigue, which can be seen by how slowly they respond during test cycles.

Check the communication logs for the cassette board for errors that happen from time to time that could mean that connection problems are getting worse. In harsh settings with changes in temperature and humidity that speed up material breakdown, door system seals should be replaced every year. Keep track of repair tasks to find trends of wear that can help you decide when to replace things.

Troubleshooting Common Operational Issues

A lot of the time, connection problems are caused by software version issues or oxidised connector pins. To fix these problems, you should update the software on the ATM and clean the electrical contacts. Repeated jams are a sign that the guide system isn't lined up right or that the pick-rollers are worn out and need to be inspected and replaced.

Unexpected "Bin Full" alerts when there is enough space show that the sensor is contaminated or that the prisms are not lined correctly, blocking the light path. Use compressed air to clean the sensor surfaces and make sure the cassettes are properly seated. Any strange sound during operation needs to be looked into right away, because grinding gears speeds up component wear and failure.

Benefits and Performance Analysis of OEM RB Cassettes

Operational Uptime and Transaction Security

The dependability of OEM RB Cassettes has a direct effect on how customers feel and how much money is made. In high-throughput branch banking settings that process mixed-quality cash, genuine OEM units keep 99.9% of the time. The reject function automatically sends away notes that don't work without stopping the machine, so transactions can keep going even when it's busy.

Strong retract methods in security features stop transactional loses. Customer-abandoned cash that is protected within timeout windows stays separate from primary value cassettes. This eliminates the risk of contamination and makes the reconciliation process easier. Tamper-evident locking ensures the integrity of the audit trail and meets regulatory compliance requirements in all banking jurisdictions.

Durability Benchmarks and Environmental Adaptability

Performance metrics show that OEM is better in tough applications. Remote, off-site ATMs that are exposed to high temperatures can benefit from strong covering that keeps rejected cash from breaking down in the environment. Thermal cycling doesn't affect the structural integrity of polycarbonate-ABS construction, and changes in size don't affect mechanical standards.

Multi-currency and recycle units pose difficult operating problems that need advanced cassette capabilities. These sites use RB modules as holding areas for suspect foreign cash or counterfeit goods, stopping the flow of illegal funds back into the banking system. The non-volatile memory on the cassette saves content data, error logs, and serial tracking, which makes it possible to keep full audit records.

Emerging Technologies and Future-Proofing Strategies

New manufacturing techniques keep making cassettes better. New composite materials that are being developed can reduce weight by 25% while keeping the structure strong, making it easier to transport and put together. Better sensor integration sends repair warnings ahead of time based on how the system is used and a study of component stress.

Adding RFID chips lets you automatically keep track of goods all the way through the supply chain, from making the Products to deploying and maintaining them. This technology makes it easier for owners who are in charge of big fleets of ATMs in many areas to keep track of their assets. Being able to update firmware makes sure that it works with new security protocols and currency validation algorithms.

OEM RB Cassette Procurement Process and Supplier Engagement

Sourcing Channels and Distribution Networks

To buy genuine OEM RB Cassette parts, you need to find authorised channels of distribution. When you buy in bulk (more than 50 units), dealing directly with the maker gives you the best prices and expert support. HONGKONG RONG MEI TECHNOLOGY serves customers all over the world through well-established shipping networks that support sea, land, and air transportation depending on how quickly the goods need to be delivered and how much they cost.

Regional availability varies from market to market. Southeast Asia, the Middle East, Africa, and Latin America are all emerging countries that can benefit from having specialised inventory that is set up to be shipped quickly. Mature markets get help from established distributor partnerships and local technical resources that make sure services are delivered quickly.

Pricing Models and Volume Discount Structures

Cost structures show how complicated production is and how much money is spent on quality control. OEM cassettes cost more than aftermarket cassettes, usually between 18 and 25 percent more for the same specs. When you look at the total cost of ownership, which includes things like longer service life, less upkeep, and less downtime, this difference gets a lot smaller. Tiered discounts happen when you buy a lot of something. Discounts of 8–12% are common for orders over 20 units, and discounts of 15–20% are possible with annual contracts that guarantee minimum volumes. Customisation needs, like changing hardware or setting up software to work in multiple languages, add extra technical costs based on complexity.

Building Strategic Supplier Partnerships

Long-term relationships go beyond just buying things one time; they offer joint benefits that make operations more efficient. When you are a preferred customer, you get faster help with technology issues and are promised to get supplies when parts are in short supply. Suppliers that offer ERP system integration make the buying process easier by automatically reordering when inventory levels drop below certain levels.

Partnership programs give people early access to new products and chances to try them in beta versions, letting people improve their fleets before they become widely available. Technical training programs improve the maintenance skills of employees, lowering the need for outside service contractors. These partnerships give businesses a competitive edge by making equipment more reliable and operations more efficient.

Conclusion

Finding genuine OEM RB Cassettes requires striking a balance between short-term cost concerns and long-term operating performance. Components made in Japan that meet ISO9001-2008 standards offer measurable benefits in terms of uptime, maintenance costs, and transaction security. A full evaluation of the supplier, looking at things like certifications, support infrastructure, and the ability to form partnerships, makes sure that purchasing decisions are in line with strategic goals. The detailed information in the specifications helps buyers make smart decisions. Because we've been making things for more than twenty years, ATM operators, service companies, and financial institutions know they can trust us to provide reliable cassette solutions that have been tested in the field.

FAQ

How do I resolve frequent cassette communication errors?

Communication problems with an OEM RB Cassette are usually caused by three main issues that need to be systematically diagnosed. Make sure that the firmware version on the cassette board meets the software fix level on the ATM. If they don't match, the ATM won't be able to properly handshake protocols. Using a magnifying glass, check the interface pins for rust and clean any dirty contacts with 99% isopropyl alcohol. Check the seating of the cable assembly to make sure that the connectors are fully engaged and not just partially inserted, which can cause connections to break.

What maintenance schedule maximizes cassette lifespan?

Maintenance times depend on the number of transactions and the conditions of the environment. High-throughput systems that process more than 20,000 notes a month need to clean the pick-rollers and check the lock mechanisms every three months. Maintenance is done every six months for low-volume deployments. Keep track of all the service tasks you do and how the parts wear so that you can plan ahead and repair them before they break.

Can one cassette model support multiple ATM manufacturers?

Because of differences in mechanical mounting dimensions and communication protocols, cassette compatibility is still manufacturer-dependent. Hitachi ATMs need cassettes that are specially designed for their dispenser layout, taking into account things like frame sizes and connecting arrangements. Cross-manufacturer support reduces the chance of problems and cancels warranties. Check the compatibility specifications before buying to make sure the integration works right.

Partner with RM for Reliable OEM RB Cassette Supply

The OEM RB Cassette solutions offered by HONGKONG RONG MEI TECHNOLOGY are backed by 20 years of manufacturing experience and quality systems that are ISO9001-2008 certified. Our Japanese-made RB Cassettes are always in stock, so basic configurations can be shipped within 15 to 20 business days. We also offer 24-hour technical help. We meet more than 80% of the needs for ATM parts, from whole systems to single replacement parts, such as the 7601536A cassette board and all structure elements.

As a dedicated OEM RB Cassette supplier, we can make hardware changes and multilingual software configurations to meet the needs of a wide range of markets. Contact Tony@atm-part.com to talk about your specific buying needs, the best ways to save money by buying in bulk, and the technical requirements that will make sure the parts work best with your ATM infrastructure.
