OEM CDU1100 Dispenser Solutions for ATM Manufacturers

The OEM CDU1100 dispenser is a cash dispensing module purpose-built for Nautilus Hyosung ATM systems, including the 1800SE, 2700CE, and Halo series. Sourced from Korea and available in both brand-new and refurbished conditions, this unit delivers a 4,000-note handling capacity through a Double 2K configuration. At RM (HONGKONG RONG MEI TECHNOLOGY CO., LIMITED), we have supplied Hyosung CDU components for over five years, backed by ISO9001-2008 certification, 24-hour online support, and a standard lead time of 15–20 working days.

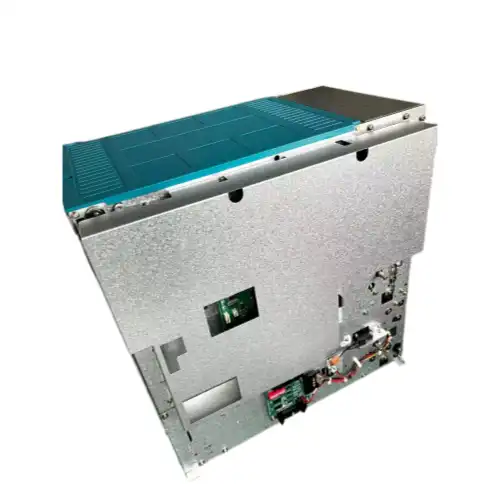

Understanding the OEM CDU1100 Dispenser

What the CDU1100 Does

The CDU 2K Dispenser CDU1100 is the main way that cash comes out of a number of popular Hyosung ATM models. It is in charge of physically counting, sorting, and delivering bills from boxes that are full to the customer tray. Its Double 2K layout lets it hold two 2,000-note tapes at the same time, which means that each machine can hold a total of 4,000 notes. In stores with a lot of customers, like convenience stores, gas stations, and grocery stores, this capacity directly lowers the number of times that items need to be restocked and stops operations from stopping.

Compatible ATM Models and Key Part Numbers

This module is factory-set to work with three Hyosung platforms: the Halo line, the Monomax 1800SE, and the Monomax 2700CE. Each platform uses the same CDU architecture, which makes it easier for operators who are in charge of mixed fleets to keep track of parts. Here are the important part numbers for the parts you need to know:

• Main Assembly (72841301): CDU-1100 Core Unit — the structural foundation of the entire module
• Dispenser Unit (7010000108): Double 2K Dispenser with full 4K capacity
• Pick Module (7010000080): 1 Channel, 1 Level configuration for clean note separation
• Cash Cassette (7310000082): CST-1100, rated for 2,000 notes per cassette
• Control Board (7670000040): G-CDU E Main Controller managing all electronic functions
• Channel Motor (58403106): Main Drive Motor powering note transport
• Feed Roller (7310000386-6): Separator component that isolates individual banknotes

These part numbers are important because Hyosung makes a lot of different kinds of CDUs. Referring to the right number, especially the clutch part number 5637000001, stops OEM CDU1100 dispenser mistakes that cost a lot of money when they happen in the field.

Technical Design Considerations

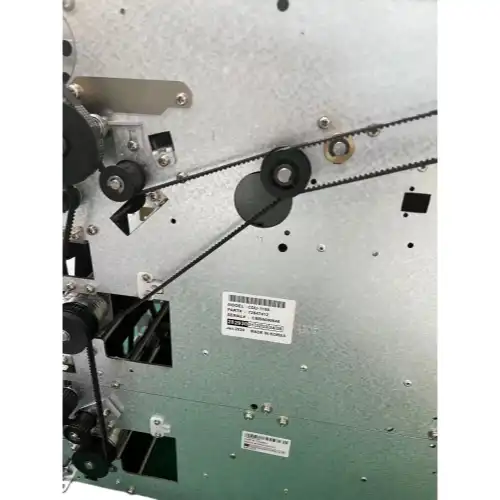

The CDU1100 separates notes electromechanically. A feed roller and a pick module work together to cut down on double-feeds and jams. For troubleshooting, the G-CDU E control board keeps an eye on every transaction cycle and writes down any errors it finds. With this design, it's possible to fix individual parts: instead of changing the whole module, a worker can just replace the clutch, belt, or sensor.

Why Choose the OEM CDU1100 Dispenser? A Rational Choice Approach

Cost Comparison with Alternative Models

The CDU1100 is often put up against the CDU10 or CDU-M by buying teams when they are looking at cash dispenser units. Rolling elements, belts, sensors, and the clutch (part number 5637000001) of the CDU1100 can be bought separately, which lowers the cost of upkeep per unit. It's much cheaper to buy a substitute clutch than to buy a whole new delivery unit. This saves a lot of money every year for IADs that take care of 50 to 200 ATMs.

Dual Condition Options Address Budget Realities

Not every user needs a brand-new module. RM offers two ways to buy things, and each one meets a different set of operational priorities:

• Brand-new units come directly from verified manufacturing lines, carry full 30-day warranty coverage, and are ideal for new ATM deployments or operators with strict quality documentation requirements.
• Refurbished units go through our in-house maintenance department, are tested to the same functional standard as new units, and offer a lower acquisition cost for operators managing older fleets or constrained budgets.

The good news is that both choices ship from stock, so your order doesn't have to wait to be made. This availability is a direct operational benefit for IADs that have machines that break down.

Real-World Reliability in the U.S. Market

In the US, Samsung has over 40% of the IAD ATM market. Because of this, the market for OEM CDU1100 dispenser parts is steady and rising. For more than five years, RM has sold CDU parts to users and dealers in North America. Each unit is tested by our QC department before it is sent out, so the part that gets to your building has already been functionally verified, not just visually checked.

Maintenance and Troubleshooting Guide for OEM CDU1100 Dispenser

Preventive Maintenance Schedule

Maintenance checks make sure that cash dispenser units keep working between repair times. This is the basic schedule that technicians working on Hyosung 1800SE, 2700CE, or Halo ATMs should stick to:

• Monthly: Inspect and clean the feed roller (7310000386-6) and pick module. Remove paper dust and debris from the note path.
• Quarterly: Check belt tension and condition. Replace worn belts before they cause transport errors.
• Bi-annually: Test the clutch (5637000001) engagement under load. A slipping clutch causes inconsistent note feeding and is one of the most common CDU failure modes.

Repairs can be done in hours instead of days if you keep extra gears, rollers, and belts on hand.

Common Fault Codes and Fixes

The G-CDU E control board (7670000040) sends out error codes that identify specific problems with the machine. Most of the time, a feed jam error is caused by a broken feed roller or a pile of junk in the note path. A motor fault generally means that the channel motor (58403106) needs to be checked out or replaced. Sensor mistakes, which are often caused by dust buildup, can be fixed by cleaning just the affected area instead of replacing the whole module.

Accessing Technical Documentation

RM offers technical support in English and can provide diagrams of the CDU1100's parts and maintenance guides. You can email Tony@atm-part.com or visit atm-part.com to get information that is special to your ATM type.

Procurement and Supply Chain Insights for OEM CDU1100 Dispenser

Sourcing Strategy for North American Operators

IADs and distributors in the U.S. need quick turn-around. RM sends freight by air, sea, and land. For urgent orders, they can use air shipping. For sales of modules, the standard wait time is 15 to 20 working days. Orders for sub-components like gears, sensors, and wheels usually go through faster. For operators building up a maintenance stockpile, making a planned order on a quarterly schedule lowers the risk of having to buy something quickly at OEM CDU1100 dispenser high freight rates.

Pricing, Warranty, and Payment Terms

RM offers wholesale prices for large orders and lets known buyers choose how to pay. Every unit comes with a 30-day warranty that covers problems with the way it was made, and our customer service team answers questions within 24 hours. We also carry a wide range of the full CDU1100 sub-component list, so you can work with just one source for all of your parts needs, from the main unit (72841301) to the smallest separator component.

Managing Part Number Complexity

Hyosung's product list has versions of the CDU10, the CDU1100, and the CDU-M. Part numbers do change between hardware updates. Always include both the model of the ATM and the part number when placing an order. The technical team at RM can compare your existing parts to the ones we have in stock to make sure they work together before they are shipped.

Partnering with Reliable OEM CDU1100 Dispenser Suppliers

Evaluating Supplier Credentials

Certification and the framework for making the parts are important when choosing a Hyosung CDU provider. RM has a 3,000-square-meter building in Shenzhen that is used for injection molding, upkeep, and quality control. Our production and quality methods are governed by ISO9001-2008 certification. These are not marketing claims; they are standards that have been checked and will have a direct effect on the parts you receive.

Support Infrastructure for Long-Term Relationships

Technical ease is important for building trusting relationships with suppliers that go beyond the original transaction. RM offers online and video direct help in a number of languages. If you are a procurement manager working with people in different time zones, our 24-hour response guaranty on questions means you get answers without having to wait a full business cycle. We can provide full sets of CDU1100 parts to distributors who are building a Hyosung parts product line. We can also help with OEM packaging needs and talk about yearly volume deals.

Customization Capabilities

The research and development team at RM can change current modules and parts to fit unique working needs. This includes making changes to the hardware and the language settings so that they work with devices in different regions. If your fleet has specific configuration needs, please get in touch with us early on in the buying process so we can see if it's possible.

Conclusion

The Nautilus Hyosung ATM's CDU 2K Dispenser CDU1100 has been used in the field and has been proven to work. It can hold up to 4,000 notes, works with the 1800SE, 2700CE, and Halo models, and has full sub-component access. RM sells new and used units from confirmed in-stock inventory to operators, distributors, and refurbishers in the U.S. market. These units come with a 30-day guarantee and 24 hours of support. Buying OEM CDU1100 dispenser parts one at a time, all the way down to the clutch (5637000001), keeps repair costs low and machine uptime high.

FAQ

Is the CDU1100 compatible with all Hyosung Monimax models?

For the Hyosung 1800SE, 2700CE, and Halo lines, the CDU1100 is the right one. It does not fit all versions of the Monimax. Make sure you know what kind of ATM you have before you buy.

Can I purchase individual sub-components instead of a full module?

Yes, RM has all the parts for the CDU1100, such as the clutch (part number 5637000001), the feed roller (7310000386-6), the channel motor (58403106), the control board (7670000040), and other parts that are sold separately.

What is the lead time for CDU1100 orders?

The normal wait time for a part is 15–20 working days. If there are enough in stock, sub-components may ship faster. Orders that need to be sent quickly can use air freight.

Do refurbished units carry a warranty?

Yes. The CDU1100 comes with a 30-day guarantee and online technical help, whether it's brand new or used.

How do I get technical documentation in English?

Visit atm-part.com or email Tony@atm-part.com to get in touch with RM. Within 24 hours of your request, our support team will send you component images and repair guides in English.

Request a Quote from RM — Your Trusted OEM CDU1100 Dispenser Supplier

RM has both new and used CDU1100 units in stock, as well as all the parts you might need and a 24-hour reaction time. We're ready to help you whether you need a single new module or a deal for a lot of them. Contact Us at Tony@atm-part.com to get pricing information, make sure the parts will work together, or start a conversation about buying in bulk today.
