F53 Top Unit vs Presenter Unit: Key Differences Explained

When sourcing replacement components for Fujitsu F53 ATM systems, one question surfaces repeatedly among procurement managers and field engineers: what exactly separates the F53 top unit from the Presenter Unit, and which one does your operation actually need? These two modules sit within the same dispensing assembly yet perform fundamentally different jobs. Getting this distinction wrong means ordering the wrong part, extending machine downtime, and absorbing costs that compound by the hour. This article breaks down the technical differences, deployment scenarios, and procurement factors so you can make a confident, well-informed sourcing decision.

Overview: What Each Module Actually Does

The F53 Top Unit — Upstream Picker and Separator

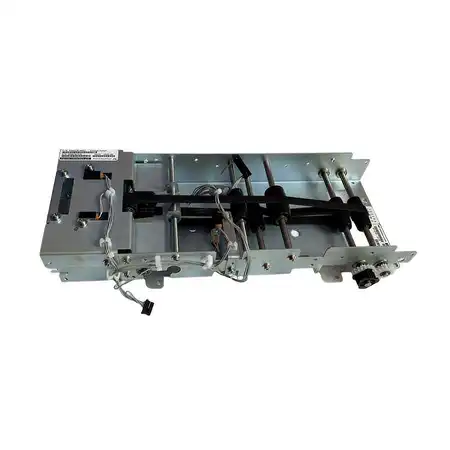

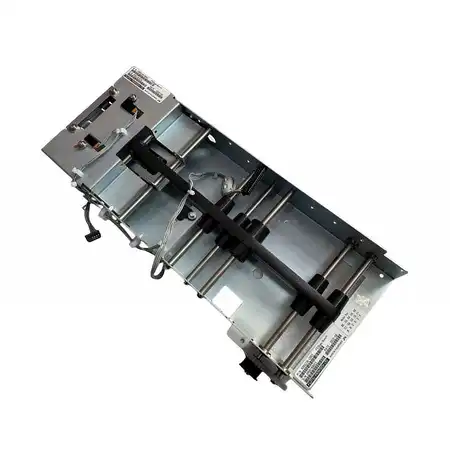

The F53 top unit, which has the part number KD03235-C224, is the motorized assembly upstream that picks out individual bills from the cassette stack, uses friction-feed technology to separate them, and moves them into the transport path. It is the mechanical heart of the Fujitsu F53 and F510 systems that print bills. If the top unit doesn't work right, no note ever gets into the delivery line. This module family has the Spray Unit (KD03235-C002), the Spray R Unit (KD03235-C102), the CGR Spray Unit (KD03235-C003), the USCAN Spray Unit (KD03235-C005), the IBM TOP Unit (KD03235-C004), the Tray F Unit (KD03236-C002), and the Semi Bunch Unit (KD03236-C006).

The Presenter Unit — Final-Stage Delivery Gate

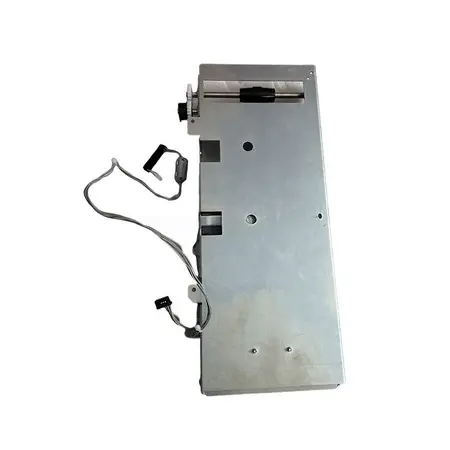

The Presenter Unit, which is often called part number KD03300, is at the other end of the distribution process. A validated note bundle comes from the main transport path, and it is held at the exit bezel until the customer gets it. If the customer doesn't show up, the unit puts the notes back into the rewind tape. Its only job is to handle shipping and customer interactions; it doesn't pick or separate items.

Technical Comparison: F53 Top Unit vs Presenter Unit

Knowing the structural and functional differences between these two units helps keep them from being mistakenly bought and speeds up repairs at the technician level.

When engineering teams are looking for replacement parts, these are the main things that set them apart:

• Position in the note path: The F53 top unit operates at the cassette intake stage. The Presenter Unit operates at the exit bezel stage — the last mechanical checkpoint before a note reaches the customer.
• Primary mechanism: The top unit employs friction-roller pick technology driven by a DC motor with integrated sensors for double-note detection. The Presenter Unit uses belt-driven transport rollers and a shutter/gate mechanism controlled by a stepper motor.
• Sensor density: The top unit contains multiple jam-detection and thickness-measurement sensors to screen notes before they enter the path. The Presenter Unit carries fewer sensors, focused primarily on present/retract state confirmation and exit shutter positioning.
• Wear pattern: The top unit experiences higher mechanical stress because friction rollers contact every note processed. Mean cycles between failures are therefore shorter, making it the more frequently replaced component of the two.
• Integration complexity: Replacing the top unit requires cassette removal and alignment calibration. The Presenter Unit typically involves bezel disassembly and shutter timing verification.

Even though they share the same ATM chassis, these changes mean that the two units can't be switched out. The most common source of purchase mistake can be stopped by giving the right part number during the inquiry stage.

Application Scenarios and Use Cases

Where the F53 Top Unit Performs Best?

The F53 top unit is used in situations where continuous, high-volume dispensing is the norm. This module is heavily cycled by bank ATMs that are open 24 hours a day, seven days a week, gambling cash-access kiosks, and hotel automatic cashiering systems. If an IAD runs more than 50 ATMs in Southeast Asia or the Middle East, the top units will usually be replaced every 6 to 18 months, based on how many transactions are made and the state of the local currency. The top unit is the first part of a fully rebuilt machine that is checked in refurbishment factories in India, Brazil, and Turkey. The condition of this part directly affects whether the refurbished ATM can offer a valid 6- to 12-month warranty.

Where the Presenter Unit Is the Relevant Component

When customers say that notes don't show up in the right place, partially eject, or retract errors that aren't caused by the upstream path, the Presenter Unit becomes the focus of the diagnostic work. The Presenter Unit's retract mechanism is put through more than normal cycling stress in places like supermarket ATMs and gaming floor cash dispensers, where people often leave in the middle of a transaction. It is normal for ATM owners who have already ruled out upstream path problems to buy this part separately instead of as part of a full dispenser repair.

Maintenance, Troubleshooting, and Common Issues

Top Unit Maintenance Priorities

The F53 top unit's friction wheels quickly gather paper dust and ink leftovers. Roller life can be measured by how long it lasts after being cleaned with IPA-soaked cloths every time the cassette is refilled. Double-feed errors recorded in the ATM journal are the first sign that the rollers are wearing out. If this is caught before a full jam happens, a note getting stuck in the transport path is avoided, which is more disruptive. Second most common cause of failure is sensor contamination. Clearing the double-detect sensor window with compressed air can fix many jam codes before an actual module swap is needed.

Presenter Unit Troubleshooting Notes

Most repair calls to the Presenter Unit are for retract failures and shutter-stuck mistakes. In high-cycle settings, the main technical problem is belt slippage caused by wear and tear. "Present timeout" error codes are caused by shutter alignment drift. This is usually fixed by a mechanical reset instead of replacing the whole module. If a replacement is needed, checking the shutter timing parameter after installation stops the error code from showing up again.

Procurement Considerations and Decision-Making Factors

The choice between a brand-new and a used module has the biggest impact on the total cost of ownership. A brand-new F53 top unit has the longest service interval and the most predictable wear curve. This makes it the best choice for high-volume terminals where unplanned downtime could cost a lot of money. A fully tested refurbished unit from a seller with recorded quality control methods can save you 30% to 50% compared to OEM price. This is a big number for people who are in charge of groups of 50 or more machines.

The trustworthiness of the supplier is the same. When purchasing managers look at F53 top unit suppliers, they should make sure that the Products are in stock, that the lead times given are accurate (15 to 20 working days), and that the suppliers offer expert help after the sale. The standard in the business is a 30-day warranty with online and video-assisted remote help. Any supplier giving less should be looked at closely. Flexible payment choices (T/T and L/C) and OEM-neutral packaging are important, especially for regional sellers who have to deal with buying things in different currencies.

Conclusion

The Fujitsu F53 dispensing assembly has two parts, the F53 top unit and the Presenter Unit. They work in a certain order but do completely different things. Note separation and pickup are controlled by the top unit at the cassette stage, while final delivery and retract are controlled at the customer interface by the presenter unit. Every service event takes longer and costs more when the wrong module is blamed. Teams that buy things know these differences and can find things faster, deal better, and make spare parts stockpiles that last longer. Both new and used parts are available, and they have been tested to work with Fujitsu F53 and F510 systems.

FAQ

Can the F53 top unit and Presenter Unit be ordered together as a bundle?

Yes. Suppliers who have a lot of F53 in stock usually sell both units together as a filling kit. This method helps fleet operators schedule replacements ahead of time instead of repairs that need to be done right away.

What part number identifies the standard F53 top unit?

KD03235-C224 is the main part number. KD03235-C002 is a Spray Unit, KD03235-C003 is a CGR Spray Unit, KD03235-C004 is an IBM TOP Unit, KD03235-C005 is a USCAN Spray Unit, KD03235-C102 is a Spray R Unit, KD03236-C002 is a Tray F Unit, and KD03236-C006 is a Semi Bunch Unit.

Is a refurbished F53 top unit reliable enough for a 24/7 ATM deployment?

A refurbished unit that has been through a recorded multi-point quality control process that includes roller inspection, sensor calibration, and full-cycle testing works reliably in settings where it is used all the time. Before agreeing to large sales, make sure you know how the supplier tests their products.

What warranty should I expect from a reputable supplier?

A 30-day warranty with online or video remote support is standard for both new and used modules in the industry. Lead times of 15 to 20 working days and a response time of 24 hours to inquiries show that the supplier really does have a lot of stock.
