F53 Top Unit Supplier in China: OEM Parts Buying Guide

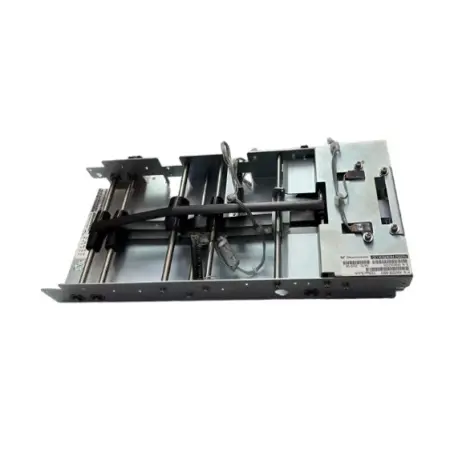

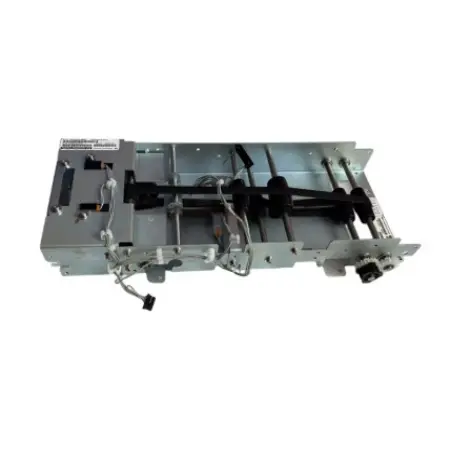

If you manage Fujitsu F53 ATM networks and need a dependable source for the dispenser module that sits at the heart of bill delivery, this guide is for you. The F53 top unit (part number KD03235-C224) is the friction-feed assembly responsible for picking, separating, and routing banknotes toward the exit bezel. Sourcing it from a verified Chinese supplier can cut replacement costs by 30–50% compared to OEM list prices, without sacrificing the fit or function your field engineers depend on.
​​​​​​​​​​

Understanding the F53 Top Unit: Specifications and Features

What the Module Actually Does?

For the Fujitsu F53/F510 bill-dispensing unit, the F53 top unit is the stage before it. A friction-roller device picks out individual notes from the tape, separates them, and sends them to the presenter stage (KD03300-C100). The presenter stage then gives the notes to the customer at the exit bezel. Any mistake at this point stops the delivery of cash, so the quality of the parts cannot be negotiated.

Key Technical Details

Each of the main parts in the F53 series dispenser module family is shown below, along with its part number so that you can easily find it when you need to buy it.

Availability and Condition Options

RM sells both brand-new and used F53 top units. Before it is sent out, refurbished stock goes through a full teardown, cleaning, roller replacement, and working test cycle. Both choices come with a 30-day warranty and technical support that you can get online. Standard lead times are 15–20 working days from the time an order is confirmed until it is shipped.

Comparing the F53 Top Unit Against Alternatives

F53 vs. F52 Dispenser Modules

The F52 series has an older sensor configuration and a feed path that is a little narrower. Some workers try to cross-install, but the mechanical tolerances are not the same enough to avoid note skew mistakes. The F53 top unit was specifically made for the F53/F510 frame, and the electrical connectors fit perfectly without any changes.

New vs. Refurbished: A Practical Comparison

The table below shows the two condition grades that RM offers next to each other. This helps procurement managers match budget to operational risk tolerance.

What 2024 Buyer Feedback Tells Us?

In 2024, ATM owners in Southeast Asia and the Middle East who bought refurbished F53 dispenser modules from Chinese suppliers always said that the 30-day warranty window and pre-shipment testing reports were the two things that made them decide to buy. Price alone wasn't usually what made the difference; test results that were written down were more important during the evaluation phase.

Procurement and Ordering Process from Chinese Suppliers

Where to Start Your Search

A lot of procurement managers find verified F53 dispenser module suppliers on Google, Alibaba International, or the websites of the manufacturers themselves. At atm-part.com, you can find RM's product list and check to see if it's in stock, ask for a specification sheet, or send a question directly. If you have a mechanical question, we'll answer it within 24 hours.

Pricing Structure and Negotiation

Chinese suppliers usually use a volume-tiered model to set prices for F53 top units. Trial orders for one unit cost more than orders for five units or more, which usually get a big discount. RM supports both T/T and L/C as payment terms, which is important for regional distributors who have to handle buying cycles in more than one currency.

At this point, these are the main steps that most B2B buyers take when they place an order:

• Online inquiry (Day 1–2): Submit part number KD03235-C224 with quantity and destination via atm-part.com or email Tony@atm-part.com. RM confirms stock and provides a formal quotation within 24 hours.
• Technical confirmation (Day 2–5): Share your ATM model and serial number range. RM verifies compatibility and can supply installation documentation on request.
• Sample or small-batch trial (Week 1–2): First-time buyers typically order one to three units to test in the field before committing to larger volumes.
• Bulk order dispatch (Day 15–20): Full orders ship via sea, air, or land freight, depending on urgency and destination. Air freight suits emergency restocking; sea freight reduces cost for planned quarterly orders.

These steps keep the risk of downtime low and give your tech team time to make sure the order fits before it's scaled up.

Shipping and Customs Considerations

RM sends packages to Eastern Europe, Latin America, Southeast Asia, and the Middle East. As usual, customs paperwork is made, such as commercial invoices and packing lists that include the right Harmonized System code for ATM parts. For markets where import clearance times are important, air freight with tracking from DHL or FedEx is the best choice.

Installation, Maintenance, and Troubleshooting

Installation Best Practices

Turn off the ATM and clear out any static from the dispenser bay before putting in a new F53 top unit. Make sure that the friction rollers are lined up with the note transport guides and that the sensor contacts are fully seated. RM offers online and video remote support for workers who need help right away with setups they are doing for the first time.

Maintenance to Extend Service Life

The friction rollers are the part of this assembly that wears out the fastest. Service intervals are greatly increased by wiping the roller surfaces with an IPA-soaked cloth every 60,000 to 80,000 note cycles. After cleaning, sensor calibration checks stop false jam alerts that would otherwise cause needless field visits.

When to Escalate to Supplier Support

If a newly installed module keeps making double-feed mistakes in its first 500 cycles, it's probably because the tension spring isn't lined up right, not because the part itself is broken. Send a short video clip of the jam pattern to Tony@atm-part.com to get in touch with RM's technical team. Most problems that happen after installation can be fixed remotely, without having to send the part back.

Selecting the Right F53 Top Unit Supplier in China

Certifications and Quality Systems to Check

A reliable supplier of ATM parts will have ISO9001 certification and separate lines for quality control. In Shenzhen, RM has a 3,000-square-meter building with a mold shop, an injection molding department, a repair workshop, and a quality control floor. The company is certified by ISO9001:2008. These physical skills are important because they show that the supplier can test the goods it sends.

Factory Audit and Documentation Standards

Before you sign a long-term supply agreement, make sure you get a test report for the batch you're buying, not just a general certificate. Ask the supplier if they can give you records of how the parts were found. RM keeps records of all the modules that are sent out, including when they were made and inspected. This helps with warranty claims and any quality checks that your operations team needs to do.

Long-Term Partnership Value

Working with a single, stable supplier for the F53 dispenser module family, which includes the spray unit (KD03235-C002), the CGR spray (KD03235-C003), and other parts, makes it easier to manage relationships with multiple vendors. RM covers more than 80% of ATM units and spare parts on the world market. This means that your team can use one account to buy Fujitsu parts for multiple models.

Conclusion

For teams managing Fujitsu F53 ATM fleets, the F53 top unit is a critical dispenser component that directly impacts cash availability and uptime. Choosing a qualified supplier with verified stock, strict pre-shipment testing, clear warranty terms and responsive remote technical support helps balance cost savings against operational risk. Whether you opt for brand-new or refurbished units, validating compatibility, reviewing test documentation and planning lead times ahead of maintenance cycles will reduce unexpected service interruptions. With structured ordering workflows and accessible after-sales support from suppliers like RM, procurement and engineering teams can build a stable spare-part supply chain that keeps your ATM network running reliably across global markets.

FAQ

Q1: How long does shipping take to Southeast Asia or the Middle East?

A: Standard production and dispatch takes 15–20 working days. Air freight to the Philippines, Indonesia, or UAE typically adds three to five business days in transit. For urgent restocking, RM can prioritize air dispatch from Shenzhen.

Q2: Does the 30-day warranty cover refurbished units?

A: Yes. Both brand-new and refurbished F53 top units carry the same 30-day warranty from the date of receipt, supported by online and video technical assistance.

Q3: What documentation comes with each order?

A: Each shipment includes a packing list, commercial invoice, and a pre-shipment test record for the specific units dispatched. Technical installation guides are available on request.

Q4: Can RM supply the full F53 dispenser module set, not just the top unit?

A: Yes. RM stocks the complete F53 dispenser component range, including the Semi Bunch Unit (KD03236-C006), Tray F Unit (KD03236-C002), and all spray unit variants listed in this guide.

Q5: Is customization available for specific banknote denominations or regional currency types?

A: RM can adjust friction tension and sensor sensitivity settings for regional currency specifications. Contact the technical team with your currency and denomination requirements before ordering.

Get a Quote for the F53 Top Unit — Contact RM Today

For more than 20 years, RM has sold Fujitsu ATM dispenser parts to users and dealers on four continents. RM is a verified F53 top unit manufacturer and supplier based in Shenzhen. They offer quality Products that are ISO9001-certified and direct technical support. To get an official quote within 24 hours, email Tony@atm-part.com with the part number and amount you need.
