CMD V4 Dispenser Uses in High-Volume Banking Environments

When banking institutions have to deal with thousands of people every day, they need to be able to reliably hand out cash. The CMD V4 Dispenser is a big step forward in friction-based note issuing technology. It was designed to work with Wincor Nixdorf ProCash ATMs in tough, high-volume banking situations. This fourth-generation cash media module has better photosensors, stronger gear-drive mechanisms, and smart note-handling features that can play up to 60 notes per second and recognize double notes with micron-level accuracy. This device solves the main problems that banks are having, like machines breaking down often, maintenance costs going up, and unhappy customers during busy times, thanks to its proven 200,000+ transaction MCBF rating and flexible design philosophy.



Comprehending the CMD V4 Dispenser and Its Role in Banking Operations

Modern ATMs are like quiet workhorses that handle hundreds of activities every day without being watched. The cash dispensing section is the most important part of this environment. It determines whether customers are happy or unhappy when they leave.

Core Architecture and Technical Foundation

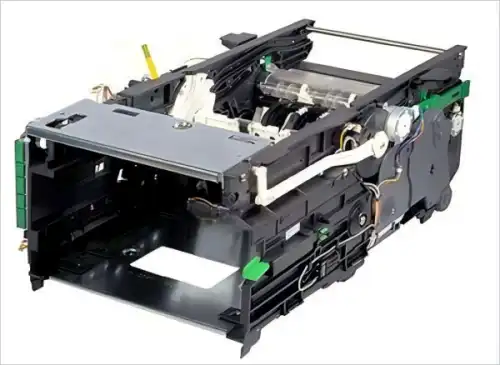

The CMD V4 Dispenser works with a standard 24V DC logic and uses fast serial connection to connect easily to ATM main processors. This fourth-generation dispenser can hold up to six tapes, based on how the logic is set up. This lets banks keep a variety of bills in stock and make the best use of vault space. The thickness of the notes can be between 0.06mm and 0.18mm, so it can handle both old-fashioned cotton-based bills and newer polymer currencies that are hard for older printer models to handle.

The improved mechanical accuracy of this module sets it apart from earlier versions. Better photosensors are carefully placed along the shipping lines, and electromechanical rollers are used in the Double Note Detect stations to complete the system. These parts work together to find differences in note thickness very accurately. This stops expensive mistakes called "double dispensing" that hurt customer trust and the institution's bottom line.

Critical Components for Seamless Integration

There are important parts that work together as a whole in a full setup. The 01750074210 processor with USB port handles communication protocols, and the 01750109641 MDMS unit plans how to handle media. The 01750045348 vertical transport unit and the 01750057875 horizontal transport unit are what make transport reliable. They move notes along perfectly measured paths.

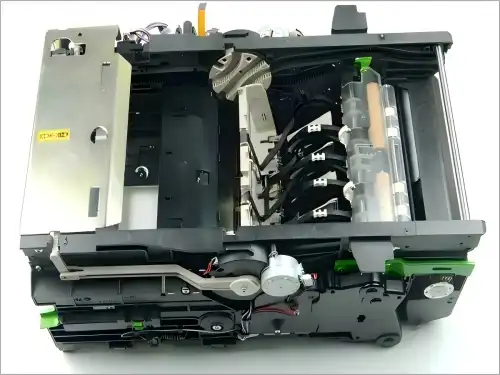

The stacking system includes the 01750109659 stacker, which can reject a single note vertically. It is held up by left and right stacker wheels (part numbers 01750054751 and 01750054871), which make sure that the notes are lined up correctly. The 01750082602 horizontal shutter and the 01750045330 vertical shutter are security features that keep cash physically separate until identification is complete. The 01750044544 primary drive motor maintains a steady force level in a range of weather conditions. The 01750044878 main distribution board manages the flow of power to all system components.

This full ecosystem of parts makes sure that procurement managers can find complete solutions or specific replacement parts based on the repair needs. When banks plan their spare parts stocking strategies, they like that the parts are modular because they know that each one is made to strict standards that ensure they can work with each other.

Security Protocols and Software Compatibility

Banking rules require that tools used to handle cash have more than one level of security. This dispenser works directly with core banking software, and it supports encrypted communication methods that make sure the transaction is real before starting the note issuing processes. The controller software constantly checks the sensor inputs and initiates shutdown procedures if any unusualities indicate tampering or mechanical issues.

Outdoor drive-up ATMs have problems with temperature changes and dust, but the protected gear paths and strong sensor tuning make them work reliably in uncontrolled weather. Financial institutions that work in places with extreme weather report constant performance. The mechanical design of the dispenser prevents the building of particles that weakens cheaper modules over time.

Optimizing Banking Efficiency with CMD V4: Performance and Maintenance

Operational consistency separates ATM networks that make money from ones that waste money and time. Banks figure out how successful they are by looking at uptime rates and the total cost of ownership, which compares the cost of hardware upkeep to how reliable the hardware is.

Addressing Common High-Volume Challenges

In busy banking settings, cash jams are the most annoying type of failure. During morning rush hour, a single jam can cause lines of customers, calls for help, and emergency technicians being sent out. When compared to older models, the CMD V4 Dispenser's improved friction-based picking system greatly lowers jam rates. This is especially true when working with mixed-denomination packages that have different substrate compositions and wear patterns.

The costs of system failure go beyond just losing service. Every hour that a business isn't online costs money in transaction fees, hurts its image, and loses customers who go to competing businesses. Financial institutions that have 24/7 lobby ATMs figure that when you add up all the losses caused by avoidable downtime due to poor handling modules, they add up to a lot of money every year.

Actionable Maintenance Strategies

Schedules for regular upkeep are the basis for long-term success. Three important things should be checked during inspections: the picker roller friction coefficients, the belt tension readings, and the cleaning of the photosensors. In high-volume setups with more than 5,000 deals per month, the picker rollers need to be replaced every year because friction loss is directly linked to pick failure rates.

Calibrated tension gauges are used for belt tension testing to make sure that numbers stay within the 15N-30N specification range. If these limits aren't followed, notes will be skewed or shipping delays will happen, which will cause error codes. Photosensor prisms pick up dust particles that you can't see with the naked eye, but they're enough to cause Error Code 18 sensor failures. Cleaning the sensor with compressed air and then wiping it down with isopropyl alcohol returns its response without having to replace any parts.

To effectively troubleshoot, you need to know how to spot common mistake trends. Continuous reject cassette fills point to DND calibration drift, which can be fixed by following standard methods for thickness gauge verification. Pick failures that happen every once in a while are usually caused by worn-out picker rollers or bad cassette loading methods. These problems can be fixed by replacing worn-out parts and training staff.

Performance Data and Real-World Applications

Banking clients who use this device in busy areas report jam rates of less than 0.01% when they do their maintenance at the right times. This measure of dependability directly leads to fewer service calls. In fact, some schools have seen 40% less downtime for dispensers compared to older V3 modules.

The rating of more than 200,000 deals for Mean Cycles Between Failure gives procurement workers useful information for lifecycle planning. After about 22 months of nonstop use, a branch ATM that handles 300 transactions every day hits this level, setting a regular replacement schedule that fits with budget planning cycles. This level of predictability is very different from rival modules that don't have public MCBF specs, which leaves banks open to unexpected capital expenditures.

Comparing CMD V4 Dispenser with Alternatives: Why Choose CMD V4?

When choosing parts for a bank's infrastructure, it's important to carefully compare technical specs to working needs. There are a lot of dispensers on the market, but when you look at how well they work under stress, you can tell them apart.

Technical Advancements Over Previous Generations

Moving from the V3 architecture to the CMD V4 Dispenser architecture led to measurable gains in a number of efficiency areas. The speed at which notes were dispensed went from 40 to 60 per second, which cut down on wait times for customers who wanted to make big withdrawals. Better robotic features make it easier to replace cassettes, which cuts the time needed to service a vault by about 15 minutes per visit when six cassettes are being managed.

As banks try to be more environmentally friendly, measuring how much energy they use is becoming more important. The V4's improved mechanical efficiency and optimized motor control algorithms lower power use when not in use, which helps big ATM networks lower their running costs. Individual savings may not seem like much, but when added up over hundreds of machines, they add up to big yearly savings on energy costs.

The improved DND measure stations are likely the most important improvement because they solve the long-standing problem of how to handle polymer notes. Older versions of dispensers had trouble with polymer surfaces that were too smooth, which led to higher pick failure rates. The V4's electromechanical roller design includes specific shore hardness specs that keep the roller's grip the same on different types of currency surfaces without needing software to be re-calibrated for cotton and polymer notes.

Lifecycle Cost Analysis

Besides the initial purchase price, the total cost of ownership must also take into account how often upkeep needs to be done, how long parts last, and the effects of downtime. The CMD V4 Dispenser's modular design lets you change only the broken parts instead of the whole module, which saves money on repair costs when certain sections fail. The 01750056651 reject cassette and the 01750053503 standard cassette are field-replaceable units that can be fixed by branch staff. This saves money on the cost of sending a professional to do regular maintenance.

Warranty support adds another factor to the review. The basic level of security is provided by the normal 30-day warranty and online help. However, procurement managers should look into choices for longer warranties when deploying across mission-critical installations. Access to a stock of replacement parts is also very important, since long wait times for hard-to-find parts can cancel out the natural dependability benefits of hardware.

Customer Experience Insights

Financial companies that use this device in store cash management systems are especially happy with how well it stacks vertically and compactly. Smart safes in the back office that need to work in small spaces benefit from having a small size while still being fully functional. Automated preparation of the cash drawer leads to higher accuracy rates, which means fewer mistakes that need to be reconciled, which takes time.

The people who run outdoor kiosks stress the sealed gear tracks that keep the internal parts clean from dirt and other things in the environment. Drive-up ATMs have problems with dust getting in and temperature changes that make parts break down faster in machines that aren't properly covered. Field reliability data from these tough setups shows that the V4 can handle a lot of different environments. Some units have been used for over 300,000 transactions before they need major repairs.

Streamlining Procurement: Buying CMD V4 Dispenser for Banking Environments

When making choices about what to buy for banking infrastructure, it's important to think about seller relationships, price frameworks, and logistics. Coordinating large orders across multiple branch sites or area markets makes things more difficult.

Supplier Selection and Authenticity Verification

Working with well-known sources guarantees getting original parts that meet maker standards. HONGKONG RONG MEI TECHNOLOGY CO., LIMITED has a large stock of dispenser modules and parts that go into them. They work out of a 3000 square meter ISO9001-2008 certified building that has offices for upkeep, quality control, and making molds for injection molding. This built-in feature can handle requests for customizations ranging from changes to hardware to software settings that work with multiple languages.

Procurement managers should check the qualifications of suppliers by looking at proof of certification and talking to people in the same field. Being able to offer both brand-new and properly restored units gives you options when you need to balance cost with reliability. Refurbished dispensers go through strict testing procedures, such as 2,000 continuous dispense sequences and dirty note models using standard soiled test decks. This makes sure that they work as well as new units but cost less to buy.

Pricing Models and Order Optimization

When you buy in bulk, you can get savings that have a big effect on the total cost of the project when it's used across large ATM networks. For normal setups, lead times are usually between 15 and 20 working days. However, if customizations are needed, delivery times may be longer. Planning when to buy things around important installation dates keeps projects from being held up, which can be very expensive and cause problems with other projects like remodeling branches or expanding the network.

Financial companies have budget approval processes that work with payment terms that are based on B2B buying cycles. Flexible agreements that work with quarterly or yearly capital spending plans make it easier to place bigger orders that might otherwise be spread out over several fiscal periods, which would make it harder to keep track of inventory and keep relationships with vendors strong.

Logistics and Support Infrastructure

Freight can be moved by sea, land, or air, based on how quickly it needs to get there and where it's going. For international shipments to developing markets, you need to know how to fill out customs forms and follow the rules for importing goods into the area. Established providers handle these difficulties on a regular basis, giving schools that don't have their own logistics staff the tools they need to keep track of things and make sure all the necessary paperwork is done.

When technology problems come up after the system has been deployed, after-sales help infrastructure is very important. RM provides online help and answers to questions 24 hours a day, 7 days a week. They also offer video direct assistance to solve many problems without having to go to the customer's location. Multilingual technical documents gets rid of the language hurdles that make it hard for support staff to work with customers in different areas. This way, techs can get troubleshooting information in the language they prefer.

Future-Proofing Banking Operations with CMD V4 Dispenser

When banks invest in technology, they need to think about how business needs and regulations will change over time. Dispensers that are put in place now will continue to work for years to come, even as the number of transactions increases and security standards get better.

Scalability and Software Integration Potential

The controller design of the CMD V4 Dispenser allows for software changes that add new features without having to replace any hardware. As the number of transactions goes up, software improvements can improve speed while staying within the limits of the hardware. This way to improve keeps capital investments from becoming obsolete too soon, so banks can get the most value out of the tools they already have.

To work with new payment systems, communication platforms need to be able to adapt. The high-speed serial transmission standard works with different ATM main controller platforms, so it will stay compatible when banks switch core banking systems or put in place new ATM software packages. This forward compatibility lowers the chance that assets will get stuck when technology roadmaps change without warning.

Sustainability and Energy Efficiency Considerations

As banks try to meet their sustainability goals, environmental duty is becoming more and more important in their purchasing decisions. Less carbon emissions come from using less energy, so choosing gear that fits in with larger environmental, social, and government goals is a good idea. The optimized power usage of the dispenser helps reach these goals and lowers operating costs by lowering energy bills at the same time.

Longevity and the ability to fix up parts are two different ways to look at sustainability. Repairs can be made instead of replacements with modular design, which keeps working parts in use instead of adding to electronic trash streams. When procurement managers look at the total environmental effect, they should include these lifecycle factors along with standard success metrics.

Upgrade Timing and Decision Framework

Finding the best time to change legacy dispensers means weighing a lot of different factors. Trends in the number of transactions show when capacity is being strained before they cause service interruptions. If an institution is getting more customer complaints during busy times, seeing repair costs go up, or getting a lot of error codes, they should think about whether their old hardware has hit its economic end-of-life.

A cost-benefit analysis is affected by the number of transactions and the size of the branch. More aggressive upgrade plans are okay for places with a lot of foot traffic because the stability gains pay for themselves right away through less downtime and happier customers. Smaller branches that don't handle many transactions may be able to stretch the life of old equipment, delaying capital expenditures until the rate of failure makes it clear that new investments are needed.

Conclusion

The main problems that banks have when they run high-volume ATM networks are solved by the CMD V4 Dispenser. It has a strong mechanical design, advanced sensor technology, and reliability measures that have been shown to work. These factors lead to changes in uptime, customer happiness, and the total cost of ownership. When procurement professionals look at cash dispensing solutions, they find that having over 200,000 transaction MCBF ratings, a wide range of available parts, and flexible refurbishment choices provides strong value models in a variety of deployment situations.

The flexible framework and forward-compatible design keep investments safe from becoming outdated due to new technology, which helps with long-term planning for operations. As banking automation keeps getting better, choosing tried-and-true machine technology sets the stage for dependable cash handling operations that can keep up with today's needs and expand with tomorrow's needs.

FAQ

What makes the CMD V4 suitable for high-transaction environments?

The improved photosensors, strong gear-drive system, and cutting-edge Double Note Detect technology in the hopper make it very reliable even when it's under a lot of stress. The 200,000+ transaction MCBF grade shows that the machine will last, and the fact that it can handle different amounts without getting stuck during peak hours solves the main problem that busy branch ATMs have. Its flexible design lets parts be replaced quickly, so when repair is needed, there is less downtime.

Can this dispenser handle both polymer and cotton-based currencies?

The CMD V4 Dispenser can handle both types of money as long as they are between 0.06mm and 0.18mm thick. The electromechanical rollers in the DND measuring stations keep their grip on different types of substrates. However, handling polymer notes may need specific software correction and the right DND assembly change to account for surfaces that are smoother. Most systems can handle mixed substrate stocks without having to change how they are set up to handle different types of cash.

How does refurbished equipment compare to new units?

Professionally restored CMD V4 Dispensers go through a lot of tests, such as 2,000 cycles of constant operation and dirty note models, to make sure they work as well as new equipment. During repair processes, important wear parts are replaced, and mechanical systems are carefully inspected and calibrated. When institutions have to balance the need for reliability with limited budgets, they find that refurbished units save them a lot of money without affecting their working performance as long as they come from reputable sources with established quality control methods.

Partner with RM for Your CMD V4 Dispenser Needs

As a seller of CMD V4 Dispensers for more than 20 years, RM has helped banking institutions all over the world with a wide range of ATM parts. Our ISO9001-2008-certified factory keeps a ready supply of full dispenser units and all of their individual parts. This lets us quickly meet the needs of both new installs and urgent replacements. Our quality control methods make sure that all of our Products work the same way every time, even in high-volume banking settings.

This is true whether you need brand-new units or cheaper refurbished ones. In addition to customization services that are made to fit your exact business needs, we offer expert help 24 hours a day, 7 days a week, and multilingual remote assistance. Get in touch with Tang@atm-part.com right away to talk about your buying needs and find out how our combined solutions, which include everything from whole machines to the smallest parts, can improve the efficiency of your ATM network and lower the total cost of ownership.
