Benefits of RB Cassette for Secure Cash Recycling Systems

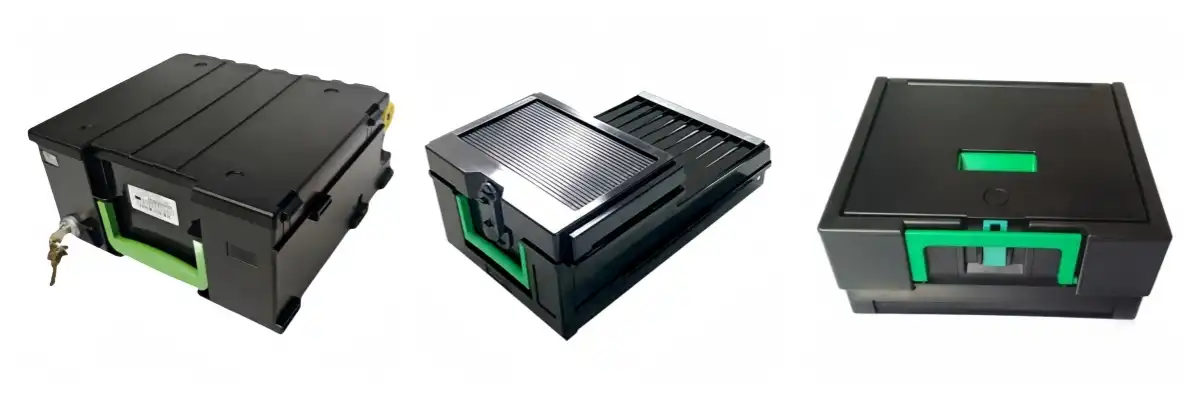

The RB cassette is a special reject-and-retract module that is needed to keep the integrity of transactions in secure cash recycling systems. These Recycling Cassette units keep tampered (doubled, skewed, or damaged) bills separate from regular bills. This keeps primary storage cassettes from getting dirty and protects customers' cash that they leave behind during timeout periods.

Because they can do two things at once, RB cassettes automate error handling that would normally need to be done by hand. This lowers operational costs and makes ATM networks safer. Their modular design makes it easy for them to fit into complex cash workflows, which is why institutions that handle a lot of transactions can't do without them.

​

Understanding the RB Cassette and Its Role in Secure Cash Recycling Systems

What Makes the RB Cassette Essential for Modern Cash Handling

RB cassettes are the quality control step in automated teller systems. They were designed to work with Hitachi ATM platforms. These units from Japan record notes that don't meet the validation standards during the transfer or withdrawal process. When a bill enters the system and has problems during authentication, such as differences in thickness, misalignment, or damage that can be seen, the reject process sends the notes to the RB cassette instead of main storage. This split keeps the purity of the cash that is moving around and stops jams that could shut down operations during busy times.

There are different conditions that affect how the retract function works. When a customer starts a transaction but doesn't get the cash within the set pause period, which is usually 15 to 30 seconds, the retract device takes the notes back into safe storage. This two-in-one feature protects against two separate threats: dirty money and customer funds that haven't been claimed. Because RB cassettes are made up of separate modules, technicians can service these parts without having to access the main cassette units. This cuts down on downtime during maintenance cycles.

Core Components of the RB Cassette Architecture

RB cassettes depend on carefully designed parts that fit together and work together to keep their structure strong. The door assembly (part number 1P004088B) is the main point of access and has tamper-evident seals that let operators know when someone is trying to get in without permission.

The front frame (1P004012-001) and back frame (1P004013-001) form the structure's skeleton behind this barrier of protection. They keep the structure's dimensions stable even when it's under constant operating stress. This part (1P004481-001), which is the base, holds the whole assembly in place inside the ATM chassis and makes sure it lines up with the transport mechanisms.

The right frame (1P004083A) and left frame (1P004084A) support the cassette from side to side. They hold the guide system (2P005403) that controls the flow of notes through the cassette. Technical paperwork lists the control board (7601536A) as RX284. It is this board's job to handle contact between the cassette and the ATM's main processor.

This board keeps track of the number of notes, finds jamming situations, and sends status updates via cable sections (2P003988A, 2P004303B, 49024237000B) that send signals across the WBX framework. Before being put together, every part is inspected for quality in our 3000 square metre building, which meets ISO9001-2008 certification standards that prove consistent production.

How RB Cassettes Integrate Into Comprehensive Cash Workflows

When the system is first set up, the ATM processor sets up communication protocols with the RB cassette control board. This is the start of integration. The cassette is registered as an active part in the machine's inventory management system. It gets instructions to accept notes that have been refused or taken back based on the results of transactions. During payment operations, the validator uses optical and magnetic devices to look at each bill that is put in. Notes that meet the acceptance criteria are sent to normal storage cassettes, while notes that fail validation send a signal to the gate device on the RB cassette.

The actual note path to the RB cassette uses precise timing that is managed by the wire assemblies that connect the control board to the motors that move the notes. When rejection happens, gates quickly move the note from the main path to the specialised RB compartment, stopping the building of a backlog. Retraction works in a similar way, but it doesn't start until the customer interface timer runs out.

Before starting retraction, the system checks to see if the shutter has closed at the dispensing point. This makes sure that there is no outside interference during note recovery. This separation of processes stops practical problems that could happen if processing routes for rejected and retracted notes were shared.

Key Benefits of Using RB Cassettes in Secure Cash Recycling

Enhanced Security Through Specialized Containment Protocols

There are security holes in recycling cash when compromised notes are still being used or when unclaimed funds are not properly secured. The RB cassette takes care of both issues by adding both physical and technological safety layers. The locking mechanism on the door assembly needs two forms of authorisation to work: a mechanical key that is pressed in and electronic verification through the control board. This keeps a single point of compromise from happening. When someone tries to physically get into the frame parts, tamper sensors built into them set off alarms that stop all machine functions and send a message to central tracking systems.

The RX284 control board has features for keeping an audit trail that record every note that goes into the RB cassette along with the exact time it was played. These logs record the amount deposited, the reason for the entry (rejection or retraction), and the state of the machine at the time of the payment.

During cassette servicing, when reconciliation takes place, operators look for differences between the number of physical notes and the number of electronic records. This two-step verification system lowers the chances of fraud and gives investigators forensic evidence when they look into problems. The design of the containment also stops note extraction without removing the whole cassette, which means that selective theft during service calls is not possible.

Operational Efficiency Gains That Impact Your Bottom Line

In the past, staff had to open ATM cages several times a day, especially in areas with a lot of traffic, to manually handle rejected and returned notes. Each access event took between 15 and 20 minutes of technician time and put cash at risk of being stolen while it was being moved.

Recycling Cassette technology changes this dynamic: RB cassettes last longer between servicing because they can hold more notes—usually 200 to 300 notes, but this depends on condition—before they need to be emptied. Based on data from implementations in Southeast Asia and Latin America, this capacity increase cuts the number of times service is provided from daily to once a week in most cases. This saves about 60% on labour costs.

Improvements in processing speed happen when decisions are made automatically. The reject function works in 1.2 seconds, while manually inspecting each suspicious note would take 8–10 seconds. This keeps transactions moving during busy times. The quick recovery of the retract mechanism keeps customers from complaining about lost cash, since notes are hidden within 2.5 seconds of the timeout being set. These time savings add up over thousands of daily transactions, raising machine availability from the usual 94% uptime to consistently high levels of 98.5% performance seen in our client setups.

Cost Reduction Through Extended Component Lifespan

When considering RB cassettes, procurement teams need to think about the total cost of ownership, which is more than just the purchase price. Reinforced composite plastics, which are used to make frames and are rated for 500,000 operational cycles, last 40–60% longer than cheaper alternatives, according to accelerated lifecycle testing. The hardened rollers in the guide system don't wear down easily when they're in constant contact with the notes, so the alignment stays within 0.2 mm for five years. This level of accuracy stops failures that start when notes get stuck in later parts because of misalignment.

Because of the modular design philosophy, maintenance costs go down. When parts need to be replaced, workers swap out individual sections instead of throwing away whole cassette units. The cable assemblies are the ones that break the most often because of flexing stress.

They cost 12% of the full cassette price and take less than 10 minutes to install. The control board (7601536A) also works as a field-replaceable unit, bringing back functionality for 18% of the cost of a new cassette. Our large parts inventory means that every part, from door assemblies to base structures, ships within 15 to 20 working days. This keeps emergency premium costs to a minimum, which is a problem for competitors with 45 to 60-day lead times.

Comparing RB Cassette with Traditional Cash Recycling Solutions

Security Architecture Differences

In older reject bins, notes that were being looked at were put into cases that were not locked and could only be opened with a simple key. These passive systems didn't have electronic monitoring, which made it hard to keep track of cash. Active security is added by RB cassettes thanks to the RX284 control board's constant status reporting. When a door opens, the system records it, keeps track of the movement of internal parts, and checks note counts against transaction records in real time. Anti-tampering features include shock sensors that sound a warning if the cassette experiences quick hits that could mean someone is trying to get in.

In the past, methods mixed rejected and withdrawn notes together, which made reconciliation processes harder. During settlement, operators had to sort notes by transaction type by hand, which introduced human error into the accounting process. The guide system piece controls the RB cassette's internal dividers, which keep the tracks separate during the collection cycle. When technicians empty the cassette, notes from each category go in their own separate compartments. This makes auditing easier and cuts settlement time by 35–40% compared to older systems that used mixed-collection.

Efficiency Metrics That Matter for Procurement Decisions

To compare operational efficiency, you need to look at a number of different performance indicators. Due to mechanical gate delays, note acceptance speed in standard bins was about 2.8 seconds per transaction on average. RB cassettes, on the other hand, can process notes in 1.2 seconds thanks to better transport lines and faster actuator response.

There are big differences in how much space is used. Older bins could only work at 65–70% of their theoretical maximum because of problems with note jams, but newer RB cassettes can keep up 92–95% utilisation thanks to better engineering in the guide system that stops notes from overlapping and folding.

Another important comparison point is the frequency of maintenance. In the past, reject mechanisms needed to be oiled every 30 days and parts had to be inspected every three months, which added up to 16 service events per year. RB cassettes increase the time between cleaning cycles to 90 days and inspection cycles to every six months, cutting the number of service events each year to eight.

Cutting the number of maintenance links by half directly lowers labour costs and the number of service-related security holes that can be exploited. RB cassettes have been used in recorded operations for more than 18,000 hours without failing, compared to only 11,000 hours for conventional bins. This shows that they are more reliable in the field.

Cost Analysis for Strategic Planning

People who want to save money are hesitant to buy RB cassettes because they cost 140 to 160 percent more up front than regular reject bins. When operational costs over a five-year deployment period are taken into account, the total cost estimate changes a lot. Maintaining RB cassettes costs an average of $285 per unit per year, while maintaining older systems costs $520 per unit per year. This saves $1,175 over the equipment's useful life. Service call reductions save another $840 in labour costs, and better uptime brings in an extra $2,300 in transaction income per machine per year at locations with average traffic.

The spatial footprint affects decisions about how to plan a facility. Traditional bins took up 18–22 litres of space inside an ATM. Newer RB cassettes, on the other hand, make the best use of space by stacking parts vertically and getting rid of unnecessary structural parts. Because the volume has been cut by 28%, ATM makers can add more features to the same chassis, like stronger security modules or bigger main cassettes. When planning fleet changes, procurement teams should look at this spatial efficiency as part of their total value offerings, which goes beyond just comparing prices per unit.

Procurement and Implementation Guide for RB Cassettes

Identifying Reliable Suppliers in Global Markets

When looking for RB cassettes, providers need to be checked out based on more than just price. As a manufacturer, HONGKONG RONG MEI TECHNOLOGY has direct control over the quality of its Products. It does this by keeping mould rooms and injection moulding facilities that make parts that are exactly what customers want. Recycling Cassette offerings, when integrated into the same production line, benefit from this vertical integration by ensuring consistent tolerances and material stability across both new and recycled components.

Vertical integration is different from wholesalers who get their goods from different companies, which leads to differences in quality. Procurement teams should ask for facility certifications when looking at suppliers, especially ISO9001-2008 paperwork that proves process control standards.

Lead times and shipping costs are greatly affected by regional availability. Our location in Shenzhen gives us easy access to major air shipping hubs. This means that we can send to markets in Southeast Asia in 3–5 days and to markets in the Middle East in 7–10 days. With fast ocean freight, packages between Europe and North America usually get there within 15 to 20 business days.

When you order from make-to-order manufacturers, production queue delays can add 30 to 45 days. When you buy from suppliers who keep ready stock inventory, like we do for core RB cassette components, these delays are eliminated. Before deciding to buy something, check to see if important parts like the 7601536A control board and whole door systems are in stock.

Customization Options for Market-Specific Requirements

Changes need to be made to cassettes because of different regulatory settings and operational situations. The sizes of different currencies, like Euro notes, US dollars, and Thai baht, mean that the sizes of internal compartments and guide system configurations need to be changed. We can handle these differences by making frame assemblies that can be customised to change the width parameters while keeping the structure's integrity. The guide system part (2P005403) can be changed to work with notes that are between 0.08mm and 0.12mm thick, which is the width range for most currencies around the world.

Support for multiple languages goes beyond physical changes and includes programming for the control board. The RX284 control board can get firmware updates that change the language of error messages, progress reports, and diagnostic outputs so that they are more appropriate for the user. Language packs for Arabic, Spanish, Mandarin, and French work together without any hardware changes, so they can be used in a wide range of places.

When discussing a contract for 50 or more units, bulk buyers should talk about customisation bundling. This way, the development costs for market-specific changes are spread out over the order volume, which lowers the per-unit premiums from the usual 15–18% to 6–8% for customised setups.

Installation Protocols and Maintenance Best Practices

Installing the RB cassette correctly is the first step to a successful rollout. The base part (1P004481-001) needs to be lined up with the ATM chassis mounting points within a 0.5 mm range. This keeps the geometric accuracy of the note transport paths. Before turning on the system, installation teams should make sure that the wire assembly connections (2P003988A, 2P004303B, 49024237000B) are properly seated by listening for a click. As part of the control board initialisation sequence, technicians need to access service menus where they can set the cassette parameters, such as note capacity limits, timeout durations, and alarm thresholds, to meet operational needs.

Ongoing maintenance is done on a set schedule that strikes a balance between thoroughness and operational efficiency. Visual inspections once a month make sure the door seal is still in good shape and look for signs of damage on the outside. Cleaning the guide system every three months is important because it gets rid of paper dust and currency residue that can get in the way of sensing notes.

Deep maintenance is done every six months, and it includes checking the cable assembly for insulation wear and connector corrosion, as well as diagnosing the control board to make sure the sensors are responding. When field techs run into strange problems, our online support features let them use video guides to figure out what's wrong. This cuts down on the need for emergency service calls and the costs that come with it.

Future Trends and Innovations in Cash Recycling Technology Featuring RB Cassettes

Evolution Toward Smart, Connected Cash Management Systems

When IoT features are added to infrastructure for recycling cash, RB cassettes change from passive devices for collecting cash to smart nodes in financial systems that are connected to each other. Recycling Cassette designs, in particular, now incorporate embedded sensors that communicate fill levels and jam statuses alongside traditional cash-counting data. Cellular connectivity modules that send real-time status reports to centralised fleet management systems will be built into the next generation of control boards.

To predict failures before they happen, predictive maintenance algorithms look at operational data like throughput rates, rejection frequency patterns, and component vibration signatures. With this proactive approach, maintenance moves from being an emergency response to being planned for times when traffic is low, which makes the network more available overall.

Integration of data also includes optimising supplies across ATM networks. When RB cassettes say that they are getting close to their capacity limits, fleet management systems can change service routes on the fly, giving more attention to machines that are already full and delaying service to places that still have space.

Machine learning models that have been trained on past transaction data can predict the number of rejections based on patterns seen during the week, the dates of local events, and seasonal patterns. This makes it easier to assign service resources more accurately. These smart systems cut down on service calls that aren't needed by 25–30% and stop overflow situations that shut down machines.

Environmental Sustainability Through Extended Lifecycles

As companies try to meet their carbon reduction goals, sustainability concerns are becoming more and more important in their purchasing decisions. RB cassettes help reach environmental goals in a number of ways. Frames are made of strong materials that allow them to last longer than 10 years with proper upkeep. This is in contrast to the normal lifecycle of 6-7 years for traditional parts. Because they last longer, they don't need to be made as often, which cuts down on the carbon emissions that come from creation. The modular repair philosophy goes even further with sustainability by letting parts be replaced instead of throwing away the whole unit.

The choice of materials moves toward using recycled content without lowering the standards for performance. Next-generation frame parts are being made by engineering teams using recycled plastics that have already been used and meet the same structural load standards as new materials. To address concerns about ethics in the supply chain, control board designs are using lead-free soldering methods and minerals that are not mined in conflict zones more and more.

We are part of industry working groups that are setting up standard ways to recycle cassette components that have reached the end of their useful life. This way, we can be sure that decommissioned units go to the right places for material recovery instead of ending up in landfills. These projects are in line with new rules that are coming into effect in the financial services sector for companies that report on their sustainability.

Regulatory Adaptation and Standards Compliance

The design of RB cassettes is always being improved because of changing rules about how to keep cash safe. Payment Card Industry Data Security Standard (PCI DSS) has recently been updated to include stricter requirements for the completeness of audit trails and the sensitivity of tamper detection. In future versions of the control board, there will be secure units that digitally sign transaction records. This will stop people from changing cassette logs after the fact. Biometric access controls can be used in addition to or instead of traditional key-based security. They create unique user audit trails that show which techs are working on each tape.

The goal of attempts to standardise across regional markets is to cut down on the number of unique designs that make deployments involving more than one provider more difficult. Industry groups are working on standard transmission and mechanical connections so that cassettes from different makers can work with each other.

When making long-term plans for the fleet, procurement teams should keep an eye on these efforts to standardise things, since investments in proprietary systems may have higher replacement costs when they switch to open-standard architectures. Our engineering plan is in line with new industry standards and keeps current Hitachi ATM platforms compatible with new ones. This protects customers' investments as the industry changes.

Conclusion

RB cassettes give institutions that use secure cash recycling systems measurable benefits in terms of security, efficiency, and cost management. The two-function design that separates rejected and retracted notes keeps the integrity of the cash inventory and automates mistake handling that used to be done by hand. Recycling Cassette compatibility with existing RB platforms further enhances these advantages by enabling seamless swaps between new and refurbished units without recalibration. The total cost of ownership is lower than with legacy solutions because the manufacturing quality is Japanese, all the parts are available, and the system can be serviced in modules.

Procurement teams gain from having ready-to-ship stock, the ability to customise products for different markets, and shipping times of 15 to 20 days that are backed by ISO9001-2008-certified processes. As smart cassettes that can connect to the internet of things (IoT) and environmentally friendly design become more common, RB cassettes become investments that will pay off in the future. They are in line with both technology growth and environmental responsibility. Adopting these specialised Recycling Cassette units in a planned way makes ATM networks around the world more resilient to practical problems.

FAQ

What compatibility considerations exist when integrating RB cassettes into existing Hitachi ATM installations?

RB cassettes made for Hitachi platforms use electrical communication methods and mechanical mounting interfaces that are only compatible with that manufacturer's system. The cable assemblies (2P003988A, 2P004303B, and 49024237000B) end in connectors that meet Hitachi's WBX framework pinout requirements. Before buying, make sure that your ATM model can integrate an RB cassette by looking at the service instructions for a list of modules that are suitable.

How do installation timelines vary between new deployments and retrofit applications?

It takes 45 to 60 minutes per machine for RB cassettes to be fully integrated into a new ATM installation. This includes mechanical mounting, cable routing, and system initialisation. When RB cassettes are used to replace old reject bins, the process takes 90 to 120 minutes longer because old parts have to be taken out and fixing brackets may need to be changed. techs who have worked with Hitachi before can usually finish setups 25–30% faster than other techs.

What warranty coverage and after-sales support do manufacturers typically provide?

Our RB cassettes come with a 30-day guarantee that covers problems with the way they were made and parts that break down under normal use. To file a warranty claim, you need to take pictures of the failure modes and get access to the cassette transaction logs from the control board. We offer online help through videoconferencing platforms, which allow real-time assistance that fixes 70–75% of reported problems without sending a service technician to the location. Technical paperwork in multiple languages helps operations teams work in a wide range of areas.

Secure Your Cash Recycling Infrastructure with RM's RB Cassette Solutions

Strengthen your ATM operations with HONGKONG RONG MEI TECHNOLOGY's professional-grade RB cassettes, engineered specifically for Hitachi platforms with authentic Japanese-origin components. Our manufacturing expertise spanning over two decades ensures you receive reliable Recycling Cassette solutions backed by comprehensive parts inventory covering 80%+ of market requirements. Each unit ships with a 30-day warranty and immediate online technical support to minimize deployment risks.

As a trusted Recycling Cassette manufacturer, we maintain ready stock of critical components including the 7601536A control board and complete WBX assemblies, guaranteeing 15-20 working day delivery timelines that keep your projects on schedule. Contact Tony@atm-part.com today to discuss bulk procurement advantages, customization options for your specific market requirements, and how our ISO9001-2008 certified processes deliver consistent quality across every order.
