600W 24V PSU for NCR ATM: Features and Applications

A 600W PSU designed specifically for NCR ATM systems is more than a simple power converter—it's the backbone of uninterrupted banking operations. This switch mode power supply unit delivers stable 24V DC output from universal AC input (90-264V), ensuring NCR SelfServ ATMs handle demanding workloads across varied environments. With active Power Factor Correction exceeding 0.95 and Mean Time Between Failures surpassing 100,000 hours at 25°C, these units address core operational pain points faced by ATM operators and service providers globally.

​​​​​​​​​​​​​​

Understanding 600W 24V PSU for NCR ATM: Technical Overview and Functionality

The power supply unit is the most important link between the ATM's delicate electronics and the main power grid. This part changes alternating current into carefully controlled direct current across various voltage rails for NCR SelfServ models like the 6634 and 6638 line. Industrial ATM power units, unlike consumer-grade sources, can handle the changing loads of cash dispensers, receipt printers, and card readers all at the same time without voltage sag.

Core Working Principles

High frequencies, usually between 50kHz and 1MHz, quickly turn transistors on and off to make switch mode power sources work. When compared to linear power sources, this method is more efficient, often hitting 85-92% conversion efficiency. The 600W PSU rating tells you the highest constant output power that can be used when everything is loaded. Active PFC circuits lower the amount of harmonic distortion that comes from building electrical systems. This cuts down on energy waste and heat production inside compact ATM enclosures. The input voltage range is worldwide (90-264V), so it can be used all over the world without the need for manual voltage selection switches. This makes installation easier in places with different power standards.

Critical Connectivity Options

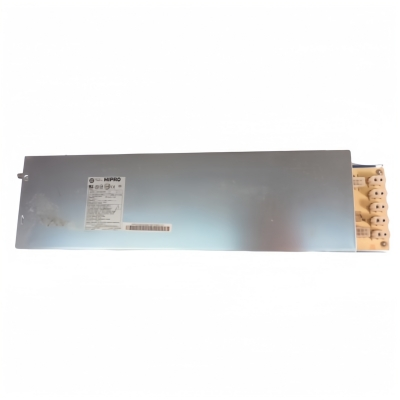

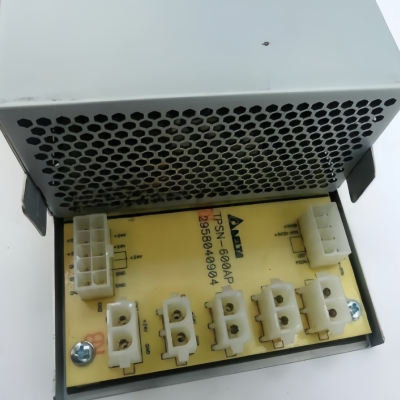

Standardized connections on part number 009-0028273 work with NCR SelfServ designs. The mechanical power control comes from the AC switch latch (445-0710941), and the fuses are set up with 009-0023731 time-lag fuses in a 5x20mm size and 009-0023431 screwdriver bayonet cap holders. This standard interface makes it possible to change parts quickly in the field without using special tools. The output wiring usually has a number of DC ports for powering the motherboard, connecting peripherals, and charging backup batteries.

Key Features of 600W 24V PSU Tailored for NCR ATM Applications

Modern ATM power supplies are made with features that especially meet the needs of banking equipment. The technical decisions that went into making these features have a direct effect on how well they work and how much it costs fleet managers to maintain them.

Robust Protection Mechanisms

Overvoltage Protection (OVP) circuits turn off the output right away if the voltage goes over safe limits. This keeps expensive logic boards and dispenser motors from getting damaged. Over Current Protection (OCP) stops short circuits that might happen because of a broken wire or a broken part. Short Circuit Protection (SCP) separates problems in milliseconds, keeping distribution panels upstream safe. These safety measures meet UL 60950-1 safety standards and CE compliance requirements, which means they can be legally installed in both North America and Europe.

Thermal Management Engineering

Continuous work 24 hours a day, seven days a week creates a lot of heat inside sealed kiosks. The industrial metal frame has venting holes that are placed in a way that makes natural convection airflow, even when the temperature outside reaches 45°C. The speed of the internal cooling fans changes based on the load and temperature monitors, matching the need for noise reduction with heat removal.

 600W PSU is integrated into this thermal management strategy, ensuring that power delivery remains stable under sustained loads without adding excessive heat. This design makes parts last longer by keeping electrolytic capacitors within the temperature ranges stated by the maker. This directly affects the unit's ability to meet its MTBF rating of over 100,000 hours.

Ripple and Noise Suppression

Microprocessors and transmission units act strangely when there is too much ripple voltage on the DC output rails. In all frequency bands, good power sources keep ripple below 150mV peak-to-peak. This is done by the 600W PSU's multiple-stage filtering, which uses ferrite bead inductors, electrolytic and ceramic capacitors, and more. This clean power supply stops the random transaction mistakes and device state faults that cost a lot of money to fix.

Applications and Benefits of Using 600W 24V PSUs in NCR ATM Systems

It is clear that reliable power conversion is useful in a variety of situations that banks and private ATM providers face. In the real world, equipment is tested in ways that go far beyond what is required in a lab.

High-Volume Drive-Up ATM Installations

Having an outdoor drive-through ATM can be difficult in some ways. When temperatures change quickly from freezing in the winter to boiling in the summer, you need parts that can handle a wide range of temperatures. Changes in humidity can damage connectors and make circuit boards not work properly. The switch mode design handles the high power needs that come up when cash dispensers quickly count and hand out piles of cash. NCR SelfServ 6638 units that handle more than 300 transactions every day depend on steady power delivery during peak-load periods that last for a few seconds. The 600W PSU capacity is enough to power communication units and security cameras at the same time, as well as heater elements that keep cash from getting stuck in cold places.

Through-the-Wall Banking Hall Units

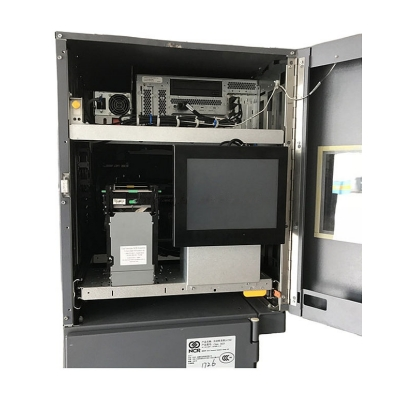

Installations in the lobby work all the time during longer banking hours. The available output capacity enables not only the basic tasks of the ATM, but also extra peripherals that make security and the user experience better. Facial recognition cameras, anti-skimming devices, and interactive customer service screens all get their power from the main source. Voltage droop from combined loads can damage the integrity of transactions, leading to missed payments or mistakes in dispensing. The strong power delivery keeps the system running smoothly even when all of its tools are turned on at the same time during complicated transaction processes.

Remote Stand-Alone Kiosk Deployments

The electricity systems in shops and convenience stores are often not effective. Changes in voltage, brownouts, and electrical noise from refrigerator equipment all make work situations that are not safe. The power source is the first line of defense against input noise, blocking it before it reaches sensitive electronics. A 600W PSU provides ample headroom to handle these fluctuations while maintaining stable output, ensuring that this first line of defense cuts down on service calls caused by power problems, which directly lowers the costs of running spread ATM networks for route operators. The hold-up time limit, which is usually longer than 16 milliseconds, allows short AC interruptions to happen without having to restart the system, which keeps the process going.

When big ATM companies use less energy, their power costs go down directly. A power source that works at 90% efficiency only loses 10% of the energy it takes in as heat, while older linear designs lose 20-25%. When hundreds of machines are going all the time, this increase in efficiency saves money and lowers the need for HVAC in tight installation areas. As companies try to lower their carbon impact, environmental concerns are becoming more and more important in their purchasing decisions.

Procurement Guide: How to Select and Purchase a 600W 24V PSU for NCR ATMs

When you do strategic buying, you have to look at more than just the initial purchase price. The total cost of ownership includes things like dependability, help availability, and logistics that affect how well a business runs in the long term.

Essential Technical Qualifications

The first step in making sure a part is compatible is to make sure that it fits the NCR specifications for your individual SelfServ model series. The number 009-0028273 makes sure that the mechanical fit, electrical contact compatibility, and thermal properties are right for the design of the enclosure. In addition to matching the part number, look at the approval paperwork that proves RoHS compliance for safety and environmental rules in the area where the rollout is happening. Instead of depending only on what the datasheet says, ask for test results that show real MTBF rates, ripple readings, and efficiency curves for a range of load conditions.

Supplier Evaluation Criteria

Manufacturers that have been around for a long time and have made ATM parts for many years bring a lot of useful subject knowledge to technical support contacts. When fixing complicated installation problems, it's very helpful when the supplier can do more than just sell Products.

For example, they can offer customization services, expert manuals in multiple languages, and online video support, along with recommending a 600W PSU for systems that demand sustained high-load reliability. Pay close attention to the warranty terms. A 30-day warranty with online help covers most situations, but for important deployments, longer warranty choices may be worth the extra cost.

Logistics and Inventory Considerations

For normal setups, lead times are usually between 15 and 20 working days. These dates should be taken into account by procurement managers when planning preventive maintenance and emergency spare parts inventory. When suppliers have popular part numbers in stock, they lower the risk of unexpected downtime. Freight transportation choices by sea, land, and air help with both regular restocking and urgent substitute needs. By signing a bulk purchasing deal, you can often get savings for buying in bulk. Controlled manufacturing lots also make sure that the quality of the products in your fleet is the same.

When you buy refurbished units from reputable sellers who follow strict repair procedures, you can save money. Replacement of capacitors, renewal of thermal contact materials, and full electrical testing that meets the quality standards of a new unit are all part of quality repair. Brand-new units don't have any doubts about how long they will last, which makes them better for high-traffic, important areas where downtime costs more than the equipment saves.

Conclusion

It's important to find the right 600W PSU for NCR ATM systems by weighing technical specs, provider skills, and overall cost. The 600W 24V switch mode power supply converts power in a way that is mission-critical for SelfServ ATMs that work in tough conditions. These units meet the basic needs of current financial self-service tools by accepting any input voltage, having complete safety circuits, and managing heat at an industrial level. To be successful at procurement, you need to work with experienced providers who can give you not only high-quality parts, but also full technical support, flexible logistics, and the ability to make changes that fit your unique deployment needs.

FAQ

What distinguishes a 600W 24V PSU from standard 600W power supplies?

The voltage-specific design gives the exact 24V DC output that NCR ATM electronics needs. Standard sources, on the other hand, might give different voltage combos that aren't good for banking equipment. The 24V output powers the motors and logic boards in the dispensers through special rails that were designed to meet the durability standards for banking equipment.

Can this power supply handle all components in NCR SelfServ configurations?

The 600W PSU is enough to power all of the parts in an NCR SelfServ ATM, such as the CPU modules, touchscreen screens, thermal printers, card readers, cash dispensers, and deposit modules. The output has enough extra power to handle peak loads at the same time, and the voltage stays stable across all connected tools.

How often should preventive replacement occur?

Electrolytic capacitors slowly lose their ability to stop ripples over time, but if you change them every 5 to 7 years, you can lower the risks that come with them. Locations that handle 400 or more deals every day may benefit from faster replacement times. Keeping an eye out for signs like random reboots, device status failures, or strange fan noises can mean that a device is close to its end of life and needs instant attention.

Partner With RM: Your Trusted 600W PSU Manufacturer

RM has been making specialized ATM parts for more than 20 years and can help you with your buying problems. Our 600W PSU options give your NCR SelfServ fleet the dependability it needs, and they come with full expert support and low prices. We keep goods ready to ship right away, which lowers your risk of unexpected downtime. Our production facilities are ISO 9001:2008 approved and can do everything from designing molds to inspecting the final quality of each order. This makes sure that every product is of the highest standard.

As a well-known 600W PSU seller, we know how hard it is for ATM service providers to run their businesses. Our customization tools let you change current modules to fit your needs, and our language support teams can help you with installation issues remotely via video chat. Get in touch with Tang@atm-part.com right away to talk about your unique needs and get accurate quotes. We help people buy in bulk by offering open payment terms and reliable shipping through our well-established networks of sea, land, and air transportation. Let our expert team show you how RM's high-quality manufacturing and customer-focused service can help your business.
