24V 600W PSU Benefits for Through-the-Wall ATMs

Power stability is very important for through-the-wall ATMs, and 24V Power solutions provide just that. For continuous banking activities, a 24V 600-watt switch-mode power source is the best mix between strong output capacity and stable operation. These units keep the voltage levels stable so that transactions don't fail, even when card readers, safe locks, dispensing mechanisms, and anti-skimming devices use a lot of electricity. As long as the 600W capacity is enough, there is enough room for peripheral components. This keeps the system from being overloaded during high working loads and increases the overall equipment lifespan.

Understanding 24V Power Systems in Through-the-Wall ATMs

Why 24V Architecture Matters for Financial Terminals

Through-the-wall ATMs work in tough conditions where unstable power affects the quality of customer service. Because it balances safety, economy, and speed just right, the 24V DC architecture has become standard in the business world. The 24-volt setup sends clean, stable power to important parts, unlike lower voltage systems that have trouble with power loss over long cable runs or higher voltage systems that raise safety issues.

Our switch-mode power supply takes in any AC voltage between 90V and 264V and turns it into a controlled 24V DC output. It also corrects the power factor more than 0.95. This economy means that the unit will produce less heat and cost less to run over its lifetime. The mean time between failures (MTBF) is more than 100,000 hours at 25°C, which shows that it is very reliable, which is what banks need.

Core Applications in NCR SelfServ Environments

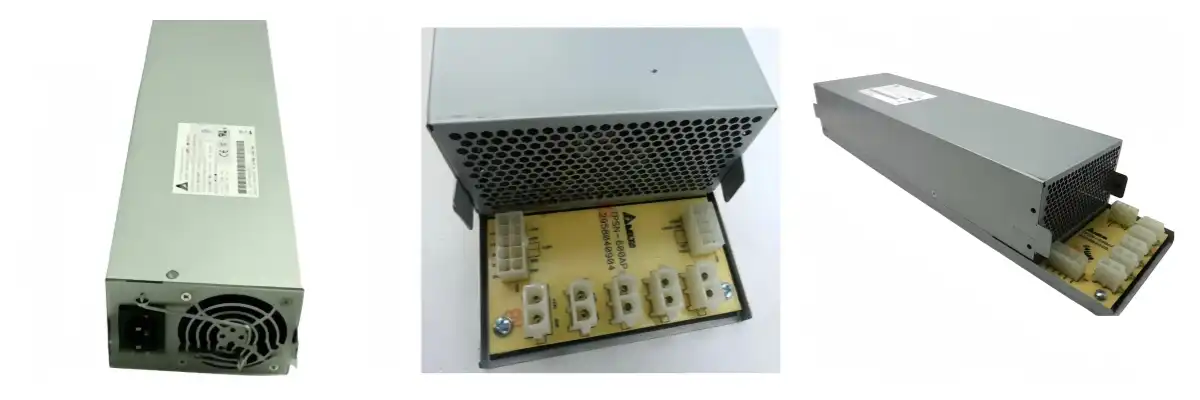

Part Number 009-0028273 is the POWER SUPPLY SWITCH MODE 600W 24V that works with NCR SelfServ ATM types like the 6634 and 6638 line. Multiple circuits need stable power delivery at the same time in these setups. Card readers use power for magnetic stripe and chip identification, cash machines need short bursts of power when taking money out, and security cameras are always watching.

The 600W power is enough to run all of these tasks at the same time without voltage sag. When a cash register works and an anti-skimming device is turned on at the same time, and the security lighting is turned on, the power source keeps the output fixed across all components. This stops the problems with transaction integrity that happen when voltage goes below the levels needed for function.

Compliance and Safety in Global Deployments

Teams that buy financial tools put safety certifications at the top of their list of priorities. This is because following the rules saves both organizations and customers. Our units meet the UL 60950-1 standards for IT equipment, the CE marking standards for European markets, and the RoHS compliance standards for being environmentally friendly. Integral safety features include overvoltage protection, overcurrent protection, and short-circuit protection that keep pricey ATM parts safe from electrical problems.

Five 009-0023731 time-lag fuses (20 mm) are set up in 009-0023431 screwdriver bayonet cap holders for this fuse setup. This design is usable, which means that electricians can fix problems quickly in the field without having to replace whole power units. With the AC switch latch (445-0710941), you can make a safe power link that can handle the vibrations and environmental stress that come with through-the-wall installs.

Performance Optimization for Through-the-Wall ATM PSUs

Overcoming Power Distribution Challenges

When it comes to electricity, through-the-wall ATMs are different from lobby-based units. Between the customer interface and the safe vault room, the longer wire runs add resistance, which can cause the voltage to drop. This resistance hurts lower voltage systems like 12V setups a lot; over distance, they can lose up to 10-15% of their power. The 24-volt design keeps the energy more stable over these long wire lengths, making sure that all the parts get enough power.

Extreme temperatures are also a problem. In full sunlight, the temperature of a drive-up ATM can change from below freezing to over 120°F. Our switch-mode design includes heat control that keeps the output stable over this temperature range. The active cooling system changes based on load and atmospheric conditions, so it doesn't shut down during times of high usage.

Efficiency Improvements That Reduce Operating Costs

A power factor adjustment value above 0.95 for active units means they use power from the grid more efficiently than inactive units. Using high-efficiency power sources can help financial institutions with hundreds or thousands of ATMs lower their electricity costs. When switching from AC to DC, the switch-mode design loses very little energy and makes less waste heat than linear power sources.

This economy also means that the ATM container doesn't need to be cooled as much. When less heat is made, air conditioners have to work less hard, which saves even more energy. 24V Power supports this efficient cycle by delivering stable, low-heat operation, so over the course of five years, these improvements in efficiency more than make up for the difference in the original cost of buying quality versus budget power sources.

Maintenance Best Practices for Extended Uptime

Proper placement has a big effect on how long a power source lasts. Making sure there is enough air flow around the unit lets the heat escape according to the thermal design guidelines. Checking electrical lines on a regular basis keeps resistance from building up, which can lead to voltage changes. Technicians should make sure that the input voltage stays between 90V and 264V AC and that the output voltage reads 24V DC when the load is on.

We suggest trying the unit under full load once a year to make sure its speed hasn't gotten worse. The MTBF number of 100,000 hours or more assumes that the product is used correctly. Ventilation paths may need to be cleaned more often in places that are dusty. Our technical support team speaks many languages and can help you with installation and debugging through video online support.

Comparing 24V 600W Power Supplies with Other Voltage Solutions

Technical Performance Across Voltage Options

In earlier ATM models, 12V power devices were popular, but they don't work well with modern parts. Higher-power devices, like heated card readers for cold places or advanced security cameras with night vision, need more current at 12 volts. This means that the wire gauge needs to be bigger and the connections need to be more complicated. The 24-volt standard gives the same amount of power with half the energy. This lowers the cost of cables and makes electrical links more reliable.

Higher voltage choices, such as 36V or 48V systems, are better for industrial uses but make ATM setups more complicated than they need to be. The environment of parts for financial systems has standardized around 24V DC. This means that security devices, card readers, bill validators, and receipt printers all work best with this voltage. When the 24V standard is kept, procurement teams can use a bigger range of compatible parts.

Cost-Effectiveness in Long-Term Operations

Power supplies made by the original maker usually cost a lot. However, high-quality replacements like our 600W type are much cheaper and work just as well. Our manufacturing plant in China has been making ATM parts for more than 20 years, so they can make ISO9001-2008-certified goods that are the same as OEM units.

The 30-day guarantee and online help give buyers peace of mind. Our 15–20 working day lead time makes sure that repair plans don't clash with when we need to restock. We keep a lot of sub-module parts in stock, so even hard-to-find parts like the AC switch latch or certain fuse holders can be ordered right away and won't have to wait for a long time.

Space Optimization in Compact Installations

Power sources for through-the-wall ATMs have to fit into vault areas that are limited in room. The switch-mode design produces 600W in a small package that is much smaller than linear power sources of the same size. Because of this, ATM installers can add more security features or bigger cash boxes without having to change the layout of the vault.

Because the AC input voltage range is global (90–264V), there is no need for separate models for each region's electrical standards. Financial companies that do business all over the world can agree on a single part number, which makes buying things easier and makes inventory less complicated. 24V Power integrates seamlessly into this standardized framework, and this standardization includes our full list of parts, which includes more than 80% of all ATM circuits and parts available in the world.

Procurement Guide: Buying 24V 600W PSUs for Through-the-Wall ATMs

Identifying Reliable Suppliers and Distributors

When looking for important ATM parts, you have to check the providers' expert skills, quality control, and support systems. The 3000 square meter building that HONGKONG RONG MEI TECHNOLOGY CO., LIMITED uses for business is in Shenzhen. It has mold rooms, injection molding powers, maintenance offices, and quality control systems. This vertical merger makes sure that the quality of the parts and the dependability of the supply chain.

Our connection with your ERP system lets you see your inventory and track orders in real time. For requests and technical questions, procurement teams get answers 24 hours a day, seven days a week. Options for movement by sea, land, and air allow for both regular restocking and emergency replacing. Southeast Asia, the Middle East, Africa, Latin America, and mature areas like the US and Europe are just some of the places where we work with ATM providers.

Critical Evaluation Criteria for B2B Buyers

When procurement workers compare power source choices, they should put a number of technical specs at the top of their list. When the output voltage stays stable under changing load conditions, the parts that break down when the voltage drops during peak demand don't have to. Our active PFC system keeps the 24V output steady whether the ATM is not doing anything or is doing several things at once.

Protection features keep expensive ATM parts safe from electricity problems. Overvoltage protection stops damage if the power surges, overcurrent protection stops damage when a component short circuits, and thermal protection turns off the unit before it gets too hot and damages it. These safety features lower the total cost of ownership by stopping fails that damage many parts at once.

Certification compliance shows that the product is made well and that safety tests were done thoroughly. CE stamp proves safety standards and electromagnetic compatibility for European markets. UL 60950-1 approval proves that IT equipment is safe to use with electricity. RoHS compliance makes sure that parts are chosen and made in a way that is good for the environment.

Warranty and After-Sales Support Considerations

Our POWER SUPPLY SWITCH MODE 600W 24V comes with a 30-day guarantee that protects you right away against problems with the way it was made. Our online support lasts longer than the warranty time and provides professional help for the entire lifecycle of the device. We offer video remote support and technical instructions in multiple languages to help with the language and time zone issues that make foreign purchasing harder.

Premium providers are different from basic wholesalers because they offer a wider range of submodules. We have spare fuses (009-0023731), fuse holders (009-0023431), AC switch latches (445-0710941), and other parts that can be used. This parts depth cuts down on ATM delays because techs can fix units on the spot instead of having to wait for whole assemblies to be replaced.

Our ability to customize meets the specific needs of each market. Units can be changed to work in certain environments or with certain mounting arrangements by changing the hardware. Changes are made to the software to work with different regional settings or the needs of integrating with private ATM systems. This adaptability helps with both large-scale regular operations and unique installation needs.

Future Trends and Innovations in 24V PSU Technology for ATMs

Advancing Efficiency and Thermal Management

Newer switch-mode power sources will be even more efficient thanks to new semiconductor technologies like gallium nitride and silicon carbide transistors. These materials can switch more quickly and with fewer losses than silicon parts, which means less wasted energy and heat. 24V Power is already positioned to leverage these advanced technologies, and as these technologies get better, ATM owners will be able to see their power costs go down and the parts last longer.

New ideas in thermal management are mainly about smart cooling systems that change fan speeds based on tracking load and temperature in real time. Predictive algorithms can see heat stress coming before it affects performance, which means that repair tasks can be put off longer. Better thermal contact materials and heat sink designs will make passive cooling work better, relying less on active cooling parts that can break down mechanically.

IoT Integration and Remote Monitoring Capabilities

Predictive repair plans that stop failures before they happen will be possible with smart power sources that are connected to the internet. Monitoring the quality of the input voltage, the security of the output, the temperature, and the load patterns in real time will let repair teams know when things are getting worse. Network operations centers can keep an eye on the health of all the power supplies in an ATM fleet and replace them before they break down, instead of having to deal with emergencies.

Remote testing will cut down on truck rolls by letting experts check the health of the power system before sending out field workers. When you connect power problems to ATM control tools, you can link them to failed transactions, security events, or changes in the environment. Having a complete picture of an ATM's health will help with planning repairs and keeping track of spare parts.

Energy-Efficient Smart Banking Infrastructure

There is more and more pressure on the financial services business to lower its costs and effect on the environment. Energy-efficient ATMs help companies meet their environmental goals and improve their bottom line. The 24V architecture sets schools up well for the future because the standard voltage makes it easier for energy control tools to work together.

In the future, through-the-wall ATMs might have energy storage systems that help balance out demand spikes and keep the machines running during short power blackouts. The 24-volt standard works well with battery technologies that are widely used in systems that don't lose power. When making purchases today, people should think about how power supplies will work with new smart grid systems and green energy sources.

Conclusion

To work properly, through-the-wall ATMs need power sources that are always reliable, even in tough working conditions. The 24V 600W switch-mode power source is the best choice because it has a high output capacity, works efficiently, and is inexpensive. 24V Power is exemplified by our POWER SUPPLY SWITCH MODE 600W 24V (Part Number 009-0028273), which gives NCR SelfServ ATM operators the performance features that banks need: it works with all types of AC inputs, corrects power factors above 0.95, and is very reliable, lasting more than 100,000 hours.

Procurement teams profit from our full supply chain support, which includes more than 80% of ATM modules and parts, 24-hour reaction times, and the ability to make changes that meet the specific needs of each market. Our power supplies are the smart choice for both regular replacements and large-scale fleet upgrades because they are made in a factory that is ISO9001-2008 approved, fully follows all international safety standards, and is priced competitively.

FAQ

What advantages does 24V power offer compared to 12V for ATM applications?

The 24-volt design gives the same amount of power with half the current of 12V devices. This means that smaller cable gauges are needed and connections are more reliable. At 24V, voltage drop over long cable runs in through-the-wall systems is less of a problem. This means that parts get enough power even if they are wired several meters away from the vault area.

Can this power supply work with ATM models beyond NCR SelfServ?

Even though it was made to work with NCR SelfServ 6634 and 6638 types, this unit can also be used with other ATMs that need 24V DC power with a 600W capacity. Our expert team can check to see if certain types are compatible and give advice on any mounting or connection changes that need to be made.

How does active power factor correction benefit ATM operations?

Active PFC above 0.95 means that the power source gets current from the grid at the same time as the voltage. This lowers reactive power losses. This efficiency cuts down on energy costs, makes less waste heat, and meets power quality standards in business settings where utilities may fine for bad power factor.

Partner with RM for Reliable 24V Power Supply Solutions

The power supplies for your ATM fleet should be designed to handle the heavy needs of constant financial activities. RM has been making ATM parts for more than 20 years, and we use that experience in every unit we make. Our switch-mode power supply gives your through-the-wall systems the stability, efficiency, and dependability they need. It also comes with full expert support and fast shipping.

Our team is ready to help you succeed, whether you need spare parts for NCR SelfServ setups that are already in place or full power solutions for new deployments. We offer flexibility to meet the needs of each market, expert support in multiple languages, and a wide range of parts that keep downtime to a minimum. Get in touch with Tang@atm-part.com to talk to one of our technical experts about your unique power supply needs and find out why top ATM operators choose RM as their reliable 24V Power provider.
