V2XF Card Reader

V2XF Card Reader | Enterprise-Grade Wincor ATM Module with Multi-Function Integration

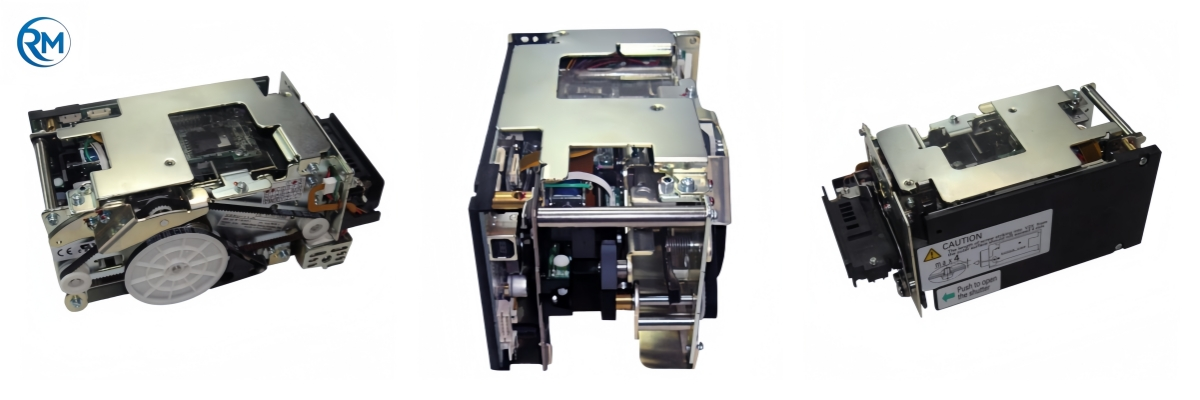

HONGKONG RONG MEI TECHNOLOGY CO., LIMITED delivers the V2XF Card Reader (Part Number: 1750105988/01750105988), a professional-grade ATM card reading module engineered for Wincor Nixdorf systems. With over 20 years of manufacturing expertise and ISO 9001:2008 certification, we supply this complete assembly featuring magnetic stripe reading, IC chip contact processing, and integrated watermark detection capabilities. The module achieves a mechanical lifespan exceeding 500,000 transaction cycles while maintaining EMV Level 1 and 2 compliance across banking environments from -25°C to +70°C operating temperatures.

Key Features

The V2XF Card Reader integrates seven critical subsystems into one unified assembly. The control board (1750105988) manages real-time communication protocols while the magnetic card reader head (1770006974) decodes ISO 7811 Track 1, 2, and 3 data at variable card insertion speeds.

Your ATM gains multi-layer security through the IC chip contact block (1770010158), which supports both synchronous memory cards and asynchronous CPU cards using T=0 and T=1 protocols. The width switch lever (1750126408) automatically adjusts to different card formats, preventing misalignment errors during high-volume transaction periods.

The watermark sensor module (1750105984) performs real-time currency authentication, while the main drive motor assembly (1750105986) delivers consistent 24V DC torque across 200,000+ operational cycles. Interface connection cables (1750049626) ensure electromagnetic compatibility within metal ATM chassis environments.

Compatible ATM Models

This module serves as a direct replacement component for Wincor Nixdorf ATM systems requiring the 1750105988 specification. The assembly integrates with CMD-V4 and CMD-V5 controllers through standardized RS232 and USB communication protocols.

Your existing Wincor infrastructure benefits from plug-and-play compatibility. The reader supports legacy magnetic stripe cards while future-proofing your system for contactless and chip-based authentication methods demanded by modern banking regulations.

Technical Specifications

Applications

Financial institutions deploy the V2XF Card Reader in branch ATMs handling daily withdrawal, deposit, and balance inquiry transactions. The module's triple-track magnetic reading capability ensures backward compatibility with legacy bank cards while the IC contact interface processes EMV chip transactions mandated by current payment network standards.

Retail banking networks utilize this assembly in through-the-wall ATM installations. The reinforced polycarbonate housing withstands outdoor temperature extremes and humidity fluctuations common in exposed environments. Your machines maintain 24/7 uptime through the motor assembly's anti-jam mechanism that ejects cards during power interruption events.

Government service centers integrate these readers into benefit disbursement kiosks. The watermark sensor authenticates identity documents while the width adjustment system accommodates regional card format variations without manual recalibration.

Quality Inspection

Every V2XF Card Reader undergoes automated lifecycle testing using robotic insertion systems that simulate 500,000+ transaction cycles. Your module arrives pre-validated for contact pressure consistency across the IC chip interface, measured at 50-80 gram force per ISO 7816-3 standards.

Electromagnetic interference testing occurs inside Faraday cage environments. We verify signal integrity when the reader operates alongside cash dispensers, receipt printers, and other high-current ATM peripherals within metal enclosures.

Environmental chamber validation confirms operational stability from -25°C Arctic conditions to +70°C desert installations. Humidity cycling between 10%-90% relative humidity tests corrosion resistance of electrical contacts and magnetic read heads before shipment.

Why Choose Us

With over 5 years specializing in V2XF Card Reader supply, we maintain complete inventory of all seven subsystem components. Our 3,000 square meter facility houses dedicated mold rooms and injection molding departments producing replacement parts unavailable through standard distribution channels.

Your procurement benefits from our ERP-integrated inventory system providing real-time stock visibility. We respond to technical inquiries within 24 hours and support remote troubleshooting through video assistance for installation guidance.

ISO 9001:2008 certification guarantees consistent quality across new and refurbished units. Our R&D department offers customization services for proprietary firmware updates and mechanical modifications matching specific ATM chassis requirements.

Packaging & Shipping

Each reader ships in anti-static foam inserts within corrugated cartons rated for international transit. We support sea freight for container orders, air freight for urgent 15-20 day delivery windows, and express courier services for emergency replacement scenarios.

Your shipment includes installation manuals, interface cable pinout diagrams, and calibration certificates. Units destined for extreme climates receive additional desiccant packs and humidity indicator cards for in-transit monitoring.

Frequently Asked Questions

Q: Does the V2XF Card Reader require specialized drivers for modern operating systems?

A: The module communicates through standard RS232/USB protocols compatible with native Windows and Linux drivers. Proprietary Wincor CMD controller firmware handles device-specific commands.

Q: Can you supply individual components rather than complete assemblies?

A: Yes, we stock all seven subsystems separately, including magnetic heads, IC contact blocks, and motor assemblies for targeted repairs.

Q: What maintenance schedule do you recommend?

A: Use pre-saturated cleaning cards every 2,000 transactions to remove debris from magnetic heads and transport rollers, extending operational lifespan.

Q: How does the watermark sensor function?

A: Infrared LED arrays illuminate currency or documents at specific wavelengths, detecting fluorescent patterns invisible under normal lighting conditions.

Q: Is firmware upgrading possible after installation?

A: The control board supports in-application programming through the RS232 interface, allowing security patches and EMV kernel updates without hardware removal.

Request Your Quote Today

Contact our technical sales team at Tang@atm-part.com for pricing on new or refurbished V2XF Card Reader units. Receive expert guidance on compatibility verification and volume discount structures.
