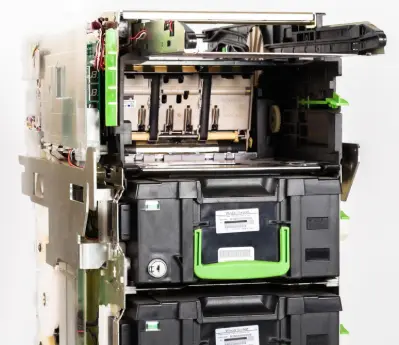

CMD V4 Dispenser Vertical Shutter RL

CMD V4 Dispenser Vertical Shutter RL - Professional ATM Component Solution

When your ATM operations demand precision and reliability, the CMD V4 Dispenser Vertical Shutter RL delivers enterprise-grade performance. Backed by RM's 20 years of industry expertise and ISO 9001:2008 certification, this critical component features an MTBF exceeding 1,000,000 cycles and operates flawlessly across temperature ranges from -10°C to +50°C.

Part number 01750045330 incorporates advanced anti-static coating technology and precision-timed actuation mechanisms. With integrated optical sensors providing real-time feedback and reinforced construction designed specifically for Rear Loading configurations, this vertical shutter ensures seamless cash delivery in high-volume financial environments. Our 3,000-square-meter facility combines R&D excellence with strict quality control to deliver components you can trust.



Why Choose Our CMD V4 Vertical Shutter Solution

Your ATM uptime depends on components that perform consistently under pressure. We've supplied sub-modules and spare parts for this system for more than 5 years, giving us deep technical knowledge of every operational challenge you face.

Our vertical shutter RL configuration protects your dispenser from fishing attacks and environmental debris. The precision-engineered design prevents banknote jams during high-velocity delivery cycles, reducing your maintenance costs significantly.

You'll receive components that meet strict dimensional tolerances verified through CMM testing. Each CMD V4 Dispenser Vertical Shutter RL undergoes cycle stress testing simulating 100,000 continuous operations before shipment.

We maintain ready stock with 24-hour inquiry response and 15-20 working day delivery for standard orders. Whether you need brand new or professionally refurbished units, every component comes with a 30-day warranty and online technical support.

Technical Specifications

Complete Component Package

Your vertical shutter assembly includes all essential sub-modules for seamless installation:

01750045331 - Shutter CMD V4 Vertical RL (Mont. w) - The primary shutter mechanism with mounting hardware

01750136012 - Shutter Guide Rail RL - Precision rails ensuring smooth vertical travel

01750100965 - Shutter Strip - Anti-static surface treatment for banknote protection

01750100918 - Stepping Motor - High-torque drive unit for reliable actuation

01750041185 - Timing Belt - Synchronized power transmission component

01750030043 - Micro-switch / Sensor - Optical feedback for real-time status monitoring

We can provide all piece parts separately for your specific maintenance requirements. This flexibility reduces your inventory costs while ensuring rapid repair turnaround.

Application Scenarios That Demand Reliability

High-Volume Banking Environments

Your busiest branch locations require components that withstand thousands of daily cycles. The CMD V4 Dispenser Vertical Shutter RL handles continuous operation without mechanical fatigue or timing drift.

Outdoor Through-the-Wall Installations

When your ATMs face harsh environmental conditions, our tight-sealing vertical configuration protects sensitive dispenser mechanisms from humidity and particulate ingress. Temperature fluctuations won't compromise performance.

Cash Recycling Systems

Modern recyclers demand components that handle various currency types flawlessly. Our reinforced RL design ensures consistent delivery whether you're dispensing new, worn, or polymer banknotes.

Off-Premise Kiosks

Security matters in remote locations. The robust construction provides a proven deterrent against physical tampering while maintaining smooth operation across extended service intervals.

Quality Control You Can Verify

Every component leaving our 3,000-square-meter facility passes five rigorous inspection stages. Our QC department performs dimensional tolerance testing using Coordinate Measuring Machines to guarantee seamless fit within your CMD V4 frame.

Cycle stress testing simulates real-world conditions you'll encounter in the field. We verify motor performance, gear wear patterns, and shutter guide friction characteristics before approval.

Optical sensor sensitivity calibration ensures your system correctly identifies partial blockages. Surface friction analysis guarantees smooth travel without snagging during rapid dispense cycles.

Environmental stress screening confirms that seals remain airtight under varying atmospheric pressures. Your outdoor installations receive the same protection as climate-controlled environments.

Frequently Asked Questions

Q:What causes 'Shutter Timeout' errors in the RL module?

A:This typically results from dust accumulation on optical home-position sensors or mechanical resistance in guide rails. Regular cleaning and proper lubrication resolve most timeout issues quickly.

Q:How does this shutter prevent cash trapping attacks?

A:The smooth-surface interior design and high-torque closing mechanism minimize gaps where trapping devices could be inserted. This physical security feature protects both your assets and customer transactions.

Q:Is this vertical shutter compatible with older CMD V3 modules?

A:No, the V4 RL shutter features specific electronic interfaces and mounting points designed exclusively for V4 architecture. Attempting cross-generation installation will cause mechanical and electrical conflicts.

Q:What's the recommended maintenance interval?

A:Industry standards suggest visual inspection and sensor cleaning every 100,000 cycles or during quarterly preventative maintenance. This schedule maximizes component lifespan while preventing unexpected failures.

Q:Does the RL shutter support polymer banknotes?

A:Absolutely. The anti-static coating and calibrated shutter gap accommodate both paper and polymer substrates. You'll experience consistent performance regardless of currency type.

Q:Can I purchase individual components separately?

A:Yes, we supply all piece parts individually. Whether you need just the timing belt or complete assemblies, our flexible inventory system supports your specific maintenance strategy.

Professional Support Throughout Your Journey

Our engineering team provides comprehensive technical assistance when you need it most. Remote video support helps diagnose issues quickly, reducing your ATM downtime significantly.

Installation guidance ensures proper component integration from the start. When you encounter unexpected challenges, multilingual documentation and online troubleshooting resources are readily available.

We respond to technical inquiries within 24 hours because we understand that every minute of downtime affects your bottom line. Our ERP management system tracks your order history, making repeat purchases effortless.

Get Your Vertical Shutter Solution Today

Contact our team at Tang@atm-part.com for immediate assistance for CMD V4 Dispenser Vertical Shutter RL.
