DN250 450 RMV4 Lower Mechanism Control Board 1750287365

DN250 450 RMV4 Lower Mechanism Control Board 1750287365

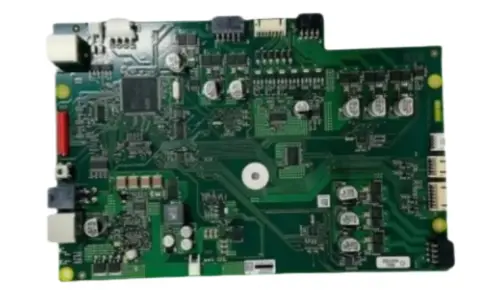

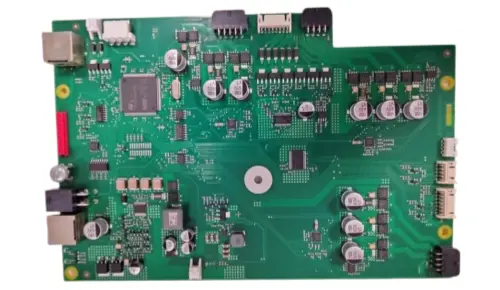

DN250 450 RMV4 Lower Mechanism Control Board 1750287365 from Hong Kong Rong Mei Technology CO., LIMITED is a mission-critical electronic control unit for Diebold DN250 and DN450 Series ATMs. This precision-engineered board from RM provides enterprise-grade dependability with 20 years of industry experience and ISO 9001:2008 certification. In a 3,000-square-meter production facility, our combined R&D and quality control teams guarantee every item fulfills performance standards. The 1750287365 board manages sensor feedback, motor control signals, and real-time diagnostic communication across lower channel transmission functions in the RMV4 movement to avoid M-Status problems that cause transaction failures.

Technical Specifications

Core Functions & Performance

The product serves as the electronic brain for your ATM's lower cash handling module. It processes optical sensor inputs to detect note presence, skew, and double-detect conditions with microsecond precision.

The board regulates motor torque delivery to maintain consistent transport speeds between 8.5 to 10 notes per second. This synchronization prevents note jams and reduces mechanical wear on drive belts and rollers.

Built-in diagnostic protocols continuously monitor voltage fluctuations and temperature thresholds. When anomalies occur, the control board triggers alerts before component failure, minimizing unplanned downtime.

Your operations benefit from enhanced Mean Time Between Failures (MTBF) rates. The circuit design incorporates anti-static protection and electromagnetic interference shielding suitable for harsh banking environments.

Why Financial Institutions Choose This Control Board?

Banking operations demand components that deliver 24/7 reliability. The RMV4 Lower Mechanism Control Board addresses the most common pain point in self-service hardware: transaction timeouts caused by communication failures between sensors and processing units.

You gain tool-less installation compatibility with existing DN250 and DN450 chassis configurations. Modular connector design allows maintenance teams to swap boards in under 10 minutes without specialized training.

RM's manufacturing process includes lifecycle stress testing equivalent to 100,000-cycle operational simulations. Each board undergoes voltage surge testing and thermal cycling to replicate five years of field conditions before shipment.

Our global supply chain partnerships ensure stable component sourcing. You avoid the delays common with obsolete ATM parts, receiving consistent quality whether ordering single units or bulk replacements.

Quality Assurance & Testing Standards

Every DN250 450 RMV4 Lower Mechanism Control Board 1750287365 passes through multi-stage inspection protocols:

Signal Integrity Testing: Oscilloscope ensures voltage outputs meet Diebold Nixdorf specifications within ±0.2V margins.

Environmental simulation: Boards cycle between -10°C and +60°C in climate chambers to test solder junction endurance.

IEC 61000 RF interference testing assures your board won't damage nearby components or wireless networks.

Measurements of surface resistivity indicate anti-static characteristics between 10^6 and 10^9 ohms. Reduces electrostatic discharge damage during note handling in low-humidity settings.

From purchase to assembly, our ERP-managed quality system records components. You get international banking hardware certification.

Installation & Maintenance Support

You get complete technical support when installing the control board into your ATM fleet. Multilingual installation guidelines from RM include connection pinout diagrams and torque specs.

Online troubleshooting is available 24/7 from our support staff. Technicians use remote video to check board seating and wire routing during installation.

The 30-day warranty covers manufacturing and functional problems. Extended service agreements are offered for high-volume installations needing priority replacement shipments.

An annual visual assessment of connection integrity is enough for routine maintenance. The solid-state board has no mechanical parts to lubricate or tune.

Logistics & Global Delivery

RM offers urgent and affordable shipping options. Emergency replacement boards arrive via express air freight in key financial cities in 3-5 days.

When buying many units, sea freight reduces fleet upgrading expenses. Our logistics partners simplify cross-border deliveries with customs paperwork.

Moisture barrier bags and anti-static foam inserts protect packages. Your selected language inspection certifications and handling instructions accompany each shipment.

You get combined shipping when you purchase the 1750287365 board with other ATM modules. Multi-item orders are coordinated by our inventory management system to decrease freight expenses.

FAQ

Q: Is the product compatible with older DN200 models?

A: This board is engineered specifically for DN250 and DN450 Series ATMs. While connector types may physically match DN200 housings, firmware differences prevent proper functionality. Contact our technical team at Tang@atm-part.com for cross-compatibility assessments.

Q: What causes most control board failures in RMV4 modules?

A: Field data shows 60% of failures stem from voltage spikes during power restoration after outages. Installing surge protectors upstream of your ATM's main power supply extends board lifespan significantly.

Q: Do you offer customization for boards requiring specific firmware versions?

A: Yes, RM provides firmware flashing services for boards needing region-specific configurations or legacy version compatibility. Minimum order quantities and lead times vary based on customization complexity.

Q: How does refurbished condition compare to new boards in reliability?

A: Our refurbished units undergo the same 100,000-cycle testing as new boards. Components showing wear beyond tolerance are replaced with OEM-grade parts. Performance metrics show equivalent MTBF rates between both conditions.

Q: Can I receive technical training for my maintenance team?

A: RM offers remote training sessions covering board diagnostics, sensor calibration, and common fault resolutions. Contact Us to schedule customized training for your team's skill level.

Contact Us

Ensure your self-service banking network operates without interruption with the DN250 450 RMV4 Lower Mechanism Control Board 1750287365.Reach our specialists at Tang@atm-part.com for quotations, technical specifications, or partnership inquiries today.
