CMD-V4 Controller with USB assembly

CMD-V4 Controller with USB Assembly | Enterprise-Grade ATM Dispenser Module Solution with 8+ Years Supply Reliability

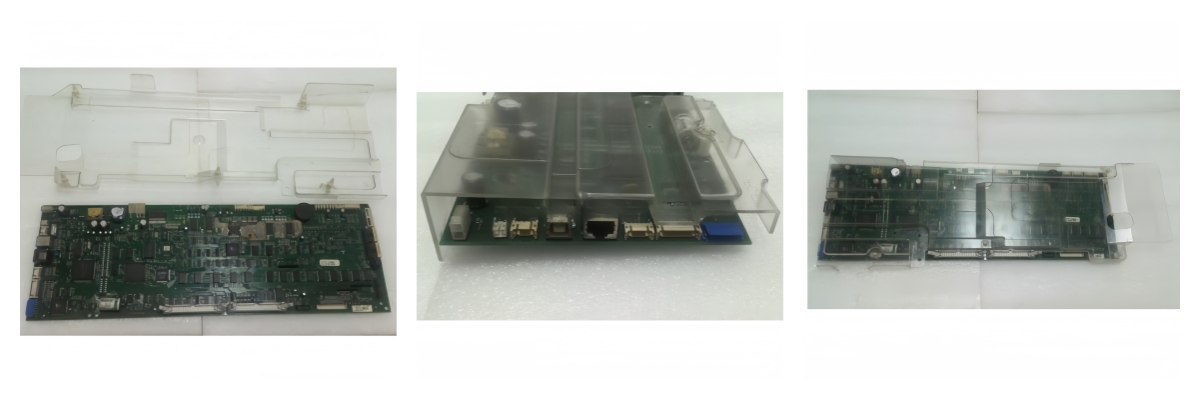

HONGKONG RONG MEI TECHNOLOGY CO., LIMITED brings you the CMD-V4 Controller with USB assembly, a proven enterprise-level dispenser control solution backed by over 8 years of continuous supply and comprehensive component availability. Our complete assembly integrates the controller board, USB interface, and compatible housing cover, engineered specifically for Diebold Nixdorf ATM systems. Operating on 24V DC logic with high-speed serial communication, this unit supports dispensing velocities up to 60 notes per second internally, handles substrate thicknesses from 0.06mm to 0.18mm, and achieves Mean Cycles Between Failure (MCBF) exceeding 200,000 transactions. With ISO 9001:2008-certified manufacturing and RoHS-compliant materials, we guarantee industrial-grade reliability for your ATM operations.

Key Features

Advanced Electronic Architecture

The CMD-V4 Controller with USB assembly features high-speed serial communication protocols that ensure millisecond-response accuracy for solenoid actuation and gate switching. The integrated USB interface provides seamless firmware updates and diagnostic data extraction without disassembly.

Modular Integration Capability

Designed for maximum versatility, this controller supports configurations with up to 6 cassette modules (logic dependent). You can easily scale your ATM's capacity while maintaining centralized control through a single logic board.

Precision Note Handling

Equipped with Double Note Detect (DND) measuring stations, the controller monitors electromechanical roller feedback with micron-level accuracy. This ensures reliable differentiation between single notes and stuck pairs, reducing dispensing errors below 0.01%.

Enhanced Environmental Resilience

Sealed gear paths and robust sensor calibration allow operation across extreme temperature fluctuations and dusty conditions. The controller maintains consistent performance in both regulated indoor and challenging outdoor kiosk environments.

Comprehensive Component Ecosystem

Our supply includes all critical piece parts: primary drive motors, vertical and horizontal transport units, horizontal and vertical shutters, stacker wheels, and main distribution boards. This complete parts availability minimizes downtime and simplifies maintenance planning.

Compatible ATM Models

The CMD-V4 Controller with USB assembly is engineered specifically for Diebold Nixdorf (formerly Wincor Nixdorf) ATM architectures. It integrates seamlessly with various presenter modules including clamp, shutter, and open tray configurations.

This controller supports both through-the-wall (TTW) and lobby-style machines across retail, financial institution, and IAD (Independent ATM Deployer) networks. Whether you operate high-volume bank branches or outdoor drive-up kiosks, the standardized interface ensures compatibility.

The assembly works with both polymer and cotton-based currency handling systems when properly calibrated. Firmware updates enable adaptation to regional note specifications and emerging security features.

Technical Specifications

Applications

High-Throughput Banking Environments

The CMD-V4 Controller with USB assembly excels in 24/7 lobby and drive-through ATMs where transaction velocity demands ultra-reliable note handling. Financial institutions depend on this controller's ability to process mixed-denomination bundles without jamming during peak withdrawal periods.

Outdoor Self-Service Terminals

For drive-up kiosks and unattended outdoor units, environmental challenges like temperature swings and particulate matter threaten dispenser reliability. Our controller's sealed design and advanced sensor calibration ensure consistent operation where competing modules fail.

Retail Cash Management Systems

Retailers deploying back-office smart safes and cash recyclers benefit from the controller's compact vertical stacking capability. The precision logic enables automated float preparation and drawer reconciliation with bank-grade accuracy.

Independent ATM Deployment Networks

IADs operating multi-site portfolios require standardized components with predictable maintenance cycles. This controller reduces Total Cost of Ownership through extended MCBF ratings and comprehensive spare parts availability.

Quality Inspection

Every CMD-V4 Controller with USB assembly undergoes rigorous multi-stage verification before shipment. Our ISO 9001:2008-certified facility implements controlled testing protocols that exceed industry benchmarks.

Double Detect Sensor Calibration

We verify DND accuracy using standardized thickness gauges, ensuring your unit rejects adhered note pairs while accepting legitimately worn singles. This prevents costly dispensing errors and customer disputes.

Mechanical Endurance Testing

Each controller completes a 2,000-cycle continuous dispense simulation using standardized test decks. We include "dirty note" scenarios with soiled bills to confirm jam rates remain below 0.01% under real-world conditions.

Belt Tension Verification

Timing and transport belts undergo stress testing within 15N-30N tension ranges. This prevents note skewing and slippage that cause transaction failures and extended downtime.

Solenoid Response Timing

Gate switch solenoids are tested for millisecond-accuracy actuation to eliminate routing errors. Precise timing ensures notes reach the correct path whether heading to the stacker or reject cassette.

Why Choose Us

Over 20 Years ATM Industry Expertise

HONGKONG RONG MEI TECHNOLOGY brings two decades of specialized knowledge in financial equipment components. Our engineering team understands the operational pressures you face and designs solutions accordingly.

8+ Years CMD-V4 Supply Continuity

Unlike vendors with sporadic availability, we've maintained uninterrupted CMD-V4 Controller with USB assembly supply for over eight years. Your maintenance schedules remain predictable without sourcing disruptions.

Complete Parts Ecosystem

We stock over 80% of ATM modules and components available globally, including every piece part for the CMD system. From primary drive motors to stacker wheels, you access one-stop procurement that simplifies inventory management.

24-Hour Response Commitment

Your inquiries receive technical responses within 24 hours, supported by online assistance and remote video troubleshooting. We understand that ATM downtime directly impacts your revenue and customer satisfaction.

Flexible Customization Services

Need firmware modifications for regional currency? Require OEM branding? Our R&D department provides customization for hardware optimization, multi-language interfaces, and specific operational parameters.

Certified Manufacturing Standards

Our 3,000-square-meter facility operates under ISO 9001:2008 certification with ERP-integrated quality management. From mold room to final QC inspection, every production stage meets documented control procedures.

Packaging & Shipping

We protect your CMD-V4 Controller with USB assembly using anti-static foam cushioning within double-wall corrugated cartons. Each unit ships with protective end caps on connectors and moisture-barrier wrapping for sea freight.

Standard lead time runs 15-20 working days depending on order configuration and current production schedules. For urgent requirements, expedited manufacturing may be available—contact our team for feasibility.

Global Logistics Options:

• Air Freight: 5-7 days to major hubs, ideal for emergency replacements
• Sea Freight: 25-40 days, cost-effective for bulk orders and planned inventory
• International Express: DHL/FedEx for samples and critical components
• Land Transportation: Regional delivery across Asia-Pacific corridors

All shipments include commercial invoices, packing lists, and certificates of origin. We provide tracking references and maintain communication throughout transit.

FAQ

Q: Can I replace just the controller board, or must I purchase the complete assembly?

A: While the controller board is available separately (part 01750109641), we recommend the complete USB assembly to ensure connector compatibility and proper firmware matching with the housing cover.

Q: What's the typical lifespan before controller replacement becomes necessary?

A: Under normal operating conditions with regular preventive maintenance, the controller typically exceeds 200,000 transaction cycles before replacement. High-humidity or dusty environments may require earlier inspection.

Q: Do you provide firmware updates for polymer note handling?

A: Yes, we supply firmware updates and calibration guidance for polymer currency adaptation. Our technical team assists with Double Detect Assembly adjustments required for slicker polymer surfaces.

Q: How quickly can you fulfill an emergency order for a failed unit?

A: For in-stock configurations, we can dispatch within 48 hours via air express. Custom configurations follow our standard 15-20 day lead time, though expedited processing may be possible.

Q: What warranty coverage do you offer?

A: We provide a 90-day warranty covering manufacturing defects and component failures under normal use. Extended warranty options are available for volume purchasers.

Contact Us / Request Quote

Ready to secure your ATM uptime with proven CMD-V4 Controller with USB assembly solutions? Contact our technical sales team at Tang@atm-part.com for quotations, compatibility verification, or custom configuration discussions today.
