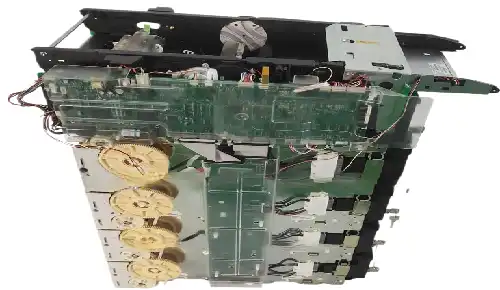

What is CMD V4 Dispenser for Wincor ProCash ATMs?

The fourth version of improved friction-based note dispensing technology was made for Wincor Nixdorf ProCash ATMs, and it's called the CMD V4 Dispenser. The enterprise-level cash media dispenser module is the electromechanical brain that picks up bills from safe boxes, moves them around, stacks them, and gives them to ATM users. It has better photosensors and stronger gear-drive systems, so it can handle up to 60 notes per second and find double notes with micron-level accuracy. This makes it an essential option for banks that need to handle cash reliably.

Overview of the CMD V4 Dispenser and Its Role in Wincor ProCash ATMs

Knowing how modern cash dispensing systems are put together technically helps buying teams choose the right tools to buy. The cash media feeder is the most important part of any ATM transaction. How reliable it is has a direct effect on how happy customers are and how efficiently the machine works. The CMD V4 engine is engineered to fit into a wide footprint of indoor lobby, through-the-wall (TTW), and drive-up automated tellers, including:
ProCash Lobby Terminals: ProCash 1500, 1500xe, 2050, and 2050xe lines.
ProCash TTW Terminals: ProCash 2100, 2150xe, 2250xe, and ProCash 280 / 285 variants

Core Functionality and Design Excellence

It works with a standard 24V DC logic and has high-speed serial communication ports that make it easy to connect to Wincor Nixdorf ProCash ATM systems. This CMD V4 Dispenser module is different from earlier ones because it has advanced sensor technology and mechanical parts that were carefully designed and manufactured. Depending on how the reasoning is set up, the dispenser can hold up to six cassettes. This lets banks handle different amounts from a single station. This modular design solves a major problem that ATM operators had before: they had to deal with complicated servicing for a lot of different types of equipment.

The device works with substrates with thicknesses ranging from 0.06mm to 0.18mm and is compatible with currencies made of polymer and cotton that are used around the world. This flexibility is especially helpful for banks that work in places that are switching to polymer notes or that have to deal with a mix of currencies.

High-Volume Transaction Capability

With a Mean Cycles Between Failure (MCBF) grade of more than 200,000 transactions, the CMD V4 Dispenser is very durable and works well in high-throughput banking settings. This makes it easier for branch ATMs to handle the thousands of transactions that happen every day, which saves money and keeps customers happy. The high-tech Double Note Detect (DND) measure units use electromechanical rollers to find differences in note thickness very precisely. This stops costly mistakes in dispensing that could affect accounting processes.

When conditions change and environmental factors come into play, it can be hard for financial institutions in developing countries. The sealed gear paths and strong sensor tuning make the performance reliable even when the temperature changes and dust gets in, which is common in outdoor drive-up booths. This resistance to the environment directly leads to lower upkeep costs and longer service times.

How the CMD V4 Dispenser Works: User Guide and Maintenance

To keep downtime to a minimum and machine life to a maximum, technical teams that are in charge of managing ATM fleets need to have a deep understanding of how everything works. The internal design of the CMD V4 Dispenser is the result of decades of technical work to improve technology for handling coins.

Installation Best Practices

Making sure that the dispenser driver works with the current ATM logic boards is the first step in a proper installation. The full setup comes with important parts like the CMD-V4 Controller with USB interface (part number 01750074210), the stacker with single vertical reject (01750109659), and the MDMS CMD-V4 unit (01750109641). To get the best results, each part must be put according to the manufacturer's instructions.

Both the vertical and horizontal transport units work together to move the notes from the boxes along the approval path and into the stacker assembly. Technicians should make sure that the stress on the transport belts stays between 15N-30N during installation to avoid notes sagging or slipping. To make sure that the dispense-to-present cycle runs smoothly, the horizontal shutter (01750082602) and the vertical shutter (01750045330) need to be precisely timed.

Routine Maintenance Protocols

Preventive repair makes devices last longer and cuts down on calls for emergency service. In places that handle more than 5,000 deals a month, pick rollers should be inspected every six months and should usually be replaced once a year to avoid friction loss and pick failures. Error Code 18, which means the sensor failed, is the most common operating problem. It's usually caused by dust building up on photosensor prisms in the stacker or transport path. Most sensor problems can be fixed before they become service interruptions by cleaning them regularly with pressured air and rubbing alcohol.

During repair rounds, you should pay extra attention to the stacker wheels (right: 01750054871, left: 01750054751). These parts are always under mechanical stress, and wear and tear affects the accuracy of stacking over time. To get the most out of maintenance funds, replacement plans should be based on the number of transactions, not on random time intervals.

Troubleshooting Common Challenges

It's helpful for technical teams to know about common failure causes and how to fix them. Compared to cotton-based money, polymer notes are easier to handle because they have a smoother surface and a smaller shape. The CMD V4 Dispenser fully accepts polymer cash, but to work with these different types of money, it needs special firmware updates and the Double Detect Assembly to be calibrated correctly. When operators switch to polymer notes, they should work with their seller to make sure the right setup changes are made.

Pick failures usually mean that the roller surfaces are worn or that the belt tension is wrong. For constant picking without slipping, the feed wheels need to be a certain shore hardness, especially when working with polymer surfaces. During the repair process, quality control tests make sure that the friction coefficients meet the manufacturer's requirements.

Comparing CMD V4 Dispenser with Alternatives: Making an Informed Decision

In a competitive market, procurement professionals looking at cash machine options have a lot of options to choose from. Knowing the differences between the options that are out there helps make sure that technology investments are in line with budget and practical needs.

Evolution from CMD V3 to V4

There has been a big step forward in technology from V3 to V4, not just small improvements over time. Better photosensor technology in the CMD V4 Dispenser makes it better at reading notes in tough situations, like when the bills are dirty or worn out, which is common in markets with a lot of cash traffic. The gear-drive system was completely redesigned to make it last longer between big overhauls and keep the parts from wearing out.

The speed of dispensing went from about 50 notes per second in V3 models to 60 notes per second in V4. This directly affected the time it took to process transactions during busy banking hours. This increase may not seem like much, but it adds up over thousands of transactions every day and makes the machine run more smoothly, cutting down on wait times for customers.

Compared to V3 systems, the V4 controller board and software have a totally different design. This makes an important point for procurement teams that are in charge of handling ATM lines that are already in use: the units usually can't be switched out. To go from V3 to V4, you have to replace both the main board and the wiring cables. This costs more than just swapping out modules.

Market Alternatives and Value Analysis

Different dispensers on the market fight on a number of factors, such as the cost to buy them, how reliable them are, how much upkeep they need, and how well they can support their suppliers. Original equipment maker (OEM) parts usually cost more and take longer to deliver, which puts budget pressure on ATM owners with short procurement cycles. Because of this change in price, a lot of banks and private ATM installers have turned to high-quality substitute parts that work just as well but cost less overall.

The CMD V4 Dispenser has an edge over its competitors because it strikes a good mix between performance specs, durability scores, and cost-effectiveness. The MCBF grade of 200,000+ transactions is the same as or higher than other options on the market, and the modular design makes managing parts inventory easier. Instead of keeping whole dispenser units on hand for emergency replacements, operators should stock up on typical wear parts.

When procurement teams look at pricing models and working cost efficiencies together, they should think about more than just the original purchase price. Total cost of ownership calculations are based on how often parts are available, how quickly expert help responds, and how well the system works with other systems that are already in place. A machine that needs to be serviced often or that has trouble getting parts will cost more in the long run, even if it cost less at first.

Procurement Guide for CMD V4 Dispenser: How to Buy and Who to Contact

To get things done quickly and easily during the procurement process, you need to know about the different methods that are available, how to handle operations, and how to get help. Because of how they run their businesses, banks, ATM service companies, and equipment sellers all buy things in different ways.

Ordering Process and Supplier Selection

Supply companies that are qualified keep a large stock of both whole dispenser systems and individual parts. This wide range of goods makes it possible to quickly respond to both planned upgrades and replacements that need to be made right away. When buying teams look at possible suppliers, they should make sure they have a number of important qualities, such as ISO 9001 certification that shows they have quality management systems, the right production and repair facilities, and established transportation partnerships for reliable shipping around the world.

RM has a 3,000-square-meter building in Shenzhen, China, that has offices for making molds, injection molding, upkeep, and quality control. This unified infrastructure serves both brand-new production and professional repair services, giving customers the freedom to find the best balance between quality and price. The facility keeps a large inventory of component parts on hand, which lets customers get exactly what they want without having to wait for longer lead times.

Logistics and Delivery Expectations

The standard wait time for CMD V4 Dispensers is 15 to 20 working days from the time the order is confirmed. However, this time frame can change depending on how customized the dispensers need to be and how much inventory is on hand at the time. For large orders that need to be delivered quickly and cheaply, suppliers offer a variety of shipping choices, such as sea freight, air freight, and land transportation for regional distribution. Each method has pros and cons when it comes to speed, cost, and handling that should be weighed against the project's schedule and budget.

Warranty Coverage and After-Sales Support

The CMD V4 Dispenser comes with a 30-day guarantee that covers problems with the way it was made and parts that break while it's being used normally. This guarantee period gives buyers enough time to install, test, and use the unit for the first time while also protecting them against faulty units. Suppliers usually offer extended service contracts and preventive maintenance plans that are made for high-volume operations that go beyond the standard warranty time.

Online support infrastructure is becoming more and more important for global ATM providers who are in charge of handling networks of terminals spread out around the world. RM offers online help and answers to questions 24 hours a day, 7 days a week. This lets expert teams fix problems quickly, even if they are in different time zones. Remote diagnostics and video support sessions let technicians fix problems without having to pay a lot for expensive on-site trips, which cuts down on running costs by a large amount.

Multilingual technical documentation and support staff address language barriers that sometimes complicate international procurement relationships. Clear communication during installation, fixing, and maintenance keeps people from misunderstanding things that cost a lot of money and makes sure that the equipment works right.

Why Choose CMD V4 Dispenser? Value Proposition for Industrial Clients

The strategic value of cash handling equipment comes from how it affects business goals, not just from its technical specs and how it is bought. ATM service providers and financial institutions look at technology investments through a number of different views, such as how reliable they are, how easily they can be expanded, and how well they fit with their goals for the customer experience.

Operational Reliability in Diverse Environments

In a wide range of operation situations, the CMD V4 Dispenser shows outstanding dependability. The dispenser can handle mixed-denomination packages without getting clogged during busy exit times, which is good for high-throughput banking ATMs in climate-controlled branch halls. This feature directly improves customer happiness by getting rid of frustrating transaction fails that send users to competing institutions.

Temperature changes, changes in humidity, and dust exposure make working conditions for outdoor drive-up booths much worse. The protected gear paths and strong sensor tuning keep the dispenser's performance stable even in harsh environments that cause cheaper dispensers to break down early. This natural resilience is especially useful in developing markets where limited infrastructure and weather conditions make operations even more difficult.

Retail cash management systems represent a growing application area leveraging ATM dispensing technology for back-office automation. The CMD V4 Dispenser's small vertical stacking feature lets stores automatically set up cash drawers and handle floats with great accuracy. This app expands the target market beyond standard ATMs in banks and into a wider range of business cash handling situations.

Real-World Performance Data

Financial companies that are in charge of large ATM networks have reported big changes in how well they work since deploying CMD V4 Dispenser. Lower running costs are directly linked to fewer service calls, and higher customer happiness levels are directly linked to higher uptime. The high-tech DND system stops mistakes that could cost a lot of money and need to be looked into and possibly reimbursed by the customer. This protects the institution's money and image.

Scalability and Integration Capabilities

For modern ATM networks to work, the technology systems need to be able to change with the needs of the businesses. The CMD V4 Dispenser's flexible design allows for easy expansion from simple single-denomination setups to complicated six-cassette setups that handle multiple denominations. This gives institutions the freedom to use a single platform while still being able to customize each terminal's setup to meet the needs of each site.

Software integration makes sure that it works with different ATM software platforms and tracking systems that are used in the business world. The fast serial communication link sends diagnostic data, performance measures, and the state of transactions in real time to centralized management dashboards. This makes it possible to plan preventative repair and use data to find the best amounts of cash on hand.

Conclusion

As a key part of Wincor Nixdorf ProCash ATM systems, the CMD V4 Dispenser has been shown to work well, helping financial institutions, ATM service companies, and equipment dealers around the world with important operating issues. This machine's advanced friction-based note dispensing technology blends speed, accuracy, and longevity to cut down on downtime and the overall cost of ownership. This dispenser works successfully in a wide range of settings, from high-volume branch ATMs to difficult outdoor kiosks. It can handle a wide range of cash types, is resistant to harsh environments, and has a wide range of available parts. Simple buying processes, quick technical help, and setup choices that can be changed to fit specific operating needs are all good for procurement teams.

FAQ

What ATM brands and models are compatible with the CMD V4 Dispenser?

For Wincor Nixdorf ProCash ATM systems only, the CMD V4 Dispenser is designed to work. It won't work straight with other brands like NCR, Diebold, or Hyosung without major modifications. ProCash series terminals from the Wincor Nixdorf product family are all compatible with each other, though you may need to check the compatibility of certain software versions and controller setups before placing your order.

Can the CMD V4 handle both new and worn banknotes effectively?

The CMD V4 Dispenser's advanced Double Note Detect system is set up to handle bills in a wide range of conditions, from brand-new ones to worn-out ones that are common in places with a lot of cash flow. The motorized rollers can tell the difference in thickness down to the micron level, so stuck notes are thrown away while single worn bills are consistently passed. This skill comes in handy in developing markets where note conditions are likely to change a lot.

What accessories or components are recommended for optimal CMD V4 performance?

For the best performance, use transport belts, picking rollers, and photosensors that are made by the maker and meet standards for optical sensitivity and friction coefficient. Performance doesn't get worse when wear parts are replaced regularly based on deal traffic. Along with mechanical extra parts, you should keep good cleaning tools like isopropyl alcohol and lint-free wipes on hand for sensor upkeep.

What are typical bulk order lead times for CMD V4 dispensers?

For bulk sales, the standard wait time is between 15 and 20 working days, but this can change depending on the size of the order, any customization needs, and the current stock level. Orders that need custom software setups or changed component specs may take longer than usual to complete. Setting up outline deals with suppliers speeds up repeat orders by negotiating terms ahead of time and reserving production capacity.

Partner with RM for Reliable CMD V4 Dispenser Supply

RM is ready to help you buy ATM parts with complete CMD V4 Dispenser solutions based on more than 20 years of experience in the field. Our ISO 9001-2008-certified center sells more than 80% of the ATM modules and parts on the market, ranging from whole systems to small replacement parts. We keep a large collection so that we can meet your needs quickly, whether you need brand-new units or carefully repaired dispensers that are still in great shape. You can Contact Us at Tang@atm-part.com to talk about your specific needs, get full specs, or place an order with a reliable CMD V4 Dispenser provider that is committed to quality, low pricing, and quick response times 24 hours a day, 7 days a week.
