TP27 Printer Module Uses in High-Volume Banking Environments

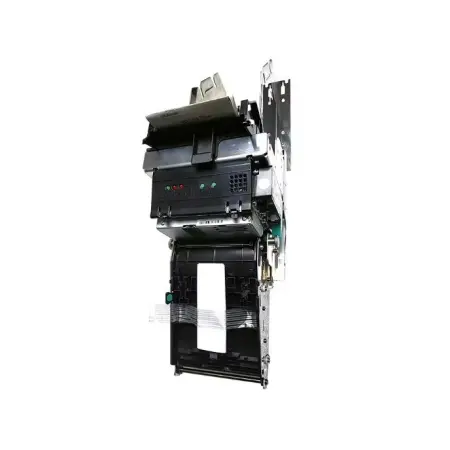

The TP27 printer module is a thermal receipt and journal printing unit built for Wincor Nixdorf ProCash and Cineo series ATMs, including the C4060 model. With part number 01750256247, it prints at over 150mm per second at 203 dpi resolution, and its auto-cutter is rated for more than one million cuts. For ATM service providers, parts distributors, and bank IT teams managing large fleets of Diebold Nixdorf machines, this module addresses the core demand for reliable, audit-compliant transaction printing in 24/7 banking operations.

Understanding the TP27 Printer Module: Specifications and Functionality

Core Technical Specifications

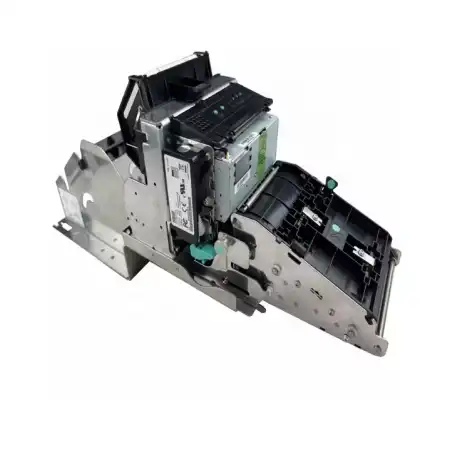

The SHEC TL80 print head is used in the TP27 receipt printer module, which has the part number 01750256247 (also seen as 1750256247). If you use thermal paper with a density between 55g and 80g, it will print at 203 dpi across an 80mm width. The mechanism that cuts the paper has been used more than a million times, which means that most ATMs will work for years without having to replace the cutter.

Connectivity and Driver Compatibility

The module has connectors for both USB and V.24 (Serial), and it works with WOSA/XFS drivers. This means that the unit can be used with existing ProCash and Cineo ATM software, so no new drivers need to be made. Field engineers can replace a broken unit and get journal printing back on within the same service window. This cuts down on the Mean Time To Repair (MTTR).

Setup and Maintenance Basics

For the first installation, the control board's dip switches need to be set up to match the ATM's PC core configuration. As part of regular upkeep, the optical sensors should be cleaned with isopropyl alcohol and compressed air to keep paper dust from building up, which is the main cause of mistakes when printing on paper. Before distribution, it's important to make sure that the firmware version works with both the ProBase and Agilis software stacks.

Comparing TP27 with Other Printer Modules for Banking Environments

Print Quality and Speed Against Competing Models

The TP27 printer module can print at speeds of more than 150 mm per second at 203 dpi. When compared to older thermal journal printers found in legacy ATM systems, this output speed cuts transaction wait times at busy stores by a large amount. In 2022, a mid-sized European bank's branch network had an ATM repair check. Units running at less than 100mm per second were found to be a reason why customers were complaining about having to wait during peak hours.

Durability Under Continuous Workloads

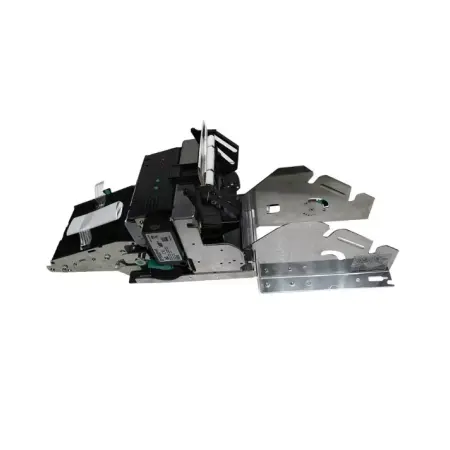

The TP27 is different from lighter-duty models because it has a metal alloy gear train and a reinforced polycarbonate chassis. In a working ATM case, thermal stress and mechanical vibration are always present. Cheaper printer parts often experience platen roller slip or cutter gear wear within 18 months of being installed. The way the TP27 is built directly addresses these weak spots.

Limitations and Practical Workarounds

The module doesn't come with Ethernet built in; you can only join via USB or V.24. Teams should make sure that their ATM management software can check the state of printers over a network using the current XFS layer instead of a straight network port for ATM deployments that need to do so.

Optimizing TP27 Printer Module Usage in High-Volume Banking Environments

Preventing Common Failure Modes

Most of the time, ATM receipt printers need service because of paper jams and cutting stops. Using thermal paper in the 55g–80g density range keeps the paper path from getting too rough. Low-quality paper with a lot of abrasive dust speeds up the wear on the print head and can cut its rated lifespan from 100 to 150 km to less than 60 km. Choosing paper from approved suppliers isn't a small thing; it saves your upkeep budget directly.

Configuring for Peak Throughput

There are eight steps in this setup that always lead to the best results in high-volume settings:

• Match interface settings precisely. Confirm that the V.24 baud rate or USB protocol settings align with the ATM host before closing the cabinet. A mismatch causes intermittent communication errors that are difficult to diagnose remotely.
• Set paper-low thresholds conservatively. The dual-sensor array supports early paper-low detection. Configuring an alert at 20% remaining paper rather than 10% gives service teams a wider response window and prevents paper-out events during peak transaction periods.
• Schedule preventive maintenance at 500,000 cut intervals. Rather than waiting for cutter failure, replacing the cutter blade assembly proactively at roughly half the rated life keeps machine uptime consistent.

These steps cut down on unplanned downtime and make sure that ATM audit logs are always up to date, which is a straight TP27 printer module compliance requirement for financial institutions that have to keep transaction records.

Accessing Technical Support Efficiently

If you need to report a fault, having the part number (01750256247) and firmware version on hand makes diagnosis go faster. RM offers online video support to help field engineers with sensor error resolution and calibration, so they don't have to go to the site as often.

Procurement Considerations for TP27 Printer Modules in Banking

Evaluating Supplier Authorization and Stock Availability

The TP27 receipt printer module can be bought both brand new and restored to like-new state. When used in normal banking settings, refurbished units that have been through Level 4 repair (which includes replacing the print head, platen rollers, and cutter blades) work just as well as new units. Before placing a large order, you need to make sure that the seller follows a certain standard for repair.

Warranty Terms and After-Sales Structure

If you buy this module through RM, it comes with a 30-day warranty and online expert help. For ATM service providers who are in charge of teams in many different areas, how quickly a supplier can answer technical questions is just as important as the length of the guarantee. RM says they will get back to you with answers to questions and requests for help within 24 hours.

Volume Pricing and Lead Times

The normal wait time for making modules is 15–20 working days. Distributors who are building regional inventory for the ProCash and Cineo installed base can avoid stock gaps by planning their orders around this wait time. RM ships by sea, land, and air freight, so buying teams can choose how to balance cost and urgency based on whether the need is for planned replacement or emergency resupply.

Building Trust and Long-Term Partnerships with TP27 Printer Module Suppliers

Verifying Supplier Credentials

RM is certified by ISO 9001:2008 and has been supplying ATM parts for more than 20 years. The company has more than 3,000 square meters of production space in Shenzhen, China. There are separate departments for TP27 printer module quality control, injection molding, and maintenance. For bank IT procurement teams that need proof that a supplier is qualified, these certifications are a good place to start when onboarding a vendor.

Long-Term Supply Stability

RM sells all eight main types of parts for the TP27 and TP series printers. These are print heads, paper feed motors, control boards, gear kits, and related subassemblies. Because there are so many parts in stock, procurement teams can find subcomponents to fix printer units instead of buying whole new ones. This saves a lot of money on upkeep costs over the course of a multi-year service contract.

Aligning with Technology Development Cycles

As ATMs move toward software-based self-service architectures, printer modules that work with XFS and have stable firmware support make hardware investments last longer. RM makes sure that all changes to the ProBase and Agilis software meet compatibility standards. The company also customizes hardware for integration needs that aren't standard.

Conclusion

The TP27 printer module meets a specific, must-have need in ATM operations: it prints transactions reliably and legally, with no service interruptions. Its 150mm/second print speed, 203 dpi output, and one-million-cut cutter rate make it a good choice for Wincor Nixdorf ProCash and Cineo applications that need to do a lot of work. For buying teams, the things that matter are simple: checked standards for refurbishment, checked compatibility with your ATM software stack, and a provider with clear quality systems and quick technical support. For both emergency replacements and planned large purchases, RM has the stock, certificates, and variety of parts to meet all needs.

FAQ

What ATM models is the TP27 receipt printer module compatible with?

The TP27 is made to work with Wincor Nixdorf ProCash and Cineo series ATMs, like the C4060. Before you order, make sure that the software stack (ProBase or Agilis) and interface type (USB or V.24) are compatible.

What is the print head lifespan on the TP27?

The SHEC TL80 print head can handle between 100 and 150 km of printed paper. Using low-quality thermal paper with a lot of dust can cut this down by a lot, so the type of paper you use does affect how long your head lasts.

Are refurbished TP27 units reliable for banking use?

Yes, as long as the unit has been refurbished to Level 4, which includes replacing the print head, platen roller, and cutter blade. Before you buy, ask your seller to confirm the standard of repair.

How do I resolve recurring sensor errors?

Optical sensors in the paper path often make mistakes because of paper dust on them. Isopropyl alcohol and compressed air can be used to clean. If the errors keep happening, use the ATM's diagnostics menu to run the calibration routine.

What is the lead time for bulk orders?

The usual lead time for production is 15–20 working days. Orders that need to be sent quickly can use air freight. To find out if there is stock available right now, email RM at Tony@atm-part.com.

Get a Quote for the TP27 Printer Module — Contact RM Today

RM has been selling ATM parts for more than 20 years. They are ISO 9001:2008 certified and carry all the major TP27 subcomponents you could need. RM can ship by air, sea, or land freight, so it doesn't matter if you need a single emergency unit or a lot of the TP27 printer module for your regional grid. For a price and detailed datasheet, email Tony@atm-part.com and ask for the RM team.

References

1. Diebold Nixdorf. ProCash and CINEO Series ATM Technical Documentation. 2021

2. ATM Industry Association (ATMIA). Global ATM Security Guidelines and Best Practices Report. 2022.

3. Printing Industries of America. Thermal Printing Technology Standards for Financial Applications. 2020.

4. International Journal of Banking Technology. ATM Uptime and Maintenance Cost Analysis in High-Volume Branch Networks. 2022.

5. ISO Central Secretariat. ISO 9001:2015 Quality Management Systems — Requirements. 2015.

6. Retail Banking Research (RBR). Global ATM Market and Forecasts Report. 2023.
