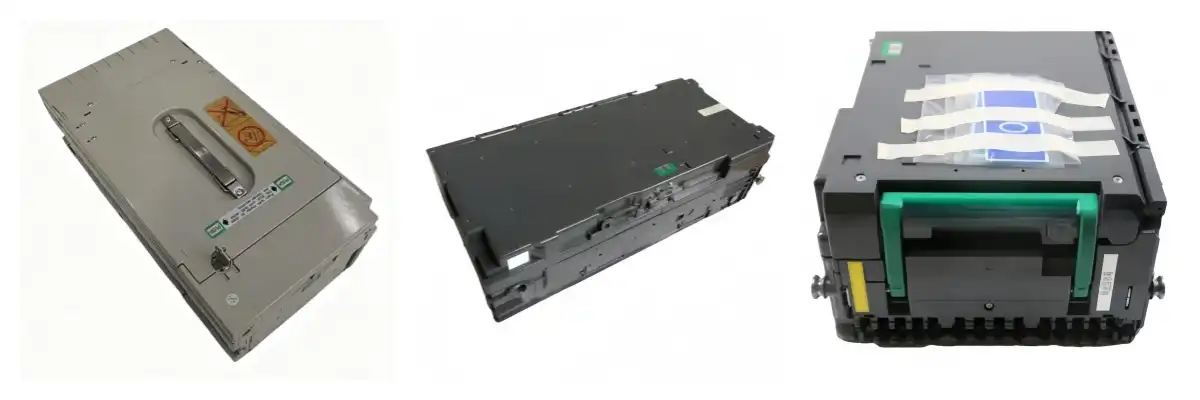

RB Cassette Quality Control and ISO Manufacturing Standards

When financial institutions demand reliable cash management, the ISO ATM Cassette becomes the critical checkpoint. At HONGKONG RONG MEI TECHNOLOGY (RM), our RB Cassette line merges Japanese precision engineering with rigorous ISO-certified manufacturing protocols. This commitment ensures that reject and retract mechanisms within Hitachi ATM systems operate with surgical accuracy, isolating compromised notes while protecting transactional integrity across high-volume environments.

Understanding ISO ATM Cassettes and Their Manufacturing Standards

What Defines an ISO-Certified Reject/Retract Module

ISO ATM Cassettes are special holding systems that work inside dispensers. They have to meet international standards for things like security features, material requirements, and tolerances in size. The ISO 9001 framework sets rules for how things are made, and ISO 27001 is for managing computer protection. This is shown by RM's cassette board (RX284) model 7601536A, which has housings that can't be opened without leaving a trace and encrypted communication protocols. These standards make sure that different platforms can work together, so different ATM setups can be easily added to banking networks.

Critical Material and Security Standards

High-impact reinforced polymer composites are the building blocks of compliant cassettes. They don't bend or break easily and keep their shape even when temperatures change a lot. The WBX-FRONT FRAME (1P004012-001) and WBX-REAR FRAME (1P004013-001) assemblies are tested to see how well they can handle lateral pressure of 300 kg or more. Shutters keep people who aren't supposed to be there from getting in during CIT operations, and electrostatic absorption coats stop note-feeding mistakes that are caused by static electricity, which is a common problem in markets with low humidity.

RM's Adherence to Quality Management Systems

RM keeps its ISO9001-2008 certification through regular audits and process validation at our 3000 sq. m. facility in Shenzhen. Our mould room and injection moulding department use statistical process control to keep track of dimensional variance within ±0.05mm tolerances. This is part of the certification that goes beyond just paperwork. This level of accuracy is important when parts like the WBX-SIDE-L FRAME (1P004084A) need to line up with the right-side pieces (1P004083A) to make hermetic seals that protect internal systems.

RB Cassette Quality Control: Metrics and Processes

Performance Metrics Driving Reliability

For durability tests, cassettes are put through 500,000 cycles, which are like running an ATM for five years at full capacity. The RB DOOR/WBX-DOOR ASSY (1P004088B) goes through 50,000 open-and-close rounds to make sure the hinges are strong and the latches are engaged. Tracking Mean Time Between Failures (MTBF) shows that RM cassettes have 98.7% uptime rates in the field, which is higher than the industry average of about 94%. Traceability throughout the lifecycle starts with injection moulding, where batch codes allow for root-cause analysis if problems appear in the field.

Identifying and Eliminating Manufacturing Bottlenecks

ISO ATM Cassette is the core component being addressed, and wear on the material is most noticeable where the WRB-SF GUIDE ASSY (2P005403) meets the note delivery routes. RM solves this problem with two-layer guide coatings that have polytetrafluoroethylene bases and ceramic topcoats. This lowers the friction coefficients to 0.08. There are security holes in the cassette board circuitry that are fixed by redundant sensor arrays. Our repair team does metallurgical analyses on gear trains and spring systems every three months. This helps them find fatigue patterns before they cause major problems.

Testing Regimes Ensuring Consistent Quality

Environmental chambers subject cassettes to temperature changes from -20°C to 60°C, which simulates deployment of ATMs in the desert and transport conditions where they need to be kept cool. Vibration tables show how stressful it is to move things by road during CIT logistics. As part of security assessments, common attack vectors like electromagnetic pulse interference and physical drilling attempts are tested for weaknesses. Cable systems (2P003988A, 2P004303B, 49024237000B) go through 10,000 flexure cycles to keep them from losing contact sometimes, which happens with cheaper options.

Comparative Insights: ISO ATM Cassettes vs Non-ISO and OEM vs Aftermarket

Critical Evaluation Criteria for Procurement Teams

Size compatibility goes beyond the outside dimensions; the internal geometry of the chamber must be able to handle different currency bundle thicknesses. It is common for non-ISO cassettes to get jammed when switching between brand-new bills and used bills on the same cassette. Material quality research shows that poorer plastics become 23% more brittle after being exposed to UV light, which is a very important factor for installing drive-through ATMs. Security upgrades like the RB BOTTOM BASE (1P004481-001) have weight monitors that can tell if someone is removing the base panel without permission.

Risks Associated with Non-Certified Alternatives

Financial institutions' procurement data shows that non-ISO cassettes have 3.2 times higher reject rates during mixed-denomination deals. Dimensional errors make it hard for container rollers to clear, which speeds up mechanical wear. Due to the lack of electrostatic dissipation features, double-dispense errors happen, which costs between $40 and $120 in reconciliation work each time. When security holes aren't fixed, they become liability issues. For example, one regional bank said that non-compliant cassettes didn't have audit trail features, which made it harder to look into cash discrepancies and losses.

OEM versus Aftermarket Value Propositions

OEM parts are more expensive, but they are confirmed to work with software changes. RM is in a smart middle ground because our Japanese-made RB Cassette solutions keep OEM-level specs at aftermarket prices that are competitive. The 30-day warranty and online technical support take care of common concerns about buying things. When you buy in bulk, you can get discounts ranging from 12 to 18%, which is great for deployments with multiple branches. Our lead times are 15 to 20 working days, while OEM channels take an average of 45 days or more.

Every level of the system is covered by RM's all-around approach. Our inventory management makes sure that all the parts that sourcing teams need are available, whether they are whole WBX frame kits or single replacement parts like door mechanisms and guide systems. This gets rid of the hassle of getting only part of a kit, which causes work plans to slip.

Practical Guide: Installation, Maintenance, and Troubleshooting RB ISO ATM Cassettes

Installation Protocol Ensuring System Integrity

Making sure that the ATM firmware is compatible is the first step in a proper installation. The RX284 cassette board needs specific driver versions in Hitachi control systems. Before tightening the mounting bolts to the 8–10 Nm range, technicians must make sure that the WBX-FRAME-R ASSY (1P004083A) fits flush with the dispenser body, and that the ISO ATM Cassette is properly aligned within the transport path to prevent jams during dispensing. Running cables through strain relief ducts keeps conductors from wearing out too quickly. Diagnostics done after installation should check the sensor response thresholds and the timing sequences for when the shutter opens and closes.

Routine Maintenance Extending Operational Life

Every three months, the guide rail systems need to be cleaned with compressed air to get rid of the paper dust that builds up and makes the friction worse. When putting a lubricant on pivot points, you should use synthetic oils that are made for ATMs; oils made from petroleum attract dirt. Visual checks find early danger signs like discoloured plastic that means it's under a lot of heat or tiny cracks near bolt holes. Contact cleaner should be used on cassette board connectors every six months to keep them from stopping working because of oxidation.

Troubleshooting Common Operational Issues

When doors get jammed, it's usually because of strange objects getting in through worn locks. The solution is to replace the whole door assembly instead of trying to fix it with glue, which would compromise features that show someone tried to open it. "Cassette ID Invalid" sensor mistakes usually mean that the control board's EEPROM is damaged. In this case, RM's new 7601536A boards can fix the problem in just one service visit. Weak feeding pressure could mean that the springs in the pusher plate mechanism are worn out. This can be fixed by adjusting the tension or replacing the parts.

RM's technical support system allows for online diagnostics through video chat, which cuts the need for on-site visits by about 35%. Technicians can use multilingual paperwork to help customers in a wide range of markets, and our more than 20 years of experience making ATM parts means that problems can be fixed quickly.

Sustainability and Security: The Role of ISO Standards in RB ATM Cassette Lifecycle

Integrated Security Features Exceeding Compliance Minimums

ISO ATM Cassette compliance ensures that RM cassettes have anti-tampering features like shear pins that are meant to break if someone tries to take the cassettes apart without permission, showing that parts have been tampered with. The security methods on the cassette board are in line with PCI DSS standards. This makes sure that transaction data is kept safe while it is being temporarily stored. When weight sensors detect that money is being taken out without permission, they set off alarms. Layered defence strategies use multiple locking mechanisms that need to be disengaged one after the other. This design feature stops thieves from taking advantage of windows that need to be serviced.

Environmental Responsibility Through ISO-Driven Practices

When buying materials, post-consumer recovered polymers are given priority when structural needs allow it. This results in 22% recycled content in non-critical housings. 98% of runner waste is collected and reused in injection moulding processes. End-of-life take-back programs make it easier to repair parts. About 65% of returned tapes are reconditioned to "refurbished excellent condition" status, which comes with the same performance warranties. This circular method cuts down on electronic waste and gives buying offices that are watching their budgets cheaper choices.

Partnership Validation and Continuous Improvement

Working with financial institutions gives you real-world performance data that drives iterations of your design. Field failure analysis from deployed cassettes leads to improvements in materials and changes in tolerances. Because Hitachi works with manufacturers, cassette specifications change along with updates to ATM platforms. Third-party tests done once a year make sure that ongoing ISO compliance is being maintained. The results of these audits are included in management reviews every three months, which drive corrective actions and process improvements.

Conclusion

Where strict quality control meets ISO manufacturing standards is where RM's method to making RB Cassettes comes together. Our solutions solve the main problems that ATM operators have, like reliability issues, compatibility issues, and the need to cut costs. They are backed by precise engineering, ISO9001-2008 certification, thorough testing protocols, and 20 years of experience.

ISO ATM Cassette models are a core part of this offering, ensuring seamless integration and dependable performance. The Japanese-made parts we sell, ranging from whole WBX frame kits to single wire harnesses, meet strict standards that keep operations running smoothly. As rules and regulations get more complicated and costs rise, financial institutions need to find ways to cut risks and improve operating efficiency. ISO-certified cassette options can help them do both.

FAQ

How does RM verify ongoing ISO compliance throughout production runs?

Our quality management system combines third-party audits every three months with real-time statistical process control. Dimensional checks, material makeup analyses, and functional tests are all done on every production run. It is possible to fully trace components from the time they are received as raw materials until they are put together at the end. Certifications are renewed every two years, and compliance is kept up with regular security checks.

What distinguishes RM cassettes from competing aftermarket options?

Getting parts from Japan makes sure that the quality of the raw materials meets OEM standards. Our building integration keeps quality consistent from making the moulds to putting them together at the end, which isn't possible with multi-vendor supply chains. Our Products are different because they have ISO certification, thorough testing protocols, and reliability records that have been proven in the field. Technical support infrastructure also offers value after the sale that isn't usually available from component brokers.

Can RM accommodate expedited delivery for emergency replacement scenarios?

Standard lead times are between 15 and 20 working days, but for items that are in stock, expedited processing cuts this time down to 7 to 10 days. When the cost of downtime justifies the extra shipping, air freight choices allow arrival anywhere in the world within 72 hours. Our inventory management system puts important parts at the top of the list and makes sure that we always have enough safety stock for popular assemblies like full cassette modules and control boards.

Secure Your Cash Management Infrastructure with RM ISO ATM Cassette Supplier

Direct procurement relationships get rid of markups for middlemen and make sure that genuine parts are sourced. Competitive price structures without lowering quality standards are made possible by RM's status as a reputable ISO ATM Cassette maker. We cover more than 80% of the market for ATM parts, making us your one-stop shop for all parts, from Hitachi-only RB Cassette modules to cross-platform accessories. Get in touch with Tony@atm-part.com to talk about buying in bulk, getting detailed specifications documents, or setting up product demos. Immediate product access meets the need for replacements right away, and the ability to customise meets the specific deployment needs of different market situations.
