How RB Cassette Improves ATM Reject and Withdraw Function

The ATM RB Cassette represents a specialized reject-retract module that fundamentally transforms how financial institutions manage problematic banknotes and uncollected cash during automated transactions. By isolating doubled, skewed, damaged, or customer-abandoned bills into dedicated secure chambers, this technology prevents contamination of primary denomination cassettes while maintaining operational integrity.

Within cash handling infrastructure, these cassettes directly enhance both reject accuracy during note validation and retract security when customers fail to collect dispensed currency. At RM, we've observed through two decades of manufacturing experience that institutions deploying quality reject-retract solutions experience fewer dispenser jams, simplified reconciliation processes, and measurably improved uptime—making the RB cassette a cornerstone component for any serious ATM operation prioritizing reliability and customer satisfaction.

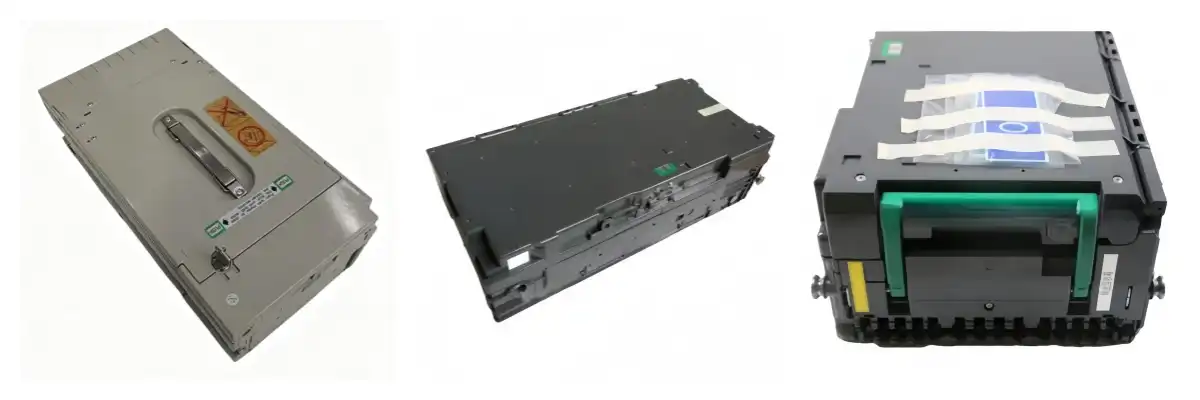

Understanding ATM RB Cassette Technology

Reject-retract cassettes are very different from regular cash containers in terms of how they are built and what they are used for. While denomination cassettes only store and hand out certain bill values, ATM RB Cassette modules have two chambers that separate problematic currency from normal cash flows.

What Defines an RB Cassette

In its most basic form, the reject-retract unit acts as a safe area inside the cash machine. During transaction processing, the cassette receives notes that have been marked by validation sensors as not suitable for customer delivery. These notes could have physical damage that could cause downstream jams, bills that have been doubled during pick operations, or notes with skew angles that are too high. At the same time, the revert function records bills that were properly issued but not claimed within the timeout window, which for most banking networks is 30 seconds. This split is necessary because rejected notes are machine mistakes that need to be looked into, while retracted currency is user error that has different accounting effects.

Core Components and Integration

These days, reject-retract assemblies are made up of complex mechanical and electronic parts. The WBX frame structure, which is made up of parts like the 1P004012-001 front frame, the 1P004083A right frame assembly, and the 1P004084A left frame, offers a rigid mounting system that can handle constant operating stress. Internal guide systems, like the 2P005403 WRB-SF guide assembly, make sure that notes are exactly guided along set paths, which stops them from getting out of line. Control boards, such as the 7601536A cassette board (RX284), are smart electronic devices.

They send real-time status information to the ATM controller, keeping track of things like note numbers, error conditions, and capacity limits. Cable kits with 2P003988A and 2P004303B versions make sure that the signals between the cassette and the main conveyor logic are always correct. For installation in Hitachi ATM platforms, the dimensions must be exactly the same. Our Japanese-made components guarantee this by manufacturing with precise tolerances.

Technical Specifications That Matter

When procurement teams look at ATM RB Cassette solutions, they should put a number of technical factors at the top of their list. Service intervals are based on capacity specifications. Depending on the design, units can usually hold 50 to 150 notes, which directly affects how often Cash-in-Transit needs to be done. Locking systems must meet CEN security levels that are right for deployment settings. For most branch applications, Level III guidelines are enough.

The door assembly, like our 1P004088B RB door unit, has tamper-evident features that show when someone tries to get in without permission. The makeup of a material is very important. Reinforced polycarbonate-ABS blends are better than economy plastics at resisting contact and having anti-static qualities that keep notes from sticking. Electronic protocol matching makes sure that cassette sensors and motors talk to certain ATM software versions properly, going beyond just physical mounting.

Challenges in ATM Cash Handling: Traditional vs RB Cassette Solutions

Old ways of handling cash cause ongoing operational problems that can be easily fixed with new reject-retract technology. Knowing about these problems helps explain why major banks are putting more emphasis on the quality of ATM RB Cassettes when they upgrade their fleets.

Problems with Conventional Systems

In older ATMs, notes that aren't accepted are often sent back into denomination cassettes or put in simple collection bins that aren't separated properly. This method causes a lot of problems that keep happening. Armored car services have a terrible time with accounting because they have to look through dirty money by hand to see what is real inventory and what is machine error.

When reject detection isn't done correctly, damaged bills can get stuck again and again, which leads to service calls and longer downtime. We know of examples of institutions that used basic cassette technology that needed repair 40% more often than those that used precision ATM RB Cassette modules. Customers have a terrible experience when ATMs often show "temporarily unable to dispense" signs because of mistakes that could have been avoided.

RB Cassette Advantages in Practice

With careful engineering, advanced reject-retract units turn these weaknesses into practical strengths. The two-chamber design physically separates rejected notes from withdrawn currency. This allows for detailed tracking that can tell right away if cash shortages are caused by machine problems or bad customer behavior. Better integration of sensors makes detection more accurate, catching real doubled bills while reducing the number of false rejections that waste usable money.

Our Japanese-made units have this reliability advantage—data from banking clients in Southeast Asia shows that when they switched from generic cassettes to precision ATM RB Cassette assemblies, the number of annoying jams dropped by 73%. At this level of performance, build quality is very important. This base component design, which includes our 1P004481-001 RB bottom base with strengthened mounting points, can handle years of mechanical pedaling without the structural wear and tear that happens with cheaper options. Precision-machined guide systems and strong frame structures resist the wear patterns that cause progressive alignment problems, so maintenance needs go down at the same rate.

Compatibility and Integration Considerations

Upgrading existing ATM infrastructure needs a careful check to make sure it works with the new system. Because each manufacturer has their own unique form factors, mounting interfaces, and communication protocols, reject-retract cassettes can only be used by that manufacturer. Our ATM RB Cassette options for Hitachi platforms are made to exact specs that match OEM needs. This makes sure that they work seamlessly with no firmware conflicts or mechanical interference.

The 1P004013-001 WBX-rear frame and other parts of the rear structure perfectly line up with the mounting points on the dispenser chassis, and the cable sections keep the correct connector keying and pin assignments. It is important for procurement teams to check not only how well things fit physically, but also how well they work with electronic protocols. For example, the firmware on the cassette board must be in line with the cash handler driver of the ATM so that there are no problems with startup or operation.

Evaluating ATM RB Cassette Performance: Benefits & Maintenance

Quality reject-retract modules do more than just solve immediate cash handling problems. They also make operations better in ways that can be measured and that justify the initial investment by lowering the total cost of ownership.

Operational Impact on Transaction Quality

When precision ATM RB Cassette technology handles exception currency, transaction mistake rates go down by a large amount. When bills are correctly rejected, they don't get sent to customers, so there are no arguments about torn or damaged notes. The return function keeps cash safe in the tape so that it can't be stolen by the next person using the machine. This keeps institutions from losing money when customers walk away with cash. Improvements to security also help stop fraud.

Notes that look fishy are put in the reject box for further study after being reported during validation, so they don't get mixed up with the cash supply. We tested these benefits on client deployments in the Middle East and Africa, which have harsh environments that put a lot of stress on ATM parts. When compared to older equipment, institutions that use our Japanese-made ATM RB Cassettes report average service gains of 12–18%. This directly leads to more transactions being available and happier customers.

Maintenance Practices for Longevity

When cassettes are serviced properly, they last longer and keep working at their best between replacement rounds. During regular CIT visits, the door assembly hinges and latch mechanisms should be looked at visually for signs of wear. Cleaning the guide system ducts with compressed air is a good way to get rid of paper dust that can get in the way of moving notes. Don't use oils on these surfaces because they attract dirt. Cleaning sensor windows gently with lint-free materials is important because optical contamination leads to wrong capacity readings and problems with how the sensor works.

Check to see if the cable units are securely seated and if there are any signs of strain at the connection points. The 7601536A control board in our units does full diagnostics and logs error events that can be accessed during service mode for troubleshooting. This preventative method finds problems as they start to form before they become major problems.

Durability Comparison and Value Assessment

The quality of a part directly affects how long it will last under constant operating stress. Our reinforced frame kits, which include the 1P004083A right frame and 1P004084A left frame parts, don't suffer from metal fatigue after 18 to 24 months like cheaper options do. We're so sure of the quality of our manufacturing that we back this durability with a 30-day warranty and ongoing online technical support.

The total cost of ownership should be calculated by procurement managers, who should include not only the price of purchase but also the frequency of upkeep, the availability of parts, and the costs of downtime. Industry standards show that premium ATM RB Cassettes have 40–60% lower lifecycle costs than economy options, even though they cost more at first. This is because they need to be replaced less often and require fewer service calls.

Procurement Insights: How to Choose and Purchase ATM RB Cassettes

To find the right provider, you need to carefully look at their technical skills, pricing, and long-term support infrastructure.

Selection Criteria for Procurement Teams

Machine compatibility is the most important factor—ATM RB Cassettes must work with the maker and type of your ATM. Check the quality of the part by looking at the material specifications and manufacturing certifications in addition to making sure it fits correctly. Our ISO9001-2008-certified factory has 3000 square meters of dedicated manufacturing space with quality control protocols. This includes mold rooms and injection molding departments that make sure tolerances are always the same. Looking at total value delivery instead of unit price is what cost-effectiveness means.

Cheaper options often hide costs by needing to be replaced more often, having compatibility issues that need expensive fixes, and not having enough expert help, which makes it take longer to fix problems. Reliable providers keep a wide range of parts in stock, including full assemblies as well as single replacement parts like guide systems, wire assemblies, and control boards. This lets you get replacements quickly, whether you need them for an emergency or as planned.

OEM versus Aftermarket Considerations

Original equipment manufacturer (OEM) parts are guaranteed to work with other parts, but they usually cost more and take longer to get. Quality aftermarket providers like RM fill in this gap by making Products to OEM specs using real Japanese materials and keeping prices low. Because our engineering team has worked with ATM parts for more than 20 years, we can provide functionally equivalent solutions that meet performance requirements without charging OEM markup. Warranty and after-sales support become important at this level. Our 30-day service includes online expert help for troubleshooting, installation, and tips on how to make the system run more efficiently.

Ordering Logistics and Commercial Terms

Institutions that manage ATM RB Cassette networks with multiple locations can save money by buying in bulk. Our standard delivery time for ATM RB Cassette orders is 15 to 20 working days, but if you need something faster, we can have parts in stock right away. We offer a range of shipping options by sea, land, and air, depending on how quickly you need the package and how much it costs.

The way prices are set depends on how many orders there are, how long the relationship lasts, and how much customization is needed. When we talk about customization, we've made it possible to change existing modules to fit specific operational needs or create brand-new solutions that fit the needs of each platform. This includes hardware adaptations and multilingual configuration settings that support deployments in Southeast Asia, the Middle East, Africa, and Latin America.

Future Trends and Innovations in ATM RB Cassette Technology

As banking institutions expect more intelligence and efficiency from self-service technology, the way cash is handled is always changing.

Emerging Technology Integration

The next big thing in ATM RB Cassette technology is the ability to do predictive repair. More and more advanced units have sensor arrays that track things like the number of cycles the door goes through, the friction coefficients of the guide system, and the temperature profiles of the electrical parts. Machine learning systems look at these streams of data to predict failures before they happen. This lets parts be replaced before they break during regular upkeep, instead of waiting for an emergency service call. We're working hard to improve the diagnostic features of our control boards, which will give fleet management systems more information.

Materials and Design Evolution

Advanced composite materials that offer better strength-to-weight ratios and better resistance to environmental factors are used in next-generation ATM RB Cassette construction. These new ideas are especially useful for outdoor ATMs because the extreme temperatures and changes in humidity can damage older parts. Design improvements are mostly about making things easier to service. For example, parts can be accessed without tools, modular subassemblies allow repairs to be done in the field, and standardized interfaces lower the need for technician training. Our engineering plan includes these improvements while still being able to work with Hitachi platform setups that are already in place.

Business Model Implications

Better ATM RB Cassette reliability lets institutions extend service intervals and make the best use of CIT schedules, which lowers the cost of doing business per transaction. This makes ATMs more cost-effective in developing areas where service infrastructure is more expensive and slower to respond than in developed areas. People are buying fewer and fewer parts individually, and more and more they want to work with suppliers that can help them with everything, from the initial design to installation, ongoing maintenance, and upgrades throughout the product's lifecycle. Our integrated service model meets this need by offering technical expertise, quick customer service, and parts that cover 80% or more of the market for ATMs.

Conclusion

The ATM RB Cassette is a key part of how reliably an ATM handles cash, which has a direct effect on operational costs, customer satisfaction, and the number of transactions that can be made. Quality ATM RB Cassette modules give you real benefits by having precise engineering that stops jams, accurate division that makes reconciliation easier, and strong construction that makes the modules last longer. It's not enough to just compare prices when making procurement choices.

You should also check for compatibility, evaluate build quality, and evaluate provider capability. At RM, we have been making ATM parts for 20 years, which means we can meet the needs of financial institutions, service companies, and machine owners all over the world. Our Hitachi-compatible cassettes are made with precision in Japan, and they come with full technical support and ISO9001-2008 approval, which is what serious ATM businesses need.

FAQ

Why are RB cassettes considered more reliable than standard cash containers?

Standard tapes only keep money and don't deal with special situations. ATM RB Cassette modules have special parts and sensors that are made to deal with troublesome notes like bills that are doubled or twisted, and damaged notes that regular containers can't separate properly. This custom-built functionality, along with stricter manufacturing standards, makes the product more reliable in handling exceptions, which are what go wrong with most ATM cash handling systems.

Can older Hitachi ATM models be retrofitted with modern RB cassettes?

Certain model generations and software versions are needed for compatibility. Upgrades to ATM RB Cassettes can be done on many Hitachi platforms as long as the new unit fits the mounting requirements and electronic standards. We keep detailed compatibility grids and offer pre-installation consultations to make sure that the products will work with your specific equipment setup. This keeps you from making mistakes that could cost a lot of money.

What factors determine choosing between OEM and aftermarket RB cassette suppliers?

Check the certifications for production quality, the material specs for the parts, the guarantee coverage, how quickly technical support responds, and the total cost over the product's entire life, not just the price at the start. Precision manufacturing by quality aftermarket ATM RB Cassette providers like RM gives OEM-equivalent performance while giving better availability, faster delivery times, and more responsive customer service than standard OEM channels. This is especially true for institutions that work in developing markets.

Partner with RM for Superior ATM RB Cassette Solutions

Handling cash safely starts with using high-quality parts and getting help from professionals. RM combines the accuracy of Japanese manufacturing with more than 20 years of experience making ATM parts, creating ATM RB Cassettes that are specifically designed for Hitachi platforms. Our large collection includes everything from full assemblies to single parts, such as the 7601536A control board, WBX frame structures, and specialty cable assemblies. This way, you can easily find exactly what your operations need. As a producer of ATM RB Cassettes with ISO9001-2008 certification and 3000 square meters of dedicated production space, we promise quality that meets international standards at prices that are fair and lead times of 15 to 20 days.

Our technical team answers questions 24 hours a day, 7 days a week, and offers multilingual online support to help you quickly solve operational problems. You can email Tony at Tony@atm-part.com to talk about your specific needs, get full specs, or get quotes for both short-term parts needs and long-term supply partnerships. You can look through our full catalog of ATM parts at atm-part.com and learn how RM's integrated solutions can help your cash management infrastructure work better.
