OKI RG7 Recycler Cassette Uses in Cash Recycling ATM Systems

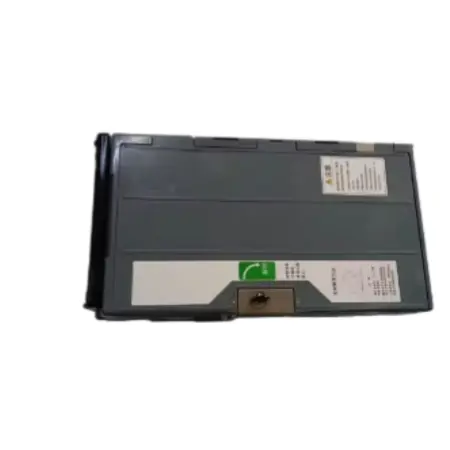

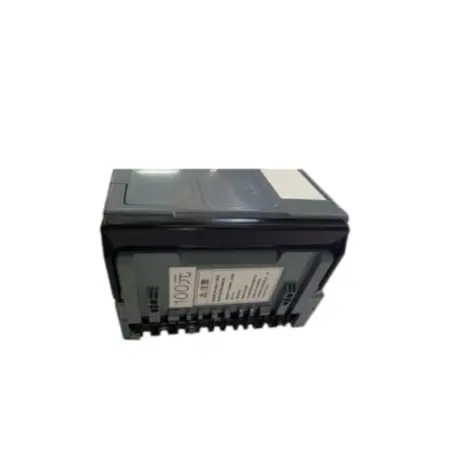

The OKI RG7 recycler cassette is a purpose-built banknote storage and dispensing module designed for closed-loop cash management in modern ATM environments. Installed in OKI 21SE, 6040W, and YH series machines, it accepts deposited notes and recirculates them for subsequent withdrawals — removing the need for constant manual replenishment. With a 30–60 bill capacity, a dispense rate of 2–3 notes per second, and a documented 98% operational uptime, this recycling cassette directly addresses the performance gaps that third-party ATM operators face daily.
​​​

Understanding the OKI RG7 Recycler Cassette: Technology and Key Features

The tech that went into making this cassette shows how far banknote movement has come in the last twenty years. Procurement teams can make smart decisions when they know what makes something work.

Short-Path Transport Mechanism

Short-path transport technology in the cassette cuts down on the distance a bill has to travel inside the module. Less friction means fewer contact points, which directly lowers the number of jams. In Latin America and Southeast Asia, where bank branches handle a lot of business, this design has worked especially well where older belt-driven systems often broke after 30,000 cycles.

Friction-Based Feed with Adaptive Tension

The internal feed system relies on synthetic rubber wheels that don't wear out and keep a firm grip on both paper and plastic money. Adaptive tensioning changes naturally when the cassette comes across differences in the substrate. This is an important trait in places like Brazil and Nigeria where mixed-media notes are sold every day. This stops double-feeding mistakes without having to re-calibrate by hand.

Multi-Model Compatibility and Part Number Accuracy

The RG7 cassette family includes a number of different part types, each with a verified part number:

• Recycling Cassette (Standard): YA4238-1052G314 (alt: YA4238-1041G301, YA4238-1052G311)
• Reject/Retract Cassette: YX4238-5000G002 (alt: YA4238-1052G351), Compatible ID: ID01885
• Cash-Out/Dispense Cassette: YA4229-4000G001, Compatible ID: ID01886
• Recovery/Audit Cassette: YA4229-4000G013

The OKI 21SE series, the 6040W series, and the YH series ATM systems can all use these parts. The most important thing to do before making a purchase decision is to make sure that the RG7 recycler cassette part numbers match up correctly.

Comparing RG7 Recycler Cassette with Standard and Alternative Solutions

In real-world situations, not every recycling module works the same way. After a few thousand rounds, you can see the changes.

Operational Uptime vs. Conventional Dispensers

Because they can't reuse accepted notes, standard single-dispense boxes need to be refilled with CIT (cash-in-transit) a lot more often. On the other hand, the RG7 recycling cassette has 98% operating uptime because it reuses stored cash, which cuts the number of CIT visits by a measured amount. ATMIA industry data shows that if owners can cut CIT events by just 20% across a fleet of 200 machines, they can save tens of thousands of dollars a year just on transportation costs.

Durability Benchmarks

The RG7 cassette housing is made of high-impact polycarbonate and has been tested to withstand drops from 1 meter without the mechanism coming loose. Optical and mechanical sensors are set up at the factory to reject valid currency less than 0.1% of the time. This is not just marketing speak; these are real quality control standards that are used during ISO 9001-certified production at HONGKONG RONG MEI TECHNOLOGY's factory in Shenzhen.

Cost-Per-Cycle Advantage for Large ATM Fleets

The refurbished RG7 option gives operators who are in charge of 50 to 200 units a good return on investment. A refurbished cassette that has been checked out and is in great shape comes with a 30-day guarantee and costs a lot less than an OEM replacement while still having the same run life. When OKI tools are given an extra 3–5 years of life, the saves add up quickly across a fleet.

Procurement and Logistics: How to Source Genuine OKI RG7 Recycler Cassettes

Finding the right module from a provider that can be tracked saves both the ATM fleet and the buying team's reputation. Before you place an order, here are the most important things to think about.

Verify Part Numbers Before Requesting a Quote

Any reputable RG7 recycler cassette seller should be able to check that part numbers like YA4238-1052G314 or YX4238-5000G002 work with your machine type. Integration problems that are hard to figure out are caused by cassettes that don't match. Before you approve a buy order, you should always ask for written proof of compatibility.

Understand Lead Times and Shipping Options

It usually takes 15–20 working days to get an RG7 tape order. You can choose between sea, land, and air freight, based on how quickly you need the goods and how many you need. It is common for first-time buyers to ask for a trial order of two to five units before committing to a batch of fifty to two hundred. This lowers the risk by a large amount.

Warranty Terms and After-Sales Support

RM's units come with a 30-day warranty and the ability to get technical help online. Within 24 hours, you'll hear back about your questions. For field teams working in places where time is of the essence, being able to get live video help is a useful differentiator. This is especially true for engineers who need to figure out why cassettes act up in dusty or humid conditions.

Maintenance, Troubleshooting, and Maximizing Lifespan of RG7 Recycler Cassettes

A cassette that is well taken care of usually lasts longer than its stated cycle life. The repair procedure is easy to understand and must always be followed.

Routine Cleaning Schedule

Every six months or 50,000 rounds, whichever comes first, you should clean the rollers and visual sensors inside the machine. Get rid of junk in the note path with isopropyl alcohol and compressed air. In places with a lot of dust, like transit payment kiosks or ATMs that are partly outside, clean them every three months instead of every two.

Drive Belt and Sensor Inspection

Drive belts should be checked for flexibility loss once a year. Most jams in high-volume tapes are caused by a belt that is worn out. Optical sensors need to be calibrated every time they are serviced to make sure they can find jams within milliseconds and keep the reject rate for valid notes below 0.1%.

Clearing Jams Without Specialist Tools

The RG7 tape has colored latch doors that let you get to it without using any tools. Field techs can clear most note line blocks without taking the whole thing apart. If jams still happen after being cleared, it's probably because the belts are worn out or there is debris on the friction rollers. Either of these problems can be fixed during a normal service visit, so the unit doesn't have to be sent back.

Why the OKI RG7 Recycler Cassette Is the Preferred Choice for Cash Recycling ATM Systems?

There are three measured reasons why this cassette should be used: availability, media compatibility, and total cost of ownership over a number of years.

98% Uptime Across Demanding Environments

In places like Colombia, Kenya, and Eastern Europe, ATM owners say that constant module uptime has a direct effect on how happy their customers are and how much money the store makes. The RG7 promises to be up 98% of the time. This is made possible by short-path engineering and precise sensor calibration, two features that make it less likely for competing cassette designs to fail in their most common ways.

Mixed-Media Currency Handling

A lot of countries have switched to polymer currencies, either in part or in full. The RG7 tape can read both paper and plastic money without having to change any parameters by hand. This is a clear practical benefit for any fleet that works in more than one currency zone.

Service Life Extension for Existing OKI ATMs

Replacing recycling modules instead of whole ATMs can add 3–5 years to their useful life. For a fleet of 100 OKI 21SE or 6040W machines, this means putting off spending on capital that most banks and third-party operators see as immediately appealing.

Conclusion

The OKI RG7 recycler cassette solves the real problems that ATM integrators and third-party users have to deal with, like rising repair costs, a lot of cash jams, and the need to make machines last longer without having to buy new ones. This cassette gives fleet operators a lot of value because it works with OKI 21SE, 6040W, and YH series platforms, can hold 30 to 60 bills, and has a 98% uptime guaranty. The right sourcing partner is important whether you're buying new or used units. They can make the difference between a smooth rollout and an expensive integration problem.

FAQ

What ATM models does the RG7 cassette support?

The RG7 recycler cassette is confirmed compatible with the OKI 21SE series, 6040W, and YH series ATM platforms. Always verify the specific part number — such as YA4238-1052G314 — against your machine model before ordering.

Is a refurbished cassette reliable enough for production use?

Yes. Refurbished units from RM are inspected and restored to excellent condition, meeting the same performance specifications as new units. They ship with the same 30-day warranty and online support access.

How often should the cassette be serviced?

Clean internal rollers and sensors every 6 months or 50,000 cycles. Inspect drive belts annually. In high-dust or high-humidity environments, shorten the cleaning interval to every 3 months.

What is the lead time for bulk orders?

Standard lead time is 15–20 working days. RM supports sea, land, and air freight options. For first-time orders, a sample batch is recommended before full-volume procurement.

What happens if I encounter a persistent jam?

Open the latch access doors and clear the note path. If jams continue, inspect the drive belts and friction rollers for wear. Contact RM's support team at Tony@atm-part.com for remote video assistance within 24 hours.

Source the Right RG7 Recycler Cassette Supplier — Contact RM Today

RM has been selling ATM parts to operators around the world for more than 20 years. Their production is ISO 9001-certified, and they answer questions 24 hours a day, 7 days a week. We are a reliable RG7 recycler cassette provider, and we have both new and used units in stock for OKI 21SE, 6040W, and YH series machines. Every order comes with a 30-day guarantee. To get a price, email Tony@atm-part.com with the part number and number of items you need.
