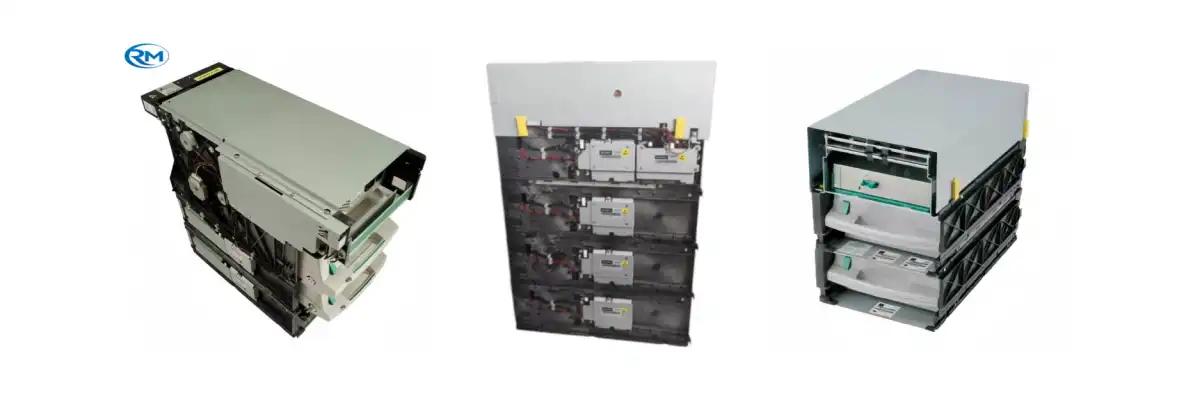

OEM NMD 50 Dispenser Solutions for ATM Manufacturers

OEM parts provide consistent performance and quality for ATM manufacturers seeking cash dispensing solutions. The modular, friction-feed Glory-ATM/nmd-50-dispenser">NMD 50 Dispenser is designed for Glory ATMs and self-service kiosks. Manufacturers combining cost efficiency and operational dependability would love this tiny dispenser, which processes up to 6 notes per second and numerous denominations. Understanding this dispenser's capabilities and procurement strategy helps decrease downtime and improve your product offering when integrating new units or obtaining replacement modules.

​

Understanding the NMD 50 Dispenser and Its Core Features

The cash distribution module is the core of each ATM, and choosing the proper mechanism affects transaction speed, dependability, and maintenance costs. ATM makers are under pressure to develop devices that can manage different currency circumstances and sustain uptime under difficult settings.

Technical Architecture and Dispensing Mechanism

The friction-feed extraction technique separates banknotes using carefully calibrated urethane feed tires in this dispenser. Even with old or dirty notes, this technology grips polymer and paper cash better than suction-based solutions. The A011263 NQ300 module, A011261 NF300 components, and D022232-01 CMC50 circuit board control communication protocols and sensor feedback in the NMD050-1-VC-SN setup.

The modular construction allows cassette modules to be stacked vertically, two to four units high depending on cabinet capacity. Each cassette carries 800–1,000 notes, depending on currency thickness and condition. Manufacturers of slimline ATM models or retrofit solutions benefit from the tiny 270mm width profile, which fits easily into space-constrained cabinet designs.

Intelligent Detection and Error Prevention

Accurate operation requires advanced sensors. The Intelligent Double Detection system uses mechanical and optical sensors to detect double banknotes, chained bills, and partial pieces during dispensing. Unusual notes are immediately sent to the reject bin without disrupting transaction processing. In off-premise ATMs, banknote quality differs greatly from controlled bank vault settings, making this functionality crucial.

The detection system monitors voltage across optical sensors with permissible deviation within 5% of factory standards. Clear polymer notes and worn paper currency are accurately evaluated, avoiding incorrect rejections that annoy consumers and increase service calls.

Communication and Integration Standards

Manufacturers want ATM platforms and software to work together. The dispenser supports industry-standard RS232 and USB protocols, easing connectivity to older platforms and touchscreen kiosks. Compatibility reduces bespoke interface development, decreasing integration engineering hours and expediting new ATM model time-to-market.

Comparison and Market Positioning of the NMD 50 Dispenser

Understanding how this dispenser compares to alternatives helps procurement teams make operational and budget-friendly decisions.

Performance Benchmarks Against Competing Models

Manufacturers pursuing retail and mid-volume deployment situations should consider this device versus the NMD 100 and other dispensers. High-traffic banks can use the NMD 100 since it handles more transactions at quicker speeds. Under regular working settings, the NMD 50 Dispenser has a mean duration between failures surpassing 100,000 notes, making it bank-grade reliable at a lower cost. Retail ATMs can process 6 notes per second, which is sufficient for moderate transaction volumes compared to urban bank branches. The dispensing mechanism accepts most worldwide currencies from 60mm x 120mm to 82mm x 175mm without mechanical changes.

Cost-Effectiveness and Total Ownership Analysis

Procurement managers increasingly consider total cost of ownership above initial purchase price. This dispenser tackles various long-term operating cost factors. Friction-feed technology simplifies mechanical systems, reducing replacement parts and providing longer service intervals than vacuum-based systems. Quarterly maintenance works for moderate-use setups processing 1,500 to 3,000 transactions per month. Manufacturers with different budgets might choose between new and remanufactured machines. Quality control checks, including feed gap calibration and sensor intensity verification, ensure refurbished machines work like new equipment while saving 30–40%.

Warranty Coverage and Support Infrastructure

Online troubleshooting and configuration help is included in the 30-day guarantee. When engineering teams need firmware upgrades to support new currency designs or have compatibility issues during integration, this support structure is invaluable. Video remote assistance allows firms in different areas to access technical knowledge without costly on-site service visits.

Installation, Operation, and Maintenance: Ensuring Optimal Performance

Proper installation and maintenance affect dispenser lifespan and dependability. Best practices help manufacturers avoid operational difficulties.

Pre-Installation Site Preparation

Check cassette insertion and service access clearance before preparing the cabinet. The vertical stacking architecture requires minimum clearance to avoid module placement issues. Regional power requirements must be met, and the circuit board must accept voltage changes within tolerances. Communication cable routing should be considered during installation. In situations containing electronic payment terminals and wireless communication devices, RS232 cables must be insulated. Plug-and-play USB connections may require powered hubs when many devices connect to the same host machine.

Operational Best Practices and Calibration

Feed gap calibration is the most important dispenser adjustment. The feed tire-contra-roller gap must meet dollar thickness standards of 0.08mm to 0.12mm. Incorrect calibration causes duplicate dispensing or cassette note loss, which increases service calls and customer complaints. Currency loading affects operating dependability. Avoid skewing during separation by aligning cassette edges and orienting notes. Mixed denomination loading needs manufacturer requirements since various note thicknesses in the same cassette might cause misleading double-detection alarms.

Preventive Maintenance Protocols

Regular maintenance prevents unexpected breakdowns and extends equipment life. Dust collection causes sensor drift and incorrect readings. Compressed air cleans optical sensors. Roller surfaces should be checked for glazing, when the urethane hardens and loses currency grip. Glazed rollers should be changed immediately to avoid pick failures and customer frustration.

NMD 50 Dispenser timing mistakes and misfeeds are prevented via belt tension checks. Stress testing the clutch and solenoid components regularly ensures actuation cycles complete within timing restrictions. Grinding noises while operation signal gear wear or foreign items in the note path, needing prompt servicing to avert catastrophic mechanical failure.

OEM Solutions and Customization Options for ATM Manufacturers

Manufacturers supplying varied geographic markets must adjust cash distributing systems to local currency and operating constraints.

Currency Adaptation and Firmware Configuration

It can hold four currencies at once, making it ideal for most ATMs worldwide. Updated currency templates provide interoperability with new banknote designs, eliminating currency rejection when central banks change security features or dimensions. Firmware upgrades via RS232 or USB using manufacturer-provided utility tools take 15–30 minutes per dispenser unit.

Emerging market machine builders value currency degradeability. Friction-feed mechanisms work better than delicate dispensing systems for immaculate bank vaults on street-grade, dirty, and limp banknotes. This decreases customer complaints and servicing expenses in places with heavy cash handling and environmental exposure.

Modular Expansion and Cassette Configuration

Manufacturers can construct dispensers for specific deployment circumstances using vertical stacking. Retail convenience shop ATMs use two cassettes to balance capacity and cabinet space. Casino redemption kiosks can use four cassettes for increased transaction volumes and numerous denominations. Adding cassette modules without host cabinet adjustments gives manufacturers scalability choices for various client demands with uniform base designs. Since shared platform components permit different product configurations with simple module additions, inventory complexity and production costs are reduced.

Compliance and Certification Requirements

Global ATM deployments must follow regional safety and environmental laws. The dispenser meets RoHS directives for hazardous compounds in electronic equipment, allowing market access in EU and other jurisdictions with equivalent environmental criteria. UL and CE certifications provide unattended terminal electrical safety, meeting manufacturer liability and insurance needs.

Procurement Guide: How to Buy and Partner with Authorized Suppliers?

Product availability, technical support quality, and long-term relationship value depend on strategic sourcing decisions.

Identifying Qualified Dispenser Suppliers

With over 20 years of expertise, HONGKONG RONG MEI TECHNOLOGY CO., LIMITED manufactures NMD 50 Dispenser financial equipment components. In Shenzhen, RM has mold manufacturing, injection molding, maintenance, and quality control departments in a 3,000-square-meter facility. Vertical integration assures component quality and helps meet bespoke needs quickly. OEM firms need comparable standards throughout production runs—IS9001-2008 accreditation proves standardized quality management systems. ERP systems allow manufacturers to track orders and inventories in real time, which is critical for just-in-time manufacturing.

Lead Times and Logistics Considerations

Module orders typically take 15–20 working days, however in-stock variants can be shipped faster. The dispenser is in stock, allowing for fast fulfillment of urgent needs or prototype development. This availability can help manufacturers decrease procurement risk and meet production schedules without delays. RM lets consumers balance cost and delivery urgency with sea, land, and air transportation. Air freight is cheaper for samples or emergency replacement parts, but container shipment is cheaper for large orders above 50 units. Foam inserts and moisture barriers protect delicate electronics during overseas shipping.

Pricing Models and Volume Discounts

ATM manufacturers with long-term manufacturing strategies benefit from bulk purchasing. Volume commitments help suppliers manage production schedule and material procurement, saving customers money through negotiated price. Manufacturers benefit from precise bids that include unit pricing, order quantities, warranty conditions, and support services. Negotiating payment conditions is important for international transactions with currency exchange risks and different regional banking processes. During first transactions, letters of credit protect both parties, but established relationships may switch to more flexible payment arrangements that assist cash flow management.

Technical Support and After-Sales Service

The 24-hour response period for questions and online help resolves manufacturer concerns regarding cross-time zone technical assistance. Real-time video remote help reduces downtime when integration or operational difficulties develop. Manufacturers in non-English-speaking countries can use multilingual assistance.

Conclusion

ATM makers may meet performance and affordability criteria with the NMD 50 Dispenser. Its friction-feed mechanism, modular architecture, and Glory ATM compatibility make it ideal for retail, casino, and self-service applications that require reliability. Competitive pricing, stable supply channels through experienced suppliers like RM, and complete support infrastructure address procurement difficulties. Manufacturers may use a quality-certified cash distributing device with numerous customization choices to meet varied market needs. Strategic collaborations with reputable suppliers provide components, technical competence, and quick support to preserve equipment investments.

FAQ

What lifespan can manufacturers expect from this dispenser under intensive use?

Under rigorous ATM deployment settings processing 3,000 to 5,000 transactions weekly, the dispenser generally lasts three to five years before significant component replacement. Maintenance measures including quarterly sensor cleaning and annual roller replacement extend mean duration between failures to over 100,000 note cycles. Mechanical stress may shorten intervals in casinos and high-volume retail.

Can the dispenser handle mixed paper and polymer currency simultaneously?

The friction-feed system accepts both currencies in the same cassette, but software calibration adjusts IDD sensitivity levels for maximum operation. To avoid electrostatic polymer note stickiness, examine static brushes routinely. Manufacturers deploying equipment in paper-to-polymer currency markets profit from this versatility without hardware adjustments.

How does routine maintenance affect warranty coverage?

Under normal working circumstances, the 30-day warranty covers manufacturing defects and component failures. Proper maintenance following manufacturer specifications does not void warranty coverage, however neglectful maintenance such high dust collection or illegal alterations may.

Partner with RM for Reliable NMD 50 Dispenser Supply

RM's two decades of ATM component expertise make us a trusted NMD 50 Dispenser supplier for OEMs that need quality and fast assistance. Our dispensers are customized to your currency and integration needs, and our in-stock availability avoids procurement delays. We offer over 80% of ATM modules worldwide, from whole assemblies to individual components like the A011263 NQ300 module. Talk to Tang@atm-part.com about volume prices, technical specs, and how our ISO-certified manufacturing methods ensure ATM production stability. Let us show why top manufacturers choose RM to minimize maintenance costs and boost machine uptime.
