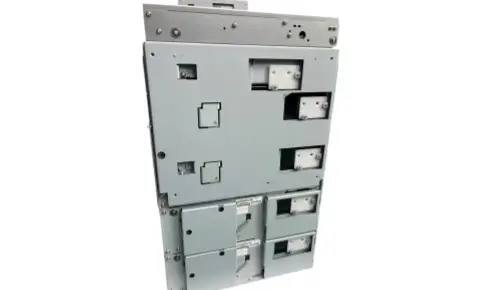

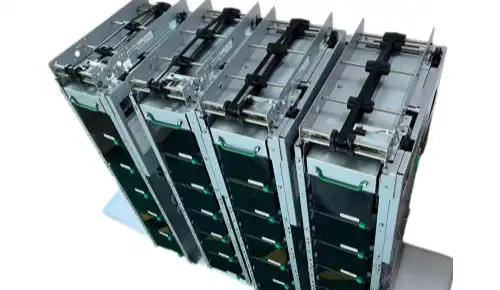

OEM F53 Main Unit Solutions for ATM Maintenance Companies

When ATM maintenance companies need a dependable replacement for aging Fujitsu F53 systems, the F53 main unit with configuration KD03234-C011 stands out as the go-to solution. Since Fujitsu exited the ATM business in 2014, third-party suppliers have taken over lifecycle support for millions of deployed machines across Latin America, Southeast Asia, and India. RM's F53 main unit covers the three core hardware layers—power supply, motherboard, and cash dispenser interface—giving refurbishers everything they need to extend a machine's service life by five to eight years without swapping the platform entirely.

​

​

Understanding the F53 Main Unit: Specifications and Features

Core Hardware Configuration

With the KD03234-C011 design, you can't just swap out any two boards. For the original design, it matches the power rail voltages, dispenser motor control signals, and I/O connector pinout that it maps directly to the Fujitsu F53's internal architecture. Because of this exact alignment, workers don't have to spend as much time calibrating the bench after installation.

Software and Interface Compatibility

The unit comes already set up to work with the F53's communication protocol stack, which means that the ATM cabinet's host software can recognize the replacement part without any driver conflicts. It has been proven by refurbishment workshops in Brazil and Mexico that no software patching is needed when the part number fits exactly. This is a small detail that saves days of troubleshooting work on each machine.

Setup and Deployment Guidance

RM offers live technical help 24 hours a day, seven days a week. From the time an order is confirmed, the lead time is 15–20 working days. There are both brand-new and rebuilt units that are in great shape, and all of them go through a full quality control check at RM's 3,000-square-meter center in Shenzhen before they are sent out.

Evaluating the F53 Main Unit Against Competitors: A Rational Choice Approach

F53 vs. F52 and Legacy Predecessors

The older F52 main unit has a different power scheme and a dispenser interface that is not as wide, so it can't be used with the F53 frame. When procurement teams try to use a different model, they usually describe manufacturing problems at the harness stage. If you get the F53 main unit with the right KD03234-C011 part number, that risk goes away completely.

Pricing Transparency and Bulk Advantages

Original Fujitsu replacement parts are no longer being made, which has driven up the prices of gray market parts so much that repair is no longer a good investment. Prices for RM's third-party compatible units are set to allow the refurbisher's profit on batches of 50 to 100 machines. Volume pricing tiers can be requested at Tony@atm-part.com.

Long-Term Return on Investment

A refurbished F53 ATM going back into service in a Latin American or South Asian network usually costs 30 to 50 percent less than a brand-new machine. When replacing the main unit is the most expensive part of the repair, the project's profitability depends on how well the parts are sourced and how well the guarantee covers them. The 30-day warranty from RM and the opportunity to get longer coverage sets a clear cost floor for procurement heads to work with.

Optimizing ATM Maintenance with OEM F53 Main Unit Solutions

Reducing Downtime at the Workshop Level

One problem that technicians in refurbishment workshops always have is that a missing or mismatched sub-component stops the whole assembly line. As well as the main unit, RM also has the gears, card reader sensors, and power sub-modules that go with it. Together, these make up the whole F53 system. Here are the main source benefits that directly affect how well a workshop works:

• Single-source procurement: Ordering the main unit and its sub-components from one supplier removes the risk of part-number mismatches across multiple vendors, which is a leading cause of assembly delays.
• Pre-shipment compatibility verification: Each order receives a written compatibility confirmation against the KD03234-C011 specification, giving the bank's acceptance committee documentation they can file.
• Consolidated logistics: Shipping all components on one bill of lading reduces the chance of a partial delivery stopping production.

According to RM's current refurbisher clients, these supply chain rules can cut the average time it takes to fix a machine from 10 days to 4–5 days.

Cost Savings Backed by Real Procurement Data

According to surveys done by ATMIA, the main thing that affects the cost of third-party servicing for older ATM fleets is the supply of parts. Maintenance companies can bid on service contracts with confidence when a compatible F53 main unit is available at a known price and within a certain lead time. This is because they don't have to guess how much parts will cost.

Supporting Non-OEM Acceptance by Banks

One thing that refurbishers often worry about is whether terminal banks will accept machines that have been fixed with parts that aren't original. To fix this, RM has put out a third-party Compatibility Statement for the KD03234-C011 configuration. This is something that procurement teams can show to bank acceptance committees in places like India and Argentina, where Fujitsu still has a lot of installed base.

Procurement and Support: Smooth Buying Experience for B2B Clients

Verified Supply Channels and Stock Status

The fact that RM always has the F53 main unit in stock is a big plus because most of its competitors have back-order cycles of 60 to 90 days. By going to atm-part.com, you can place your order directly, and the buying team will get back to you within 24 hours.

Warranty and Post-Sales Support

Every unit comes with a 30-day guarantee that covers problems with the way it was made. RM also gives longer warranty options, with up to 12 months of coverage for large orders. This is the level of coverage that most operations directors look for when they are looking for a long-term supply relationship. Support is available in multiple languages for both online and video remote, which makes dealing with technical issues across borders easier.

Logistics and Risk Mitigation

RM can ship by sea, land, or air, and the shipping method is chosen based on the size and importance of the order. Air freight is usually used for test orders of 5 to 10 units. When you ship 50 or more items at once by sea with consolidated packaging, the landed cost per unit stays low. The purchase deal makes it clear how to return an item, so buyers know what to do if the item doesn't pass quality control when it arrives.

Future-Proofing ATM Maintenance with the F53 Main Unit

Adapting to an Evolving ATM Fleet Landscape

Since Fujitsu stopped making ATMs ten years ago, all assistance for the F53 machines that are already in use around the world comes from outside Fujitsu. Sub-Saharan Africa and Central Asia are buying used Fujitsu ATMs that are sent there from Latin America. This is creating a market for second-lifecycle Products that will probably stay busy until the early 2030s.

Hardware Upgrade Compatibility

The engineers at RM have worked with Fujitsu ATM hardware for more than 20 years. The KD03234-C011 main unit is made to accept current sub-module improvements, such as updated card reader interfaces and better dispenser control boards, without needing to be changed to the frame. If you buy a refurbished machine today, it can get small hardware updates over the next service cycle.

Strategic Sourcing for Sustainable Operations

Refurbishers who choose a trusted main unit provider early in the procurement cycle save money than rivals who buy on the spot. RM's ISO9001-2008 certification, 3,000-square-meter production facility, and history of supplying F53 submodules for more than 5 years give procurement managers the proof of a stable supplier that they need to support an OEM relationship that lasts for a long time.

Conclusion

A lot of ATMs in emerging markets are still powered by the Fujitsu F53, and people are still looking for good replacement parts. The KD03234-C011 specification was used to build RM's F53 main unit. This gives maintenance companies and refurbishers a technically sound and business-savvy way to extend the life of machines. RM is a good choice for any business building a scalable Fujitsu F53 lifecycle program because it is available in stock, has been tested to work with other products, ships quickly, and offers guarantee options that fit real-world purchasing needs.

FAQ

What does the KD03234-C011 configuration cover?

The KD03234-C011 is the part number for the Fujitsu F53 main unit assembly. It covers the power supply module, the central motherboard, and the cash dispenser mechanism interface—the three hardware layers that define the machine's core operation.

Is the unit compatible with both new and older F53 chassis builds?

Yes. RM's F53 main unit is verified for compatibility across F53 chassis variants. A written Compatibility Statement is available upon request for bank acceptance documentation.

What warranty options does RM offer?

Standard warranty is 30 days. Extended warranty terms up to 12 months are available for volume orders. Online and remote video technical support is included with every purchase.

How long does shipping take?

Lead time is 15–20 working days. Air freight is available for urgent trial orders, and sea freight is standard for batch volumes of 50 or more units.

Can RM supply sub-components alongside the main unit?

Yes. RM stocks related sub-modules including gears, sensors, and card-reader components, allowing buyers to consolidate their F53 parts sourcing with a single supplier.

Get Your F53 Main Unit Quote from RM Today

For more than 20 years, RM has been a committed provider of F53 main units and ATM parts. They have an ISO9001-2008 certification and a 3,000-square-meter factory in Shenzhen. Our team gets back to you within 24 hours, whether you need a test batch or a long-term supply deal. To get pricing on the KD03234-C011 configuration, Contact Us at Tony@atm-part.com.

References

1. ATMIA (ATM Industry Association). Global ATM Market and Forecasts Report. 2023.

2. Retail Banking Research (RBR). Global ATM Market and Forecasts. 2022.

3. International Organization for Standardization. ISO 9001:2008 Quality Management Systems — Requirements. 2008.

4. Celent. ATM Lifecycle Management and Third-Party Maintenance Trends. 2021.

5. RBR London. ATM Software and Security: Global Analysis and Forecasts. 2023.

6. ATMIA. Best Practices for ATM Refurbishment and Parts Procurement. 2020.
