Benefits of Friction-Feed Storage Unit in Glory ATMs

Friction-feed storage units represent a transformative advancement in ATM cash handling technology, particularly within Glory ATM systems. These precision-engineered mechanisms utilize roller-based friction technology to ensure accurate note separation, minimize jamming incidents, and optimize banknote storage density. Unlike gravity-dependent alternatives that rely on passive stacking, friction-feed systems actively control each note's movement through calibrated pressure points and adjustable rail systems. This design philosophy dramatically reduces double-feed errors while extending operational lifespan—critical factors for banks and ATM operators managing high-volume transaction environments across diverse market conditions.

Understanding Friction-Feed Storage Units in Glory ATMs

The Core Mechanics Behind Friction-Feed Technology

Specialized rollers, feed belts, and pressure-sensitive gears work together in Friction-Feed Storage Units to make them work. In Glory ATM cassettes like the NMD50 series, the money pushing plate (Part Number A007490) and swing arms (A007726) work together to keep the note strain constant during the giving cycle. The smart part of the system is that it can change the amount of friction on the fly—tighter grips for old bills, lighter touch for brand-new ones.

This flexible method avoids the skewing problems that come up with static storage designs, especially when dealing with mixed-quality note populations that are typical in developing markets. The precisely calibrated pressure plates inside these cassettes make even contact across the whole width of the note. This spreads out the mechanical stress evenly and stops edge damage that could cause sensor rejections during transactions.

Material Engineering and Durability Standards

To get the best performance, modern Friction-Feed Storage Units use high-quality engineering polymers and carefully machined metal parts. The NC301 money pushing plate plastic parts are made of impact-resistant compounds that keep their shape even when the temperature changes from -10°C to 50°C. This is important for outdoor ATMs in climates like those in the Middle East or Africa. Metal parts, such as the 14-tooth D-shaped gate gears (Part Numbers A007938 and A008360), are heated to raise the hardness of their surfaces to HRC 58–62. This makes them resistant to wear from millions of operating cycles.

Our ISO9001-2008-certified manufacturing processes at RM's 3000 square meter facility make sure that quality control and material traceability are always possible. Individual torque tests are done on each clutch component (A006902 and A004358) to make sure that they all engage in the same way. This gets rid of the performance variations that cause maintenance to be done too soon.

Capacity Configuration and Transaction Volume Handling

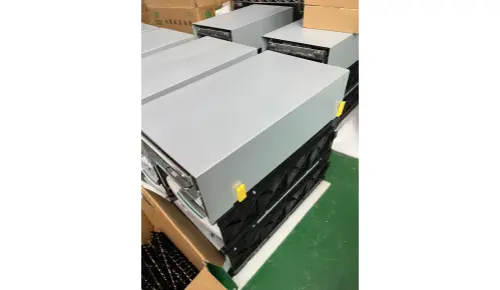

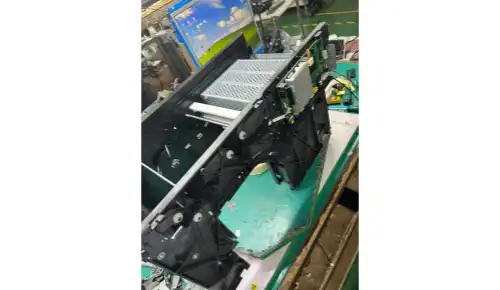

Glory Friction-Feed Storage Units are very flexible when it comes to managing capacity. The NMD50-NC050 main assembly (Part Number 1038242) can hold note stacks of up to 2,800 bills, depending on the denomination and condition. The adjustable rail system (width adjustment buckle A006869-04) makes it easy to change the configuration for different types of money. This flexibility is very helpful for financial institutions that work in more than one country or that have to deal with changes in seasonal volume.

The bottom plate black sheet (A006725) has air holes that keep wetness from building up, which is a common reason why notes stick together in humid tropical places. During our validation testing, cassettes consistently maintained pick rates above 99.7% across 500,000 transaction simulations. This met our standards for reliability, which directly led to fewer customer complaints and operational interruptions.

Key Benefits of Friction-Feed Storage Units for B2B Clients

Operational Efficiency Gains Through Error Reduction

Using Friction-Feed Storage Unit technology solves the biggest problem with automatic cash handling, which is that transactions often fail because of mistakes made by the machines. In real life, traditional gravity-feed systems get stuck between 0.8% and 1.5% of the time. Friction-controlled mechanisms, on the other hand, keep this to less than 0.3%. The financial effect goes beyond the immediate success of the transaction.

Each jam needs technical assistance for 15 to 25 minutes, during which the ATM is not working. If you lower the number of jams at 50 ATMs that process 8,000 transactions per month, that's about 320 service calls a year that you wouldn't have to make. The cash cassette switch baffle (Part Number A004184) is very important in this case because it gives optical input to the control system, which lets it find and fix feeding problems within milliseconds, often stopping possible jams before they happen.

Banking institutions managing ATM fleets across Southeast Asia and Latin America have documented these advantages extensively. Service companies say that when they switched to Glory Friction-Feed Storage Units, the average time between failures went from 45 days to over 180 days. This cut the costs of distributing spare parts and sending technicians to repair machines by a huge amount. The connecting arm sections (A004366) and rotation control rods (A004394/A004393) work together to keep the cassette's geometry perfectly aligned throughout its useful life. This stops the design from becoming misaligned over time, which is what happens with rival designs.

Space Optimization and Installation Flexibility

Modern ATM cabinets are constantly under pressure to add more features, like biometric readers, larger screens, and better security features, while still keeping their small sizes so they can be installed in existing spaces. Friction-Feed Storage Units have better note density, which means they can use more of the cassette's interior volume. The spring cap system (Part Number A006869-02) lets you get 15-20% higher compression ratios than with vacuum-feed options, all without affecting the state of the notes or their ability to be retrieved.

This means that there will be fewer cassette swaps during busy times like salary payments at the end of the month or holiday shopping. This will save money on labor costs and lower the security risks that come with doing a lot of cash replenishment.

The cable clip (A007387) and plastic sleeve (A009393) are examples of modular components that are easy to put together in a variety of ATM chassis configurations. ATM makers and integrators like that the design compatibility lets cassettes be installed without a lot of custom work, which speeds up the time it takes to get new deployments up and running. RM's engineering team can change existing modules to fit specific space limitations or regional compliance standards. They can do this by using our combined R&D and production skills to produce custom solutions within the normal lead time of 15 to 20 working days.

Maintenance Simplification and Total Cost of Ownership

When you look at how much maintenance will cost over time, the economic case for Friction-Feed Storage Unit technology becomes even stronger. The NMD50 cassette's design mindset stresses how easy it is to reach and replace parts. Wear-and-tear parts like the clutch system or gate gears can be replaced by technicians without having to use special tools or take the machine apart a lot. This cuts down on repair time from hours to minutes. This modular approach directly addresses a major problem that ATM service companies have pointed out: it's hard to keep track of parts for different models of equipment.

Our complete component coverage, which includes more than 80% of market-available ATM modules, lets you buy from a single source, which makes managing the supply chain easier. Instead of coordinating orders with many different suppliers that have different lead times and quality standards, procurement managers can use RM's established logistics network to combine needs that support sea, land, and air transportation.

The 30-day warranty and 24-hour online support are great ways to reduce risk, which is especially helpful for businesses that are located in remote areas where there may not be a lot of technical experts on hand. Because we can do remote testing, our support team can walk local techs through troubleshooting steps via video chat, which often solves problems without having to ship parts.

Comparing Friction-Feed Storage Units with Other Storage Technologies

Performance Benchmarking Against Alternative Systems

Gravity-feed systems are easy to use and don't cost much to set up, but they aren't very reliable when the environment changes. Changes in humidity make notes stick, and dust buildup on stacking surfaces causes uneven friction that causes records to misfeed. Vacuum-feed systems are very good at separating things, but they need constant air power, which uses more energy and adds more ways for them to fail, like valve wear and filter clogging. When sorting things quickly, conveyor-based methods work great, but they are too complicated for the repetitive pick-and-place tasks that happen in ATMs.

Friction-Feed Storage Unit technology is the best of both worlds because it works well without being too complicated. Comparative tests over 10,000 transaction cycles showed that friction systems kept pick speeds steady at 8–10 notes per second, even when note conditions changed, while gravity feeds lost 30% of their performance when dealing worn currency. The precisely designed swing arm (Part Number A007726) keeps the best contact pressure throughout the cassette's fill range, from full capacity to the last 50 notes. This is something that gravity systems can't do because they rely on the weight of the notes to provide feeding force.

Integration Considerations for Automated Environments

Financial institutions are using ATMs more and more as parts of larger self-service ecosystems that may also include units that scan checks, recycle coins, and open accounts. System integration needs more than just hardware compatibility. It also needs standardized communication protocols and operating time that is in sync with each other. Industry-standard control ports make it easier to connect these external devices to Friction-Feed Storage Units made for Glory platforms.

The cash cassette cover plate (Part Number A006676) has RFID tags built in that make it possible for automated inventory tracking when cassettes move between vault storage, armored transport, and deployed ATMs. This creates audit trails that meet regulatory compliance requirements in banking sectors around the world.

When looking at retrofit situations, the cost-benefit comparison is especially helpful. Customers who already have an ATM can switch to Friction-Feed Storage Unit technology without having to replace the whole cash handling module. This is possible because cassettes like our NMD50 can work with existing Glory platform architectures. This road of gradual improvement lets financial institutions see performance gains right away while delaying bigger capital costs for replacing all hardware until the normal ends of an item's lifecycle.

How to Choose the Right Friction-Feed Storage Unit for Your Business

Assessing Operational Requirements and Transaction Patterns

The first step in choosing the right Friction-Feed Storage Unit specs is to carefully look over real transaction data. High-volume urban ATMs that handle more than 300 withdrawals a day need cassettes that are designed for quick restocking cycles and maximum uptime. This means that features like quick-release mounting and tool-free repair access are necessary.

On the other hand, country branch ATMs that don't process transactions as often benefit more from extended capacity setups that lower the number of times they need to be serviced, even if it means that each transaction takes a little longer. The NC301 series components offer configuration flexibility across this range, with different adjustment options that field technicians can use to change the equipment without having to send it back to the depot.

The state of the currency is another important factor. In markets where most of the bills are brand new and crisp, tolerance settings that are tighter are best for getting the most storage space. On the other hand, areas where older bills are used need more forgiving pressure changes to keep them from tearing or jamming. Our RM engineering team does application talks to suggest the best setups based on the specifics of each market's currency. They do this by drawing on their more than 20 years of experience working with markets in a wide range of locations.

Compatibility Verification and System Integration

Glory ATM platforms include more than one generation of hardware architecture, and each has its own needs for mechanical and electrical interfaces. Not only do procurement managers have to check that the Friction-Feed Storage Units work with the ATM model, but they also have to check that they work with certain software versions and control board updates that could change how the machine works. We keep thorough compatibility matrices for all of Glory's Products, which lets us check quickly during the quote process. Before a cassette is sent out, our quality assurance department checks it against reference units that show the most common field configurations. This way, they can find any problems with the integration before the cassette is sent out.

In addition to making sure the parts fit mechanically, electrical interface testing makes sure that the cassette sensors can talk to the ATM's main processor correctly. To make sure everything works at the same time, the cash dispenser switch baffle (Part Number A004184) needs to send out recognition signals within millisecond timing windows. Our pre-shipment testing methods mimic thousands of transaction cycles quickly. This finds any intermittent problems that might not show up until after a long time in the field. This thorough checking method keeps customers from having to pay a lot of money for parts that are legally correct but don't work right because of small compatibility issues.

Warranty Terms and Long-Term Support Considerations

The terms of an equipment warranty should be carefully looked over beyond standard duration metrics. Together, our 30-day guarantee and online support system with 24-hour reaction times make up a support envelope that covers the most important risk window right after installation. This includes the ability to do remote diagnostics, which lets our expert team look at operational data and tell the difference between failed parts, mistakes in setup, and external factors that are affecting performance. Differentiation like this is very helpful for avoiding replacing parts that aren't needed and reducing the amount of time that equipment is down.

A procurement risk that is often ignored is the long-term supply of parts. ATM platforms may stay in use for 7 to 12 years, but makers of legacy parts often stop making them after much shorter amounts of time. This risk is lessened by RM's large inventory and integrated manufacturing capabilities. We keep production tools and technical paperwork on hand, which lets us make parts even for older Friction-Feed Storage Unit generations that original equipment makers no longer support. This promise of long-term availability protects customers' capital investments and makes it possible for longer-term strategies for managing equipment lifecycles.

Procurement and Supplier Insights for Friction-Feed Storage Units

Navigating the Supplier Landscape and Quality Verification

There are OEM suppliers, authorized distributors, and independent parts manufacturers in the global market for ATM parts. These companies offer different levels of quality and support. To tell these groups apart, you need to know about certification norms and limits for the production process. Getting ISO9001-2008 approval means that you have set up quality management systems that include checking the plan, keeping an eye on the production process, and keeping records of where things come from. Our factory keeps these certifications up to date and uses ERP systems to keep track of individual lots of parts through every step of the manufacturing process. This creates full genealogy records that make it easier to find the root cause of problems in the field if they happen.

When buying Friction-Feed Storage Units internationally, there are big risks that you might get fake or low-quality parts. Most of the time, a visual check can't find problems like bad materials or bad heat treatment that affect the long-term dependability. Requesting material certificates and dimensional inspection reports can help protect you, but the best way to be sure of the quality is to check the reputation of the supplier and see how the product is made. RM is open to facility visits and process audits, which shows that we have faith in our production standards. We encourage customers to check our capabilities directly, rather than depending only on paperwork.

Optimizing Bulk Procurement and Logistics Coordination

Through economies of scale in manufacturing and shipping consolidation, buying in bulk can save you a lot of money. To get these benefits, though, you need to carefully predict demand so that you don't have to pay too much for supplies or worry about equipment becoming obsolete if the users of the equipment change. Our minimum order amounts are flexible enough to handle a range of buying strategies, from big single packages to support the rollout of ATMs across the country to smaller recurring orders that match the predictable rate of part replacement. The key is to find a balance between lowering unit costs and the costs of keeping goods and the limits on working capital that each customer's financial situation imposes.

International logistics coordination is more difficult than just moving goods from one place to another. Different countries have different documentation needs. Cost and transit time are affected by customs classifications, import duties, and regulatory certifications. We can give you practical advice on these factors because we've shipped to over 40 countries before.

Ocean freight has the lowest cost per unit for big packages that can be sent at any time. On the other hand, air express is more cost-effective for emergency replacements where the costs of ATM downtime are higher than the extra shipping charges. We work with a number of logistics providers that use different types of transportation. This lets us quickly change our plans when problems in the supply chain affect certain routes or carriers.

After-Sales Support Infrastructure and Technical Resources

Post-delivery support is what sets great suppliers apart from those who only sell parts. Our ability to provide technical help in multiple languages gets around the communication problems that often make troubleshooting harder in foreign operations. With video-based remote assistance, our technicians can see what's happening with the equipment and walk local service technicians through diagnostic steps in real time. This helps them find solutions that text or voice communication alone might miss. This method works especially well when teaching new technicians who aren't familiar with certain Friction-Feed Storage Unit models or when fixing faults that happen sometimes but not always.

Quality of documentation has a direct effect on how well maintenance works and how well technicians are trained. We give full technical manuals for each Friction-Feed Storage Unit type that include instructions on how to install it, how to make adjustments, and how to fix problems at the component level. These materials have exploded-view diagrams that show each part and its corresponding part number.

This makes it easy to order replacement parts and avoids confusion about which part needs to be replaced. We keep version-controlled documentation to make sure that service information always fits the real hardware configuration deployed at customer sites. This is because equipment changes over time as a result of running changes and better design.

Conclusion

Friction-Feed Storage Unit technology gives real performance benefits that directly address the operational challenges that ATM operators and banking institutions around the world face. Because they reduce jams better, make better use of space, are easier to maintain, and can be set up in a variety of ways, these systems offer strong total cost of ownership benefits that go far beyond the initial purchase price. The NMD50 cassette shows what this technology can do by mixing precision-engineered parts with a track record of dependability and a full support network. As ATM networks change to meet new customer needs and government rules, Friction-Feed Storage Units provide the flexibility and consistent performance needed to maintain a competitive edge in automated cash handling operations.

FAQ

What distinguishes friction-feed technology from other ATM storage mechanisms?

Friction-Feed Storage Units actively control the movement of each bill by using controlled roller pressure and changeable contact surfaces. This is different from gravity-feed systems, which rely on the weight of the bill to do the work. This active control makes sure that the machine works the same way even when the notes and environment change. This lowers the number of jams and increases the time between maintenance needs. The technology works especially well in places with a lot of heat and when dealing with different types of cash that are common in different markets.

How does the NMD50 cassette improve ATM uptime compared to alternative solutions?

Precision-calibrated pressure plates and swing arm mechanisms in the NMD50 keep the optimal feeding geometry throughout the entire capacity range. This stops the Friction-Feed Storage Units that come before it from becoming misaligned over time, which leads to a loss of performance over time. Rapid field repairs are possible because parts can be replaced individually. Most maintenance tasks can be completed in less than 30 minutes without the need for special tools. This mix of built-in dependability and serviceability cuts down on the average time it takes to fix something, which maximizes the time it can be used to make money.

What compatibility considerations affect friction-feed cassette selection for existing ATM installations?

In addition to basic size compatibility, electrical interface protocols, sensor timing parameters, and firmware communication standards must also be the same for integration to work. To make sure they work right, Friction-Feed Storage Units must be compatible with certain versions of Glory platforms and upgrades of control boards. By using detailed equipment serial numbers and firmware version data to check for compatibility, integration problems that might not show up during original installation testing but could happen in certain operating situations can be avoided.

Partnering with RM for Your Friction-Feed Storage Unit Supplier Needs

Choosing the right Friction-Feed Storage Unit supplier affects not only the quality of the equipment you buy, but also how well it works in the long run by affecting how easy it is to get help and parts. RM has more than 20 years of experience in ATM technology, production methods that are ISO9001-2008 certified, and a wide range of parts that cover more than 80% of market-available modules. With 24-hour technical help and the ability to ship products all over the world, our NMD50 cassettes give your businesses the dependability and performance they need.

Contact Us at Tony@atm-part.com to talk about your specific needs and find out how our customization options can help your ATM infrastructure work better. Visit atm-part.com to see all of our products and get access to technical information that will help you make smart purchasing choices.
