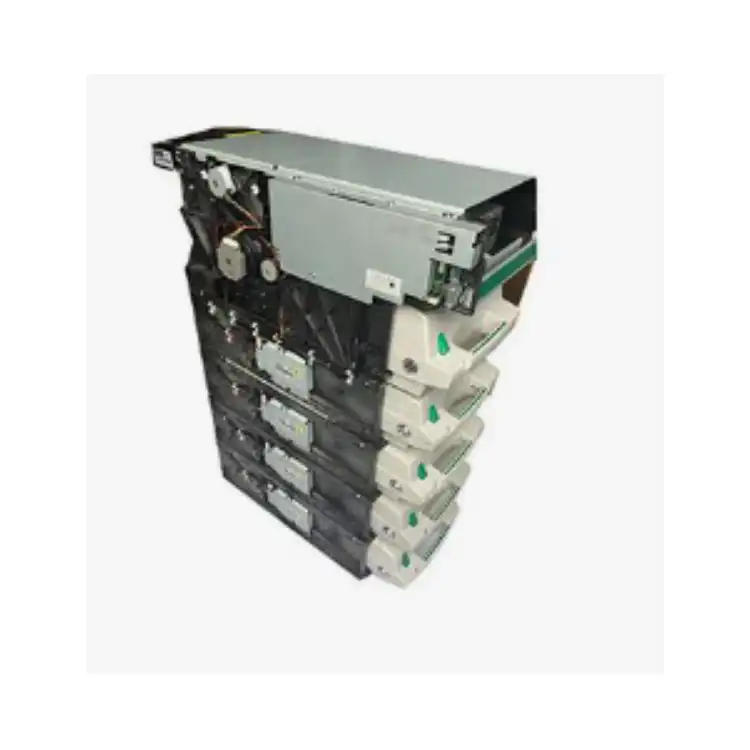

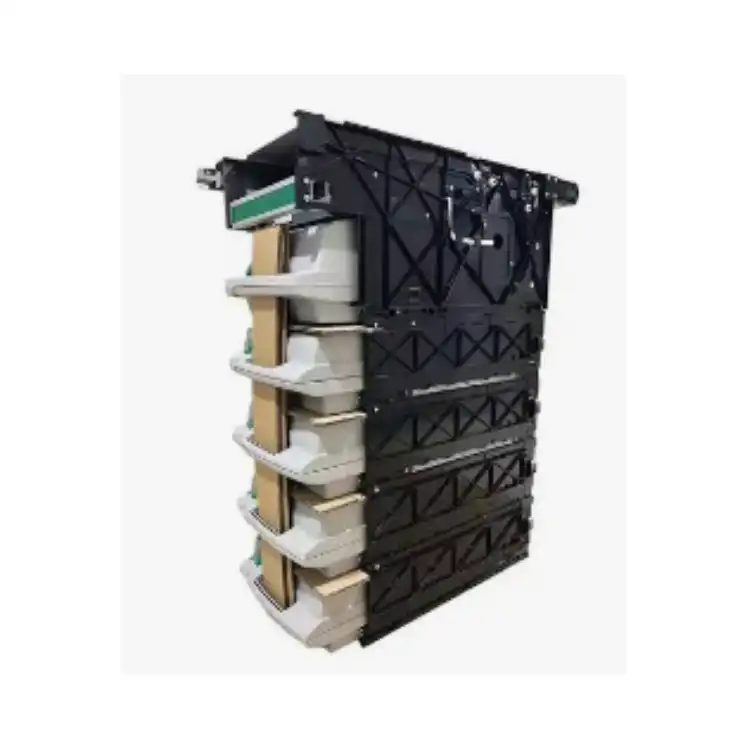

NMD100 Cash Dispenser for High-Volume ATM Environments

When ATM downtime costs operators hundreds of dollars per hour, the dispensing module at the heart of the machine becomes a critical business asset. The NMD100 cash dispenser is a friction-feed currency handling module engineered for Glory/NMD series ATMs, capable of processing 7 notes per second with an Intelligent Double Detection (IDD) error rate below 0.01%. Backed by over 5 years of dedicated component supply experience at RM, this module supports multi-brand ATM platforms including NCR 56xx/58xx, Wincor Procash, Tranax MB1000/1500/1700, Triton 9600, and Genmega G1500—making it a versatile solution for high-volume cash environments worldwide.

Understanding the NMD100 Cash Dispenser: Features, Specs, and Operation

Core Technical Specifications

As fast as 7 notes per second can come out of the NMD100 cash dispenser, and up to 50 notes can be presented in a bundle at once. It can hold up to 4 different cassette configurations, with each one holding about 3,000 notes. This means that it can hold up to 12,000 notes in a single load cycle. With a 24V DC power supply and RS232 or USB connectivity, it meets UL electrical safety standards and can handle multiple currency profiles at the same time.

Complete Component Configuration

The NMD100 cash dispenser comes as a fully assembled unit. When you're in charge of multiple-brand fleets and need to reorder with pinpoint accuracy, knowing the part numbers is important. The full setup has these parts:

• A007538: NMD100 four-channel movement with cash cassette
• A019207: RV301 recycling bin
• A004348: NC301 cash cassette
• A008545: CMC200 Central Control Board
• A011025: NFC200 Control Board assembly
• A007484: BOU module
• A009206-3: BOU101-L4 full version
• A007483: BCU module
• A007446: NMD movement power supply PS126
• A011263: NQ300 module
• A008646: ND200 module (stepper motor unit part number A004296)
• A008909: NS module

It's important for IADs that they can get individual parts like the ND200 stepper motor (A004296), since it's getting harder and harder to find precision parts for older fleets.

IDD Technology and Friction-Feed Architecture

The module has a friction-feed design similar to the Talaris. Each note is separated from the others before they are sent by a reverse-roller device. By measuring voltage levels across the optical line, the IDD sensor array can tell the difference between single notes, doubled notes, and taped money. Within 50ms, solenoid-activated diverters start working, and the timing belt stays tight to avoid slipping during peak pouring cycles. A Mean Cycles Between Failure (MCBF) of more than 100,000 cycles is confirmed by normal burst tests with 1,000 mixed-condition notes.

Comparing the NMD100 with Other Leading Cash Dispensers on the Market

NMD100 vs. Talaris and Wincor Nixdorf Dispensers

In the large-capacity dispenser market, the Talaris friction-feed cash dispenser family and Wincor Nixdorf's CMD series have been the gold standard for a long time. Both platforms are well-established and have strong OEM support networks, but being well-established costs money. Replacement modules for Talaris and Wincor systems often cost more, especially for setups with more than one cassette, like the NMD100 cash dispenser four-cassette setup.

The module is more useful for owners who are in charge of ATM networks with machines from different brands. One NMD100 module and its parts work with NCR, Wincor Procash, Tranax, Triton, and Genmega platforms. This means that buying teams don't have to keep different SKUs for each brand, and can instead combine their extra parts inventory. This consolidation directly lowers carrying costs and makes handling easier for an IAD that is in charge of more than 200 machines from different brands.

The Wincor CMD V6A works best in slim-line lobby setups, but the NMD100 focuses on throughput capacity, which makes it better for high-volume retail, casino redemption, and cryptocurrency BTM deployments where dispensing speed and cassette depth are essential.

Procurement Insights: How to Buy and Source the NMD100 Cash Dispenser?

Sourcing Channels and Verification

Teams in charge of buying things should make sure that the company they're using to get NMD100 cash dispensers can provide both whole units and individual parts. When operators only source at the module level, they risk having to pay more to fix a problem part like the ND200 stepper motor (A004296) or the CMC200 Central Control Board (A008545) that breaks down in the field.

The complete list of NMD100 parts is always in stock at RM. Production orders usually take 15–20 working days to arrive, but pressing needs can be met right away. For emergency replacements, air freight options allow delivery the same week.

Here are the main benefits that RM gives to B2B clients when it comes to procurement:

• Verified multi-brand compatibility: Installation instructions for NCR 56xx/58xx, Wincor Procash, Tranax MB1000/1500/1700, Triton 9600, and Genmega G1500
• Full sub-component depth: You can get individual parts from the NC301 cash cassette (A004348) to the BOU101-L4 extended version (A009206-3).
• 30-day warranty with online support: Within 24 hours of your question, you can get remote diagnostics
• Flexible packaging: Distributor clients can choose between neutral and OEM packaging
• ISO9001-2008 certified quality systems: ERP-managed inventory with batch records that can be tracked

Because of these benefits, ATM owners and wholesalers can cut down on the number of vendors they work with while still being able to provide a wide range of services to their installed base.

Installation, Software Compatibility, and Security Features of the NMD100

Installation and Integration Protocol

The host ATM cabinet should be turned off and the cassette bay should be cleared of any notes that are still there before installation. The NMD100 cash dispenser can connect via RS232 or USB, and before mounting, the firmware version should be checked against the ATM's main software version to make sure it works with it. RM offers installation instructions for multiple brands, which is especially useful for the Tranax and Triton platforms, where older firmware versions might need specific configuration settings.

The CMC200 Central Control Board (A008545) controls how the machine and the ATM host talk to each other. After the installation is done, an IDD sensor calibration cycle should be run to set voltage baselines for the path that detects note thickness. Before the machine is put back into service, a 100-note test fill with standard cash makes sure that the transport is aligned and the diverter is set to the right time.

The 24V DC power design of the module separates the dispenser electrically from the ATM's higher-voltage systems, which lowers the risk of cross-interference. Keys are needed to physically get into the cassette bay, and the NS Module (A008909) controls the shutter logic to stop anti-fishing fiddling at the presentation aperture.

Ensuring Long-Term Performance: Maintenance and Troubleshooting

Routine Maintenance Schedule

The NMD100 cash dispenser should have preventative maintenance about every 50,000 dispensing cycles or every three months, whichever comes first. The friction rollers in the pick-and-separation path wear down slowly over time as more notes are played. Roller surfaces that are glossy are the main reason why single-note separation fails. Checking the tension of the belt stops lateral skew in the transport path, which can cause the BOU module (A007484) stacker to get stuck.

Paper dust builds up on IDD sensor lenses, and they should be cleaned with dry compressed air every time they need to be serviced. The NFC200 Control Board assembly (A011025) diagnostic interface can be used to check the time of the solenoid's activation, making sure that the answer is within the acceptable ranges.

When field engineers are trying to figure out what's wrong with a dispenser, the best way to start is with the IDD calibration data log. Then they should measure the belt tension and finish with a roller surface inspection. If the dispenser shows drive problems during the startup cycle, check the ND200 module (A008646), which holds the stepper motor assembly, for continuity in the windings.

Conclusion

The NMD100 cash dispenser is a reliable, high-throughput dispensing module that stands out for users and dealers who need to cover a wide range of platforms without having to keep up with various spare parts catalogs. With its friction-feed design, IDD error detection, and wide range of available sub-components, such as the NC301 cassette and the ND200 stepper motor, it is a good choice for both ongoing fleet maintenance and ATM refurbishment projects. RM offers a purchasing path that balances cost, reliability, and expert support depth for B2B clients working at scale. Products are in stock, and the supply chain management is ISO9001-certified.

FAQ

What ATM platforms is the NMD100 compatible with?

Along with the Glory/NMD series, the NMD100 cash dispenser works with the NCR 56xx/58xx, Wincor Procash, Tranax MB1000/1500/1700, Triton 9600, and Genmega G1500. If you ask, you can get documentation on compatibility.

What is the dispensing speed of the NMD100?

The module can handle up to seven notes per second, and it can show up to fifty notes in a group per transaction. This flow works well in places with a lot of customers, like stores, games, and BTMs.

Can individual sub-components be ordered separately?

Yes, RM sells the whole NMD100 catalog of parts separately. This includes the ND200 stepper motor (A004296), the CMC200 Central Control Board (A008545), the NC301 cash cassette (A004348), and all the other parts and assemblies that are listed.

What warranty and support does RM provide?

There is a 30-day warranty on all NMD100 modules and parts. Asking for help online gets you a response within 24 hours, and you can use remote diagnostics to get help with installation and fixing problems.

How quickly can orders be dispatched?

Items that are in stock can be sent out right away. Options for air freight help meet tight shipping deadlines. For standard orders, the lead time is between 15 and 20 working days.

Partner with RM for Your NMD100 Cash Dispenser Supply Needs

Over the course of more than 20 years of making financial equipment, RM has sold NMD100 cash dispenser parts to ATM users, wholesalers, and repair shops. As a verified supplier with ISO9001-certified quality systems, in-stock availability, and a full sub-component depth, RM is a great choice for B2B buying teams looking for reliable, scalable sourcing. You can email Tony at Tony@atm-part.com to get a price or talk about your fleet needs.
