Is AFD 1.5 Dispenser Still Worth It in 2026?

In 2026, financial institutions using Opteva 526, 522, and 5500 ATMs need acquire the Diebold Nixdorf AFD 1.5 Dispenser. This cash issuing module works effectively and is affordable despite newer models. The AFD 1.5 Dispenser is ideal for institutions that desire cheaper maintenance without compromising transaction dependability. Its parts are plentiful, technical support is excellent, and it fits with current infrastructure. Because of its flexible architecture, you may replace simply the faulty sections instead of the full system, saving money.

​

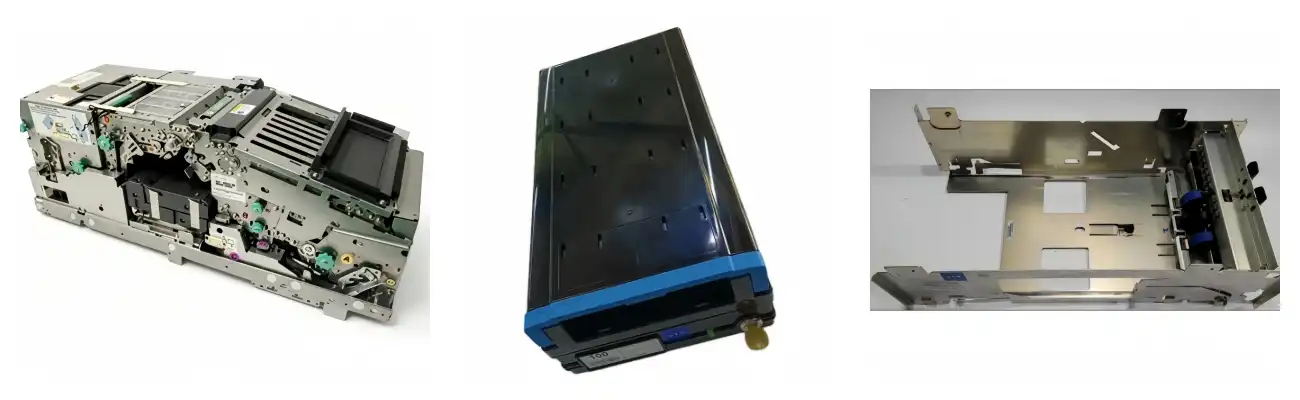

Understanding the AFD 1.5 Dispenser – Specifications and Functionality

Core Technical Architecture

The cash issuing module was designed for high-transaction areas. The system's main component, a 49-225262-000A picker device, precisely extracts notes from supply boxes. This picking technique works with 860mm (49211434000A), 720mm (49211435000A), 625mm (49211437000A), and 620mm transport belts. So it fits different ATM cabinet layouts.

The stacker device (49-211433-000A) holds notes until they are displayed to clients. This component must be aligned to avoid becoming trapped during high-speed operations. However, the primary control board (49-208102-000H/M) communicates with the ATM's central CPU and successfully executes exit orders to synchronize dispensing.

Component Interoperability and Modularity

The cassette approach is advantageous. Both convenience supply cassettes (00-104777-000C) and secure locking supply cassettes (00-104777-000N) have comparable mounting interfaces, so workers may adjust security settings to meet site demands. The reject cassette (00-103334-000E) automatically records incorrect or ambiguous remarks to protect the agreement without human intervention.

Feed kits (49-204020-000A) are currency-contact wear components. These non-aggressive feed approaches prolong note life and maintain separation performance throughout millions of transactions. Modularity allows repair workers to replace out these pieces during normal service times without specific tools or waiting.

Operational Principles and Maintenance Best Practices

Cash comes out when the ATM processor sends transaction facts to the main CCA. The control board activates the cassette motors, placing notes against the picking wheels. After aligning everything, the picker temporarily engages and pulls a note onto the conveyor belt. Optical sensors along the travel line check for double-feeds and ensure the notes are there before the stacker.

Preventive maintenance covers three key areas. Every 50,000 transactions, picker wheels should be examined for surface glazing or wear patterns that reduce friction. Transport belt tension must be checked every three months to maintain note movement speeds. Compressed air removes paper dust from optical prisms in sensor arrays. This prevents bogus error circumstances from activating unnecessary reject mechanisms.

Comparing the AFD 1.5 Dispenser to Alternatives in 2026

Performance Benchmarking Against Newer Models

From AFD 1.5 Dispenser to 1.6, the AFD 1.5 Dispenser made incremental improvements but no major modifications. The updated version features superior sensor arrays that can distinguish polymer and paper money, fixing banknote material issues. The 1.6 stacker (49254690000B/D/E/L for rear-loading and 49242427001A for front-loading) rejects fewer worn or slightly damaged notes due to stronger alignment lines.

However, both types administer medications similarly. This 1.6 picker (49242432000A) is the same size as its 1.5 predecessor. However, software updates make error recovery more aggressive. 1.6 variants (49254691000A for 860mm and 49242431000A/C for 720mm) fit easily into 1.5 chassis with slight bracket changes.

Automation Trade-offs and Cost Considerations

Fully autonomous next-generation dispensers with intelligent note condition tracking and predictive repair warnings offer fewer interventions. These systems usually cost 40–60% more than popular platforms like the AFD 1.5 Dispenser. This pricing makes it challenging for ATM managers to justify large capital acquisitions, even when the technology performs well.

Automation is less useful in moderate-transaction circumstances when cash loading is manually verified. Most retail banking ATMs handle 80–150 transactions per day, whereas sophisticated machines handle 500 or more in high-traffic areas. The AFD 1.5 Dispenser's reliability and lower total cost of ownership make it cheaper than younger technologies with limited efficiency gains at similar levels.

Selection Criteria for Diverse Operational Contexts

Consider transaction volume, environment, and infrastructure investments while making a purchase decision. The enclosed travel tracks in 1.5 and 1.6 versions aid in harsh weather such high humidity, excessive temperatures, and airborne particles. These sealed systems keep pollutants out better than inexpensive open-frame systems.

The range of currencies also influences decision. Cassette mapping and thickness correction are needed for multi-denomination ATMs that print different-sized banknotes. The core CCA software in both types of AFD 1.5 Dispenser comfortably supports multi-currency trades without manual rearranging between dispensing occurrences. For international airports and crossing stations, this capability is crucial.

Evaluating Procurement Factors: Cost, Warranty, and Supplier Credentials

Pricing Structure and Volume Discounts

Current dispenser assemblies cost $1,200 to $2,800, depending on condition. A credible supplier sells expertly refurbished modules that cost 35 to 50% less than new ones and operate just as well. Individual part prices trend similarly. The main CCA and other critical elements cost $280–$420, while transport belts cost $150–$240 depending on length.

Bulk buying discounts reduce unit costs by 15–25% when you buy more than twenty. Volume pricing works well for distributors with multiple banks and large banking networks with shared platform architecture. These partnerships frequently feature expedited delivery and priority product distribution to streamline emergency replacement operations.

Warranty Coverage and Support Infrastructure

Regular warranties cover new and used equipment for 30 days, covering manufacturing defects and premature part failure. This service provides online technical support and new parts during business hours. Extended warranty agreements that cover 90 days or a year cost 8–12% more, but they're worth it for firms without ATM repair personnel.

Supplier qualifications matter while buying crucial financial instruments. ISO9001-2008-certified companies have quality management systems that ensure manufacturing requirements are fulfilled. RM, which has been in business for over 20 years and has 3000 square meters of production space, has a huge inventory that enables for 15–20-day shipment, even for rare component versions.

Identifying Trustworthy Supply Partners

Authorized dealer networks prevent aftermarket part counterfeits. Genuine parts feature manufacturer markings and batch-specific documentation. Modern banking is worldwide and ATM networks encompass numerous time zones and cultures, thus vendors that offer 24/7 technical support can fulfill consumer demands.

Service after the transaction substantially influences brand reputation. Established providers have repair teams with experts that know how to solve problems and their causes. Online tools, video assistance sessions, and extensive technical manuals transform supplier partnerships from transactional to partnership-based. Sharing knowledge and growing skills reduces operational expenses for the AFD 1.5 Dispenser.

Real-World Applications and Benefits of Using the AFD 1.5 Dispenser

High-Volume Branch Banking Environments

Metropolitan bank offices need vending systems that can withstand extended hours of operation without overheating or breaking down. These circumstances, where 200–350 draws occur daily, suit the AFD 1.5 Dispenser design. The sturdy stacker design enables notes build up fast without jamming, which may happen with lighter devices under duress.

Branch managers appreciate modular serviceability's reduction in client waits. Techs replace feed kit wear patterns instead of replacing the cassette mechanism. ATMs are maintained during peak banking hours by scheduling part swaps for low-traffic times when consumers won't notice the brief service interruptions.

Through-the-Wall and Drive-Through Installations

ATMs in external walls or drive-through structures have environmental concerns that don't occur in climate-controlled lobby spaces. Unprotected dispenser parts fail faster due to temperature, humidity, and dust. AFD 1.5 Dispenser modules' enclosed transport path design tackles external stressors, maintaining sensor calibration accuracy in harsh operating circumstances.

Multi-Currency Border Terminal Operations

Many international airports and border crossings include ATMs that accept many currencies. The control system must track cassette quantities for these specific arrangements to operate. This is accurate cassette mapping. Even when euros and dollars are withdrawn simultaneously, the primary CCA software effortlessly bundles multi-currency transactions.

Because each country's bill base requirements are different, thickness calibration is crucial when utilizing several currencies. Sensor arrays in AFD 1.5 Dispensers detect size differences and automatically adjust separation settings to minimize double-feeding when changing currencies. This efficient adaption eliminates manual reconfiguration, which would have complicated operational operations.

Future Trends and Considerations for Selecting Cash Dispensers in 2026 and Beyond

Industry 4.0 Integration and Digital Connectivity

Modern banks increasingly seek dispensing systems with centralized monitoring tools that track ATM network operation. The AFD 1.5 Dispenser was created before the IoT was completely integrated, but its electronic design allows diagnostic data collection using common communication protocols. Middleware retrieves transaction logs, error codes, and component use data from the main CCA for banks. Data from this is sent into algorithms that plan future maintenance.

Cloud-based fleet management solutions look for trends across thousands of dispensers to discover parts nearing their end of life before they fail. Data-driven maintenance replaces reactive crisis reaction with statistical reliability models to prevent part failure. The AFD 1.5 Dispenser's huge installed base provides rich historical data to increase prediction accuracy. Despite lacking IoT capabilities, these modules are ideal for predictive maintenance plans.

Sustainability and Lifecycle Management

Banking businesses' buying selections become more environmentally conscious as they move toward carbon neutrality. Single-use dispensing modules that must be changed after use are less sustainable than long-lasting ones with significant component recyclability. The AFD 1.5 Dispenser's modular architecture allows pieces to be repaired, extending its operating life to 12–15 years compared to 7–9 years for hard-to-service integrated systems.

Balancing Innovation with Proven Reliability

Because maintaining equipment benefits the economy and environment, banks are using refurbishment programs more. Dedicated providers disassemble dispensers and replace damaged parts while preserving structural and electrical parts. Used units operate as well as new ones but cost less and have less environmental impact. This helps the financial services cycle economy.

As technology advances rapidly, there is a conflict between employing cutting-edge solutions and preserving reliable old systems. Revolutionary innovation in currency distribution has stalled. Modern dispensers have 99.7% to 99.9% transaction success rates, somewhat greater than mature platforms like the AFD 1.5 Dispenser's 99.4% to 99.6% dependability. Strategic buyers recognize that tiny performance increases typically lead to merger risks, training expenses, and more difficult inventories that aren't worth it.

Conclusion

The AFD 1.5 Dispenser is still useful in 2026 because it is dependable, has a large range of easy-to-find components, and is affordable. Newer technologies offer slight benefits, but this platform's vast installed base and expanding support ecosystem make it a good choice for financial organizations that handle many transactions like retail banks. Through planned component replacement and expert refurbishment methods, its modular architecture meets operational demands and long-term sustainability. The AFD 1.5 Dispenser balances performance and total cost of ownership, making it a viable choice for banks and service providers seeking dependable cash distribution.

FAQ

What distinguishes the AFD 1.5 from version 1.6 operationally?

Sensor technology and software tweaking differ most. Better optical sensors calibrated for polymer currencies are in Version 1.6. This simplifies bill classification. The software's stronger error recovery reduces jams in challenging note situations. Because all variants of the AFD 1.5 Dispenser are mechanically identical, picker units and transport systems must have the same size. This implies many elements work on both platforms.

How often should critical components be replaced?

Industry standards recommend inspecting pickers every 50,000 deals and replacing them if the rubber surfaces glaze over or if separation problems cause more than 1% rejections. Depending on cash quality, feed kits should be updated every 75,000–100,000 deals. Check transport belt tension every three months and replace them every 18–24 months in high-volume systems. If power is adequately maintained, the main CCA rarely has to be replaced until something major happens.

Can refurbished dispensers match new unit performance?

Professional repair by qualified vendors makes items operate like new. It involves disassembling and replacing worn parts, including pickers, feed kits, and belts. To ensure proper operation and fault handling, the entire system is tested. A reconditioned machine from a respected supplier with high-quality control comes with the same warranty as a new one. Banks may save expenses by 30–45% without compromising system stability by carefully buying secondhand equipment.

Partner with RM for AFD 1.5 Dispenser Solutions

RM stocks a lot of AFD 1.5 Dispenser and 1.6 components to satisfy your immediate needs. Our ISO9001-2008-certified warehouse stocks dispenser assemblies, transport belts, and picker mechanisms. You may quickly obtain everything you need for your repair plans. As a leading AFD 1.5 Dispenser vendor with over 20 years of ATM expertise, we provide properly repaired and new machines with a 30-day guarantee and 24/7 technical support. Ask Tang@atm-part.com about bulk parts rates and how our 15–20 business day shipping can keep your ATM network working smoothly.
