How to Choose a 24V Power Supply for NCR ATM Machines

Choosing the right 24V Power supply for NCR ATM machines is critical for ensuring uninterrupted service in financial environments. The decision requires balancing technical specifications, reliability standards, and cost efficiency. A properly selected power supply reduces maintenance costs, prevents transaction failures, and extends equipment lifespan. This comprehensive guide walks procurement managers, service technicians, and distributors through essential selection criteria, from understanding voltage requirements to evaluating supplier credentials, ensuring your NCR SelfServ ATMs operate smoothly under all conditions.

Understanding 24V Power Supply and Its Role in NCR ATM Machines

Why NCR ATMs Rely on 24V DC Systems

NCR SelfServ ATMs need 24V Power devices to power many important parts at the same time. In contrast to the 12V systems that are widely used in consumer gadgets, 24V Power configurations can handle more power while still being small. Card readers, receipt printers, cash dispensers, and anti-skimming devices can all work with this voltage level without getting too hot or dropping the voltage. The 24V Power standard also makes electromagnetic compatibility better, which means that communication units that handle real-time banking activities will be less likely to be affected by interference.

Electrical Characteristics That Matter

Switch mode 24V Power supplies change the alternating current that comes from the wall into a steady direct current. Our switch mode technology works with a wide range of input voltages, from 90V AC to 264V AC, so it can adapt to power grid changes in places like Southeast Asia and North America. When Active Power Factor Correction is greater than 0.95, less energy is lost and less heat is made inside ATM shelters. Because of this efficiency, banks with big fleets of ATMs pay less for energy while still following environmental rules in places like the US and the EU.

Safety Considerations in Financial Equipment

Banking equipment works in a variety of settings, from offices with air conditioning to open drive-throughs. Changes in temperature, humidity, and exposure to dust all call for strong protection. Over-Voltage Protection, Over-Current Protection, and thermal stop methods are built into industrial-grade units to keep parts from getting damaged during power spikes. Following the rules set by UL 60950-1, CE approval, and RoHS protects private customer data sent through ATM networks and ensures safe operation.

Key Criteria for Selecting the Right 24V Power Supply for NCR ATM

Matching Power Output to ATM Hardware Specifications

NCR SelfServ models need exact power estimates based on how the peripherals are set up. A basic SelfServ 6634 cash dispenser usually uses 350–450W when it's not in use, but it can reach 550W when it's printing receipts and dispensing cash at the same time. Our 600W, 24V Power unit (Part Number 009-0028273) has enough extra power to keep the voltage from dropping, which could damage transaction data. This extra space also lets you add more security cameras or biometric readers in the future without having to update the power source.

Efficiency and Reliability Metrics

If the Mean Time Between Failures is more than 100,000 hours at 25°C, it means that the quality of the part is very high. High-quality electrolytic capacitors that can work at 105°C can handle being exposed to heat for a long time in ATM cases. Efficiency rates above 85% lower internal heat buildup, which makes parts last longer and reduces the need for cooling. These measures have a direct effect on your total cost of ownership. Units that are stable mean fewer calls for emergency service and lower costs for keeping parts in stock.

Certification Standards and Safety Features

Check out more than just basic safety certifications to see how well the protection works in the real world. Time-lag fuses (5 x 20mm, Part Number 009-0023731) can handle short power surges without tripping, and screw-bayonet fuse holders (Part Number 009-0023431) let you change fuses quickly in the field without any special tools. The AC switch latch (Part Number 445-0710941) lets you separate the switch mechanically for safe repair. These facts are important when service techs are working quickly to fix ATMs and get them back online.

Physical Dimensions and Installation Compatibility

Space is limited by ATM enclosures, especially when they are installed through the wall. Before buying, make sure you know where the mounting brackets will go, where the cables will go, and how much space there is for air flow. Switch mode designs can fit more power into a smaller area than linear supplies because they use less room. They also produce strong output. Check that the types of connectors match the current wire harnesses. Putting together units that don't work with each other again wastes time and can lead to unsafe connections.

Comparing 24V Power Supply Options for NCR ATM Machines

Voltage Selection: Why 24V Outperforms Alternatives

There are clear benefits for NCR applications when 24V Power systems are compared to 12V or 48V systems. To deliver the same amount of power, twelve-volt supplies need thicker gauge wiring, which raises the cost of materials and causes resistive losses along cable runs. In data centers, 48-volt devices make things more efficient, but in banks, they add extra work and make people worry about safety. The 24V Power standard is the best of both worlds because it is widely supported by component makers and well-known by field technicians around the world.

Industrial-Grade Versus Consumer-Grade Units

Power sources for consumer gadgets put low cost of production ahead of long life. Industrial-grade units, like our 600W switch mode supply, are made with high-quality parts that are designed to work continuously. Capacitors made to military standards, double-sided PCBs, and conformal coatings all help protect against wetness and toxic atmospheres. Industrial units have higher starting costs (30–40%), but they last three to five times longer, which lowers lifetime costs and limits the number of problems that happen during busy times.

Evaluating Trusted Manufacturers

With a wide range of safety standards and global delivery networks, Mean Well is the leader in the industrial power supply market. Phihong focuses on applications for medical and financial equipment and can make changes to fit different environments. Murata brings Japanese quality standards to small sizes that are good for installations with limited space. When buying new parts, make sure you only buy genuine parts from authorised dealers. If you don't, you could end up with fake units that haven't been tested for safety and may void your equipment's warranty.

Backup Power Considerations

Uninterruptible power systems keep ATMs running during short power outages, but knowing how discharges work is necessary to choose the right backup options. When the power goes out or the generator takes a while to start up, battery pack systems with sealed lead-acid or lithium-ion chemistry can provide temporary power. In areas with stable grid infrastructure, however, standard 24V Power supplies with a wide input voltage tolerance frequently work fine, removing the need for battery removal and upkeep.

Practical Applications and Case Studies: 24V Power Supply in NCR ATM Machines

Powering Core ATM Subsystems

Through dedicated circuits, the 24V Power rail sends power to many different subsystems. Card readers use between 15 and 20W when magnetic stripe or chip identification is going on. Thermal ticket printers use 40W when they're writing and only 5W when they're not. When picking up notes and moving them around, currency dispensers use 200 to 250W. Plus, bill validators and coin hoppers use an extra 50–80W of power. Anti-skimming devices and security cameras need a stable 24V Power input to keep watching all the time without being interrupted by fluctuations in the motors of dispensers.

Real-World Performance Enhancement

A regional bank with 150 NCR SelfServ 6638 units spread across Latin America kept having problems that were eventually traced back to 24V Power sources that were not getting enough energy in the middle of the afternoon. Over six months, unexpected downtime dropped by 68% after we upgraded to our 600W switch mode units with better thermal control. The more stable power also meant that fewer transaction logs were damaged, which cut down on the time needed for back-office reconciliation. Customer satisfaction went up directly as reliability went up, and the number of emergency technician calls dropped from three a week to less than one a month across the whole network.

Troubleshooting Common Power Issues

Sometimes, ATMs restart themselves because the power drops when the dispenser motor starts up. Using a digital voltmeter to measure the output voltage while the load is on shows if the supply stays within the ±1% control range. If the ripple voltage is more than 200mV peak-to-peak, it means that the filter capacitors are failing and need to be replaced. Unusual heat buildup around ventilation holes could mean that airflow is being slowed down or the fan isn't working. These ways of diagnosing help maintenance teams tell the difference between problems with the 24V Power supply and problems with components further down the line, which speeds up the repair process.

Verification Methods for Quality Assurance

Before a large-scale rollout, procurement teams should have independent tests done to make sure that the reported specs are correct. Load tests at 75% and 100% of its stated capacity shows that the supply can keep the voltage stable and work well in real life. Thermal imaging finds hotspots that show parts that aren't up to par. Safety isolation is confirmed by testing the insulation resistance between the AC input and DC output. These steps of proof keep you safe from getting shoddy units that look good but break down when they're put through their paces.

Where and How to Buy the Best 24V Power Supply for NCR ATM Machines

Sourcing from Authorized Channels

There are big risks in the global ATM market from fake 24V Power sources. Unauthorised units might not have gone through the right safety tests, use low-quality capacitors that break down quickly, or not have any protection circuits at all. Buying from well-known companies or their authorised dealers guarantees that the product is real, comes with a valid warranty, and gives you access to technical information. Hong Kong RONG MEI TECHNOLOGY CO., LIMITED is certified under ISO9001-2008 and keeps a stock of original parts, such as all the sub-modules for the 600W power supply line. They offer full supply chain support, from whole machines to single fuses.

Balancing Cost Against Quality

In the case of important financial equipment, the cheapest option is rarely the best value. Figure out the total cost of ownership, which should include the expected service life, the cost of repairs, and the cost of the guarantee. When units are priced 20% below the market average, the quality of the parts is often lower, which means they last 50% less long and break down more often. Our brand-new and refurbished units go through the same quality control tests in separate QC labs. This way, price-conscious markets can get options that don't skimp on reliability.

Lead Times and Technical Support

Standard buying times are 15 to 20 working days from when the order is confirmed to when it is delivered, which includes time for quality checks and making sure all the paperwork is ready. Urgent replacement needs can be met by expedited shipping via air freight, but the costs go up a lot. Check how responsive a supplier is by looking at how long it takes them to answer your questions. For example, our team promises to answer quotes and technical questions within 24 hours. Support in multiple languages and the ability to fix video problems remotely are very helpful when installing equipment in different parts of the world where people have different levels of technical knowledge.

Customization for Specific Requirements

Most NCR SelfServ uses can be met by standard catalogue items, but some setups may need to be changed. Field workers can make up for long cable runs between the 24V Power source and the load by adjusting the output voltage. Conformal coating adds another layer of safety to coastal sites that are exposed to salt air. Custom connector configurations make it easier to connect to proprietary wiring harnesses. We have been making things for more than 20 years and do a lot of research and development. We can design and make solutions that are exactly what you want, including customising the hardware and setting the language.

Conclusion

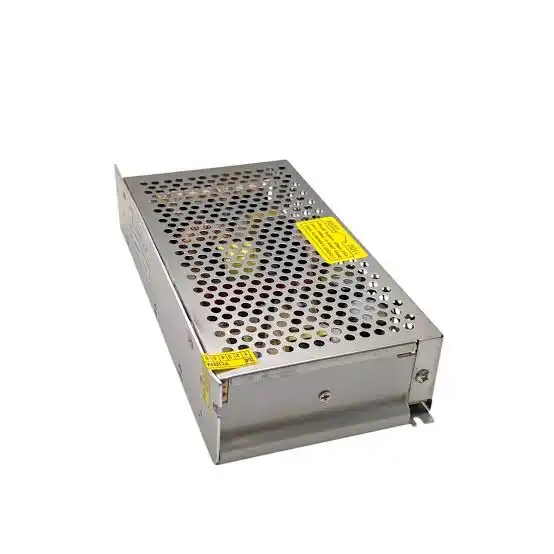

To choose the right 24V Power source for NCR ATMs, you need to carefully look at the technical specs, the reputation of the maker, and the total cost of ownership. The Part Number 009-0028273 600W switch mode unit is a great example of a good mix between strong performance and usefulness. It has a worldwide input voltage, active PFC, and many safety features. Professionals in charge of buying things should focus on getting industrial-grade parts from trusted sources and think about how to customise them for difficult deployment settings. With the right choices and partnerships with dependable suppliers, you can make sure that your ATM network has the most uptime, the lowest maintenance costs, and the same level of customer service at all locations.

FAQ

Can I replace a 12V power supply with a 24V unit in NCR ATMs?

Direct substitution is not a good idea and could be dangerous. NCR ATMs list the voltage that each part needs, and putting 24V Power on devices that only need 12V damages them right away. To change the voltage, the whole power distribution system has to be looked at, and it may be necessary to replace a number of lower parts.

How do I verify compatibility with my specific NCR model?

The technical repair manual for your NCR SelfServ model has a list of part numbers and approved power source specs. Compare the output voltage, the current capacity, and the types of connectors. If you give us your ATM model number and serial number, our expert team will check to see if it is compatible.

What warranty coverage should I expect?

Our units come with a 30-day warranty and online support for fixing problems and getting a replacement. For big orders, you can choose to get an extended warranty. Most warranties cover problems with the way the product was made, but not problems caused by bad installation, environmental conditions that aren't covered by the warranty, or changes that were not authorised.

Are refurbished units reliable for production use?

Professionally refurbished supplies are tested in the same way that new ones are, and worn parts like cooling fans and electrolytic capacitors are replaced. Options that have been refurbished can be used in low-cost operations or setups that aren't very important while still meeting safety standards. We make it clear for each unit how much it has been refurbished and what parts have been replaced in the past.
