How F53 Main Unit Connects Cassettes with ATM Top Unit

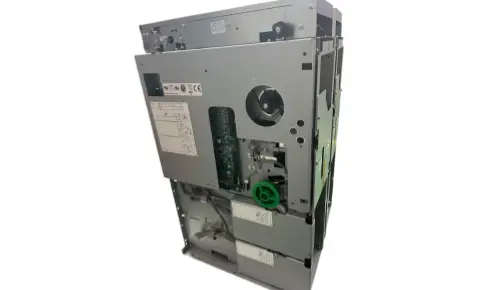

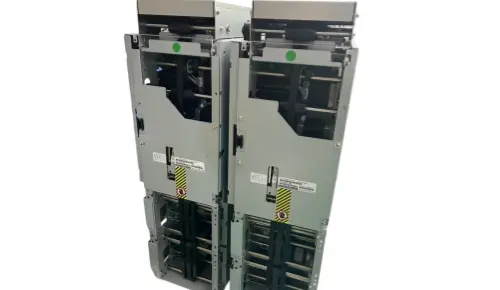

The F53 main unit (configuration KD03234-C011) acts as the central hub connecting cash cassettes to the ATM top unit in Fujitsu F53 systems. It manages power distribution, mainboard logic, and the cash dispenser mechanism interface — all within a single integrated assembly. When a cassette is loaded, the main unit authenticates its sensor signals, routes denomination data to the top unit's software layer, and confirms mechanical seating through alignment guides. This coordinated process allows the ATM to authorize dispensing operations accurately and securely, making the main unit the component that determines whether the entire machine functions or fails.

Understanding the Role of the F53 Main Unit in ATM Operations

The main unit of the Fujitsu F53 platform handles three functions that work together: handling cash, communicating with peripherals, and verifying transactions. Cassettes can't report fill levels and the top unit can't approve draws without the KD03234-C011 assembly being properly seated and set up.

Cash Handling and Cassette Management

The main unit manages the electrical signals that lock the cassette, count the bills, and direct the reject bin. The KD03234-C011 board has a specific interface channel for each type of cassette: standard currency, reverse, or reject. These channels send sensor data. This information is read by the main unit, which then sends real-time orders to the dispenser device.

Communication with the ATM Top Unit

The top unit is in charge of software that the customer sees, like screen prompts, card reading, and keeping track of transactions. Before allowing a withdrawal, the main unit has to make sure that physical cash delivery is possible. A stated serial protocol is used for this connection. If there is an interruption, like a loose connector or a software mismatch, the approval chain is broken, and a transaction mistake is made.

Modularity and Configuration Adaptability

The modular form of the Fujitsu F53 is one reason why it has been used after Fujitsu left the ATM business in 2014. The main unit can be paired with different cassette configurations based on the use. For example, four-cassette stacks may be used in high-volume branch setups, while two are usually used in retail kiosks. This range can be used with the KD03234-C011 configuration; no changes need to be made to the software on the top unit.

Common Challenges in Connecting F53 Main Unit with ATM Cassettes

The fitting can go wrong even when the buying team finds the right part number. I've seen shops that do repairs lose weeks of work because of problems that could have been avoided with the right pre-installation checklist.

Mechanical Misalignment and Guide Rail Wear

After years of being loaded and unloaded many times, cassette guide rails wear out. It is possible for the rail specs to no longer match when a new main unit is put into an old frame. This makes the cassette sit at a small angle, which the sensor array sees as a cassette that is empty or not there. This leads to a persistent "cassette not detected" error that seems like a firmware issue but is actually a mechanical one.

Interface Mismatches and Outdated Firmware

The KD03234-C011 assembly talks to cassettes using a protocol that is specific to each version. If the top unit has older firmware, it might not be able to pick up signals from a main unit board revision that is newer. This difference causes transactions to run out and can lead to security lockouts. Before changing any parts, you must make sure that the software works with the new ones. This is the first step.

Impact on Transaction Security and Reliability

Not only does a broken cassette-to-main-unit connection stop dispensing, it also leaves gaps in the audit trail. The cassette may have already added a bill to its counter, but the top unit records an unfinished transaction. Any financial institution that makes a mistake like this in reconciliation is breaking the rules, and any refurbisher whose client finds the mistake after the work has been done is risking their image.

Technical Principles Behind the Connection of F53 Main Unit with Cassettes and ATM Top Unit

When purchasing teams look at suppliers, they can ask better questions if they understand the engineering behind the KD03234-C011 assembly.

Mechanical Interface Tolerances

The docking port for the cassette on the main unit is made to very exact tolerances. For the electrical contacts to close properly, the physical alignment pins and closing tabs must both engage at the same time. Genuine or high-quality suitable units have tolerances that are kept to a few thousandths of a millimeter. It is a liability for a supplier to not be able to confirm that their units are made to these tolerances.

Signal Protocol and Data Synchronization

The cassette and main unit send and receive handshake signs over a serial data bus once they are physically settled. The firmware in the main unit checks the state of each cassette slot at set times to see the currency assignment, bill count, and sensor status. This is how the top unit talks to the main unit through a higher-level protocol before letting any dispense command go through. Because of the way this complex contact is set up, the chain can break at any point.

Embedded Security Architecture

The F53 core unit has security software built in that checks cassette identifying codes. This stops unauthorized cassette swapping and protects against situations where someone is skimming or tampering nearby. Any suitable replacement unit needs to keep this security handshake feature, or the top unit won't be able to approve transactions. This is a very important thing for banks to know when they are looking at third-party refurbished machines.

Step-by-Step Process: How F53 Main Unit Connects Cassettes to ATM Top Unit

A structured installation method is helpful for refurbishment workers. Most errors that happen after installation happen because people skip steps here.

Step 1 — Pre-Connection Checks

Make sure the frame guide rails are clean and free of wear and dirt before putting the main unit in place. Make sure that the firmware version on the top unit works with the revision of the KD03234-C011 board that you are installing. Check the default values on the new main unit against the setup files for the different cassette denominations.

Step 2 — Physical Alignment and Mechanical Seating

Along the guide rails, lower the main unit into the body until all of the alignment pins catch. Press down on the locking tabs evenly until you hear them click into place. Do not push or pull on the unit; uneven pressure can bend the contact pins and cause sensor problems that are hard to figure out later.

Step 3 — Software Synchronization and Verification Testing

Turn on the ATM and let the top unit finish its boot sequence. Run the cassette detection test from the diagnostic menu. Each cassette that is placed should tell you what number it is and how full it is. Before putting the machine back into service, run a test dispense loop with a bill of a low value. To keep track of your quality, write down the results.

Enhancing ATM Reliability Through Optimized F53 Main Unit Integration

Long-term dependability depends on how well you maintain it as much as how well you installed it in the first place.

Routine Maintenance Protocols

In order to keep the tape docking contacts clean, you should use an approved electrical contact cleaner every six months. Every year, check the alignment guide pins for wear. Instead of waiting for cassette recognition mistakes to show up in the field, replace worn guide rails before they break. These steps save time and keep service calls from going on for days.

Connection Integrity Checks

When it's time for repair, run the full diagnostic cycle on the main unit and write down what it finds. Trending small rises in sensor reaction times can show that contact wear is starting to happen before it breaks. This planned approach cuts down on unplanned downtime, which is what banks with refurbished fleets complain about the most.

Real-World Deployment Results

Latin American and Southeast Asian refurbishers say that machines with compatible KD03234-C011 main units can go five to eight years between service intervals before they need a new main unit. This is provided that the machines are properly installed and receive regular maintenance. This directly supports the business case for buying used machines instead of new ones in places where Fujitsu F53 units are still widely used.

Conclusion

The F53 main unit is the part of Fujitsu F53 ATMs that makes it possible to give out cash. It uses complex mechanics, multiple communication methods, and built-in security algorithms to connect cassettes to the main machine. When procurement teams know these technology needs, they can make better decisions about where to buy things and cut down on problems that happen after installation. RM has the KD03234-C011 configuration in stock, and it comes with expert help and has been tested to work with other devices. When refurbishers want to make Fujitsu F53 fleets last longer, the best way to protect their reputation is to buy a tested, well-documented main unit from a supplier with a lot of experience.

FAQ

Is the KD03234-C011 main unit compatible with all Fujitsu F53 cassette configurations?

Yes. The KD03234-C011 configuration works with common Fujitsu F53 cassette types for cash, retract, and reject. To avoid protocol mismatches, we suggest that you check the software version of your top unit before installation.

Can a refurbished main unit perform at the same level as a brand-new one?

In most operational settings, a used unit that has been fully tested and brought back to factory standards works just as well as a new one.

What happens if the main unit firmware does not match the top unit?

If there is a firmware mismatch, the top unit won't be able to finish its handshake with the main unit, which will stop transaction authorization. With every order, RM's technical team gives advice on how to make sure the firmware works with the hardware.

How long does delivery take for the F53 main unit?

The usual wait time is fifteen to twenty business days. There are units in stock. You can ship by sea, land, or air, based on how quickly you need it and how much you want to spend.

Does RM provide compatibility documentation for bank acceptance committees?

Yes, RM can help your client's internal review process by giving them compatibility statements and technical documentation. For more information, email Tony@atm-part.com.

Get Your F53 Main Unit Quote from RM Today

For more than 20 years, RM has sold ATM parts to companies that fix up old machines and sell banking equipment. Our F53 main unit (KD03234-C011) is in stock and can be bought as-is or refurbished. It comes with a 30-day warranty and online support. Because RM is a reliable main unit provider with an ISO9001-2008 certification and a 3,000-square-meter production center, you can get all of the parts and pieces you need from them in one place. To get a price, Contact Us by email Tony@atm-part.com.
