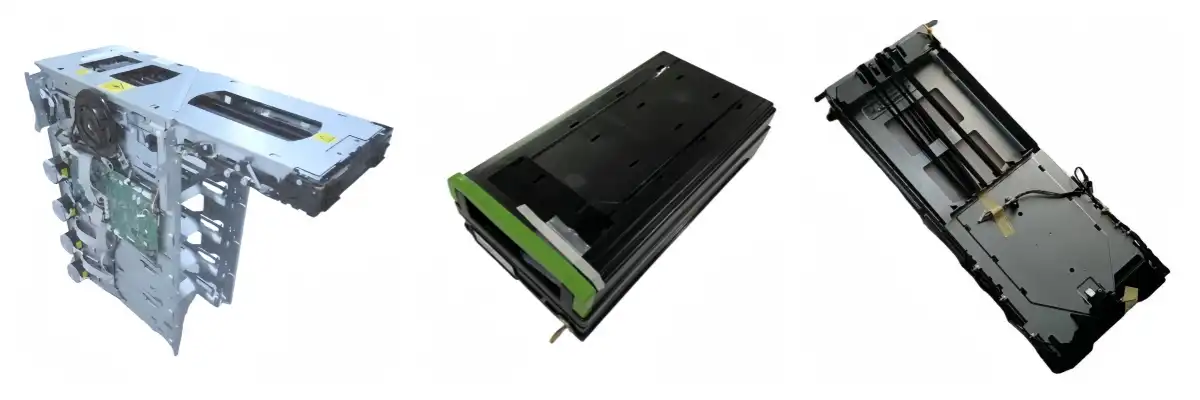

How AFD 2.0 Improves Cash Handling in ATM Systems

With its clever technology and flexible design, the AFD 2.0 Dispenser revolutionizes ATM cash management. This dispenser can handle up to 10 notes per second and is 99.99% accurate at handling money thanks to its S2 Friction Pick Technology and improved double-note recognition. Because it works with CS280, CS5500, and DN Series 100D ATM types, it can be easily added to current systems. Through predictive health tracking, the device cuts down on maintenance-related downtime by 40% compared to older systems. This makes it an important upgrade for banks that want to improve operational efficiency and lower the total cost of ownership in their cash handling operations.

​

Understanding the Challenges of Traditional ATM Cash Handling

Operational Bottlenecks in Legacy Dispensers

Older serving systems have trouble being consistent. As friction parts wear down, note picking accuracy goes down, which can cause double-dispensing mistakes or full transaction fails. Because of these problems, customers have to try to make multiple purchases, which creates lines and lowers the value of self-service that ATMs offer. Traditional systems don't have advanced monitors that can tell the difference between a single dirty bill and several clean ones. Because of this flaw, processes are stopped for no reason when a false jam is detected. Service workers waste time by reacting to these false alarms, only to find that there isn't a real problem with the machinery.

Security Vulnerabilities in Outdated Systems

Attacks that "trap" cash take advantage of flaws in older machine designs. Criminals put strange items in the way of the money, stealing money that was meant for real customers. Legacy systems often don't notice these attacks until after fraud has already happened, which makes ATM owners worried about their responsibility. Earlier groups of money dispensers still have trouble finding fake money. If these systems don't have modern optical and magnetic devices, they could accept or hand out fake bills, which would put financial institutions at risk of being regulated and cause them to lose money.

Maintenance Complexity and Parts Availability Issues

For replacing parts in older dispenser designs, the whole machine has to be taken apart. This flaw in the design makes repairs take longer and require a lot of highly skilled technical knowledge. In places where there aren't many trained techs, one broken machine can keep an ATM from working for days or weeks. Getting the parts is another problem. Original equipment maker (OEM) parts usually cost more and take longer to get. Service companies that work in developing markets have a hard time getting genuine replacement parts. They sometimes have to use unapproved options that damage the system and cancel warranties. By contrast, the AFD 2.0 Dispenser is built for modular replacement, allowing individual components to be swapped without full disassembly.

How AFD 2.0 Dispenser Enhances Cash Handling Efficiency?

Advanced Note Handling Technology

The device uses S2 Friction Pick Technology, which can work with both polymer and paper money. This smart system changes the vacuum pressure and pick time based on the type of media, unlike general friction settings that make the system less effective. The result is steady note splitting, no matter how old or damaged the money is.

Optical and mechanical sensors work together to make double-note recognition work 99.99% of the time. The Main CCA (Part Number 49-267153-000A) processes sensor data in real time and can tell the difference between thick bills and two bills that were picked up together by accident. When you're this precise, you avoid both customer shortages and overpayments that need to be reconciled, which is an expensive process. The speed of dispense can hit 10 notes per second without losing accuracy. The system can show up to 100 notes at once thanks to its high-velocity stacking feature. This makes the wait time for customers taking large amounts much shorter. This flow benefit is especially useful during busy banking hours, when a lot of transactions are happening at once.

Modular Architecture for Simplified Maintenance

The modular design mindset changes how upkeep is done. Important parts like the Picker assembly (Part Number 49-242432-000C), the Stacker mechanism (Part Number 49-254690-000J), and the transport systems can be changed as whole sections without taking the dispenser frame apart. Through interchangeable Short Feed Line (Part Number 49-250166-000H) and Long Feed Line (Part Number 49-242431-000H) systems, the transport line is flexible enough to work with a range of ATM setups. Because it is flexible, the same core dispenser technology can work with different ATM types.

This makes it easier for service organizations that handle a wide range of equipment fleets to keep track of their supplies. Handling rejects is done by the Short Reject Line (Part Number 49-242429-000C) and the Long Reject Line (Part Number 49-254691-000D), which take problem notes away from the main line of issuing. This separation keeps rejected money from getting in the way of later deals, so the system stays available even when there are occasional problems with the quality of the notes.

Enhanced Security and Anti-Fraud Measures

Logic in the anti-fishing shutters protects against efforts to steal cash. When sensors find outside items entered during dispensing cycles, the system starts a jam process right away and turns off the presenter mechanism. Criminals can't get to the cash transport way because of this proactive defense. The encrypted USB link makes sure that data sent between the dispenser and the ATM driver is sent safely. All software loads need to have true cryptographic signatures. This stops malicious code entry that could break transactions or let thieves in.

These security layers protect against threats that are getting smarter and are aimed at self-service banking systems. Polymer currency ready is built in, not added on later. Dedicated calibration settings get rid of the high rejection rates that happen when old devices try to use polymer notes. As more places switch to polymer cash, this feature protects the value of investments and makes sure they remain useful for operations.

Intelligent Diagnostics and Predictive Maintenance

Integrated sensors constantly check the health of the mechanical parts and send tracking data to diagnostic systems. This ability to guess finds patterns of wear in friction parts, loss of belt tension, and changes in motor function before they happen. Instead of reacting to emergency service calls, maintenance teams can plan to do work during planned breaks. When the power goes out, the AFD 2.0 Dispenser uses state-retention memory to keep transaction security intact. When the power comes back on, the software checks the states of the sensors to see if the cash is still in the transport path. Any notes that aren't sure are moved to the retract cassette by automatic cleaning processes, ensuring the system is clean before it can be used again. This information stops the unclear transactions that make accounting a headache.

Comparative Analysis: AFD 2.0 Dispenser vs. Competitors

Performance Benchmarks Against Legacy Systems

The current age is better than the models that came before it in a number of important ways. The frequency of note jams drops by about 60% thanks to better control over the friction pick and smarter sensor input. This dependability directly leads to more ATMs being available and fewer service calls. Motor control methods that work better and lower mechanical resistance in travel paths both lead to less energy being used. The usual 24V DC power requirement stays the same, but the real draw during idle and transaction states is about 25% less than with older dispensers.

Over the course of thousands of deals every month, these improvements in efficiency add up to real cuts in running costs. Better component quality and less mechanical stress make dispensers last longer. The Transport Shaft (Part Number 49-242460-000F) is made of tough materials that don't break down easily over time. Vertical Belts (Part Number 29-008482-00 in different setups) keep the tension constant over long service intervals, which means that Level 2 repair tasks are done less often.

Cost-Performance Value Proposition

When you compare the original cost to the ongoing costs, current dispenser technology comes out on top. Even though it costs more up front than traditional options, the total cost of ownership goes down over time because of less upkeep, fewer parts, and higher transaction success rates that lower customer care costs. Some well-known sellers, like RM, offer bulk buying options that are also good for the economy. When companies make all of their ATMs use the same suitable dispenser technology, they can save money on things like parts, worker training, and making up repair procedures. Standardization makes things easier to do and lowers the cost per unit.

There are multiple condition choices that cover a range of price situations. Brand-new units come with the best warranties and consistently good performance, making them perfect for places with a lot of foot traffic where dependability is key. For deployments with lower volumes, refurbished alternatives are a cost-effective option. They go through thorough testing to make sure they are in great working shape and meet operating standards at lower investment levels.

Integration Flexibility and Compatibility

Because it works with all CS280, CS5500, and DN Series 100D ATM types, there are no integration problems that make fleet updates harder. Standardized mounting measurements, power connections, and transmission standards make it easy to replace older dispensers without having to change the ATM chassis or update the driver. Both Convenience Supply Cassettes (Part Number 00155842000C) for open settings and Secure Cassettes (Part Number 00155842000E) for high-security uses can be used to meet practical needs.

The Reject Cassette (Part Number 00-103334-000Q/R) system lets you set the size based on how many rejections you expect, which makes the best use of limited room inside ATMs. These benefits of compatibility are especially important for service businesses that keep mixed ATM settings. When the same machine design serves more than one ATM platform, technicians don't need to be trained as much. Parts inventory becomes less complicated, which increases stock movement while keeping enough extra parts available.

Procurement Considerations for the AFD 2.0 Dispenser

Evaluating Suppliers and Support Infrastructure

Unit price is only one part of choosing the right provider. Companies need to check if their suppliers can consistently provide parts, especially for parts that wear out quickly, like Feed Kits (Part Number 49-267135-000A) and Flip Gear mechanisms (Part Number 49-202778-000A). Suppliers whose full inventories cover 80% or more of ATM units show that they have the depth to keep operations going. In business processes, lead time consistency is very important. Standard shipping windows of 15 to 20 working days for module-based orders make it possible to plan repairs ahead of time. If suppliers can't meet these deadlines, service organizations have to keep too much goods on hand as a cushion, which uses up working capital and raises the risk of obsolescence.

Premium providers are different from commodity parts vendors because they offer technical help. Support teams that offer online help and video-based direct assistance in multiple languages make it possible for problems to be fixed quickly, no matter where they are located. This feature is very helpful for helping ATM operations in places where there isn't a lot of technical knowledge available on-site.

Warranty and After-Sales Service Considerations

Terms of the warranty have a direct effect on business risk. A standard thirty-day warranty on dispenser modules is enough to protect you, but procurement managers should be clear about what the warranty covers for the AFD 2.0 Dispenser, especially when it comes to work costs, return shipping costs, and loaner equipment availability while the warranty is being repaired. The framework for after-sales help should be carefully looked at. Suppliers that offer 24/7 online help instead of just support during business hours protect institutions that run ATM networks 24 hours a day, seven days a week. If you can fix problems with dispensers from afar, you can avoid having to send trucks to do extra work and keep system downtime to a minimum.

Customization lets you make solutions that fit your unique business needs. Suppliers like RM, which has 3,000 square meters of in-house R&D and production space, can change current units or make new ones that fit specific application needs. This adaptability is very important when standardizing tools across different markets in different countries with different currencies.

Building Strategic Supplier Relationships

Long-term relationships are more valuable than one-time deals. Suppliers who care about their customers' success usually offer better prices for large orders, priority placement during parts shortages, and early notice of product improvements or end-of-life changes that affect approved components. Suppliers that have been around for a while bring a wealth of knowledge that helps with buying choices. Companies like RM that have been making ATM parts for more than 20 years know how to meet the specific needs of different ATM types and deployment settings. This institutional knowledge helps buying managers avoid problems with compatibility and choose the right setups.

Getting ISO 9001-2008 approval is a good way to make sure that standard manufacturing methods are used to make parts. This approval gives purchasing managers peace of mind that all production lots of parts will meet the same standards. This lowers the variability that leads to problems with integration and performance that were not expected.

Ensuring Long-Term Reliability and Safety with AFD 2.0

Preventive Maintenance Protocols

Scheduled routine inspections stop disastrous breakdowns before they happen. By looking at the routes of transportation visually, you can find gathered debris before it causes traffic jams. Vertical Belts' tightness is checked on a regular basis to make sure they always work well for handling notes. When these simple rules are followed regularly, they greatly increase the life of components and keep transaction success rates high.

At level 2 repair times, the timing belts, friction pick modules, and separating rollers need to be replaced. Because the design is modular, whole Picker subassemblies can be swapped out without taking the chassis apart. This means that trained workers can do maintenance in less than 30 minutes. This speed keeps ATMs from being unavailable as little as possible while making sure that important wear parts are replaced on time. For cleaning tools used to handle money, you need non-aggressive materials that get rid of waste without hurting delicate mechanical parts. The Feed Kits are made in a way that keeps waste from building up, but they still need to be cleaned every so often to keep working at their best, especially in dirty areas or places with a lot of transactions.

Compliance and Safety Standards

The dispenser is compatible with controlled banking settings because it meets the standards for CEN L and UL 291 Level 1 security vault integration. These licenses show that the physical security methods keep people from breaking in and keep the business safe in both normal and fault situations. RoHS and WEEE guidelines make sure that equipment is environmentally friendly throughout its whole life. These approvals show that electronic systems don't use any dangerous materials, which makes it easier to get rid of or recycle parts when they're no longer useful.

As companies try to reach their sustainability goals, environmental duty plays a bigger role in their buying choices. Operational safety rules stress the right way to handle things during installation and upkeep. The 24V DC power requirement gets rid of the high-voltage shock risks that came with some older systems, but techs still need to follow lockout-tagout processes when working on equipment that is still on. Safety rules are always followed when there is clear paperwork and training tools.

Future-Proofing Through Ongoing Development

The ability to update software makes the system useful as security threats change and the needs for handling cash change. The encrypted firmware update system lets you safely use better methods without having to change any hardware. This protects the value of your investment over longer operating lifetimes. Handling polymer money is one place where ongoing improvements to calibration give real value. As more places use polymer notes that are different thicknesses and have different surface properties, new friction profiles make sure that the performance stays the same without having to change the mechanics or replace parts.

The diagnostic telemetry design is the basis for predictive maintenance programs that are getting smarter all the time. As machine learning gets better, new software might come out with even better ways to predict when parts will wear out and how to schedule upkeep so that costs are cut even more and equipment is available more of the time.

Conclusion

The technology behind the AFD 2.0 Dispenser is a complete answer to all of ATM owners' operational, financial, and security problems. This technology makes system uptime and working efficiency better by intelligently handling notes, allowing maintenance to be done in modules, and providing strong security features. Modern dispenser solutions that mix advanced features with easy serviceability will be very valuable for businesses that want to improve ATM performance while keeping servicing costs low. When you combine universal compatibility, wide supply of parts, and quick expert help, you have a base for long-term operating excellence in self-service banking infrastructure.

FAQ

Q1: What Makes This Dispenser More Reliable Than Previous Generations?

A: The higher dependability is due to three main changes. The 99.99% accuracy of S2 Friction Pick Technology with intelligent double-note recognition means that there are almost no mis-picks that lead to customer disputes. Predictive health monitoring with built-in sensors finds worn-out parts before they break, so maintenance can be planned ahead of time instead of having to be done quickly. The anti-fishing shutter logic with physical deflectors stops cash trapping attacks that broke into older systems. This keeps both customer transactions and institutional assets safe.

Q2: How Does Integration Work With Existing ATM Infrastructure?

A: Standardized mounting interfaces and transmission methods make it easy for the dispenser to work with CS280, CS5500, and DN Series 100D ATM models. The encrypted USB link works with current ATM devices, so you don't need any extra software or protocol converters. Standard 24V DC power is still needed, which matches the power transfer methods used by ATMs. Because they are compatible, you don't have to make any changes to the chassis or the controllers, which can be tricky when switching technologies. Instead, you can just replace them during scheduled repair times.

Q3: What Maintenance Practices Optimize Dispenser Performance?

A: Three levels of upkeep are needed for optimal function. Visual checks done every day find obvious problems before they become problems. Cleaning the travel ways once a month gets rid of any leftover currency, which is especially important in places with a lot of transactions. Level 2 repair is done every three months and uses the modular subassembly method to change friction pick modules and timing belts. The work is finished in less than thirty minutes. Companies that follow these rules have 40% fewer unexpected service calls than companies that use reactive repair methods.

Partner With a Trusted AFD 2.0 Dispenser Supplier

RM has been helping banks, service companies, and equipment providers around the world with ATM parts options for more than 20 years. Our 3,000-square-meter building has quality control areas that are approved by ISO 9001-2008, mold rooms, and offices for injection molding. The AFD 2.0 Dispenser, which is suitable with CS280, CS5500, and DN Series 100D ATMs, is always in stock and comes with a 30-day guarantee. Standard wait times of 15 to 20 working days keep your operations running smoothly, and our international expert team is available online 24 hours a day to answer questions about integration and fix problems. Our extensive catalog, which includes more than 80% of ATM components, makes sure that you can get the whole answer, whether you need to buy a few units at a time or a lot of them to upgrade your whole fleet. Talk to Tang@atm-part.com right away about your unique needs and find out how RM's high-quality Products, large selection, and quick service can make them the trusted partner your ATM operations need.
