Hyosung HCDU Cash Dispenser Main Body Assembly

Hyosung HCDU Cash Dispenser Main Body Assembly

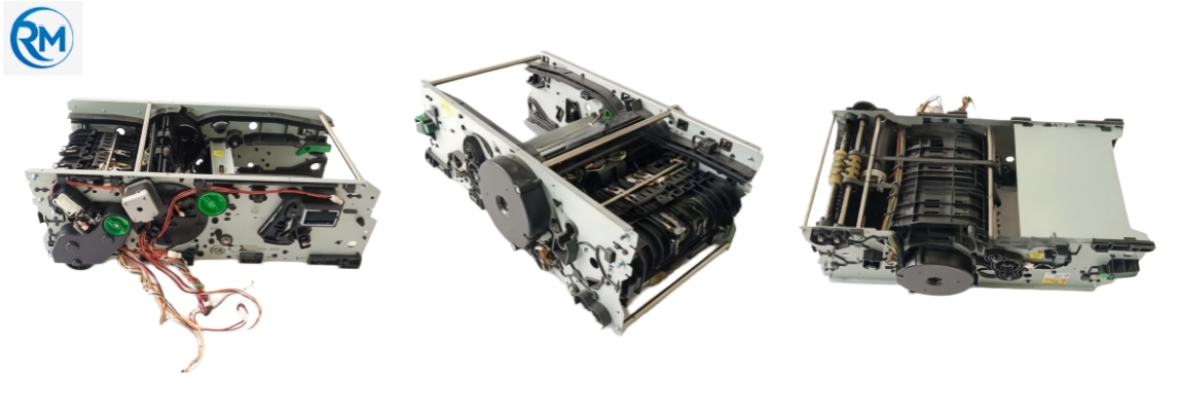

The Hyosung HCDU Cash Dispenser Main Body Assembly (Part Number: 7310000709) is an enterprise-grade modular solution engineered by RM for Hyosung MX Series ATMs. This main body assembly integrates precision mechanics and tested reliability across over 20 years of RM's manufacturing expertise. Covering a 3,000-square-meter ISO 9001:2008-certified facility, RM produces this assembly with strict quality protocols, ensuring over 99.9% operational consistency in high-volume transaction environments. The unit features a complete modular configuration including CDU10 base modules, cash dispensing presenter, SF34 V module, and cassette note separator—each component calibrated for durability exceeding 200,000 transaction cycles. Available in both brand new and refurbished conditions, every assembly undergoes rigorous functional testing before shipment.

What Is the Hyosung HCDU Cash Dispenser Main Body Assembly?

The product serves as the core structural and functional framework for MX Series ATMs.

It houses all critical cash handling components. The base module provides mechanical stability. The presenter delivers notes securely to customers. The SF34 V module ensures precise bill separation.

This assembly solves common operational challenges. Frequent note jams reduce uptime. Inconsistent dispensing affects customer satisfaction. High maintenance costs burden operators.

By integrating modular components into a single tested unit, you gain immediate deployment capability. Each module works in harmony. Installation time drops significantly. Your technicians face fewer compatibility issues.

Technical Specifications

Why Choose RM's Hyosung HCDU Main Body Assembly?

1. Proven Manufacturing Excellence

RM operates with over 20 years of ATM component production experience. Our 3,000-square-meter facility includes dedicated mold rooms, injection molding departments, and quality control labs.

Every assembly passes multi-stage testing. Sensor calibration meets micron-level precision. Mechanical alignment ensures smooth note path flow.

2. Comprehensive Module Integration

You receive a complete, plug-and-play solution. The base module, presenter, separator, and SF34 V module arrive pre-assembled and tested.

This integration eliminates guesswork. No need to source individual parts from multiple vendors. Your deployment timeline shortens by days.

3. ISO 9001:2008 Certified Quality

Our ERP-driven quality management system tracks every component from raw material to final inspection.

Double Document Detection systems achieve 99.9% accuracy. Shutter mechanisms endure over 100,000 cycles without fatigue. Cassette locking integrity meets international security standards.

4. Flexible Condition Options

Choose between brand new or professionally refurbished assemblies. Refurbished units undergo the same rigorous testing as new Products.

You control your budget without sacrificing reliability. Both options include a 30-day warranty and online technical support.

5. Fast Response and Global Logistics

Our team responds to inquiries within 24 hours. We support sea freight, air freight, and international express delivery.

Standard lead times range from 15 to 20 working days. Urgent orders receive priority handling. Your operations stay on schedule.

Application Scenarios

High-Traffic Retail Locations: In 24-hour convenience stores processing over 100 daily transactions, the Hyosung HCDU Cash Dispenser Main Body Assembly minimizes downtime and reduces replenishment frequency.

Financial Institution Branches: Banks upgrading MX Series ATMs benefit from modular replacement. You swap the entire assembly instead of troubleshooting individual components.

Independent ATM Deployers: ISOs operating multiple machines gain inventory efficiency. Stock one assembly type across your MX fleet. Maintenance becomes standardized.

Quality Control Standards

RM's quality control process includes:

• Note Pick Rate Testing: Achieving 99.9% success across new, used, and polymer currencies
• Feed Path Alignment Inspection: Detecting deviations within microns to prevent jams
• Sensor Accuracy Calibration: Ensuring Double Document Detection meets international standards
• Durability Cycling: Running shutter and roller mechanisms through 100,000+ test cycles

Each assembly receives a unique QC report. Traceability links every component to production batch records.

Maintenance and Support

Recommended Maintenance Cycle: Deep clean optical sensors every 10,000 notes. Replace friction rollers every 150,000 to 200,000 notes depending on bill quality.

Online Support: Our technical team provides remote video assistance for troubleshooting. You receive installation guidance and diagnostic support throughout the warranty period.

Multilingual Documentation: Technical manuals and service guides are available in multiple languages to support global deployments.

FAQ

Q1: Is the HCDU Main Body Assembly compatible with older MX Series models?

A1: Yes, the assembly is designed for broad compatibility across MX Series ATMs. Specific bracket adjustments may be required for older units. Contact our technical team for model-specific guidance.

Q2: What is the difference between new and refurbished assemblies?

A2: Refurbished assemblies are professionally restored with replacement of worn components. Both options pass identical quality tests and include the same 30-day warranty.

Q3: How quickly can you ship the assembly?

A3: Standard lead time is 15–20 working days. In-stock units ship within 3–5 business days. Express options are available for urgent requirements.

Q4: What are common error codes related to this assembly?

A4: Common codes include communication errors and note path jams. Most issues resolve through sensor cleaning or roller adjustment. Our support team provides step-by-step troubleshooting.

Q5: Can you provide customization for specific operational needs?

A5: Yes, RM offers OEM and ODM services. We can modify hardware configurations, adjust software interfaces, and develop custom solutions based on your requirements.
