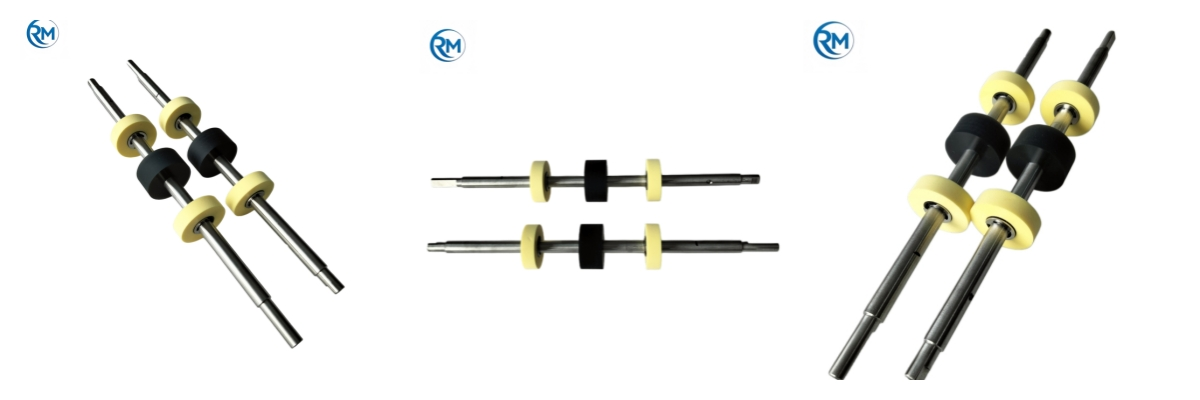

Hyosung CDU1100 Sponge Roller Shaft Assembly S4520000318 ATM Spare Parts

The Hyosung CDU1100 Sponge Roller Shaft is a key cash-feed transmission part designed for Hyosung ATM CDU dispensing and banknote separation systems.Backed by over 20 years of professional manufacturing experience, this brand-new replacement part provides steady banknote picking and long-lasting anti-slip feeding performance. It fits perfectly with Hyosung CDU1100, CDU2000, 2700, 2800 and 5600 series ATM dispensers for hassle-free installation.The Hyosung CDU series is widely recognized for stable dispensing and low operational failure rates. This sponge roller shaft serves as a dependable solution for routine ATM maintenance and part replacement

Key Features

The Hyosung CDU1100 Sponge Roller Shaft Assembly incorporates advanced features tailored for high-volume bank ATM cash dispenser operations. The integrated sponge roller delivers stable friction performance for banknote feeding, minimizing bill jams, multi-feed and misfeed issues during cash dispensing and recycling transactions.

High wear-resistant sponge material maintains consistent clamping force over long-term continuous operation. Precision-machined metal shaft ensures concentric rotation, avoiding uneven abrasion of sponge rollers and extending service life. The assembled unit undergoes strict dynamic testing to guarantee smooth banknote transportation under heavy daily transaction loads.

Complete pre-assembled shaft and roller structure enables direct replacement without extra disassembly work, greatly shortening ATM maintenance downtime. Standard dimensional specifications match original equipment assembly standards, supporting fast on-site servicing for bank self-service equipment engineers.

Compatible ATM Models

This sponge roller shaft assembly is specifically designed for:

Nautilus Hyosung CDU1100 Cash Dispenser Unit

Hyosung MX8600 ATM Machine

Hyosung MX8800 ATM Machine

Direct replacement OEM component for Hyosung CDU1100 dispensing module. No additional modification required during installation. Our technical support team can provide assembly reference guidance for maintenance technicians to ensure correct installation and optimal banknote handling performance after part replacement.

Technical Specifications

 Applications

Financial institutions deploy the Hyosung CDU1100 Sponge Roller Shaft Assembly across diverse operational scenarios.

Branch ATM Networks

Maintain stable banknote transportation performance within your branch ATM fleet. This assembly withstands high daily transaction volumes in busy banking environments, reducing jamming, multi-feed and misfeed issues that affect customer experience.

Retail Banking Self-Service Kiosks

Support uninterrupted cash dispensing operations. Consistent roller friction ensures smooth note feeding for withdrawal and deposit transactions in customer-facing self-service terminals.

Preventive Maintenance Programs

Stock this component as part of your proactive maintenance strategy. Having Hyosung CDU1100 Sponge Roller Shaft Assembly readily available cuts unplanned ATM downtime and speeds up on-site repair work during routine or emergency servicing.

System Upgrade & ATM Refurbishment Projects

Replace worn original sponge roller shaft assemblies during ATM renovation and equipment overhaul. New spare parts extend terminal service life and restore original cash handling performance.

Quality Inspection

Every Hyosung CDU1100 Sponge Roller Shaft Assembly undergoes comprehensive testing before shipment from our certified facility.

Functional Testing

Our Quality Control Department verifies rotation smoothness, sponge friction stability and banknote feeding performance. Each assembly runs on professional test benches simulating real CDU cash dispenser operating conditions.

Visual Inspection

Trained technicians inspect shaft straightness, sponge surface integrity, assembly tightness and dimensional accuracy. Only assemblies meeting strict specifications move forward to packaging.

ERP-Tracked Quality Records

Our integrated ERP management system documents every inspection step. You receive components with complete quality traceability and performance verification records.

Why Choose Us

Two Decades of ATM Expertise

With over 20 years serving the financial equipment industry, we understand the critical nature of ATM component reliability. Your operations benefit from our accumulated technical knowledge and proven global supply chain relationships.

Comprehensive ATM Parts Coverage

We supply more than 80% of mainstream ATM modules and spare parts worldwide. Whether you require Hyosung CDU1100 Sponge Roller Shaft Assembly or matching CDU series components, we deliver efficient one-stop sourcing.

Rapid Response Commitment

Our technical team responds to inquiries within 24 hours. You receive prompt quotations, compatibility confirmation and professional installation guidance as required.

Flexible Sourcing Solutions

We keep abundant stock of new and tested used ATM spare parts to satisfy different budget demands. We can arrange bulk supply for large-scale bank maintenance projects.

Global Logistics Flexibility

We support sea freight, air freight, land transportation and international express delivery. Select the shipping solution matching your delivery urgency and budget parameters.

Packaging & Shipping

Each Hyosung CDU1100 Sponge Roller Shaft Assembly is packed with shockproof cushion materials to prevent extrusion and surface damage during transit. Standard delivery takes 15–20 working days depending on destination and selected shipping method. International express services are available for urgent replacement orders.

Frequently Asked Questions

Q: Which ATM models fit this CDU1100 Sponge Roller Shaft Assembly?

A: This assembly is designed for Nautilus Hyosung CDU1100 cash dispenser unit, compatible with Hyosung MX8600, MX8800 and corresponding ATM terminals. Contact our technical team to confirm compatibility for other models.

Q: What does the warranty cover?

A: The warranty covers manufacturing defects and functional failures under standard ATM operating conditions. Damage caused by improper installation, abrasion from misuse or physical impact is excluded.

Q: Do you have other spare parts for Hyosung CDU series dispensers?

A: Yes. We maintain inventory of a full range of CDU1100 spare parts including rollers, shafts, gears and sensor components. Kindly list your required parts when sending inquiries.

Q: Can you provide technical support for part replacement?

A: Absolutely. Our team offers online guidance and operational tips to assist maintenance technicians during assembly replacement.

Q: What is your minimum order quantity?

A: We accept orders ranging from single units to large bulk purchases. Competitive volume pricing is offered for mass procurement demands.

Request Your Quote Today

Ready to source reliable Hyosung CDU1100 Sponge Roller Shaft Assembly for your ATM network? Contact our sales team at faye@atm-part.com for immediate quotations, technical specifications, and delivery options tailored to your operational requirements.
