NCR DIP Card Reader V4KU - Professional ATM Card Reading Solution

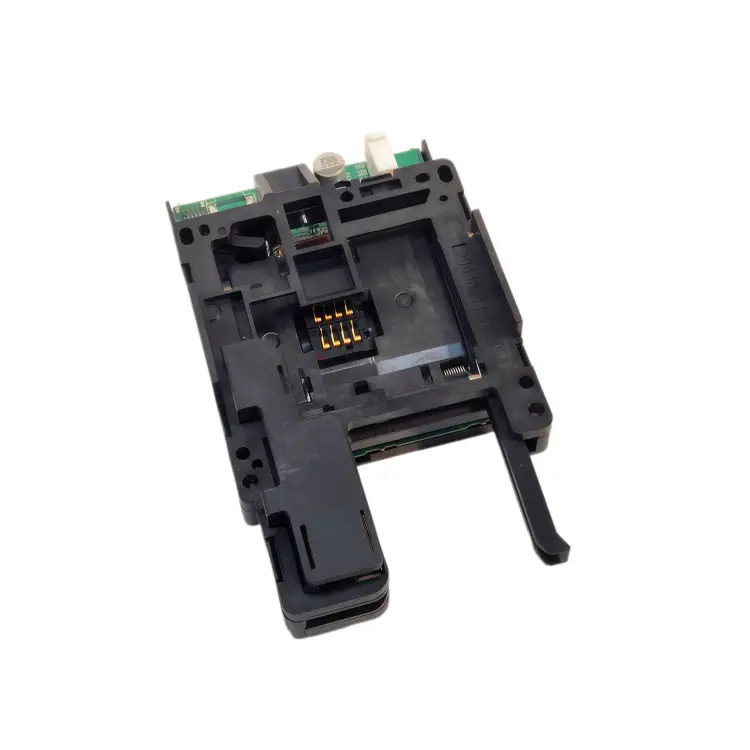

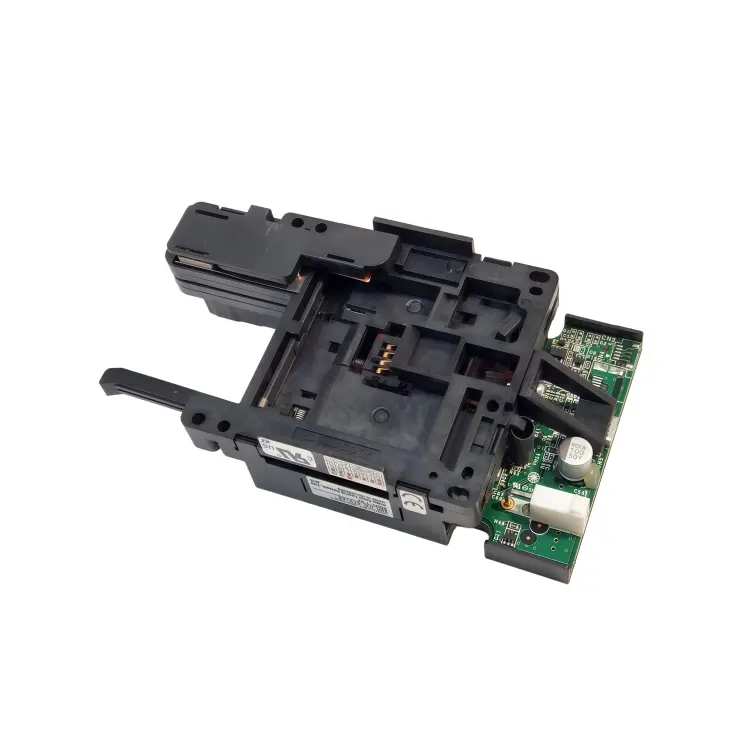

HONGKONG RONG MEI TECHNOLOGY CO., LIMITED brings enterprise-grade card reading technology with the NCR DIP card reader V4KU (Part Number: 009-0032552 / V4KU-01JN-N03). Engineered specifically for NCR SelfServ 66XX Series ATMs, this hybrid reader delivers proven reliability through 500,000+ insertion cycle endurance. With over 5 years of specialized experience supplying sub-modules and spare parts for NCR DIP card readers, RM ensures tamper-resistant architecture and USB connectivity that meets rigorous financial institution requirements. This miniature smart manual reader supports magnetic stripe and contact IC card processing simultaneously, backed by our ISO 9001:2008 certified quality management system.

​​​​​​​

Why the V4KU Model Stands Out

The V4KU-01JN-N03 addresses critical pain points in high-traffic ATM environments. Traditional motorized readers suffer mechanical failures in dusty conditions.

This manual insertion design eliminates transport belt vulnerabilities entirely. The compact footprint fits space-constrained kiosk installations seamlessly.

Advanced anti-skimming bezels resist tampering forces below 50N. Integrated foreign object detection sensors protect cardholders from fraud attempts.

The reader processes ISO 7810 magnetic stripes and ISO 7816 contact chips with exceptional accuracy. Bi-directional track reading (tracks 1, 2, and 3) handles degraded cards through Automatic Gain Control technology.

Jitter detection algorithms verify valid insertion speed profiles. This prevents data capture during unauthorized skimming attempts.

Environmental resilience ensures operation across extreme conditions. Conformal coated PCBs withstand temperature fluctuations from -20°C to +60°C.

Water drainage channels and IP54-rated construction maintain performance in harsh outdoor installations. Semi-transparent bezels provide visual transaction feedback while resisting rain ingress.

Technical Specifications

Quality Assurance Process

Rigorous stress testing ensures field reliability you can depend on. Life cycle endurance testing uses robotic arms to simulate real-world usage patterns.

Bit Error Rate analysis measures magnetic stripe accuracy at varying insertion speeds from 10cm/s to 120cm/s. Decoder firmware reconstructs data reliably even with jittered insertion motions.

Environmental chamber testing verifies operation through extreme heat and humidity cycles. Dust ingress testing confirms IP rating compliance for outdoor deployment.

Bezel mechanical stress tests ensure separation resistance meets security standards. Functional testing validates all integrated sensors before shipment.

Maintenance and Longevity

Maintaining your NCR DIP card reader V4KU requires minimal effort for maximum uptime. Use pre-saturated alcohol cleaning cards every 1,000 cycles or weekly in high-dust environments.

This removes magnetic oxide build-up on read heads. It also cleans oils from IC contact landing pads that accumulate during normal operation.

The mechanical locking latch prevents premature card removal during chip processing. This solenoid-driven mechanism protects transaction integrity without user intervention.

Advanced firmware includes jitter compensation algorithms for reading worn cards. Automatic Gain Control amplifies weak signals from demagnetized magnetic stripes effectively.

Applications Across Industries

This reader serves critical roles beyond traditional ATM deployments. Casino gaming management systems benefit from its resistance to spilled liquids and tobacco smoke.

Player tracking units achieve 99.9% uptime in unattended locations. LED bezels provide visual status feedback during authentication processes.

Self-service kiosks in government and healthcare settings process ID cards and insurance cards reliably. The lack of moving transport parts eliminates mechanical failure points.

Fuel dispensers and EV charging stations leverage the sealed bezel design. Conformal coating protects PCBs from humidity and temperature extremes during outdoor transactions.

Why Partner With RM?

Our 20+ years of ATM industry experience translates to deep technical expertise. We maintain inventory for immediate shipment with standard lead times of 15-20 working days.

The 3,000 square meter facility houses complete manufacturing capabilities. Injection molding, R&D, and QC departments ensure consistent product quality.

We provide comprehensive technical support including remote video assistance and installation guidance. Multilingual documentation is available upon request.

Flexible logistics solutions cover sea freight, air freight, and international express delivery. Our stable supply chain maintains competitive pricing without compromising quality.

FAQ

Q: How does the reader prevent data corruption during unexpected card removal?

A: The mechanical locking latch physically retains cards once chip contact is detected. Software-controlled clamping mechanisms release only after transaction completion.

Q: Can this model operate reliably in outdoor ATM installations?

A: Yes, when properly specified. Water drainage channels and conformal coated PCBs prevent short circuits from condensation and rain ingress.

Q: What encryption standards protect sensitive cardholder data?

A: The V4KU supports DUKPT and 3DES/AES encryption at the head level. Sensitive data is encrypted before entering the host system via USB.

Q: Why might older magnetic stripe cards occasionally fail to read?

A: Card demagnetization or excessive insertion jitter causes most failures. High-end firmware compensates for weak signals through AGC technology and jitter algorithms.

Q: What certifications ensure global payment network compatibility?

A: The reader complies with EMV Level 1 certification standards. It meets PBOC 3.0 guidelines along with CE/FCC/RoHS environmental requirements.

Contact Us

Ready to upgrade your ATM infrastructure with NCR DIP card reader V4KU? Contact Tang@atm-part.com for pricing, technical specifications, or custom configuration assistance today.
