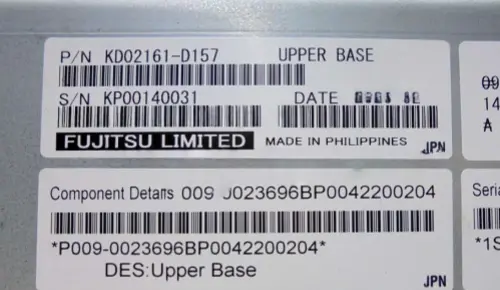

009-0023696 NCR Base, GBRU/GBRU2, Upper Base

009-0023696 NCR Base, GBRU/GBRU2, Upper Base – Premium ATM Component Solution

The 009-0023696 NCR Base, GBRU/GBRU2, Upper Base is an enterprise-grade structural component engineered for NCR's Global Bill Recycling Unit series. Manufactured by RM with over 20 years of ATM industry expertise and backed by ISO 9001:2008 certification, this upper base provides exceptional mechanical stability for high-volume cash recycling environments.

Crafted from reinforced aerospace-grade polymer composites or die-cast aluminum alloys, it maintains dimensional tolerance within ±0.05mm to ensure perfect sensor alignment and transport synchronization. Our production facility spans 3,000 square meters with dedicated QC and R&D departments, enabling us to deliver components that reduce note jams by up to 40% in banking operations.

With 30 days warranty and comprehensive online support, this component serves banks, financial institutions, and ATM deployers requiring factory-spec performance restoration.

What Is the 009-0023696 NCR Upper Base?

This precision-engineered base serves as the primary chassis for the upper transport mechanism in both GBRU and GBRU2 recycling units. It provides foundational alignment for critical components including note-validation sensors, divert gates, and transport rollers.

The component solves key operational challenges. Mechanical misalignment from structural fatigue leads to recurring transaction failures. Excessive vibration in high-traffic locations causes premature wear. The cascading failure effect means one warped base creates system-wide jam patterns.

Your ATM's uptime depends on this structural integrity. When the upper base maintains its geometric precision, your entire cash handling system performs reliably.

​​​​​​​

​​​​​​​

Technical Specifications

Key Properties and Advantages

Superior Material Engineering

The 009-0023696 NCR Base, GBRU/GBRU2, Upper Base uses materials selected for banking-grade durability. The high strength-to-weight ratio minimizes motor load while maintaining structural rigidity under continuous operation.

Thermal stability prevents expansion and contraction issues. Through-the-wall ATMs experience temperature fluctuations that can compromise standard components. This base maintains dimensional accuracy across environmental extremes.

Precision Manufacturing Standards

Our facility implements coordinate measuring machine (CMM) verification for every unit. All sensor mounting holes and axle seats undergo centering verification to factory specifications.

Stress-strain testing validates performance under high-speed stepper motor torque. Surface roughness analysis ensures bill-path areas meet specific Ra values, preventing static-cling during note transport.

Extended Component Lifecycle

RM has supplied GBRU/GBRU2 sub-modules and spare parts for over 5 years. We can provide all piece parts for these recycling units, ensuring complete compatibility and consistent quality.

Under standard operating conditions with proper maintenance, this upper base delivers 7-10 years of operational lifespan. That translates to significantly lower total cost of ownership for your ATM fleet.

Rapid Replacement Design

Integrated mounting points enable quick modular replacement. Your technicians spend less time on installation and more time on revenue-generating service calls.

This design consideration reduces First Line Maintenance (FLM) intervention costs. Fewer bill jams mean lower emergency callout expenses and higher customer satisfaction.

Real-World Applications

High-Density Cash Recycling Operations

Central bank branches processing thousands of daily deposits require unwavering mechanical reliability. The 009-0023696 NCR Base, GBRU/GBRU2, Upper Base maintains rigidity under constant mechanical load, preventing the alignment drift that causes transaction failures during peak hours.

ATM Refurbishment Programs

Independent ATM deployers (IADs) extending the lifecycle of SelfServ 30/80 series machines benefit from factory-spec transport timing restoration. Replacing the upper base eliminates accumulated wear patterns that affect note acceptance rates.

Extreme Environment Installations

Through-the-wall (TTW) installations face humidity-induced oxidation challenges. Our component resists environmental degradation that compromises the friction coefficient of bill transport paths, maintaining consistent performance in coastal, tropical, and high-humidity locations.

This application versatility makes it ideal for banks, supermarkets, gaming facilities, casinos, hotels, and financial institutions across diverse operating conditions.

Quality Control Process

Your investment deserves rigorous validation. Every batch undergoes four-stage quality verification:

Stage 1: Dimensional Accuracy – CMM verification confirms all mounting points meet ±0.05mm tolerance specifications.

Stage 2: Mechanical Performance – Stress-strain testing simulates years of operational load to identify potential failure points.

Stage 3: Surface Quality – Bill-path contact surfaces receive roughness analysis to ensure optimal friction characteristics.

Stage 4: Integration Testing – Compatibility fit-testing against master GBRU/GBRU2 modules guarantees zero-gap integration with lower transport assemblies and recycler cassettes.

This comprehensive approach reflects our ISO 9001:2008 certified quality management system and ERP-based process controls.

Frequently Asked Questions

Q: Can the 009-0023696 be used interchangeably between GBRU and GBRU2?

A: Yes, this upper base is designed for universal compatibility with both Global Bill Recycling Unit generations. The mounting architecture remains consistent across both series.

Q: What are the signs that this base needs replacement?

A: Watch for recurring "Upper Transport" error codes, skewed note entry into the validator, or visible wear on gear mounting pillars. Increased jam frequency concentrated in the upper path also indicates base degradation.

Q: Does the base come pre-assembled with rollers?

A: The 009-0023696 refers to the base chassis itself. Depending on your order specification, sub-assemblies may include pre-installed bushings. Contact Us for custom configuration options.

Q: How does this part impact First Line Maintenance costs?

A: A high-quality upper base reduces bill jam frequency by maintaining precise component alignment. Lower jam rates mean fewer emergency service calls and reduced FLM intervention expenses—typically 30-40% cost reduction in high-volume locations.

Q: What is the expected lifespan of this component?

A: Under standard operating conditions with proper lubrication of moving parts, the base delivers 7-10 years of reliable performance. Lifecycle may vary based on transaction volume and environmental factors.

Q: Do you provide technical support for installation?

A: Yes. Our team offers online support, remote video assistance, installation guidance, and troubleshooting. Response time is within 24 hours for all technical inquiries.

Q: What shipping options are available?

A: We support sea freight, air freight, land transportation, and international express delivery. Our logistics team will recommend the most cost-effective option based on your location and urgency requirements.

Contact Us for Your ATM Component Needs

Email us at Tang@atm-part.com for quotes, technical specifications, or bulk order inquiries for 009-0023696 NCR Base, GBRU/GBRU2, Upper Base.
