Why Friction-Feed Technology Matters in ATM Dispensers

ATM owners are always under pressure to make sure that cash transactions go smoothly while keeping costs low. When a dispenser gets stuck during busy times or gives the wrong notes in places with a lot of foot traffic, the costs in terms of money and image add up quickly. These problems are dealt with directly by friction-feed technology, which uses precise wheels and smart sensors to handle each bill separately. This method is shown by the DelaRue friction-feed cash dispenser, which works reliably even with old or polymer bills. This technology cuts down on downtime, improves accuracy, and extends the life of equipment. These are all very important for banks, ATM owners, and service providers looking for reliable, low-cost options in competitive markets.

​

Understanding Friction-Feed Technology in ATM Dispensers

The accuracy of giving out cash starts with how the tools hold and move the money. Friction-feed systems use controlled friction between special wheels and bills to move each bill along the path of the feeder. Friction-feed technology uses calibrated pressure through urethane-coated rollers to keep bills in contact without tearing or wrinkling. This is different from standard push-pull systems that can bunch or damage bills.

Core Components Driving Performance

Modern friction-feed feeders have many parts that all work together. The high-durability rubber tires on the picker module keep their grip on all kinds of bills, from brand-new ones to worn-out bills from the street. Optical and mechanical monitors placed along the transport path can tell the difference in thickness right away, letting you know if the bills are doubles, chains, or folded. The Intelligent Double Detection (IDD) system, which is found in high-tech units like the NQ300 and NF300, uses two types of checks to make sure that customers only get single notes. Control boards, like the CMC50 circuit board, manage timing and communication methods. This makes sure that RS232 and USB interfaces make it easy to connect to ATM host systems.

Operational Flow From Cassette to Customer

When a cash request is sent to the ATM manager, the dispensing loop begins. The picker device connects with the cassette's top note and uses controlled friction to pull it out without damaging the bills below it. The note then goes through a set of rollers and sensors that make sure it is unique and in good condition. If the system finds problems like double notes, tears, or foreign objects, it sends the problematic item to a different container and chooses a new note automatically to finish the deal. This whole process usually goes at speeds of 6 to 10 notes per second, combining speed with accuracy to keep service quality high during busy times.

Advantages of Friction-Feed Cash Dispensers Over Traditional Systems

Uptime is important to banks and ATM providers because every minute of downtime costs them money and makes customers angry. Better reliability, protection, and cost-effectiveness can be seen in friction-feed dispensers compared to older methods.

Superior Reliability and Reduced Downtime

The number of jams has a direct effect on repair plans and how happy customers are. Traditional push-pull money machines have trouble with different types of bills because they often get stuck on wet or wrinkled bills. Friction-feed systems are very good at dealing with these differences; they can handle dirty, limp, and street-grade bills without stopping often. This is shown by the NMD 50 Dispenser, which is set up as NMD050-1-VC-SN. It was made to work with Glory ATMs and keeps working well even when the width of the notes changes. Similarly, a DeLaRue friction-feed cash dispenser offers the same reliable handling of imperfect banknotes in high-traffic environments. It can handle cassettes with 800 to 1,000 notes. This dependability is very important for ATMs that are not inside of banks, like those in stores, where technical help might not be available right away.

Enhanced Security and Accuracy

Financial institutions can't stand mistakes when they're giving out money. Double-note events make it hard to reconcile and hurt customer trust. Through constant checks, friction-feed technology lowers these risks. The method that uses both mechanical and visual sensors to measure thickness gets error rates below 0.01%. When the system finds notes that might not be correct, it automatically sends them somewhere else without stopping the process. This keeps things moving while keeping the accuracy. This feature cuts down on cash shortages and overages, keeping both workers and users safe from financial problems.

Long-Term Cost Savings

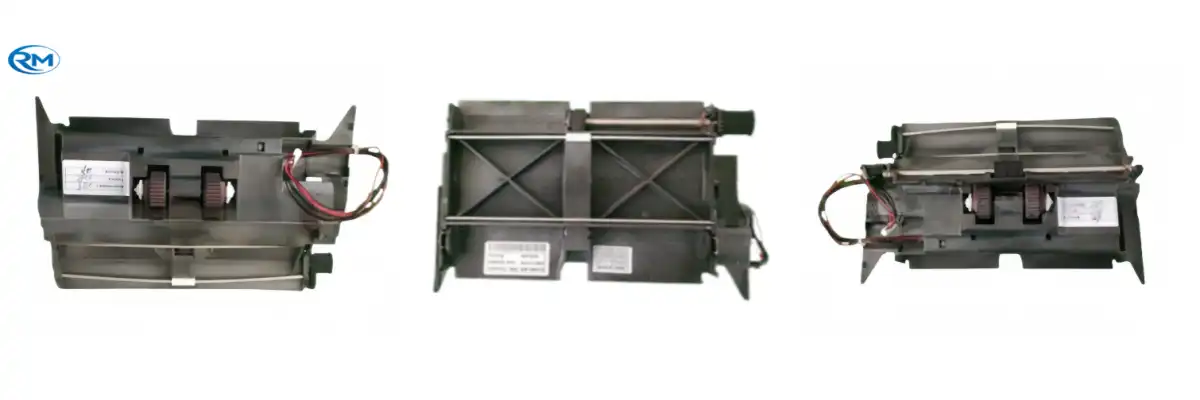

When making a purchase choice, the original investment and the lifetime operating costs must be balanced. Friction-feed feeders are worth the extra money because they require less upkeep and their parts last longer. Technicians can switch out individual cassette modules, like the NT100 module or the A011261 NF300, without having to switch out whole dispenser units thanks to the modular design. It lowers the cost of repairs and keeps the number of parts on hand to a minimum. Friction-feed devices need less motor power than strong push-pull systems, so energy use is also going down. Over the course of five years, these saves add up to a lot, especially for networks that are in charge of hundreds of terminals in different areas.

Comparing Friction-Feed Dispensers with Market Alternatives

In order to choose the right container technology, you need to know how each system works in the real world. Friction-feed feeders are unique because of how they are designed and how well they work in real life.

Performance Benchmarks Against Push-Pull Systems

Early ATMs were mostly push-pull machines, which used mechanical arms to move bills forward. This way is easy, but it has trouble with changes in note quality and puts more stress on the mechanical parts. These flaws are fixed by friction-feed systems, which handle things more gently and apply pressure in different ways. When handling mixed-condition money, tests show that friction-feed units have jam rates that are 40–60% lower than push-pull versions. The precision rollers instantly change to the note's thickness, keeping the grip without using too much power. This ability to change is especially useful in developing markets where the quality of the coin varies a lot.

Integration Flexibility and Scalability

Manufacturers and installers of ATMs need parts that can be used with a variety of cabinet styles and meet different functional needs. Standardized communication methods and small sizes make friction-feed devices useful for this. The NMD 50 Dispenser is about 270 mm wide, so it fits easily into slim-line booths and installs that were done in the past. Its RS232 and USB communication methods make it easy to connect to both old and new systems, like parking payment stations and tools that redeem tickets. The vertical stacking system can hold two to four cassette modules without having to change the cabinet. This lets workers increase capacity as the number of transactions increases. This modularity cuts down on building time and increases the number of ways that the system can be used in retail and business settings.

Cost-Performance Balance for Different Market Segments

Different market levels make different decisions about what to buy based on their budgets. Bank offices with a lot of customers want their systems to be up all the time, which means they can charge more. Independent ATM deployers need ATMs that are as reliable as banks but don't cost too much. Friction-feed technology fills in this gap by making performance almost as good as a bank's by making manufacturing and design more cost-effective. A DeLaRue friction-feed cash dispenser exemplifies this balance, offering bank-like reliability at a competitive price point. Units that come from well-established supply lines in China, like those sold by RM, meet foreign quality standards, such as RoHS compliance and UL/CE certification, while still being priced competitively. This mix lets business owners in Southeast Asia, Africa, and Latin America use up-to-date delivery technology without hurting their bottom lines.

Practical Guidance for Procurement and Maintenance

To find effective dispensing tools, you have to figure out how to use supplier networks, understand how warranties work, and plan for long-term upkeep. Making smart decisions about purchases protects investments and keeps operations running smoothly.

Sourcing Strategies for Bulk Purchases

Having established ties with suppliers and being able to see what's in stock helps procurement teams that are in charge of multi-unit operations. RM was established in 2008 and is ISO9001-2008 approved. They keep important dispenser modules like the NMD 50 and related parts like the A011263 NQ300 module in stock. Lead times for module-level sales are usually between 15 and 20 working days, and things that are in stock can be shipped right away. Direct contact through Tang@atm-part.com lets you get customized quotes for large orders that take into account regional shipping dates and specification needs. This method simplifies the buying process and makes sure that parts can be used in a variety of ATM fleets.

Installation Support and Technical Resources

Installation and setup must be done correctly for deployment to go well. Full expert help cuts down on the time needed for commissioning and the risks of integration. RM offers online and video-based remote help to clients all over the world, answering questions about setup and fixing problems without having to go to the client's location. This multilingual help is very helpful for workers in places where there isn't a lot of professional knowledge in the area. The 30-day guarantee that comes with NMD 50 Dispenser units covers problems with the way they were made and how well they work. This gives procurement teams peace of mind during the initial rollout phases. Long-term purchase plans are also helped by extended warranty packages and access to approved repair centers.

Maintenance Best Practices for Extended Lifespan

Preventive upkeep has a direct effect on how well the machine works and how long the parts last. Regular checks on important parts cut down on unplanned downtime and make replacements last longer. Important repair jobs are:

• Thickness Sensor Calibration: Check the voltage values at the measuring station to make sure that single, double, and bent notes are correctly identified. Sensor drift is the main cause of delivery mistakes and needs to be checked every three months in places with a lot of customers.
• Belt Tension and Wear Assessment: Check vertical moving belts for small cracks and loss of tension. Note control stays the same along the shipping path when the tension is right. Skew and jams happen when the belts are too loose. If the friction coefficient readings fall below what the maker says, the belts should be replaced.
• Picker Module Friction Analysis: Check the urethane friction pads on the pick wheels for cracks or dirt. Clean surfaces with solvents that the maker recommends, and change pads when they stop gripping as well. This easy step stops note pickup problems that cause transaction delays.

These proactive steps, along with firmware changes that match the versions of the ATM's core software, keep the dispensers working well throughout their operating lifetimes. When maintenance teams follow module-specific instructions for a DeLaRue friction-feed cash dispenser, they can replace modules after more than 500,000 notes have been dispensed, maximizing the return on investment for the equipment.

Future Trends and Innovations in Friction-Feed ATM Dispensers

As technology changes, it changes how cash is handled and how services are provided. Procurement workers can make smart investment choices by staying up to date on new trends.

IoT Integration and Predictive Analytics

With connected containers, care moves from being reactive to being proactive. Streaming sensor data to cloud platforms lets you watch performance in real time and find wear trends before they cause problems. Machine learning systems look at past jam rates, component temperatures, and cycle counts to figure out when repair should be done. This feature cuts down on emergency service calls and makes the best use of technician release plans. Operators can keep an eye on the health of all dispensers in a network, finding units that aren't working right and making repair schedules based on real-world data instead of set times.

Adaptation to Evolving Currency Formats

Central banks all over the world are still putting out polymer notes and adding more security features to them. Dispensers need to be able to handle these changes without having to be completely redesigned. Most currencies around the world can be printed on notes that are between 60mm x 120mm and 82mm x 175mm, thanks to advanced friction-feed devices. With the adjustable cassette design and adaptable roller pressure, workers can switch between paper and polymer notes by changing the way the notes are set up instead of replacing the hardware. This adaptability saves investments over time as money formats change, making sure they work with both present and future bills.

Sustainability and Energy Efficiency

Environmental duty is becoming a bigger factor in how things are bought. Modern friction-feed feeders use less energy because the motor control is better and there is less mechanical resistance. Cutting down on the amount of power used per transaction helps companies meet their sustainability goals while also cutting down on their running costs. Longevity of components is also important. Dispensers that are made to last 10 years or more reduce the amount of electrical trash and resource use that comes with replacing equipment often. These reasons are in line with larger industry trends toward long-term financial infrastructure.

Conclusion

Friction-feed technology has been shown to solve problems that ATM managers and banking institutions have with giving out cash. Precision, dependability, and flexibility in systems like the NMD 50 Dispenser lead to clear gains in accuracy, uptime, and cost savings. A DeLaRue friction-feed cash dispenser similarly delivers these advantages, offering robust performance for demanding environments. Procurement experts can protect investments and support organizational success by making smart choices based on knowledge of key components, maintenance needs, and sourcing strategies. As the way cash is handled changes due to new currencies and the IoT, friction-feed design lets it happen without having to make expensive changes. Friction-feed devices are the best choice for current ATM networks for operators who want long-term dependability and cost-effective performance.

FAQ

Q1: What distinguishes friction-feed from push-pull dispensing mechanisms?

A: In friction-feed devices, precise wheels apply controlled pressure to hold and move each note along the path of the dispenser. Push-pull systems use motorized arms to push notes forward with more force. The friction-feed method lowers the risk of damage to notes, works better with mixed-quality money, and lowers the number of jams by treating notes more gently and carefully.

Q2: How often should preventive maintenance occur on friction-feed dispensers?

A: Places that handle more than 5,000 deals a month should do checks every three months that include sensor calibration, belt tension, and picker module friction analysis. Sites with lower traffic can stretch the time between reviews to every six months. Keeping an eye on the performance measures of dispensers helps make maintenance plans that are based on real wear patterns instead of random dates.

Q3: What factors ensure high uptime in DelaRue friction-feed cash dispenser systems?

A: Reliability is helped by a strong design with dual-sensor proof, a modular component architecture that lets fixes happen quickly, and adaptive roller pressure that can handle different note situations. Quality production standards, such as RoHS compliance, and strict testing procedures also make sure that the DelaRue friction-feed cash dispenser works the same way throughout its entire operating lifecycle.

Partner with RM for Reliable Friction-Feed Dispenser Solutions

To get reliable cash handling technology, you need to work with providers who know how to provide both high-quality Products and good customer service. For more than 20 years, RM has been a leader in ATM parts solutions. They keep a large collection that includes the NMD 50 Dispenser and related modules. R&D, production, quality control, and customer service are all housed in our 3,000-square-meter ISO9001-2008-certified building. More than 80% of the ATM modules and parts on the market are sold by us. We support a wide range of platforms, from whole machines to single spare parts like the A011263 NQ300 module and CMC50 circuit board. Our 24-hour response guarantee, 15–20 day delivery plans, and multilingual technical support make us a great choice for procurement teams looking for friction-feed cash dispenser providers. Get in touch with Tony@atm-part.com to talk about buying in bulk, making changes, or getting technical specs that fit your ATM network needs.
