What Is Diebold Nixdorf TP31 Receipt Printer Module?

The Diebold Nixdorf TP31 Printer is a special thermal ticket printing tool designed to work with ATMs, especially the DN Series, DN200, DN250, and DN450 models. This part is made for commercial use and uses direct thermal line printing technology with 203 DPI resolution to produce high-speed output of 150-180mm per second. The Diebold Nixdorf TP31 Printer is not like stand-alone point-of-sale (POS) printers; it works as an OEM part that is built in and connects directly to ATM controllers via USB 2.0 or RS-232 serial ports. It follows WOSA/XFS banking standards to make system interactions smooth.

Overview of Diebold Nixdorf TP31 Receipt Printer Module

The world of thermal printing in self-service financial equipment has changed a lot. Modules should now be able to offer performance that meets the speed of modern banking transactions. The Diebold Nixdorf TP31 Printer module is a solution made for operation when no one is there, when field service calls are expensive, and when downtime for customers is not acceptable.

Core Technical Specifications

This receipt printer module uses direct thermal writing, so it doesn't need any ink strips that need to be replaced. The 203 DPI resolution makes it possible to clearly see text, barcodes (including QR and PDF417 forms), and bank logos, all of which are needed for transaction records. Print speeds of 150-180mm per second cut down on wait times at stations during busy times. The machine can handle standard 80mm thermal paper rolls, which are the standard for ATM receipts. The USB 2.0 High Speed and RS-232 Serial interfaces make it possible to work with both old and new ATM cores and PC-based devices.

Industrial Durability Standards

In business settings, this gadget stands out because of its durability measures. In most usage situations, the thermal print head can handle printing up to 100–150 km before it needs to be replaced. This translates to hundreds of thousands of transactions. The auto-cutter device has been used over 1.5 million times, which meets the ISO standards for banking hardware stability that banks need. These details are important because every printer failure in an ATM network costs money right away and costs money in lost transaction income while the machines are down.

Environmental Operating Range

The temperature range is from 5°C to 50°C, so it can be used for both climate-controlled setups inside and through-the-wall outdoor ATM operations where the temperature may change. It is resistant to up to 85% non-condensing humidity, which keeps internal parts from breaking down because of wetness in coastal or damp regions. We've seen how these environmental limits have a direct effect on the total cost of ownership in a number of different US markets.

System Compatibility Architecture

The TP31 is designed to work with DN Series ATM platforms, such as the DN200, DN250, and DN450 types. It can be easily installed using standard mounting brackets and power connections. WOSA/XFS compliance makes sure that software-level compatibility is maintained across different versions of ATM operating systems. This makes installation or retrofitting less complicated. This flexibility lowers the technical risk that comes with getting parts from different sources.

How to Set Up and Maintain the Diebold Nixdorf TP31 Printer?

A successful deployment includes more than just the original setup. It also includes ongoing upkeep plans that keep the quality of the printing high and reduce unplanned downtime. From our experience selling ATM parts, we know that following the right steps for setup and care can double the useful module lifespan.

Installation Process and Integration

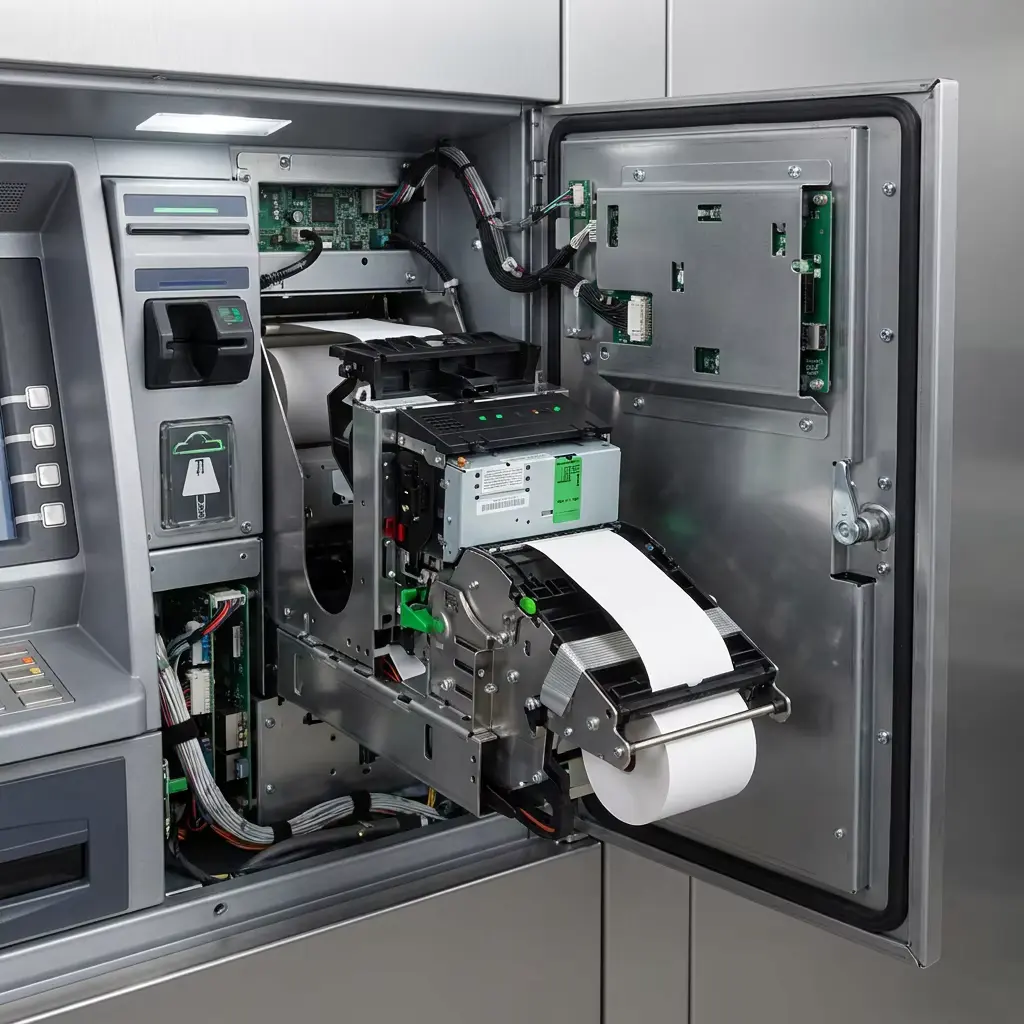

The first step in physical installation is to use brackets provided by the maker to attach the Diebold Nixdorf TP31 Printer module to the ATM frame. Connecting the USB 2.0 or RS-232 cable to the ATM controller board and then locking the cable path stops stress from building up at the connection points is what electrical connections are. To install the driver, you need to make sure that the ATM's operating system version is compatible with the XFS service provider software. Connectors that fail too soon can be avoided with good cable handling. This is a regular problem that we deal with in technical help.

Routine Maintenance Requirements

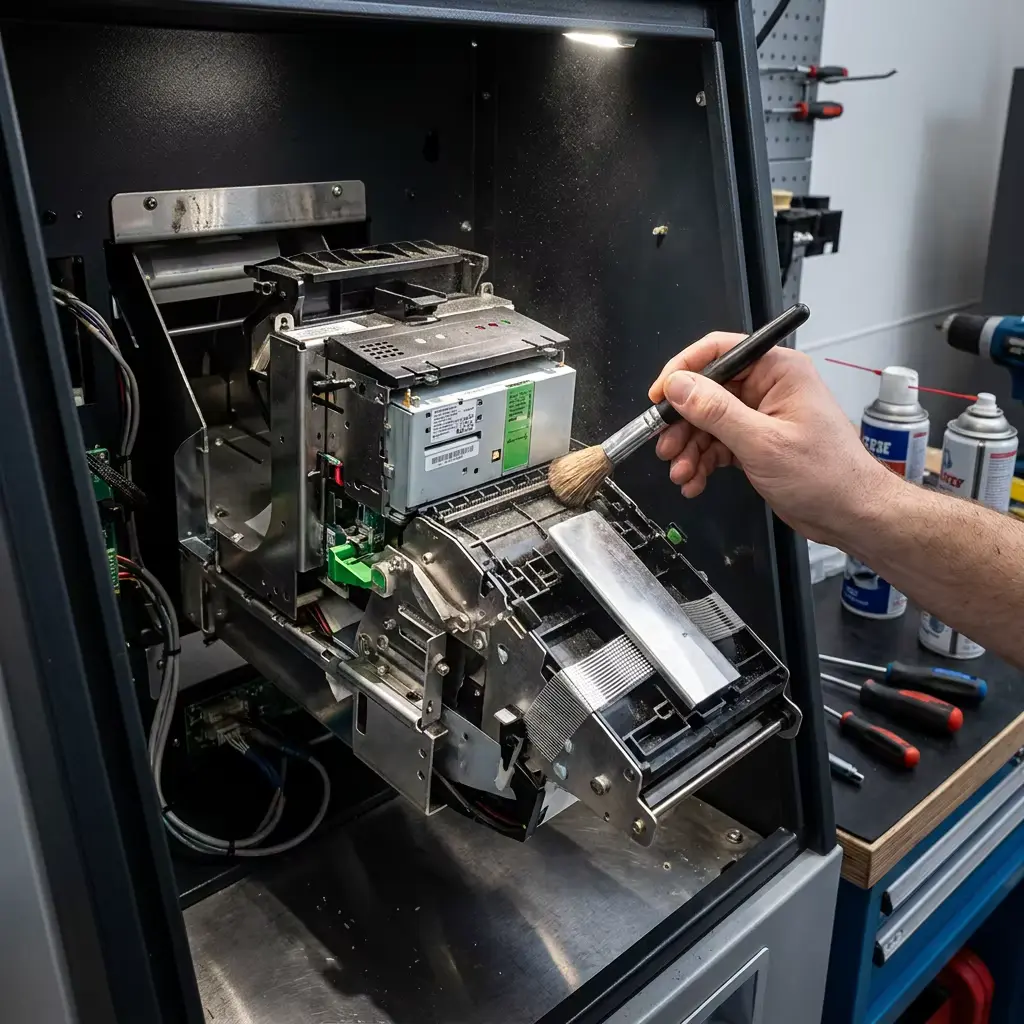

Cleaning the thermal head is the most important upkeep task. Using lint-free wipes to apply isopropyl alcohol gets rid of the paper dust and thermal coating residue that makes the print density uneven. This should be done every 50,000 deals or every three months, whichever comes first. It's important to pay attention to the right way to align the paper and fix the tension when replacing the paper roll so that the receipt doesn't get stuck during display. The exit path for the presenter should be checked for any leftover glue or other trash that could get in the way of the paper filling mechanisms.

Troubleshooting Common Issues

When the red status light flashes every so often, it usually means that either the paper is close to being finished or the thermal head is getting too hot. The ATM's diagnostic tool lets you look at error logs and get detailed fault codes. Paper jams usually happen when thermal paper is used outside of its recommended thickness ranges or when paper curls because of wetness. Most jam-related service calls can be avoided by making sure that the paper stock meets all the requirements. Within 24 hours, we offer online diagnostic support to help service teams fix problems without having to repair parts that aren't needed.

Comparing Diebold Nixdorf TP31 with Other Market Leaders

Knowing how a company stands in the market helps procurement pros make smart choices that meet business needs and stay within budget. The market for thermal printers has a lot of choices, and each one has its own benefits that depend on how it will be used.

TP31 versus TP35 Module Comparison

Both units come from the same maker, but the TP35 usually has better sensor arrays and better ways to handle paper that make it better for places with more work. For standard-volume setups, the Diebold Nixdorf TP31 Printer is cheaper than the TP35 because its better features don't make up for the price difference. Since print speed and quality are about the same across models, cost-per-transaction is the most important thing to consider. Many companies use the TP31 for suburban and country areas and save the TP35 for urban ports with a lot of traffic.

Comparison with Epson TM-T88V

The Epson TM-T88V is a desktop point-of-sale (POS) printer that can be used for some self-service tasks. The TM-T88V has similar print quality, but it doesn't have the ability to withdraw and seal against the environment that ATMs need. The TP31's auto-cutter can handle a lot more cycles than most market printer parts can. The TM-T88V needs special mounting solutions, while the TP31 just drops into DN Series frame. This makes the integration much harder. The TP31 is better for unsupervised banking because it has a lower total cost of ownership, even if it costs more at first.

Value Proposition in Replacement Part Market

Original equipment manufacturer prices can make it hard for ATM managers to stick to their budgets when they have a lot of machines to manage. The efficiency of the TP31 units we sell as replacement parts is the same, but they cost less to buy. Our ISO9001-2008 certified factory makes sure that the parts we sell meet the original specs, and our 30-day warranty and quick technical help lower the risk of buying from us. Independent ATM deployers and regional banking institutions that want to save money on maintenance without sacrificing reliability will really like this value offer.

Procurement and Purchase Considerations for Diebold Nixdorf TP31

Strategic choices about where to get things affect both the short-term success of a project and its long-term costs. When choosing sources for important ATM parts, procurement workers need to look at more than just the unit price.

Sourcing Channels and Supplier Selection

Authorized sellers offer warranties backed by the maker, but they usually charge more. Other sellers, such as RM, sell both brand-new and used Diebold Nixdorf TP31 Printer modules at reasonable prices that are good for buying in bulk. Quality risks can be reduced by checking the credentials of suppliers, such as their ISO9001-2008 certification, knowledge in the field, and ability to provide expert support. We've been distributing ATM parts for more than 20 years, so we know how to handle complicated operations across a wide range of equipment companies.

Inventory Planning and Lead Times

Standard production wait times for large orders are 15 to 20 working days, so repair schedules or fleet upgrades need to be planned ahead of time. Keeping a planned inventory of key parts lowers the risk of downtime when they break down unexpectedly. We keep standard versions in stock so they can be shipped right away. This meets urgent replacement needs that can't wait for production processes. This stock supply sets capable sellers apart from drop-shippers who don't have to invest in inventory.

Warranty and Support Frameworks

Our 30-day guarantee and online help make it less likely that someone will break in during the most vulnerable time after installation. A answer from technical support within 24 hours helps service teams figure out problems quickly, which cuts down on the number of times trucks have to be sent to fix issues that can be fixed remotely. International service companies that manage equipment in different parts of the world need to be able to offer help in more than one language. Video-based remote help has been very useful for showing techs how to do difficult troubleshooting tasks.

Bulk Pricing and Volume Incentives

When you buy a lot of something, economies of scale happen that help both the buyer and the seller. The price models for bulk orders reflect lower handling costs per unit and make budgeting for planned refresh cycles easier. Our pricing offers are tailored to each customer's unique volume promises and delivery schedules. This way, we can make sure that our production planning fits in with their deployment timetables. This way of working together to buy things makes partnerships instead of business relationships.

RM's Comprehensive Support for ATM Thermal Printing Solutions

Getting the right parts is only one part of managing an ATM fleet well. The method that leads to long-term business success is a partnership approach that includes technical knowledge, the ability to customize, and quick service.

We've built up a lot of skills that go beyond just distributing parts. Our 3000 m² building has separate rooms for molds, injection molding operations, maintenance departments, and quality control departments that work with both standard product supply and special development projects. Because we are vertically integrated, we can offer single parts like thermal heads and sensors to workers who would rather fix parts than replace whole modules.

Customization services meet the needs of certain markets that normal setups can't. Hardware changes can be made to meet specific mounting or interface needs, and software changes can be made to support different language sets for foreign deployments. This flexibility is helpful for workers who are in charge of a wide range of tools in a number of different geographic markets.

Video chat is a type of remote support that can be used for complicated medical situations where seeing the problem helps solve it faster. Our technical team has decades of experience fixing and integrating ATM subsystems, which comes in very handy when solving complicated problems with how printing modules and ATM computers talk to each other. This level of knowledge sets suppliers who really understand financial self-service tools apart from general tech distributors.

Shipping choices by sea, land, and air give customers the freedom to choose the best combination of cost and speed depending on their needs. Orders for regular restocking are sent by cheap ocean freight, while orders for emergency refills are sent by fast air service. This transportation freedom makes sure that problems in the supply chain don't cause service level promises to end customers to be broken.

Conclusion

The Diebold Nixdorf TP31 Printer thermal receipt printer module works well and is reliable, which is what financial self-service apps need. It can be used in a variety of ATM usage situations across the United States market thanks to its industrial-grade construction, proven durability measures, and ability to withstand harsh environments. When making buying choices, procurement workers do better when they know about technical specs, upkeep needs, and how the company stacks up against its competitors. Working with seasoned providers who offer full support, such as technical knowledge, readily available supplies, and quick service, increases operational uptime and lowers the total cost of ownership over the lifespan of an ATM fleet.

FAQ

What paper specifications does the TP31 require?

Standard 80 mm wide thermal paper rolls with specific caliper thickness needs can fit in the module. If you use paper that doesn't meet these requirements, you may get jams and the feed systems may wear out faster than they should. For the best print quality and durability, use high-quality thermal paper made for historical banking uses.

Can the TP31 handle graphic printing for promotional receipts?

The printer can handle digital drawings, such as logos and advertising pictures. When those transfers happen, the print speed slows down because the heat head has to work harder. Putting static graphics into non-volatile memory ahead of time improves speed during times of high traffic.

How do I obtain firmware updates for the TP31?

Firmware changes are usually sent out with ATM software update packages instead of as separate printer firmware files. By holding down the feed button while the device is turned on, you can make a self-test page that shows the current software version. This monitoring feature helps make sure that new versions of ATM operating systems will work with the device.

What distinguishes refurbished modules from new units?

Modules that have been refurbished go through a lot of tests and wear parts like heat heads and knife blades are replaced. For owners on a tight budget, they are a good option because they work just as well as new units but cost less. Our quality control procedures make sure that used units meet the same standards as brand-new ones.

Partner with RM for Your Diebold Nixdorf TP31 Printer Supply Needs

You can count on RM to meet all of your ATM th​​​​​​​ermal printer needs with a range of full options, from single parts to whole modules. As a Diebold Nixdorf TP31 Printer seller that has been selling parts for banking equipment for over twenty years, we know how hard it is for ATM service providers and banks to keep up with their work. Our ISO9001-2008 certified manufacturing ensures consistent quality, and our well-kept overstock lets us quickly fill pressing replacement needs.

Our technical team has the knowledge to support even the most complicated operations, whether you run an area ATM network or offer service across the whole country. Our responsive support system makes sure you get help when technical problems come up, and customization options let you meet specific needs that standard goods can't. Get in touch with Tang@atm-part.com to talk about your unique needs and find out how our years of experience in supplying ATM parts can help you run your business more efficiently and lower the total cost of ownership for all of your equipment.
