Top Features of CDU1100 Cash Dispenser Module

The CDU1100 Cash Dispenser stands as a cornerstone solution for operators managing Nautilus Hyosung ATM systems across the United States. Engineered specifically for models including the 1800SE, 2700CE, and Halo series, this Double 2K dispenser unit delivers 4,000-note capacity through a proven dual-cassette architecture. Originally manufactured in Korea, the module combines robust mechanical design with field-tested reliability, addressing the core challenges faced by independent ATM deployers, parts wholesalers, and refurbishment specialists who demand both performance consistency and cost-effective maintenance solutions for high-volume retail environments.

Key Specifications and Core Functionalities of the CDU1100 Cash Dispenser

Knowing the technical basics of cash dispensing tools helps you make better choices about what to buy. The CDU1100 Cash Dispenser module works well with Hyosung's current infrastructure and has features that are important to operations teams that are in charge of many machines.

Physical Architecture and Capacity Design

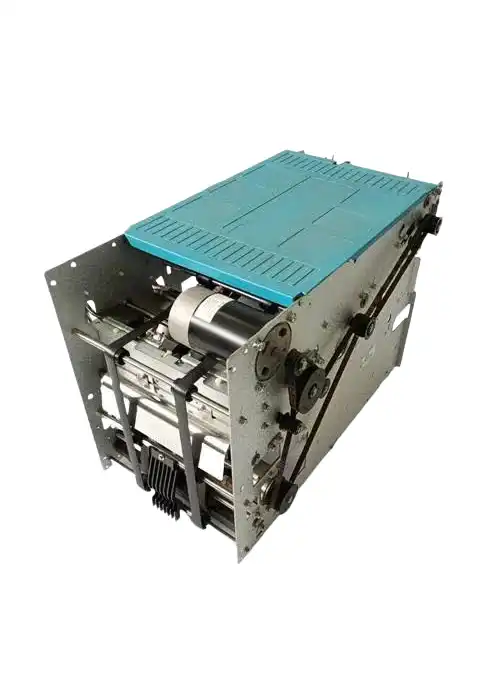

The core unit (part number 72841301) is small enough to fit standard Hyosung chassis layouts without having to change the box. Two CST-1100 cash cassettes (7310000382) can fit in each Double 2K Dispenser Unit (7010000108). Each cassette can hold 2,000 bills. This 4K total capacity cuts down on the number of times that replenishments need to be made in retail and convenience stores with a lot of foot traffic, where the cost of guarded car service has a big effect on business budgets. The pick module (7010000080) has a single-channel, single-level configuration that makes troubleshooting easier than with competitor systems that have multiple levels.

Operational Speed and Transaction Efficiency

Transaction speed has a direct effect on how happy customers are and how many machines are available. The CDU1100 Cash Dispenser handles calls for cash by using its channel motor (58403106) and feed roller assembly (7310000386-6), which separates notes consistently even when there are different types of bills present. The G-CDU E main controller (7670000040) controls the whole dispensing process. It does this by coordinating sensor feedback with motor timing to avoid mistakes that lead to double notes, which can lead to customer complaints and service calls.

System Integration and Software Compatibility

Reliable hardware doesn't mean much if the software doesn't work well with it. The architecture of the control board talks to Hyosung's own ATM management software, which tells it about cassette levels, jams, and the accuracy of the dispensing in real time. This works with all firmware versions used in the 1800SE, 2700CE, and Halo models, so operators who have more than one fleet won't have to worry about version mismatches. Standard diagnostic protocols can be used with this module, which lets technicians do health checks from afar before sending someone to the site to do work.

Top Features That Set CDU1100 Cash Dispenser Apart

The total cost of ownership goes down when there are operational benefits. The features that set cash automation infrastructure apart that mean the most to businesses that manage it have been found.

Enhanced Cash Handling Capabilities

The Double 2K design solves a certain problem in the market for independent ATM deployers in the US. Many grocery stores have cash demand spikes on the weekends that wear out single-cassette systems and require expensive emergency restocking runs. The 4,000-note capacity of the CDU1100 Cash Dispenser increases service times, which means that protected cars only need to be serviced once a week instead of twice a week in most cases. This advantage in capacity is especially useful during the holidays, when a lot of customers withdraw money at once.

The design of the feed wheel includes precisely machined separator parts that keep working even when the bills aren't in perfect shape, from brand-new banknotes to used money in circulation. This versatility is important because in the real world, ATMs can't control the quality of the money loaded by armored car services, but customers expect perfect dispensing no matter what the condition of the bill is.

Modular Component Architecture for Streamlined Maintenance

In the ATM business, downtime costs money. For every hour that a machine isn't working, money is lost in transaction fees and location contract fines may be applied. The CDU1100 Cash Dispenser solves this problem by making all of its maintenance-critical parts readily available. Instead of changing out whole modules, technicians can replace the clutch assembly (5637000001), sensors, rollers, belts, and electronic parts one at a time.

This serviceability at the component level is very important for independent operators who are in charge of managing distributed machine networks. A service vehicle can hold common wear items that a field technician can use to fix things on the spot within 30 minutes, instead of having to schedule return visits or overnight machine swaps. Parts inventories kept by experienced providers like RM, which has been dealing in Hyosung parts for over five years, make sure that parts are available the same day or the next day, which keeps service level agreements in place.

Dual Condition Options Meeting Diverse Budget Requirements

Flexibility in procurement recognizes that different operational situations call for various investment approaches. Brand-new CDU1100 Cash Dispenser units are good for owners who want to grow their fleets or serve places with strict standards for original equipment. Professionally refurbished units are a cheaper option for established fleets that are trying to get the most for their money when they buy.

Both condition choices keep up with practical standards because refurbishment methods replace all parts that wear out quickly, test the whole unit under load, and certify it against the same performance standards that are used for new units. This two-level availability strategy lets purchasing managers get the most out of their machine portfolio by putting new-unit budgets in high-traffic areas and using refurbished modules in places where the return on investment calculations favor lower initial costs.

These features work together to help businesses that run Hyosung ATM networks deal with the daily facts of running networks of machines in competitive retail settings where machine uptime and service cost management determine profits.

CDU1100 vs Competitors: A Performance and Value Comparison

To do strategic procurement, you need to know how solutions compare to alternatives. The CDU1100 Cash Dispenser has a unique place in the world of cash dispensers, so it's important to compare it to both its direct competitors and alternatives from other brands.

CDU1100 versus CDU1200: Evolution or Replacement

The CDU1200 is Hyosung's next-generation dispenser technology. It has better algorithms for processing notes and new sensor packages. Still, the CDU1100 Cash Dispenser is still very useful in some practical situations. Over tens of thousands of 1800SE and 2700CE machines are in use across the United States. Many operators have standardized their parts inventory, worker training, and repair processes around the CDU1100 design.

Moving to CDU1200 technology costs more than just the gear itself. Updating diagnostic tools, retraining technicians, and moving parts inventories are all secret costs that change the total cost of ownership estimates. As a mature product, the CDU1100 Cash Dispenser has stable prices for parts from multiple supply sources, established repair knowledge among field techs, and regular maintenance patterns.

Cross-Brand Comparison: Hyosung versus NCR and Diebold Nixdorf

When expanding networks or replacing old machines, ATM owners sometimes have to decide whether to build new machines or buy used ones. Bank-channel deployments are mostly done by NCR and Diebold Nixdorf. On the other hand, Hyosung gained a lot of market share from independent deployers by offering low prices and making service requirements easier.

Hyosung's design philosophy, which favors mechanical simplicity over electronic complexity, works well with the CDU1100 Cash Dispenser. Competitor modules often have extra sensors and testing steps that, in theory, make them more accurate but, in practice, make it easier for things to go wrong. Field reliability data from independent deployer networks shows that machines in store settings that don't have climate control work better when the parts are simple. This is especially true when the temperatures are changing.

Another thing that sets them apart is the supply of parts. Standardization by Hyosung across model generations means that parts like the channel motor (58403106) and feed rollers (7310000386-6) can be used with more than one type of machine. This saves operators who use more than one model money on inventory costs. Competitor platforms often add new parts with each model generation, which makes it harder to keep track of parts and make training programs for technicians more difficult.

Procurement Insights: How to Buy and Maintain the CDU1100 Cash Dispenser

A successful acquisition of tools includes more than just the original purchase. It also includes the whole ownership lifecycle. As part of their buying strategy, smart buyers think about sourcing methods, warranty benefits, and upkeep plans.

Sourcing Strategies and Supply Chain Considerations

There are three main ways that the US market for Hyosung parts works. Original equipment maker distribution offers factory-certified parts that can be fully tracked, but it usually comes with higher prices and longer lead times for things that aren't in stock. Specialized aftermarket suppliers like RM Technologies have large inventories of parts that include both whole modules and single parts. Their prices are competitive, making them a good choice for large buyers.

Direct importation is a third choice for big businesses that already have good logistics in place. However, they would have to handle foreign shipping, customs clearance, and quality checks. Most independent deployers and smaller parts distributors get the best deals from well-known aftermarket suppliers who keep their inventory in the US, offer technical support in English during business hours that work with US time zones, and let customers choose from a range of order sizes, from emergency single units to planned bulk purchases.

Expected lead times depend on the sourcing channel and the status of the inventory. Items in stock from sellers with warehouses in the US or carefully placed around the world are shipped via standard carriers within 24 to 48 hours. Non-stock things that need to be fulfilled by a factory usually take 15 to 20 working days. Building relationships with sellers who keep a lot of stock is a great way to avoid emergencies that require expensive expedited shipping.

Warranty Coverage and Risk Mitigation

Protecting your equipment starts with knowing what the warranty really covers. The usual 30-day guarantee on CDU1100 Cash Dispenser modules covers flaws in the way they were made and broken parts that happen while they are being used normally. This amount of time allows for installation, testing with real transaction loads, and finding any hidden problems that got past the quality check before shipping.

Smart buyers know that the value of a guarantee depends a lot on how quickly the supplier responds. A 90-day warranty from a company that is hard to get in touch with and has complicated return policies isn't as useful as a 30-day warranty from a company that answers questions 24 hours a day and makes replacing things easy. Communication testing with sample technical questions should be part of the procurement evaluation. This will show if the seller support teams really know how the Hyosung system works or if they just send questions to general call centers.

Setting up maintenance ties with companies that offer technical support services can give you extra safety beyond the warranty time. Access to installation instructions, troubleshooting help, and help finding parts lowers the total cost of ownership by letting internal service teams fix problems without needing help from the manufacturer. Some companies offer video-based remote support, which lets workers get real-time instructions while working on machines. This cuts down on diagnostic time by a large amount compared to support that is only available over the phone.

Maintenance Planning and Component Lifecycle Management

Planning maintenance ahead of time keeps you from having to deal with emergency service situations that slow down operations and raise costs. The CDU1100 Cash Dispenser's mechanical design allows for expected wear patterns, which lets repair schedules be set using data. High-cycle parts like feed rollers and separator elements usually need to be replaced every 200,000 to 300,000 transactions, but this can change based on the state of the cash and the surroundings. The clutch assembly (5637000001) is another item that needs to be replaced every 500,000 cycles as part of regular maintenance.

When operators of multiple machines use synchronized maintenance scheduling, which combines technician visits and parts orders, they work more efficiently. Condition-based maintenance changes parts that are getting close to the end of their useful life during planned service windows instead of waiting until they break down during busy times. This is made possible by fleet management software that keeps track of how many transactions each machine makes.

The parts inventory plan weighs the costs of keeping the inventory against the speed with which it can be used. High-volume operators often keep important parts like feed rollers, belts, and sensor assemblies in stock so that fixes can be done the same day. For less common items like control boards and motor assemblies, they rely on suppliers to send them the next day. This mixed method makes the best use of working capital while keeping service level performance at a high level.

Building Trust: CDU1100 Brand and Manufacturer Credentials

Buying equipment depends on how confident you are in both the quality of the product and the supplier's ability to deliver it. Hyosung's long history of engineering and the specialized knowledge of suppliers in the aftermarket ecosystem work together to make the CDU1100 Cash Dispenser a market leader.

Manufacturing Excellence and Quality Systems

Hyosung is a top ATM maker in the independent deployer market because it has spent decades improving technology for handling cash. The CDU1100 Cash Dispenser is based on millions of hours of operation in a wide range of retail settings, from climate-controlled grocery shops to unheated kiosks that are exposed to extreme temperatures. This experience in the field leads to part specifications that put durability in the real world ahead of theoretical performance tested in the lab.

Suppliers that work with Hyosung add their own quality to the environment. RM Technologies has ISO9001-2008 certification, which means they have formalized quality management systems that cover inspecting incoming parts, refurbishment processes, and testing the final product. The company's 3,000-square-meter building has specialized areas for things like making replacement plastic parts in mold rooms, doing injection molding, having separate maintenance departments for fixing things up, and having separate quality control functions that check Products against established standards before they are shipped.

This manufacturing infrastructure is important because it lets you check the quality of individual parts in a way that generic parts distributors can't. When a supplier has its own testing facilities and hires technicians with twenty years of experience working with Hyosung ATM systems, buyers get products that have been checked for fit, function, and durability, instead of just repackaged parts whose origins are unknown.

Customer Success and Market Presence

The fact that the CDU1100 Cash Dispenser is still useful in a market where technology changes quickly shows that it works well in the field. Thousands of modules are still in use across the US, handling millions of transactions every month in stores where broken equipment has a direct effect on the customer experience and the relationships between customers and merchants. Independent deployers keep choosing Hyosung platforms for new installations because they have established parts lines and technicians are familiar with them. This lowers operating risk compared to other platforms that need to create new supply relationships and train staff.

Long-term ties with suppliers are a big part of how stable this environment is. Because RM Technologies has been providing Hyosung parts for five years, the business has seen component obsolescence cycles, dealt with supply chain problems, and learned a lot about typical failure modes and how to fix them. This institutional knowledge is very helpful for fixing complicated problems that can't be fixed by replacing parts. It gives buyers access to technical expertise that helps them with their own work.

Conclusion

In conclusion, the CDU1100 Cash Dispenser module has been tested and shown to work well with Nautilus Hyosung ATM networks. It can hold up to 4,000 bills, can be serviced at the component level, and works with machines from the 1800SE, 2700CE, and Halo series. It's helpful for independent deployers that there are mature parts available for all of their repair needs, from whole modules to individual parts like the clutch assembly (5637000001), channel motor (58403106), and feed rollers (7310000386-6).

Strategic procurement compares the initial cost of equipment to its total ownership costs, which take into account things like the availability of parts, the level of technical support from suppliers, and the frequency of maintenance needs. The module is still on the market because it has been tried and proven to work well in demanding retail settings where uptime and service cost control are key to running a successful business.

FAQ

What is the actual cash capacity of the CDU1100 system?

With two CST-1100 cassettes that can hold 2,000 notes each, the Double 2K Dispenser setup can hold a total of 4,000 notes. This capacity allows for mixed-denomination loading strategies, in which operators assign cassettes to different bill values based on how people withdraw money from different locations.

How does parts availability affect maintenance planning?

Field fixes, instead of module swaps, are possible because many parts are available from sources like RM. Technicians can replace wear parts like rollers, belts, sensors, and the clutch assembly one at a time, which cuts down on service costs and machine downtime compared to platforms that need a whole section to be replaced.

What distinguishes new versus refurbished CDU1100 modules?

Both choices meet operational performance standards. Refurbished units have wear-and-tear parts replaced and go thru strict testing procedures. New CDU1100 Cash Dispenser modules are better for uses that need to follow rules and for growing a fleet. On the other hand, repaired modules are better for established networks that need to save money when making purchases.

Partner with RM for Reliable CDU1100 Cash Dispenser Supply

RM Technologies has been supplying Hyosung parts to businesses for over twenty years and has a lot of experience with ATM parts. Our 3,000-square-meter ISO9001-2008-certified facility keeps a full stock of CDU1100 Cash Dispenser parts, such as complete modules, cassettes (7310000082), control boards (7670000040), and all parts that are needed for maintenance. We offer flexible shipping choices and answer questions 24 hours a day, 7 days a week all over the United States to individual deployers, parts wholesalers, and refurbishment operations.

Our team has the technical knowledge and large inventory that keeps your Hyosung network running, whether you need a single unit delivered right away or a regular supply of a lot of units for fleet repair programs. Get in touch with Tony@atm-part.com right away to talk about your unique needs with experienced CDU1100 Cash Dispenser sellers who know how retail ATMs really work. You can look thru our full catalog of Hyosung parts at atm-part.com and learn how strategic supplier partnerships can lower your total cost of ownership.
