How AFD Dispenser Works in Opteva ATM Systems

In Opteva ATMs, the AFD Dispenser works by following a complex series of mechanical and computer steps that make sure cash is given out correctly. This Automated Flexible Dispensing technology uses precise picker mechanisms to get individual bills from supply bins, transport belts to move money through multiple validation checks, and stacker units to put notes in order before they are given to customers. The main control board of the system manages time, keeps an eye on sensors, and runs error-correction routines to make sure that transactions stay valid even when there are a lot of them.

Understanding AFD Dispensers in Opteva ATM Systems

What Is an AFD Dispenser?

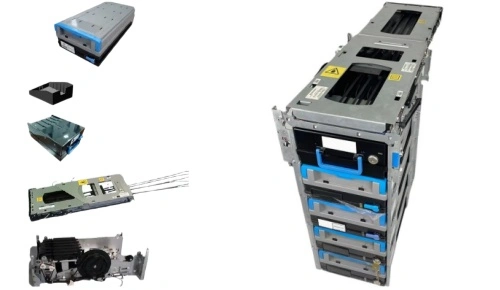

An AFD Dispenser is a flexible cash handling system designed to work with Diebold Nixdorf's Opteva line, which includes types 526, 522, and 5500. Instead of friction wheels, which were used in older pouring systems, these units use active dispensing technology, which picks out and checks each bill individually. The design is made up of supply cassettes that hold money, picker units that separate notes, transport belts that can be anywhere from 620mm to 860mm in length, and reject cassettes that hold bills that aren't good enough. When compared to older systems, this design cuts down on jamming by about 40%.

Core Components and Their Functions

Several important parts work together to make up the operational backbone. Stacker units, with part numbers 49242427000A for AFD 1.6 and 49-211433-000A for AFD 1.5, keep and show bills in the right order. You can separate single notes from stacks of notes with vacuum suction or friction wheels in picker devices (49242432000A for 1.6 versions). Transport parts move money along set lines. They come in different lengths to fit different ATM chassis designs. The main CCA handles sensor inputs and handles motor controllers. It is also the command center. Feed kits make sure that the friction coefficients between the bills and the picker surfaces stay the same. This way, even if the bills are dirty or old, they will still separate reliably.

This combined method solves a problem that ATM owners have had for a long time: keeping the machines online during busy times. In older devices, if one part breaks, the whole machine often stops working. Because current AFD units are built in modules, technicians can quickly swap out broken parts, which keeps machines running and reduces the loss of income.

Step-by-Step Dispensing Process

When the main processor of the ATM sends a withdrawal order to the control board of the distributor, the transaction cycle starts. The system first checks the number of cassettes in stock and then chooses the right set of bills to meet the request. Picker motors start up and use sensors to check the thickness of the bills and make sure there is only one note on each one. As the bills move along the transport line, several optical devices check the amount, look for doubles (two bills stuck together), and see if there are any chain jams (notes that are overlapping). Once money has been checked, it is sent to the stacker, which puts bills in order of appearance. The whole process takes three to five seconds per note, and the stacker door doesn't open until all the bills pass validation checks.

Professional-grade pumps are different from basic types because they can handle mistakes better. If sensors find a double bill, the system sends both notes to the reject tape right away so that buyers don't see wrong amounts. This fail-safe thinking keeps customers trusting financial institutions even if something goes wrong. The reject box (part number 00-103334-000W for AFD 1.6) needs to be emptied every so often as part of regular maintenance. This gives useful information about the quality of the currency and the need for sensor calibration.

Advantages of Using AFD Dispensers Over Traditional Dispensers

Enhanced Accuracy and Reliability

The accuracy of traditional friction-roller devices is about 97% to 98%, which means that about 2 to 3 mistakes happen for every 100 deals. Through multiple checks, AFD Dispenser technology raises this number above 99.7%. Each bill goes through at least two separate sensor arrays. The main CCA compares the thickness readings of each bill to the predicted values for that denomination. This multi-layer validation finds problems that single-point systems miss, like corners that are pulled in or broken bills that have been fixed with tape.

Banks with ATM networks that get a lot of use say that switching to AFD systems makes a difference. 60–70% less downtime is caused by mistakes in dispensing, which has a direct effect on customer happiness numbers. Because AFD systems are under less mechanical stress, maintenance times are longer. The picker's controlled action keeps the sides of bills from wearing down as quickly as they would with continuous-friction designs. This makes money last longer in circulation.

Cost Savings and Reduced Downtime

When purchasing managers look at the total cost of ownership, they find benefits that go beyond the initial purchase price. Because their motor control methods are better, AFD Dispensers use 15 to 20 percent less power than friction systems of the same size. The flexible design cuts the average time it takes to fix something from hours to minutes. A worker can replace a broken transport belt with common tools in less than 10 minutes. This is compared to 45 to 60 minutes for integrated older units that need to be partially taken apart.

Optimizing your inventory is another way to save money. In some setups, AFD cassettes can hold a mix of different denominations of cash. This lets workers change the mix of cash based on transaction trends without having to swap whole cassettes. This makes sure that popular numbers are always available while reducing the amount of capital that is stuck in locker inventory. After extensive AFD deployment, financial companies that manage hundreds of ATMs say that the costs of moving cash have gone down by 8 to 12 percent.

Environmental and Operational Efficiency

Intelligent rest settings are also part of energy-efficient design, which goes beyond motor selection. When a transaction is complete, an AFD dispenser goes into a low-power state. This lowers the temperature output and HVAC loads in indoor setups. This saves about 200 to 300 kWh per machine over its five-year working life, which means it leaves a smaller carbon footprint. Lowering electrical waste is also helped by parts that last longer, since sections like the main CCA can be fixed more than once instead of having to be replaced completely.

During busy times, operational speed shows up as more transactions being processed. AFD units can handle steady amounts of 30 to 40 deals per hour without slowing down, but friction systems often get stuck and need to be reset for a short time. This uniformity is very important in cities with lots of people, where ATM lines have a direct effect on keeping customers.

Installation and Maintenance Best Practices for AFD Dispensers

Installation Guidelines and Precautions

Environmental evaluation is the first step in a proper placement. The best temperature range for AFD Dispensers is between 15°C and 25°C, and the relative humidity should be less than 70%. Too much wetness can make bills stick together and contaminate sensors, and high temperatures can change the viscosity of lubricants in picker mechanisms. For transport units that are 720 mm or longer, the mounting surface must provide solid support to stop alignment drift caused by shaking.

When you integrate electrical systems, you need to pay attention to power quality and grounds. The main CCA works with voltages that are tightly controlled, usually within a ±5% range. When high-inrush devices like blowers share circuits, they can cause voltage drops that set off trouble conditions. Dedicated lines with conductors of the right size stop mistakes that aren't necessary. Technicians should run diagnostic programs that move all motors and sensors through their full range during the initial setup. This is done to check for mechanical clearances and electrical continuity before adding currency.

Routine Maintenance and Troubleshooting

Maintenance times rely on how many transactions happen, but for sites with medium traffic, most operators do checks every three months. Cleaning methods focus on sensor windows because they collect dust and paper residue that makes recognition less accurate. Solvents that are approved get rid of pollution without leaving behind any waste that could lead to more buildup. Picker wheels need to be checked for glaze, which is when bills can't stick to smooth surfaces. When glazing shows up, light abrasion with fine-grit tools brings back the structure.

Transport belt tension needs to be checked using tools provided by the maker. Notes move erratically and get stuck when the belts are too loose, and bearings wear out faster when the belts are too tight. For the AFD 1.6 non-aggressive version, the friction material breaks down over time, so the feed kit (49-204020-000B) usually needs to be replaced every 12 to 18 months in high-volume places. Unexpected failures in operation can be avoided by replacing parts before they wear out during planned upkeep.

Spare Parts Sourcing and Quality Assurance

Long-term dependability is greatly affected by how well the parts work together. If you use fake or unspecified parts, they might fit physically but not meet tolerance standards. This could cause the system to fail early or make mistakes. Authorized sellers make parts to the original specs and often include tracking paperwork that proves the materials used and the accuracy of the measurements. The 30-day warranty on quality parts protects you during the important break-in time, which is when production flaws usually show up.

Keeping track of spare parts inventory strikes a mix between access and capital investment. Items that get worn out quickly, like feed kits and picker parts, should be kept on hand so that they can be replaced right away. Low-failure-rate parts, like the main CCA, can be ordered on demand as long as wait times stay below 48 hours. When distributors give both new and used Products, users can save money while still getting good performance. Used units go through a lot of tests, such as endurance runs that mimic months of use. This makes sure that they are just as reliable as new parts, but cost less.

Making Informed Procurement Decisions for AFD Dispensers

Key Evaluation Criteria

Before agreeing to big orders, procurement managers should make compatibility checks a top priority. The AFD Dispensers 1.5 and 1.6 models are not transferable because their control boards and plug pinouts are not the same, even though they are the same size. Checking the specs of your current ATM models (Opteva 526, 522, or 5500) against those provided by the seller can help you avoid costly compatibility problems. Planning for capacity is based on expected transaction volumes. Sites that process more than 3,000 draws per month benefit from higher-capacity cassette designs that cut down on the number of times they need to be refilled.

The speed of the dispenser changes how customers feel and how the line is managed. Wait times are okay even during busy times because units can process deals in less than 5 seconds per note. Specifications for accuracy should promise success rates of at least 99.5% on the first try and fail rates of less than 0.5%. Metrics that measure durability, such as mean cycles between failure (MCBF), show how often something should be serviced. Professional-grade AFD machines usually get more than 500,000 cycles before they need a major component change.

Supplier Selection and Partnership Criteria

Reliable supply lines set good suppliers apart from great partners. Standard parts have lead times of 15 to 20 working days, which gives maintenance teams time to plan fixes without having to pay extra for urgent shipping. Suppliers who keep both AFD 1.5 and 1.6 versions in stock show that they are committed to providing full service. The speed of delivery is affected by where the warehouses are located, and regional stock points shorten the travel time for urgent orders.

When choosing a provider, you should carefully look at how well they can provide technical help. Help in more than one language is very important for foreign operations where technicians may not speak English well. Video help features allow troubleshooting from a distance, which cuts down on trip costs and speeds up the settlement of problems. A supplier's promise to respond within 24 hours makes sure that problems are dealt with quickly, which cuts down on ATM downtime that hurts income.

Warranty terms and conditions show that the supplier is sure of the quality of the goods. Standard 30-day covering protects against flaws in the materials and the work, and longer choices give buyers who don't like taking risks even more peace of mind. Clever writing down of what the guarantee doesn't cover stops arguments; it usually doesn't cover damage caused by bad fitting, environmental factors, or using consumables that don't work with the product.

Bulk Purchasing Strategies

Volume agreements let you get better prices and make sure that parts will be available when there are problems with the supply chain. Annual contracts with staggered delivery plans balance the need for cash flow with the cost saves from buying things. Buyers should talk about price security clauses that protect them from mid-contract rises in the costs of raw materials, especially for metal parts whose prices change with the price of commodities.

Standardization across ATM lines makes it easier to keep track of supplies and train technicians. A manageable transfer path can be made by focusing on AFD 1.6 design for new deployments while keeping 1.5 support for older machines. Supplier-managed inventory programs give the responsibility of storage to the suppliers, who keep consignment stock at the buyer sites. This helps with cash flow and makes sure that parts are available right away.

Future Trends and Innovations in AFD Dispenser Technology

Emerging Technologies and Smart Features

The newest AFD Dispensers have predictive maintenance algorithms built in. These algorithms look at practical data to guess when parts will break before they do. Machine learning models that have been trained on millions of transaction rounds can find small drops in performance that can't be seen by standard monitoring based on thresholds. This feature allows for condition-based part replacement, which cuts down on maintenance that isn't needed and stops unexpected breakdowns.

IoT connection turns ATMs that are normally alone into networked assets that give real-time operating data. Connected to the cloud, AFD systems send information about how fast they dispense, how often errors happen, and the environment to central tracking platforms. Fleet managers can see how hundreds of machines are acting and find units that aren't working well or new problems that are harming more than one place. Support teams can fix many problems with remote testing instead of sending out techs, which cuts service costs by 30–40%.

Sustainability and Regulatory Compliance

Environmental laws are having a bigger impact on how equipment is designed and bought. Standards for energy efficiency, such as the EPA Energy Star certification for transaction devices, push makers to use lower-power parts and smarter ways to control power. In some places, AFD dispensers that meet these guidelines can get energy rebates, which makes the total cost of ownership estimates better.

Material makeup rules limit the use of dangerous materials in electrical systems. RoHS (Restriction of Hazardous Substances) compliance gets rid of lead, mercury, and other harmful substances from circuit boards and solder joints. This makes reusing electronics easier when they're no longer needed. Environmental approvals are written into vendor contracts by procurement teams that are planning ahead. This makes sure that equipment meets both current rules and expected future rules.

Strategic Preparation for Technology Adoption

Financial companies that want to be leaders in technology should work with providers that have a history of coming up with new ideas. When vendors put money into research and development and keep their promises of backward compatibility, it's easy to upgrade as new features come out. Joining industry working groups and standards organizations shows that you support openness and will do so for a long time.

Adoption risks are lower when new technologies are tested in controlled settings through pilot projects. By putting next-generation AFD units in a sample of relevant places, you can see how they work in the real world before rolling them out to the whole fleet. Structured feedback methods record the experiences of technicians and customers, which helps improve things before they are used by more people. This methodical technique weighs the advantages of new ideas against the need for operating stability.

Conclusion

Comparison to older methods, AFD Dispensers in Opteva ATM systems show clear improvements in accuracy, dependability, and operating efficiency. Procurement and technical teams can get the most out of their investments by understanding their design, how they work, and what care is needed. The modular design of the AFD 1.5 and 1.6 versions lets you choose how to set them up and makes repairs easier by letting you change parts one at a time.

As useful as the gear itself is having strategic relationships with suppliers that make sure parts are available, there is expert support, and prices are low. As dispensing technology moves toward predictive maintenance and IoT integration, companies that build strong partnerships with their vendors and use uniform platforms will be better able to quickly adopt new technologies while keeping their current investments safe.

FAQ

What distinguishes AFD 1.5 from AFD 1.6 dispensers?

The main changes are in the design of the control boards and the technology used for the sensors. The main CCAs in AFD 1.6 units have been improved with faster processors and better error detection algorithms (part number 49-242480-000A/B/E/M). Some mechanical improvements are better picker designs and feed kits that last longer. While both versions work successfully with Opteva platforms, the 1.6 version is about 15% more accurate in tough situations like worn money or damp places.

How often should feed kits be replaced?

Replacement times vary on the number of transactions and the state of the cash. Sites that handle more than 5,000 deals per month usually need to update their feed kits every 12 to 18 months. In places with less traffic, this could be extended to 24 months. Some warning signs are higher reject rates, finding double bills more often, or picker touch areas that are clearly worn down. The non-aggressive feed kit (part number 49-204020-000B for AFD 1.6) works best in most situations, but there are also aggressive models for places where the currency is very worn.

Can refurbished dispensers match new unit performance?

When properly restored, high-quality used AFD Dispensers work just as well as new ones. The process includes full testing, replacing worn-out parts, and confirming that the results match the original specs. Reliable sellers usually cover refurbished units with guarantees that last 30 days, the same length of time as a new component. Refurbished choices are good for people on a budget or who need to support an older system because they save them 30 to 40 percent. To make sure dependability, companies should make sure that the refurbishment process includes major CCA testing, replacing transport belts, and inspecting the picker assembly.

Partner with RM for Reliable AFD Dispenser Solutions

RM has been a specialist in ATM parts for more than 20 years. Our 3000 sq. m center in Shenzhen provides full AFD Dispenser support. We have both new and used AFD 1.5 and 1.6 units in stock that work with Opteva 526/522/5500 systems. All of them come with 30-day warranties and are certified by ISO9001-2008. We keep enough stackers, pickers, transport parts, and main CCAs in stock so that normal orders can be delivered in 15 to 20 days.

Our technical team speaks multiple languages and is available 24 hours a day, 7 days a week through online and video methods to help your repair staff quickly fix problems. RM provides the quality and service that keep your ATM network running, whether you need single repair parts or full dispenser units. Contact Us at Tony@atm-part.com to talk about your needs with an expert AFD dispenser seller who knows what high-volume financial operations need.
