Best F53 Top Unit Replacement Options for Fujitsu F53 Systems

When an ATM goes offline, every minute counts. If you manage Fujitsu F53 or F510 series machines, the dispensing module at the top of your bill transport path is often the first component to show wear. The F53 top unit — part number KD03235-C224 — is the friction-based pick-and-separate assembly responsible for pulling banknotes cleanly from the cassette stack and delivering them downstream. Choosing the right replacement directly determines whether your ATM network stays profitable or bleeds cash through avoidable downtime.

Understanding the F53 Top Unit: Features and Functionalities

What the Module Actually Does Inside a Fujitsu F53?

When the Fujitsu F53 bill issuing unit works, it does so in a chain. The Top Unit separates and moves individual bills, the Main Unit picks up notes from the cassette, and the final-stage presenter, which is usually identified by the part number KD03300, moves valid notes to the exit bezel. If any link in this chain breaks, the whole transaction cycle stops.

The F53 top unit has a friction roller system that reliably separates single bills, even when the state of the bills changes. This is needed in real life for high-traffic areas like supermarkets, casinos, gaming places, and hotel kiosks. Because the unit connects directly to the F53/F510 system bus, it must be compatible in terms of both size and power.

Some important parts of the F53 module ecosystem are:

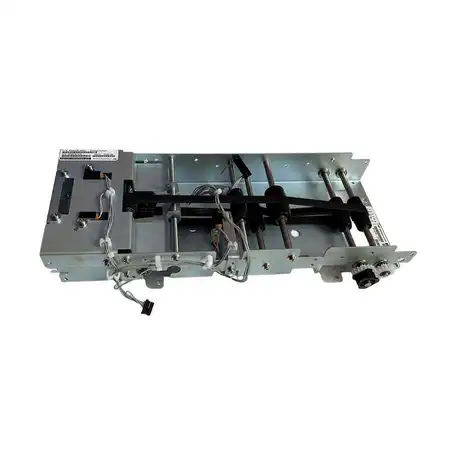

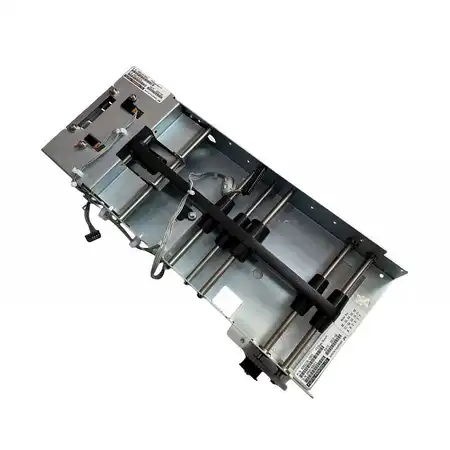

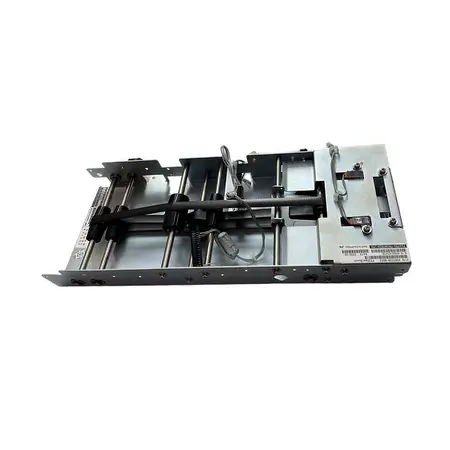

• Top Unit — KD03235-C224: The primary pick-and-separate assembly; the focus of this guide.
• Spray Unit — KD03235-C002: Delivers controlled airflow to assist note separation in humid environments.
• CGR Spray — KD03235-C003: A variant calibrated for higher-denomination, thicker-stock currencies.
• Spray R Unit — KD03235-C102: Right-side spray complement for dual-track configurations.
• USCAN Spray Unit — KD03235-C005: Optimized for U.S. cotton-linen banknote stock characteristics.
• Tray F Unit — KD03236-C002: The feed tray interface between cassette and transport path.
• Semi Bunch Unit — KD03236-C006: Manages partial-bundle dispensing in high-denomination scenarios.
• IBM TOP Unit — KD03235-C004: A cross-compatible variant serving IBM-branded Fujitsu-based platforms.

Repair costs can be cut by a lot if you can figure out which part is broken instead of rebuilding the whole section.

Challenges with Fujitsu F53 Top Units and Maintenance Tips

Diagnosing the Most Common Failure Patterns

There are three main problems that techs report: feed mistakes, double-picks, and jam codes. Most of the time, feed errors are caused by friction rollers that are worn out or roller surfaces that are dirty from dust and currency debris. Double-picks, in which two notes hit the transport line at the same time, show that the separation pad is no longer working properly. It's important to look at the note path visually before getting a replacement because jam codes are often caused by misplaced guide plates instead of the roller assembly itself.

A disciplined maintenance schedule can significantly increase the service life of modules. Every 30,000 deals or every three months, whichever comes first, clean the roller surfaces with isopropyl alcohol. At each planned PM visit, check the divider pad. Log jam codes by error code instead of symptom—Fujitsu's diagnostic tool gives you detailed fault data that helps you tell the difference between a sensor problem and a mechanical one.

If you need to change the module, make sure you know what version of software is on your F53 controller board before you put in the new unit. For some early versions of the F510, refurbished assemblies need to be properly recognized, which is a step that many field engineers don't realize they need to do.

Comprehensive Comparison of F53 Top Unit Replacement Options

New vs. Refurbished: A Practical Cost-Benefit View

This is a trade-off that procurement teams always have to make. When ordered through Fujitsu's official parts channel, OEM-new units have the longest lead times and cost the most up front. Third-party new pieces from well-known brands offer a medium ground, with factory-fresh parts priced 30–50% less than OEM prices. When professionally refurbished units go through a recorded test cycle, they are the most cost-effective choice for users who change modules often. For the F53 top unit matching the sourcing tier to your uptime requirements and budget keeps the trade-off manageable.

The testing method is the most important thing that sets a refurbished unit apart from a risky one. Before sending out any restored parts, a reliable seller should make sure that each one has been functionally cycled, roller wear measured, and sensor calibration checked. If there is no proof of QC traceability, a discounted module may cost a lot more in extra work and downtime than it saves.

Pricing clarity is just as important. It's easy for procurement managers to plan their quarterly maintenance budgets when suppliers offer tiered bulk prices with clear break points at 5, 10, and 20+ units.

How to Choose the Best Replacement F53 Top Unit for Your Business?

Aligning Procurement Criteria with Operational Reality

The best replacement for you will depend on your place in the supply chain for ATMs. An independent ATM deployer with 50 machines spread across several places needs to know that they will always have stock and that they can get technical help during the 30-day warranty period. A regional distributor that sells to end users needs a provider that can handle both T/T and L/C payment terms, as well as flexible volume prices and neutral packaging choices. A repair shop needs test results that are well-written, calibration choices that are right for the job, and a source that will work with them on low-volume prototype orders before they commit to large orders.

Here are the main factors for review that should be used to base every sourcing decision:

• Confirmed compatibility with your specific F53 or F510 firmware version, not just the mechanical fit.
• Documented QC process — ideally with ISO-certified production oversight and traceable lot numbers.
• Realistic lead time that matches your buffer stock strategy; 15–20 working days is standard for stocked items.
• Accessible post-sale support via online or video channels, particularly valuable when field engineers encounter installation anomalies.
• Flexible shipping options — sea, air, and land freight availability lets you match logistics cost to urgency.

In the long run, these criteria protect the return on investment (ROI) of your ATM network and lower the risk of buying new ones. For the F53 top unit, that means matching the sourcing tier—OEM-new, third-party new, or professionally refurbished—to your uptime requirements, budget, and service cycle, so every replacement decision supports long-term network performance rather than short-term savings.

Trusted Suppliers and How to Procure F53 Top Units with Confidence

Why Supplier Depth Matters Beyond the Initial Purchase

Getting a single unit from a seller you don't know is easy. A different way of evaluating suppliers is needed to build a reliable supply chain that includes all of your F53 parts, such as the Tray F Unit KD03236-C002, the Semi Bunch Unit KD03236-C006, and the presenter-stage parts.

Hong Kong RONG MEI TECHNOLOGY CO., LIMITED (RM), which was founded in 2008 and has a 3,000-square-meter office in Shenzhen, has been selling F53-series modules for more than five years and has an ISO9001-2008 quality system certification. RM always has the KD03235-C224 Top Unit in stock, both brand-new and refurbished. It comes with a 30-day guarantee and online technical help that is available 24 hours a day. The company makes more than 80% of all ATM modules on the market today. This means that you only need to deal with one supplier to get all of your Fujitsu parts, instead of having a bunch of different ones. You can ship by boat, land, or air freight, depending on when you need the goods. Go to atm-part.com to see what's in stock and how much it costs.

Conclusion

The F53 top unit is a precision part where making the wrong choice about where to get it quickly causes operational problems. The choice that makes the difference between a well-run ATM business and a reactive one is matching the part number (KD03235-C224 or the right variant from the ecosystem) to a supplier with proven quality control, reasonable wait times, and real after-sale support. The buying strategy is the same whether you are in charge of five machines or five hundred. Put documented quality and supplier volume ahead of the lowest unit price.

FAQ

What is the part number for the standard Fujitsu F53 top unit?

Part number KD03235-C224 is for the stock unit. In the same module family, the Spray Unit (KD03235-C002), the CGR Spray (KD03235-C003), the Spray R Unit (KD03235-C102), the USCAN Spray Unit (KD03235-C005), the IBM TOP Unit (KD03235-C004), the Tray F Unit (KD03236-C002), and the Semi Bunch Unit (KD03236-C006) are all related parts.

How long does it take to receive a replacement unit?

The usual lead time from RM is 15 to 20 business days. Items that are in stock ship more quickly. Make sure you're available when you ask about urgent sales.

Is a refurbished F53 module reliable enough for production use?

Yes, as long as it has been through a written functional test cycle that checks for things like roller wear, sensor accuracy, and transport path alignment. RM's used units come with the same 30-day guarantee as their brand-new ones.

What is the difference between the Top Unit and the presenter unit KD03300?

Notes from the cassette are picked out and put into groups by the Top Unit. The presenter unit (KD03300) is the last part of the process. It takes validated notes from the Main Unit to the customer exit bezel. They have different roles in the chain of distribution.

Can RM supply the full F53 parts ecosystem, not just the Top Unit?

Yes, RM covers more than 80% of current ATM module types and can provide the full range of F53/F510 components through a single purchasing route.

Source Your F53 Top Unit Through RM — Request a Quote Today

RM sells the F53 top unit both brand new and refurbished. It comes with a 30-day guarantee, is made in a factory that is ISO9001-certified, and has online help available 24 hours a day. RM is a dedicated F53 top unit provider that has been making ATM parts for over 20 years. They offer reasonable bulk prices, flexible shipping, and full ecosystem coverage for Fujitsu F53 parts. To start the sourcing process, email Tony at Tony@atm-part.com.
