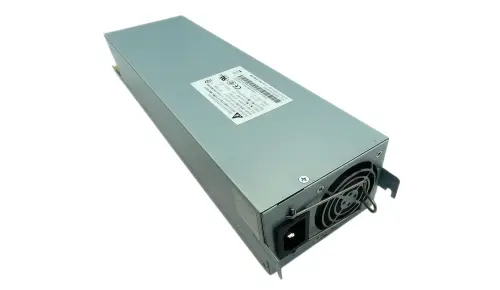

Best 600W 24V Power Supply for NCR SelfServ ATM Guide

The 600W PSU is the finest power supply for NCR SelfServ ATMs for banks and service providers seeking dependability and affordability. This industrial switch mode power supply provides a consistent 24V DC output for cash dispensers, card readers, and thermal printers. These devices reduce energy waste and accommodate different grid situations with universal AC input 90-264V and active power factor adjustment over 0.95. To maximize uptime and ROI, this handbook helps procurement managers and ATM technicians negotiate technical specifications, compatibility requirements, and supplier selection.

Introduction

​​​​​​​

Each NCR SelfServ ATM deployment relies on its power source. Even modern cash dispensing and security systems fail without steady, controlled power delivery. US banks are under pressure to maintain 24/7 ATM operation while reducing maintenance costs. Power solutions that combine performance, durability, and affordability are essential.

Our detailed study examines the 600W 24V PSU in NCR SelfServ ATM operations to address these issues. We provide banks, ATM operators, equipment distributors, and service firms relevant insights from 20 years of manufacturing expertise. Analysis includes technical requirements, procurement methods, performance optimization, and maintenance best practices. Readers will learn how to assess supplier trustworthiness, read warranty conditions, and take preventative actions to extend equipment lifespan and lower TCO.

Understanding the Role of a 600W 24V Power Supply in NCR SelfServ ATMs

Why 24V Output Voltage Matters for ATM Components?

NCR SelfServ ATMs power cash dispenser motor assemblies, security sensors, and communication modules using 24V DC. This voltage level powers mechanical processes while protecting sensitive electronics. The 600W 24V PSU capacity provides enough power even at peak demand when many subsystems perform transactions concurrently. The switch mode power supply uses high-frequency switching to manage 24V DC from AC voltage. This method is more efficient than linear power supply, lowering ATM enclosure heat. Lower heat stress increases component lifespan and reduces field deployment failures.

Key Specifications That Define Power Supply Reliability

Mean Time Between Failures (MTBF) above 100,000 hours at 25°C indicates 600W PSU dependability. The unit should run consistently for over 11 years under regulated settings before statistical failure probability grows appreciably. Active Power Factor Correction (Active PFC > 0.95) reduces reactive power losses and operating expenses for high-volume ATM deployments by optimizing grid current consumption for 600W PSU.

The 90-264V AC input voltage tolerance addresses grid variations in various installation situations. This wide input range benefits drive-up ATMs exposed to harsh outside temperatures and isolated kiosks with shaky power infrastructure. Multi-region ATM operators can simplify inventory management by eliminating voltage-specific equipment with universal input.

Protection Circuits Essential for ATM Electronics

OVP, OCP, and SCP protect pricey ATM logic boards and dispenser controllers. This circuit detects abnormal operating conditions and starts protective shutdown processes before harm. Industrial-grade ATM power supplies provide these qualities, unlike consumer electronics components unsuitable for mission-critical banking.

Hold-up period over 16 milliseconds stabilizes output voltage during brief AC mains disruptions, enabling UPS battery backup system changeover. This standard is useful during power outages caused by electrical storms or grid switching. ATM shutdowns mid-transaction without enough hold-up time dissatisfy customers and require expert intervention to fix.

How to Choose the Best 600W 24V Power Supply for NCR SelfServ ATM?

Evaluating Operational Environment Requirements

ATM deployment conditions vary greatly in temperature, humidity, and power quality. Climate-controlled bank branches offer steady conditions for through-the-wall installations to work well. Local and seasonal temperatures might range from -20°C to 50°C for drive-up units. Nearby refrigeration or HVAC units may cause electrical noise in retail kiosks.

When defining the 600W 24V PSU requirements, procurement managers must consider these environmental considerations. Outdoor NCR SelfServ 6634 and 6638 units need improved heat management and conformal coating on circuit boards to withstand moisture infiltration. These demanding application demands are addressed by part number 009-0028273's sturdy construction and extended working temperature ranges.

Certification and Compliance Standards

UL 60950-1 safety standards guarantee the power supply passes stringent electrical insulation, fire resistance, and user protection tests. This certification certifies that interior components, including fuse type 009-0023731 (5 X 20MM Time Lag) and fuse holder 009-0023431, fulfill enclosed ATM architecture safety standards. CE certification ensures compliance with European electromagnetic compatibility standards for U.S. operators buying overseas equipment.

RoHS limits lead, mercury, and cadmium in production. Organizations adopting sustainable operations choose RoHS-compliant components because environmental rules increasingly affect equipment disposal. These certifications ensure the power supply has been independently verified rather than depending on manufacturer claims.

Supplier Evaluation Criteria for B2B Procurement

Field concerns can be solved by building partnerships with providers that provide thorough technical assistance for the 600W PSU. ATM downtime during urgent conditions is reduced by 24-hour inquiry and online support vendors. International equipment operators handling different geographic deployments benefit from multilingual assistance.

Lead time consistency affects inventory and emergency replacement. Standard delivery windows of 15-20 working days allow procurement teams to store enough spare parts without wasting funds. Suppliers of new and reconditioned machines in great condition allow financial limitations to be balanced with reliability. Comprehensive sub-module support, including AC Switch Latch 445-0710941, simplifies maintenance by simplifying vendor connections.

Comparing 600W 24V PSUs: What Sets the Best Apart?

Power Capacity Considerations and Future-Proofing

Normal NCR SelfServ ATM power usage is 300-400W, hence the 600W 24V PSU rating gives significant headroom. This overhead supports anti-skimming equipment, increased security cameras, and advertising displays without voltage sag. 650W or 700W units add little to most common systems but increase upfront expenses and enclosure size.

High power capacity may not increase dependability and may harm efficiency at low load percentages. At 50-80% capacity, switch mode power supplies peak efficiently. An enormous 750W unit at 40% load is less efficient than a correctly designed 600W unit at 60% load. This efficiency advantage builds over years of operation, saving huge ATM fleets energy costs.

Modular Design Benefits for Service Operations

Instead of replacing full units, modular power supply topologies allow sub-component replacement, lowering spare parts inventory costs and waste. Instead of unit swaps, service personnel like diagnosing and replacing modules on-site. Sustainable maintenance and lower operational costs across the equipment lifespan are achieved with this design concept.

Simpler non-modular designs have fewer connections and failure sites. Modularity versus simplicity depends on organizational maintenance and service infrastructure. Organizations with trained technical personnel and extensive parts inventory favor modular systems, whereas swap-and-replace maintenance routines may prefer integrated designs.

Thermal Management and Cooling System Design

Effective thermal control affects power supply dependability and lifetime. Units with temperature-controlled variable-speed fans decrease low-load acoustic noise and maintain airflow at peak demand. The metal chassis shields EMI and dissipates heat using convective and conductive thermal channels. Internal component configuration affects thermal performance and serviceability. Good designs place heat-generating components like rectifier bridges and switching transistors near ventilation lines to enhance cooling. Electrolytic capacitors, which fail at high temperatures, should be placed in cooler interior areas to increase operational longevity beyond the MTBF standard.

Procurement Insights: Where and How to Buy Reliable 600W 24V PSUs for NCR SelfServ ATMs?

Navigating the Supply Chain Landscape

Financial institutions and ATM operators must choose alternative power supply solutions. OEM parts are guaranteed to work but cost more and take longer. Affordable aftermarket 600W 24V PSUs meet or exceed OEM specs and offer speedier delivery and flexible buying terms. With 20 years of ATM component manufacturing experience, HONGKONG RONG MEI TECHNOLOGY CO., LIMITED represents the aftermarket supplier model. With 3000 square meters of mold rooms, injection molding departments, and quality control systems, this Shenzhen factory has the capacity to provide dependable replacement parts. ISO9001-2008 accreditation and ERP integration enable production quality control.

Verifying Supplier Credentials and Product Authenticity

In the ATM parts business, counterfeit components can cause catastrophic failures and safety issues. Supplier facility audits, product sample testing, and certification document validation are required by procurement teams. Reliable suppliers offer clear production information and answer technical questions about component sourcing and quality assurance. Supplier professionalism is shown by thorough technical specifications, part numbers, dimensional drawings, and performance test data for the 600W PSU. Products provided with detailed installation, safety, and troubleshooting instructions show dedication to client success beyond the first purchase. Suppliers with large inventories of fuses, connections, and mounting hardware simplify maintenance.

Warranty Terms and Post-Sale Support Structure

Basic 30-day warranty covers manufacturing problems and early failures. Procurement managers should explain warranty claim documentation, return shipping, and replacement turnaround timeframes. Online help is useful for installation difficulties and warranty diagnostic error code interpretation. Volume purchases or long-term supply agreements may extend warranties. These programs shift risk from operators to suppliers and estimate maintenance budgets. For individual ATM deployment situations, the economic analysis should evaluate warranty costs against predicted failure rates and replacement part prices to establish the best risk management method.

Ensuring Optimal Performance and Longevity of Your 600W 24V PSU in NCR SelfServ ATMs

Load Balancing and Power Distribution Best Practices

Distributing load across power supply output rails avoids localized stress that promotes component aging. ATM system designers should spread demand for high-current equipment like dispenser motors and bill validators across many output circuits. This practice lowers voltage drop and balances the 600W 24V PSU thermal loads, preventing operating mistakes.

Periodic load testing ensures power consumption is within design specifications and discovers efficiency improvements. Monitoring equipment that measures voltage stability, current demand patterns, and power factor detects problems before they fail. Documenting baseline performance parameters allows comparison analysis that shows steady decline necessitating preventive maintenance.

Maintenance Schedules and Inspection Protocols

Visual examination of cooling fan performance, electrical connection security, and output voltage correctness should be routine maintenance. Airflow channels are blocked by dust and debris, raising internal working temperatures and lowering component longevity. Scheduled ATM service includes compressed air cleaning of intake vents and fan assembly to prevent thermal breakdowns.

Electrolytic capacitor condition evaluation is essential for preventative maintenance. Electrolyte evaporation gradually raises equivalent series resistance and decreases capacitance in these components. Replace every five to seven years to avoid ripple voltage instability that damages sensitive devices. This precaution is justified by the modest cost of capacitor replacement compared to power supply or ATM motherboard failure.

Environmental Controls and Installation Considerations

Ambient temperature control affects power supply reliability and efficiency. Outdoor ATM enclosures should have appropriate ventilation to minimize summer overheating. In winter, northern climes may need heating devices to maintain minimal working temperatures. Remote telemetry systems allows proactive intervention before thermal stress causes component failures by monitoring enclosure temperature. Grounding integrity impacts safety and electromagnetic compatibility. Ground loop generation causes noise in sensitive signal circuits and shock dangers. Proper grounding pathways avoid this. Ground connection resistance is verified periodically to prevent faults and comply with electrical code.

Conclusion

Technical characteristics, supplier reliability, and total cost of ownership must be considered when choosing a 600W PSU for NCR SelfServ ATM deployments. The 600W capacity provides enough headroom for conventional designs while being efficient and cost-effective. Essential features including universal input voltage range, active power factor adjustment, and extensive protective circuits allow dependable operation in different deployment scenarios. Credible suppliers with technical assistance, flexible delivery choices, and transparent quality assurance systems are essential for procurement success. Proactive maintenance and environmental management extend power supply life and ATM network availability.

FAQ

What symptoms indicate a failing power supply in NCR SelfServ ATMs?

Power supply degradation is indicated by random reboots during transaction processing, voltage instability-related device status errors on the cash dispenser, and complete inability to power on despite AC mains connection. Burning smells or unusual fan sounds require prompt examination and replacement.

Is the 600W PSU compatible with older NCR ATM models outside the SelfServ line?

Pinout, form factor, and voltage rail requirements determine compatibility. The 600W PSU and the SelfServ architecture use clever harness systems and connection designs. Retrofitting mismatched power supplies using adapters is unsafe and violates warranties.

How does Active PFC benefit ATM operations?

Active Power Factor Correction minimizes reactive power losses and harmonic distortion by efficiently drawing electricity from the grid. This efficiency minimizes ATM enclosure heat, lowers energy costs for big machine fleets, and enhances backup generator compatibility during power outages.

What replacement interval should organizations plan for ATM power supplies?

MTBF values indicate long operational life, however proactive replacement every five to seven years reduces electrolytic capacitor aging risk. This preventative strategy permits regular maintenance during low-traffic hours and eliminates unexpected failures during high transaction periods.

Partner with RM for Reliable ATM Power Supply Solutions

For ATM availability, power supplies must be designed for financial industry settings. With over 20 years of ATM component experience, RM provides ISO9001-2008-compliant 600W PSU solutions. We provide switch mode power supplies with universal AC input, active PFC over 0.95, and MTBF over 100,000 hours. New and reconditioned devices provide 30-day warranties and multilingual online support. Our Shenzhen factory supplies over 80% of ATM modules and components, from whole machines to spare parts. As a renowned supplier, we customize for market needs and maintain available inventory with 15-20 working day ocean, land, or air delivery. Contact Tang@atm-part.com to discuss ATM power supply needs and how our solutions improve uptime and lower costs.
