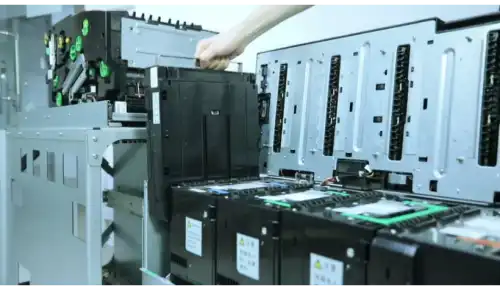

9250N Recycler Cassette System and Capacity Overview

The 9250N Recycler cassette system represents a sophisticated cash handling solution specifically engineered for H68V ATM platforms, featuring a modular architecture that supports up to five recycling cassettes with total capacity exceeding 10,000 notes. This enterprise-grade system processes transactions at 8-12 notes per second while maintaining UL 291 Level 1 security standards, delivering reliable performance for financial institutions seeking to optimize cash management operations and reduce operational costs.

Understanding the 9250N Recycler Cassette System

The cassette design is the main part of current technology for recycling cash. Each part does its own thing to make sure that transactions go smoothly and that the system is safe.

Core Cassette Components and Their Functions

The system is made up of several specialized cassettes that work together. When cash comes in, the Deposit Cassette (YT4.029.1066) stores it. The Recycling Cassette (YT4.029.0799), on the other hand, handles the note recycling system that makes stored currency instantly usable for withdrawal deals. By cutting down on how often armored cars are used, this closed-loop method dramatically lowers cash-in-transit costs.

When deals fail or notes can't be checked, the Lost Reject Box (YT4.029.0900) saves them safely until they can be looked at again later. During high-volume operations, the Component Module (YT4.029.0888) provides important supporting mechanisms that keep the structure's integrity. This modular separation makes it possible for maintenance teams to work on individual parts without affecting the whole system. This is an advantage of the design that cuts down on downtime during regular inspections.

Note Transport and Processing Architecture

The transport system moves money precisely thru the processes of checking and storing it. The MNTL Central Transmission (YT4.029.0963) controls the transport of notes and works with the DNTL Lower Transmission (YT4.029.0962) to handle routing at the lower levels. The critical note picking mechanism is run by the Lower Transmission Picker NT (YT4.029.0949), which consistently picks out individual bills from stacks.

The Upper Module NT-R (YT4.029.0930) is the upper processing unit where initial checking takes place, and the Front Lower Transmission DNT (YT4.029.0932) controls the front transport. The DOWN NOTE TRANSPORT-RIGHT (YT4.029.0932) controls the right-side transport processes and makes sure that bills move thru the system without getting stuck or out of place. Each moving part uses long-lasting polymer bands that can handle the roughness of used money, which increases their useful life even when they are used all the time.

Electronic Control and Validation Systems

The Dispenser Top Control Board (YT2480.0485) is the center of the electrical control system. It manages how the mechanical parts talk to the main banking software. The NV Power Supply Control Board (YT3.691.0374/301010939) manages power and makes sure that all units get stable electricity even if power changes outside the board.

The note feeding system is run by the NFS Module (YT4.029.0935), which also controls how fast bills enter the validation pathway. The Note Validator SNV3 (YT4.029.106) uses magnetic, UV/IR, and thickness sensors, along with multi-spectrum technology, to check the authenticity of money. This validation technology almost never rejects valid notes, so real ones are rarely turned down. This directly makes the customer happier at the point of sale.

Because it works with Windows 10, the system can connect easily to core banking platforms using XFS drivers, which lets you watch transactions in real time and do remote diagnostics. This integration feature is helpful for organizations that are in charge of more than one location, since centralized monitoring cuts down on the need for technical visits to each location.

Capacity Overview and Performance Specifications

Understanding capacity measures helps procurement teams match the skills of tools with the needs of operations. The specs have a direct effect on both how well the product works right away and how much it costs in the long run.

Throughput Rates and Volume Handling

The 9250N Recycler works with 8 to 12 notes per second for both depositing and withdrawing money. This working speed means that a 40-note transaction can be finished in about 4 to 5 seconds, not counting the time it takes to talk to the customer. During busy banking hours, this throughput capacity cuts wait times by a lot compared to when tellers did everything by hand.

All cassettes can hold more than 10,000 bills, but the actual capacity depends on the condition of the notes and the mix of denominations. New bills take up less room than used circulation notes, which changes the total amount of space that can be stored. The five-cassette setup lets banks set aside certain cassettes for high-demand amounts, making the most of the cash available based on how transactions are handled at each site.

The system stays online 99.9% of the time thanks to advanced auto-recovery mechanisms that clear up small problems without any help from a person. When a note is misfed, sensors find it, change the direction of movement, and try the process again. This ability to fix itself takes care of most temporary problems; only real mechanical problems need to be fixed by a person.

Physical and Operational Parameters

The UL 291 Level 1 safe enclosure meets the strict standards of the banking industry for physical security against attempts to break in. The safe is made of certain metals and has locking mechanisms that have been tested for penetration resistance. This keeps the money inside safe from both thermal and mechanical attacks.

Power use stays low compared to processing power, but exact numbers depend on the number of transactions and the amount of time that the system is not being used. When the system is not being used, it goes into low-power modes. This saves energy without slowing down response times when activities start up again.

The unit is good for branch sites with limited floor space because it has a small size compared to its capacity. Standard doorways and lifts can fit thru the equipment's dimensions, making installation easier even in older buildings that weren't built with current self-service equipment in mind from the start.

Comparing Cash Recycling Solutions in the Market

Looking at other options helps you understand where this technology works best and where it falls short. Comparing things with more knowledge helps you make better buying decisions that meet the needs of your business.

Performance Advantages Over Earlier Models

This age of cash recovery systems is more accurate at validating transactions and works faster than older ones. Previous models sometimes had trouble with highly worn bills, which made customers angry when legal bills were refused. The better sensor collection in today's systems greatly lowers these false rejections while still protecting against fake approval.

The modular cassette design is an improvement over older systems that were fixed in their layout. In order to service older units, they had to be taken apart completely. With today's modular design, technicians can reach and service individual parts. This change to the design shortens the time between maintenance windows for routine tasks from hours to minutes. This makes scheduled service less disruptive to operations.

Auto-recovery systems have gotten smarter and can now handle a wider range of jam situations without any help from a person. Earlier systems often needed a technician to be sent to fix problems that newer models can fix themselves, which cuts down on the number of service calls and the costs that come with them.

Addressing Common Limitations

There are pros and cons to every device. While the five-cassette arrangement has more space, it needs to be balanced more often in places where demand for different denominations is uncertain. The recycling method works best in places where transaction patterns are stable and predictable. Places where transaction patterns are very variable, on the other hand, might have occasional shortages of certain denominations that need to be filled by hand.

The initial investment costs are higher than those of basic ATMs that only accept cash. However, within 18 to 24 months, the total cost of ownership estimates usually favor recyclers because they have lower CIT costs and can re-assign workers. Based on their own cost structure, institutions must decide if the number of transactions justifies the initial investment.

Every three to six months, the system needs to be serviced so that the sensor lenses are free of paper dust and ink waste. Even tho it's not too much, this upkeep is more than what smaller dispense-only units need. However, this regular maintenance is closely linked to long-term performance and acceptance rates over the lifecycle of the equipment.

Maintenance, Troubleshooting, and User Guidance

Maintaining equipment properly keeps it working at a high level and extends its life. Knowing what routine care needs are, like those for the 9250N Recycler, helps institutions plan their resources and keep downtime to a minimum.

Routine Inspection and Preventive Care

On a regular basis, one of the most important things to do is clean the camera lenses. Paper dust and print residue build up on validation sensors, making it harder for light to pass thru and raising the number of fake rejections. To clean, you have to go into the validation room and wipe the lenses with approved materials. If you do it right, the process takes about 15 to 20 minutes.

Inspection of transport belts finds wear before they break. A visual inspection shows signs of wear and tear like fraying, glazing, or material degradation that means it's time to replace it. When belts are replaced as part of regular maintenance, they don't break down during work hours, so help is always available.

Testing the cassette system makes sure that the locking shutters and transport connections work smoothly. These mechanical parts are put in and taken out thousands of times, and over time they wear out and become out of alignment. Finding and fixing alignment problems quickly stops bigger problems from happening that could damage money or slow down the transportation system.

Common Issues and Resolution Steps

Traffic jams are the most common operational problem. The system has visual guides on the operator screen that show where the jam is and how to clear it. No special tools are needed to clear most jams; all that needs to be done is open certain transport gates and remove the note that is blocking them. Authorized staff can clear simple jams, saving technician dispatch for jams that happen often or are hard to clear.

Patterns of validation refusal can sometimes be caused by sensor calibration drift instead of real currency problems. When the number of rejected notes goes up for notes that were previously accepted, sensor recalibration often gets things back to normal. Even tho the system can self-calibrate, larger drifts that are outside of the automatic adjustment range can be fixed by trained professionals manually calibrating the system.

Communication problems between the control board and the host system can sometimes stop things from working. Most of the time, these problems are caused by problems connecting to the network, not by hardware failure. Most connectivity problems can be fixed without replacing hardware by checking network connections and starting up communication services again.

Professional Support Access

RM offers technical help in multiple languages thru online and video direct support to clients in different parts of the world. This structure of support is especially helpful for organizations that work in many countries with different official languages. Remote tests can often find problems without having to go to the site, which speeds up the time it takes to fix them.

The 30-day guarantee protects against problems right away and covers both brand-new and used units that are in great shape. Online support is still available after the warranty time is over. This makes sure that institutions can get professional help for as long as the technology lasts. This ongoing support relationship helps make sure that uptime and performance are always at their best.

Procurement Insights and Strategic Considerations

Strategic procurement looks at more than just the initial purchase price. It also looks at the total cost of ownership, how reliable the supplier is, and how long they can provide support. In the end, these factors decide how well a project does.

Evaluating Supplier Credentials and Capabilities

Since more than 20 years ago, RM has been making ATM parts, including the 9250N Recycler, and their quality control systems are certified by ISO9001-2008. The business has a 3,000-square-meter building with mold rooms, departments for injection molding, maintenance teams, and quality control departments. This unified infrastructure meets the needs of both production and service after the sale.

More than 80% of the ATM modules and parts on the market are sold by this company. They offer a full range of Products, from whole machines to individual extra parts. This large inventory makes procurement easier by combining relationships with many suppliers, which is a big plus for organizations that have to manage environments with multiple vendors.

For module-based sales, lead times are usually between 15 and 20 working days, and answers to inquiries are given within 24 hours. These times are better than the wait times given by original equipment manufacturers, which are usually 6 to 8 weeks for specific parts. Faster delivery helps with both planned replacements and emergency repairs, which keeps operations running as smoothly as possible.

Warranty and After-Sales Service Value

Long-term running costs are directly affected by things like warranty coverage and the supply of parts. The 30-day warranty protects you right away, and the fact that parts are always available means that the product will continue to work after the guarantee ends. Institutions should make sure that parts will be available before they buy them, because equipment that works without discontinued parts may become useless.

Customization options, such as changing the technology and language settings, meet the needs of each market. This adaptability is helpful for businesses that operate in many different areas, each with its own set of rules and customer tastes. It's cheaper to develop software when you can change existing modules instead of making completely new ones.

There are different levels of urgency and price limits for sea, land, and air travel. Institutions can weigh the costs of shipping against the speed of delivery based on whether the orders are for routine restocking or urgent replacements for broken parts.

Total Cost of Ownership Analysis

The main financial benefit of recycling technology is lower cash-in-transit costs. By using deposited cash to make withdrawals, banks were able to cut the number of times they had to service armored cars by up to 50%. At typical CIT costs of $150 to $300 per visit, this reduction saves moderate to high-volume locations a lot of money every year.

Moving workers around provides more value than just straight cost savings. Staff members who used to count cash and handle vaults can now focus on activities that bring in money, like starting loans and managing relationships. This way of doing things fits with the idea of a general banker, which means that offices will go from processing transactions to being places where people can get advice.

Maintenance costs stay low as long as institutions follow the suggested plans for preventative maintenance. Putting off maintenance leads to more breakdowns and calls for emergency service, which costs more in the long run than regular care. Setting up clear repair procedures and training staff helps keep service costs low while increasing machine reliability.

Conclusion

The 9250N Recycler cassette system can handle large amounts of cash thanks to its flexible five-cassette design, UL 291 Level 1 security approval, and processing speeds of up to 8–12 notes per second. The parts of the system, from the Deposit Cassette (YT4.029.1066) to the Note Validator SNV3 (YT4.029.106), work together to keep the system up 99.9% of the time and handle over 10,000 notes.

With ISO9001-2008 certification and more than 20 years of experience in the manufacturing industry, RM is a reliable supplier that can offer short lead times, a wide range of parts, and support in multiple languages. Institutions that want to recycle cash in a cost-effective way should look at this technology and see how it fits with their trade rates and business needs.

FAQ

How does the cassette system reduce maintenance complexity?

Technicians can repair separate parts of the modular cassette system on their own. When the Recycling Cassette (YT4.029.0799) needs to be fixed, repair staff only take it out, leaving the other cassettes working. This separation cuts down on downtime compared to systems that need to be taken apart completely for service.

What happens when one cassette reaches capacity during operations?

The system automatically sends transactions to other cassettes that have space available. The NFS Module (YT4.029.0935) and control boards handle this redistribution in a clear way, which keeps transactions from failing. Operators are notified of the state of capacity, which lets them proactively restock during off-peak hours.

Can the system handle mixed-denomination deposits effectively?

Using multi-spectrum sensors, the Note Validator SNV3 (YT4.029.106) can tell the difference between different amounts of notes and instantly sorts mixed deposits to the right cassettes. With this feature, customers can enter different amounts at the same time without having to sort them first. This makes sure that accurate accounting is kept.

Partner with RM for Reliable Cash Recycling Solutions

RM is ready to help you with your cash automation projects with their tried-and-true 9250N Recycler technology and wide range of supply options. Our Shenzhen facility keeps a ready supply of whole systems and parts, which lets us deliver within 15 to 20 business days. We know how to find the right mix between low cost and reliable performance because we've been a seller for a long time to banks, ATM makers, and service companies around the world.

You can talk about your specific needs, ask for technical details, or set up equipment demos Contact Us by emailing Tony@atm-part.com. Our multilingual technical team is available 24 hours a day, 7 days a week to answer questions and help you remotely, making sure that your operations always have access to the internet. You can look thru our full catalog of ISO9001-2008-certified ATM circuits and parts at atm-part.com.
