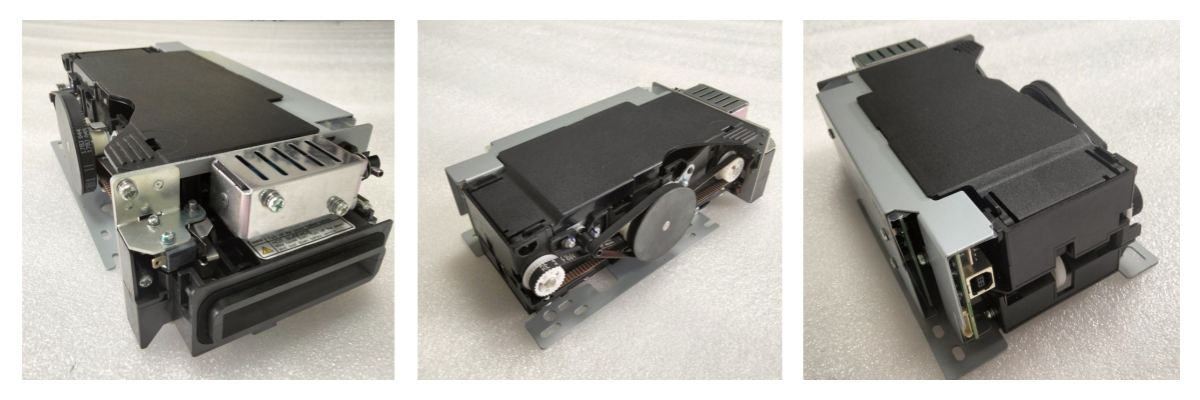

Nautilus Hyosung Card Reader Sankyo ICT3Q8-3HB2290-S

Nautilus Hyosung Card Reader Sankyo ICT3Q8-3HB2290-S | Motorized ATM Card Reader Module | ISO Certified High-Durability Solution

The Nautilus Hyosung Card Reader Sankyo ICT3Q8-3HB2290-S is an enterprise-grade motorized card reader module engineered for high-traffic ATM environments. With over 5 years of proven supply reliability, this unit integrates precision motor assembly (S35A210A02), IC contact block (S13A057A03), and timing belt mechanism (KYG214502) to deliver exceptional read accuracy and card capture functionality. Built to ISO 7816 standards, the module supports magnetic stripe and IC chip card transactions with a mechanical lifespan exceeding 200,000 insertion cycles, ensuring uninterrupted service for financial institutions requiring maximum uptime.

Key Features

High-Durability Mechanical Design

The reader incorporates capture rollers (S28A731A01) and rubber rollers (M30A624A01) specifically engineered to withstand continuous operation in harsh banking environments. The timing belt system ensures smooth card transport with minimal friction and wear.

Precision IC Contact System

The S13A057A03 IC contact block assembly provides reliable chip communication compliant with EMV Level 1 specifications. Contact resistance remains below 0.1 ohms throughout the operational lifespan, preventing transaction failures.

Motorized Card Capture Function

The integrated S35A210A02 motor assembly enables automated card retention for security protocols. When unauthorized access attempts occur, the system captures cards securely within the module.

Micro Switch Position Sensing

The E11A255A01 micro switch provides accurate card position detection, triggering appropriate reading sequences and preventing jams or misfeeds during high-volume transaction periods.

Compatible ATM Models

This Nautilus Hyosung Card Reader Sankyo ICT3Q8-3HB2290-S module is compatible with multiple Hyosung ATM series, including:

• Hyosung Nautilus Hyosung 1800CE/SE
• Hyosung Nautilus Hyosung 2700CE
• Hyosung Nautilus Hyosung 5300XP
• Hyosung MoniMax series ATMs

The standardized mounting interface and electrical connections allow for direct replacement without hardware modifications, reducing installation time and technical complexity.

Technical Specifications

Applications

Banking and Financial Institutions

The module serves retail banks, credit unions, and financial service providers requiring reliable card authentication for cash withdrawal, balance inquiry, and fund transfer operations.

Self-Service Kiosks

Integration into payment kiosks, ticket vending machines, and government service terminals enables secure identity verification and payment processing in public access environments.

Casino Gaming Systems

The card capture feature makes it ideal for player tracking systems and cashless gaming terminals where card retention is required for security compliance.

Quality Inspection

Every Nautilus Hyosung Card Reader Sankyo ICT3Q8-3HB2290-S undergoes rigorous testing at our ISO 9001:2008 certified facility:

Mechanical Lifecycle Testing

Automated insertion testing up to 50,000 cycles verifies timing belt tension, roller grip force, and motor response time meet specifications before shipment.

Contact Resistance Verification

Each IC contact block is measured using precision ohm-meters to confirm resistance values remain within tolerance, preventing read errors in field deployment.

Environmental Stress Screening

Thermal cycling from -20°C to +70°C combined with humidity exposure tests ensure reliable operation in diverse geographic locations and climate conditions.

Functional Performance Validation

Complete operational tests simulate actual ATM transaction sequences, including card insertion, chip reading, magnetic stripe decoding, and card ejection or capture functions.

Why Choose Us

20+ Years ATM Industry Expertise

RM has supplied ATM modules and components globally for over two decades, accumulating deep technical knowledge and proven project execution capabilities.

Comprehensive Parts Availability

We maintain inventory of over 80% of ATM modules and components, including the complete parts breakdown for this reader: timing belts, motor assemblies, rollers, switches, and contact blocks.

Fast Response Time

Your technical inquiries receive responses within 24 hours. Our engineering team provides remote video support for installation guidance and troubleshooting assistance.

Flexible Customization

We offer modification services for voltage specifications, interface protocols, and firmware configurations to match your existing ATM infrastructure requirements.

Reliable Global Logistics

Choose from air freight, sea freight, or express shipping options. Standard lead time is 15-20 working days with tracking provided for all shipments.

Packaging & Shipping

Each unit is packaged in anti-static foam inserts within corrugated cartons rated for international shipping. Modules are sealed with moisture barrier bags and corner protectors to prevent transit damage.

Shipping methods include DHL, FedEx, UPS express (3-7 days), air freight (5-10 days), or sea freight (25-35 days) depending on your urgency and budget requirements.

Documentation provided includes packing lists, commercial invoices, and technical datasheets. For bulk orders, wooden crate packaging with fumigation certificates is available for sea shipment compliance.

FAQ

Q: Do you supply individual replacement parts for this card reader?

A: Yes, we stock all components including timing belts, motor assemblies, capture rollers, rubber rollers, micro switches, and IC contact blocks for maintenance and repair.

Q: What is the warranty period for this module?

A: We provide a standard 90-day warranty covering manufacturing defects. Extended warranty options are available for volume purchases.

Q: Can this reader be retrofitted into older ATM models?

A: The module fits Hyosung Nautilus series ATMs with standard mounting brackets. Our technical team can confirm compatibility for your specific ATM chassis model.

Q: How often should maintenance be performed?

A: We recommend cleaning with pre-saturated cards every 2,000 transactions and inspecting rollers every 50,000 cycles to maintain optimal performance.

Q: Is technical documentation available in other languages?

A: Yes, installation manuals and technical specifications can be provided in multiple languages upon request.

Contact Us / Request Quote

Need the Nautilus Hyosung Card Reader Sankyo ICT3Q8-3HB2290-S or replacement parts? Contact Us at Tang@atm-part.com for pricing, availability, and technical specifications.
