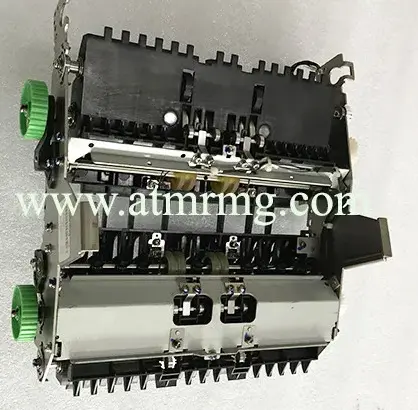

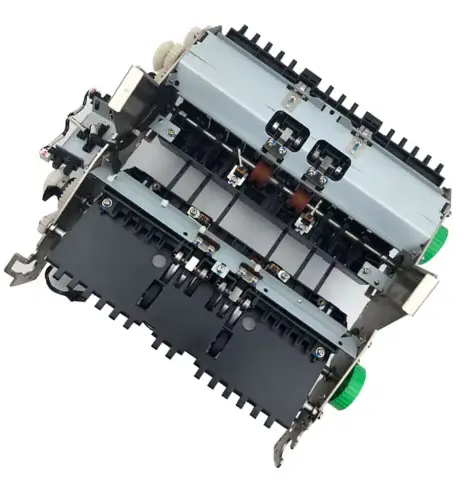

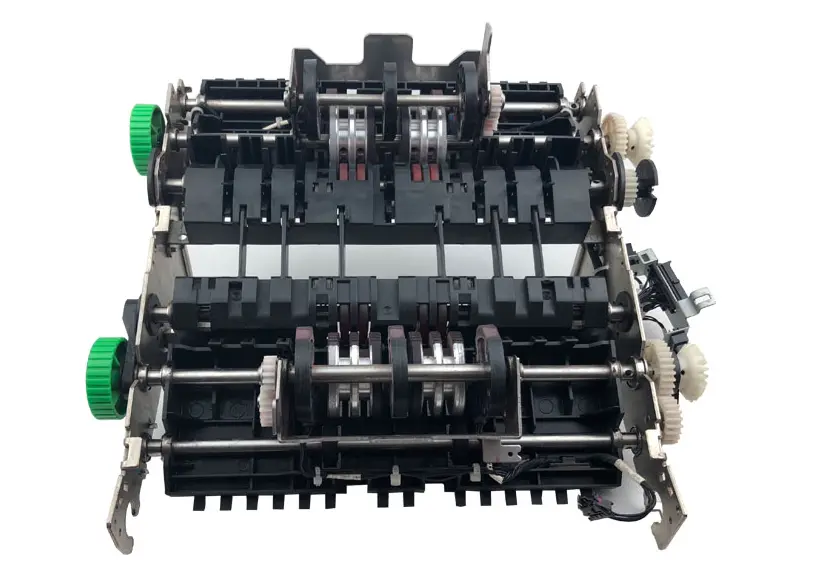

ATM 9250N FT Module

ATM 9250N FT Module - High-Performance Note Transport Solution

The ATM 9250N FT Module delivers enterprise-grade currency dispensing performance for NCR SelfServ and Personas series ATMs. This progressed Feed/Transport component accomplishes exchange speeds surpassing 10 notes per moment whereas keeping up 99.9% precision in note discovery. Built with high-grade polycarbonate chassis and fortified polyurethane belts, it works on a 24V DC stepper drive framework with coordinates optical encoders. The module highlights self-adjusting tensioners for 5+ year lifecycles and ESD brushes for polymer note dealing with. ISO 9001 compliant and RoHS certified, it diminishes stick rates essentially in high-throughput situations through progressed grinding control technology.

Technical Specifications

Key Features and Benefits

Advanced Transport Technology

Our note transport framework utilizes synchronized timing belts and progressed contact control innovation. You'll encounter less stick episodes and moved forward unwavering quality in your day by day operations. The vertical transport way guarantees smooth money stream from cassette to presenter.

Durable Construction

Built to withstand requesting situations, the module highlights warm expansion-resistant materials. Your speculation remains secured with self-adjusting tensioners that keep up ideal belt execution all through expanded utilize cycles.

Precision Sensor Integration

Integrated optical encoders give exact position following for each note. You can believe the framework to recognize between single notes, twofold notes, and harmed money with remarkable accuracy.

Polymer Currency Ready

The ATM 9250N FT Module handles advanced polymer banknotes viably. ESD brushes neutralize inactive buildup, guaranteeing reliable execution notwithstanding of cash type.

Applications and Use Cases

High-Volume Banking Environments

Perfect for budgetary educate handling over 5,000 day by day exchanges. The module's high-speed capabilities minimize client hold up times whereas supporting bulk apportion operations without warm limitations.

Outdoor ATM Installations

Weather-resistant plan ensures inner components from mugginess, temperature varieties, and clean entrance. Your open air units keep up steady execution in spite of natural challenges.

Remote Location Deployments

Ideal for off-premise locations where maintenance visits are costly. The high Mean Time Between Failures (MTBF)decreases your add up to fetched of proprietorship through less benefit calls.

Quality Assurance and Testing

Comprehensive Inspection Process

Every module experiences thorough quality control testing. We confirm sensor voltage edges, belt ductile quality, and grinding coefficients to guarantee OEM guidelines compliance.

Stress Testing Protocol

Our 2,000-note persistent cycle testing screens engine warm dissemination and adapt astuteness. You get components that meet the most noteworthy unwavering quality standards.

Precision Alignment Verification

Laser calibration devices guarantee culminate transport way arrangement with choose modules and moderators. Note skewing remains inside strict resistance limits of<1.5mm.

Maintenance and Longevity

Preventive Care Schedule

Regular cleaning and belt substitution each 100,000-150,000 notes guarantees ideal execution. The secluded plan disentangles upkeep strategies and decreases downtime.

Expected Service Life

With appropriate upkeep, your mechanical chassis gives 7-10 a long time of solid benefit. Wear things like elastic units and gears regularly require substitution each 12-18 months based on exchange volume.

Firmware Compatibility

The ATM 9250N FT Module bolsters different firmware settings for diverse cash sorts. You can effectively design parameters for ideal execution with your particular banknote specifications.

Why Choose Our ATM 9250N FT Module

Reliable Stock Support

We keep up reliable stock levels to meet your pressing substitution needs. Our 15-20 working day lead time guarantees negligible operational disruption.

Dedicated Expert Support

Our specialized group gives online and video farther help inside 24 hours. You get multilingual bolster and comprehensive investigating guidance.

Proven Manufacturing Excellence

With over 20 a long time of ATM parts involvement and ISO9001-2008 certification, we provide quality you can believe. Our 3,000 sq.m office incorporates devoted form room, infusion molding, and QC departments.

Frequently Asked Questions

Q: What are the primary causes of note jams in the ATM 9250N FT Module?

A: Jams commonly result from worn transport belts losing friction or paper dust blocking optical sensors. Regular cleaning and belt replacement every 100k-150k notes prevents most issues.

Q: Is the module compatible with polymer currency?

A: Yes, but requires specific firmware settings and functional static discharge brushes. Polymer notes generate higher static charges than cotton-based paper currency.

Q: How do I verify refurbished module quality?

A: Look for QC stepper motor test 'Pass' stamps and check gear wear. Quality refurbished units have replaced gears and new rubber components, not just cleaned exteriors.

Q: Can this module trigger M-Status error codes?

A: M-Status errors (21, 23, etc.) often indicate sensor blockage or timing wheel failures. Run diagnostics through ATM maintenance supervisor mode to isolate specific sensor issues.

Q: What is the expected lifespan?

A: Mechanical chassis lasts 7-10 years with proper preventive maintenance. Wear items typically need replacement every 12-18 months depending on transaction volume.

Q: Does the module work with all NCR ATM models?

A: The module is specifically designed for NCR 9250N dispensers used in SelfServ and Personas series ATMs, including models 6622, 6625, and 5886.

Contact Us

Ready to ATM 9250N FT Module to upgrade your ATM performance? Contact our experts at Tang@atm-part.com for immediate assistance and competitive pricing.
