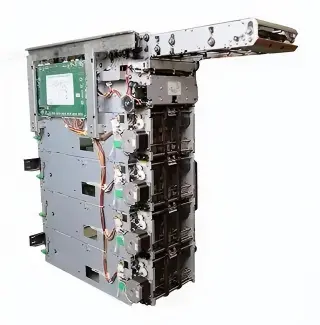

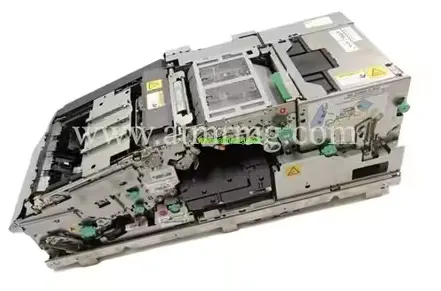

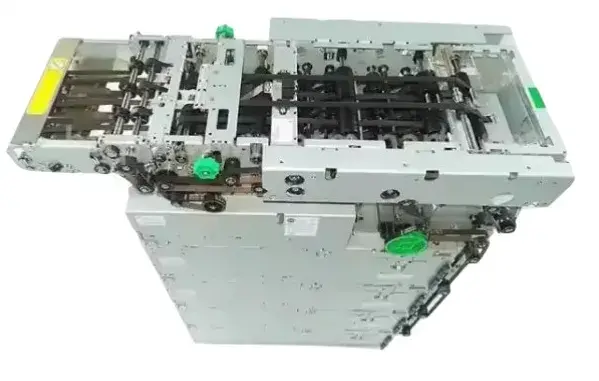

9240N Cash Dispenser Module

9240N Cash Dispenser Module - Professional ATM Cash Handling Solution

The 9240N Cash Dispenser Module represents cutting-edge friction-feed currency handling technology for Nautilus Hyosung Monimax 9240N series ATMs. This enterprise-grade module conveys extraordinary execution with apportioning speeds of 7-10 notes per moment and bolster for multi-cassette setups holding up to 3,000 notes per cassette. Working on 24V DC control with RS-232/USB communication interfacing, the module accomplishes 99.99% partition unwavering quality through progressed reverse-roller innovation and Near-Infrared sensors. Built with specialized Urethane rollers appraised for 0°C to 40°C operation, this container module guarantees reliable execution over requesting keeping money environments.

​​​​​​​​​​​​​​

Technical Specifications

Key Features and Benefits

Advanced Cash Handling Technology

Our module consolidates precision-engineered components planned for high-volume managing an account operations. The friction-feed instrument extricates banknotes from secure cassettes whereas optical and mechanical thickness sensors confirm peculiarity some time recently transport to the client interface.

Exceptional Reliability

The framework addresses basic industry challenges counting tall stick rates and double-note apportioning mistakes. With Mean Time Between Failures (MTBF) of 12-18 months for wear components beneath typical utilization conditions, you can anticipate steady performance.

Versatile Currency Support

Whether you're dealing with polymer or paper banknotes, the module consequently alters to diverse cash sorts. The inactive release brush and movable thickness sensors avoid untrue dismissals whereas keeping up ideal performance.

Modular Design Advantage

Individual components like engines and sensors can be supplanted independently, in spite of the fact that full module substitution frequently demonstrates more effective for minimizing downtime. This adaptability bolsters both field repairs and bench-level maintenance.

Why Choose Our Solution

With more than 20 a long time of ATM industry ability, we give over 80% of accessible ATM modules and components. Our coordinates R&D, generation, deals, and benefit approach guarantees comprehensive back for your cash dealing with needs.

The 9240N Cash Dispenser Module speaks to demonstrated innovation sponsored by broad field arrangement over assorted keeping money situations. From high-volume branches to farther areas, this module conveys the unwavering quality and execution your operations demand.

Application Scenarios

High-Volume Branch Banking

Perfect for campaign situations requiring speed and commotion decrease. The sound-dampening gears keep up proficient environment whereas preparing hundreds of day by day transactions.

Drive-Through ATM Configuration

The encased way plan minimizes tidy entrance and secures inside components from natural defilement, making it perfect for drive-up installations.

Remote Off-Premise Locations

Excellent warm soundness guarantees solid 24/7 operation in challenging situations without climate control, decreasing exorbitant benefit calls for Independent ATM Deployers.

Quality Assurance

Our quality control handle centers on basic electromechanical confirmation. Each unit experiences thorough testing including:

• Thickness sensor calibration for precise note detection
• Belt tension and tracking alignment verification
• Pick-and-separation rate testing with 1,000 mixed-condition notes
• Environmental Stress Screening (ESS) for aging simulation
• Anti-fraud shutter and presenter logic validation

With ISO9001-2008 certification and over 20 years of ATM industry experience, we ensure every 9240N Cash Dispenser Module meets the highest quality standards.

Comprehensive Support Services

We give broad sub-modules and save parts stock for the cash container framework. Our 3,000 sq.m office incorporates specialized offices for molding, infusion molding, support, and quality control, guaranteeing total item back from modules to person components.

Response time for request and online back is inside 24 hours, with standard lead times of 15-20 working days for module orders. We offer customization administrations for existing modules agreeing to your particular requirements.

Frequently Asked Questions

Q: What are common error codes for this module?

A: Most errors relate to sensor blockages or pick failures. 'Cassette Empty' or 'Pick Fail' codes typically indicate worn pick tires or accumulated debris on sensors, requiring cleaning or roller replacement.

Q: How does the module handle different banknote types?

A: The system supports both polymer and paper currencies. For polymer notes, the static discharge brush must be intact, and thickness sensor sensitivity requires firmware adjustment to prevent false double-note rejections.

Q: What does Level-1 maintenance involve?

A: Use compressed air to clear transport paths and alcohol-free cleaning cards for magnetic heads and optical sensors. Never use alcohol on rubber rollers as it degrades the friction tires.

Q: Can individual components be replaced?

A: Yes, the modular design allows board-level or motor-level repairs. However, full module replacement often provides better field efficiency to minimize downtime.

Q: What is the expected module lifecycle?

A: Under normal usage (200-300 transactions daily), wear parts have 12-18 months MTBF. Core chassis and electronic boards are rated for 5-7 years with proper maintenance.

Contact Us

Ready to 9240N Cash Dispenser Module to enhance your ATM performance? Contact our team at Tang@atm-part.com for expert consultation and competitive pricing on your cash dispenser requirements.
