DN100 I6 Control Board Service Kit N2.0-H110-mITX_D3480 TPM1.2

DN100 I6 Control Board Service Kit N2.0-H110-mITX_D3480 TPM1.2 | Reliable ATM Controller Solution for Diebold Nixdorf Systems

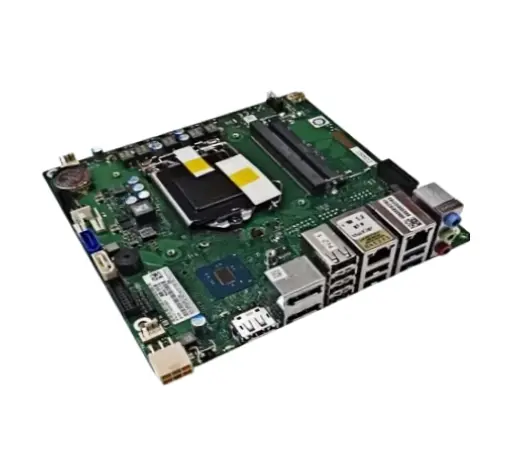

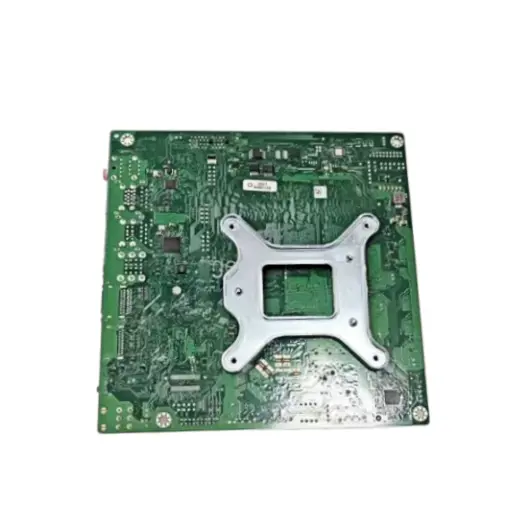

The DN100 I6 Control Board Service Kit N2.0-H110-mITX_D3480 TPM1.2 (Part Number: 1750359727) is an enterprise-grade control board engineered specifically for Diebold Nixdorf DN100, DN200, and DN450 series ATMs. Manufactured by HONGKONG RONG MEI TECHNOLOGY CO., LIMITED, this controller features Intel I6 processing architecture integrated with H110 chipset and TPM1.2 security module. With over 20 years of ATM component manufacturing expertise and ISO 9001:2008 certification, RM delivers brand-new units with 30-day warranty coverage and online technical support. The board ensures stable transaction processing with a standard lead time of 15–20 working days.

​​​​​​​

Product Overview

This control board serves as the computational core for Diebold Nixdorf self-service terminals. The N2.0-H110-mITX platform combines mini-ITX form factor efficiency with D3480 graphics processing capabilities.

The integrated TPM1.2 chip provides hardware-level encryption for secure financial transactions. Your DN100 and DN200 machines benefit from direct drop-in compatibility, eliminating complex reconfiguration procedures.

RM's manufacturing facility spans 3,000 square meters with dedicated QC departments. Each board undergoes rigorous testing protocols before shipment to ensure zero-defect delivery.

Key Features

Advanced Security Architecture: TPM1.2 hardware encryption safeguards cardholder data according to PCI-DSS compliance requirements. The chip performs cryptographic key generation and secure boot verification independently from the main processor.

Optimized Processing Power: Intel I6 architecture delivers consistent transaction response times under high-volume conditions. The H110 chipset provides stable communication pathways between peripheral devices and the central processor.

Industrial-Grade Reliability: Components are rated for continuous operation in environments ranging from -10°C to +50°C. Conformal coating protects circuit traces from humidity and dust infiltration common in outdoor installations.

Flexible Deployment Options: The mini-ITX form factor fits standard DN-series chassis without modification. Multiple I/O interfaces support card readers, cash dispensers, receipt printers, and PIN pads simultaneously.

Compatible ATM Models

The DN100 I6 Control Board Service Kit N2.0-H110-mITX_D3480 TPM1.2 provides verified compatibility with:

• Diebold Nixdorf DN100 – Branch and retail locations
• Diebold Nixdorf DN200 – Through-the-wall and lobby installations
• Diebold Nixdorf DN450 – High-capacity multi-function terminals

This cross-platform compatibility reduces inventory complexity for multi-model deployments. Service technicians benefit from standardized replacement procedures across your ATM fleet.

Technical Specifications

Applications

Branch Banking Environments: High-volume locations require uninterrupted transaction processing during peak business hours. The controller manages rapid signal exchanges between software and cash handling modules without latency bottlenecks.

Outdoor Drive-Through Terminals: Temperature fluctuations challenge electronic components in exposed installations. This board maintains signal integrity across thermal cycles, preventing transaction timeouts caused by voltage instability.

Remote Retail Locations: Unstable power grids in off-premise sites demand robust power conditioning. The H110 chipset buffers minor irregularities before reaching sensitive peripherals like card readers, reducing field service calls.

Upgrade Projects: Financial institutions modernizing legacy DN-series machines gain TPM1.2 security without replacing entire terminals. This approach extends asset lifespan while meeting current compliance standards.

Quality Inspection

RM implements multi-stage quality protocols aligned with IPC-A-610 Class 2 standards:

Automated Optical Inspection (AOI): Detects solder bridging, component misalignment, and lifted pads using high-resolution imaging systems.

In-Circuit Testing (ICT): Verifies voltage rail stability under simulated load conditions. Technicians measure resistance and capacitance values against design specifications to identify component drift.

Functional Load Testing: Boards undergo diagnostic loops in test rigs replicating full ATM configurations. The DN100 I6 Control Board Service Kit N2.0-H110-mITX_D3480 TPM1.2 completes stress tests monitoring USB communication and power distribution.

Security Handshake Verification: TPM1.2 modules execute encryption protocols to confirm proper key generation and secure boot sequences.

Environmental Stress Screening: Random samples endure thermal cycling between -20°C and +60°C to eliminate early-life failures before shipment.

Why Choose Us

Proven Industry Experience: Two decades of ATM component specialization provides deep understanding of financial hardware requirements. Our engineering team solves compatibility challenges before they reach your deployment sites.

Comprehensive Component Coverage: RM supplies over 80% of ATM modules available globally. Your single-vendor approach simplifies procurement, reduces administrative overhead, and ensures parts compatibility across orders.

Responsive Technical Support: Our team answers inquiries within 24 hours via email at Tang@atm-part.com. Remote video assistance resolves installation questions without costly site visits.

Certified Manufacturing Standards: ISO 9001:2008 certification and ERP-managed production ensure consistent quality across batches. You receive the same performance whether ordering 5 units or 500.

Flexible Logistics Solutions: Choose from sea freight, air cargo, land transport, or express delivery based on urgency and budget. Our logistics partners provide tracking and customs documentation for smooth international shipments.

Packaging & Shipping

Each control board ships in anti-static foam padding inside corrugated boxes rated for international transport. Moisture-barrier bags protect against humidity during sea freight.

Packaging includes product labels, warranty cards, and installation quick-guides. We support sea freight for bulk orders, air express for urgent replacements, and land transport for regional distribution.

Standard lead time remains 15–20 working days from order confirmation. Expedited processing is available for emergency downtime situations requiring immediate replacement.

FAQ

Q: Does this board require firmware updates after installation?

A: The DN100 I6 Control Board Service Kit N2.0-H110-mITX_D3480 TPM1.2 ships with factory-loaded firmware. Your DN-series software recognizes it automatically during boot-up sequences.

Q: Can I use this board in DN200+ models?

A: Yes, compatibility extends to DN200 and DN450 series machines. Verify chassis space accommodates mini-ITX dimensions before ordering.

Q: What does the 30-day warranty cover?

A: Coverage includes manufacturing defects and component failures under normal operating conditions. Damage from improper installation or power surges is excluded.

Q: Is technical documentation available in other languages?

A: We provide English documentation as standard. Multilingual technical guides are available upon request for large-volume orders.

Q: How do I verify TPM1.2 functionality after installation?

A: Use Diebold diagnostic software to execute encryption key tests. Our support team can guide you through verification procedures via remote session.

Contact Us / Request Quote

Ready to upgrade your DN-series ATM fleet? Contact our team at Tang@atm-part.com for pricing, bulk discounts, and technical specifications. We respond within 24 hours with customized solutions for your deployment.
