Diebold Nixdorf DN200 IOC Module

Diebold Nixdorf DN200 IOC Module – Enterprise-Grade ATM Control Solution

When your financial institution demands zero-downtime performance, the Diebold Nixdorf DN200 IOC Module delivers enterprise-level reliability. This Input/Output Controller features an industrial-grade PCB architecture designed for 24/7 retail banking operations. With a regulated 24V DC input and integrated surge protection, it ensures stable communication across all connected peripherals.

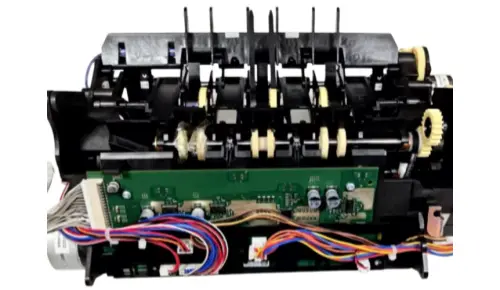

1750295447 dN200 IOC

1750295447 dN200 IOC

1750295447 DN200 IOC

The module boasts an impressive MTBF rating exceeding 100,000 hours, making it ideal for high-volume transaction environments. Its multi-channel connectivity supports both high-speed USB and legacy RS-232 protocols, while gold-plated contact points maintain signal integrity even in challenging coastal deployments. RM provides this critical component with full technical support, backed by our 20+ years of ATM industry expertise. Part number 1750295447 is available in both brand new and refurbished conditions, each covered by our 30-day warranty.

What Makes This Module Essential for Your ATM Network?

The Diebold Nixdorf DN200 IOC Module functions as the central neural hub of your DN200 series ATM. It bridges your central processing core with electro-mechanical peripherals like cash dispensers, card readers, and receipt printers.

Your ATM operations face a critical challenge: peripheral desynchronization and communication latency. This module solves that pain point through high-speed bus technology that executes transaction commands with microsecond precision.

You'll experience significantly reduced terminal downtime. The module eliminates I/O timeouts and legacy hardware handshake errors that typically disrupt customer transactions. This means smoother operations and happier customers at every touchpoint.

Technical Specifications

Complete Configuration Components

Your Diebold Nixdorf DN200 IOC Module arrives with comprehensive sub-assemblies:

1750287373 – IOC Module Main Board (Core Controller)

1750046741 – IOC PM42L-040-YGC4 Stacker Crane Motor

1750274918 – IOC In-Output Module Collector Unit Motor

1750247631 – IOC In-Output Module Collector Unit Motor

1750247003 – IOC In-Output Module Collector Unit Motor Guide

1750249933 – IOC Input-Output Module Collector Unit Bracket

1750265243 – IOC Entrance/Exit Unit Component

1750259387 – IOC In-Output Module Collect Unit Bracket

1750259384 – IOC Intra-Export Collection Unit

RM has supplied these sub-modules and spare parts for over 5 years. We maintain comprehensive inventory of all component parts, ensuring you never face extended downtime waiting for replacements.

Real-World Applications

High-Volume Cash Recycling Operations

In DN200 series recycling ATMs, this module manages intensive data flow for real-time note validation and shutter control. You get zero-error logic during multi-cassette operations, even during peak transaction periods.

Extreme Climate Outdoor Deployments

Your through-the-wall kiosks face internal temperature fluctuations. The module's thermal-resistant components maintain stable communication without signal drift, ensuring reliable service in harsh environments.

Biometric-Enabled Banking Transformation

When you integrate advanced sensors like palm vein or facial recognition hardware, this module coordinates high-bandwidth biometric data with standard ATM operations. Transaction speed remains uncompromised while security increases dramatically.

Why RM Is Your Trusted Partner

RM brings over 20 years of specialized ATM industry experience to every order. Our ISO 9001:2008 certified quality management system ensures consistent product performance.

We stock over 80% of ATM modules and components available in the market. This comprehensive inventory means faster fulfillment and reduced procurement complexity for you.

Our 3,000-square-meter facility integrates R&D, manufacturing, testing, and quality control under one roof. You benefit from streamlined production and rigorous multi-stage validation processes.

You'll receive inquiry responses within 24 hours. Our professional technical team provides online support, remote video assistance, and troubleshooting guidance throughout your product lifecycle.

Standard lead time runs 15-20 working days, with flexible global logistics options including sea freight, air freight, and international express delivery.

Frequently Asked Questions

Q1: What causes most communication errors in this IOC module?

A1: Inconsistent 24V power supply or oxidized cable connectors are the primary culprits. Professional cleaning and voltage stabilization typically resolve these issues quickly.

Q2: Can I upgrade the firmware in the field?

A2: Yes, you can flash firmware via the Diebold Nixdorf Terminal Support Tool (TST). This enables support for new peripheral types and security patches as they become available.

Q3: How does the module protect against electrostatic discharge?

A3: The module includes dedicated ESD protection diodes on all external-facing ports. These are rated to withstand up to 8kV of contact discharge, protecting your investment in harsh environments.

Q4: Is this module compatible with older Opteva series machines?

A4: No, the DN200 IOC is specifically optimized for DN-series architecture. It's not backward compatible with the older Opteva bus system due to different communication protocols.

Q5: What should I check if ATM software doesn't detect the module?

A5: First verify the logic board status LEDs. If the 'Link' LED is off, check your cable connections and power supply continuity. Our technical team can provide remote assistance if needed.

Q6: What quality control processes does RM implement?

A6: We conduct Automated Optical Inspection (AOI), In-Circuit Testing (ICT), and Functional Loopback Testing under simulated peak-load conditions. All modules undergo burn-in testing in environmental chambers to identify potential failures before shipment.

Get Your Module Today

Ready to enhance your ATM network reliability with the Diebold Nixdorf DN200 IOC Module? Contact our expert team at Tang@atm-part.com.
