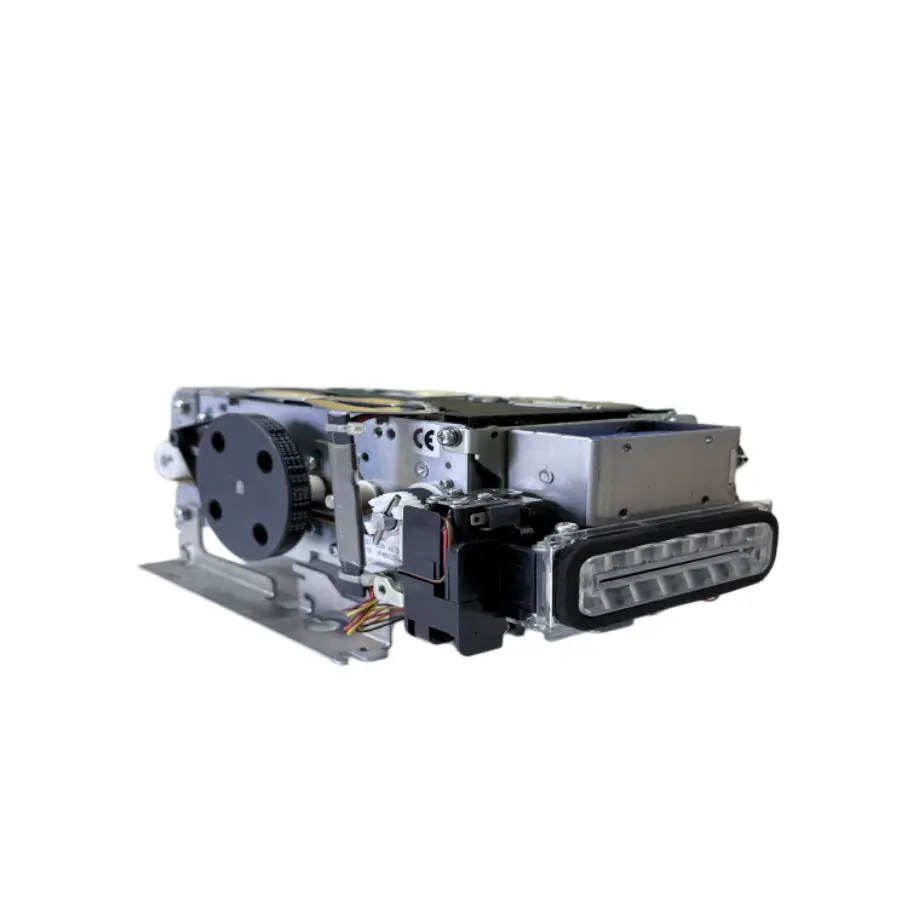

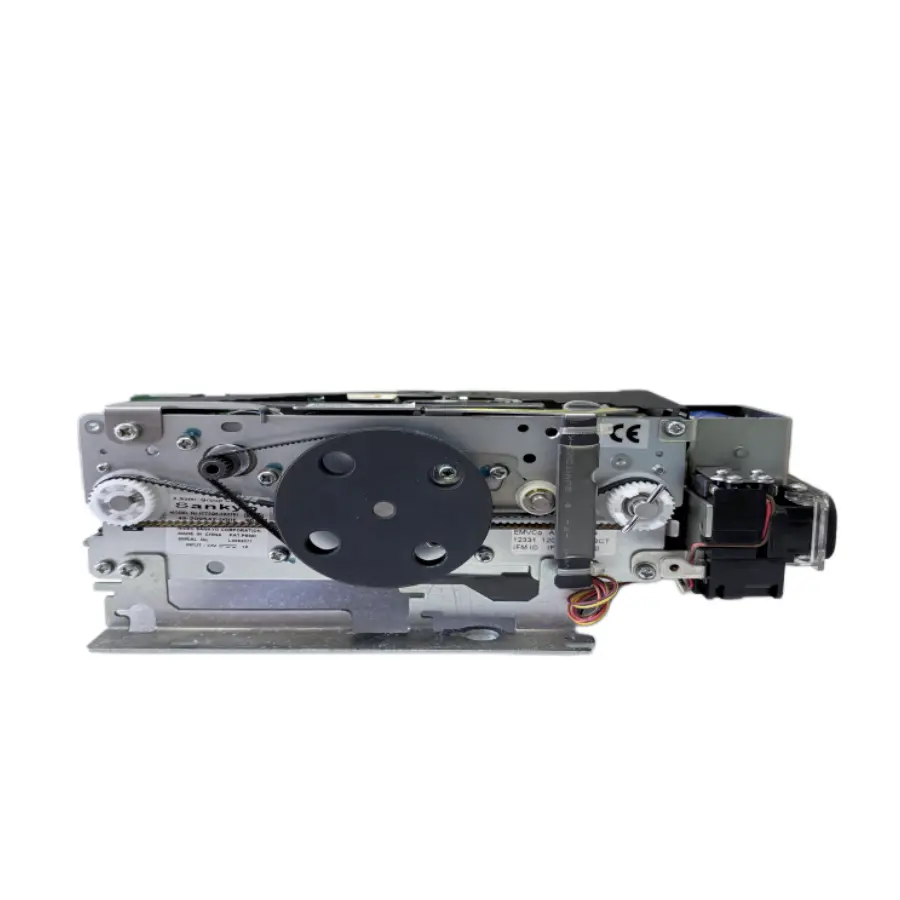

49209542000F Diebold Opteva Card Reader F Version

49209542000F Diebold Opteva Card Reader F Version

The Diebold 49209542000F / 49-209542-000F Opteva Card Reader F Version is a motorized ATM card reader designed for Diebold Opteva ATM systems. The official part description identifies it as a CD RDR, MTZ, TRK1/2/3, RD/WRT, HICO, ICC, STRP card reader, supporting magnetic-stripe card reading and writing across Track 1, Track 2 and Track 3, as well as Hi-Co and ICC card functions.

This card reader is associated with the Sankyo ICT3Q8-3A2761 platform in multiple industry references. The Nidec Sankyo maintenance documentation for the ICT3Q8 platform identifies key internal assemblies including the R/W amplifier board, DC motor, IC contact block and pre-head assembly.

The product is suitable for ATM maintenance, replacement and refurbishment projects where the existing card reader uses the corresponding Diebold part-number configuration.

​​​​​​​

Key Features and Benefits

Motorized Card Reading and Writing

The 49209542000F is identified as an MTZ motorized card reader, providing controlled card transport through the reader mechanism. Its Diebold part description specifies TRK1/2/3 RD/WRT, indicating read/write capability for magnetic-stripe Tracks 1, 2 and 3.

Multi-Function Card Support

The official-style Diebold parts description specifies support for HICO, ICC and STRP functions. This makes the reader suitable for ATM applications requiring magnetic-stripe card processing together with IC-card functionality.

Integrated Mechanical and Electronic Structure

The corresponding Nidec Sankyo ICT3Q8 maintenance documentation identifies the major functional assemblies of the reader as the R/W Amp Board, DC Motor, IC Contact Block and Pre-Head. The maintenance documentation also covers the timing belt and roller, shutter solenoid, sensors and other serviceable elements.

Anti-Fishing / Card Security Structure

The ICT3Q8 platform documentation identifies an EAF (Enhanced Anti-Fishing) function and a skimmer sensor on the corresponding ICT3Q8-3A2761 configuration. Industry descriptions of the 49209542000F version also identify a mechanical anti-card-holding structure and electronic card-protection logic. For strict technical claims, the EAF/skimmer characteristics should be verified against the actual reader revision before publication as an F-version-specific specification.

Technical Specifications

Trading Information

Why Choose Our Solution

Extensive ATM Parts Experience

We specialize in ATM spare parts and replacement components covering major ATM brands and mechanisms. Our product range includes card readers, cash dispensing mechanisms, cash cassettes, printers, keypads, sensors, motors and other ATM modules.

Comprehensive Service

We provide support throughout the purchasing process, including part-number confirmation, product identification, compatibility checking, quotation, packaging, shipment tracking and after-sales technical assistance.

Quality Assurance

Each supplied card reader should be checked according to its actual condition and configuration before shipment. For replacement orders, customers are recommended to provide the original PN, product label or clear product photos so that the correct version can be confirmed.

Flexible Support Options

We can provide product photos, PN cross-reference information, installation references and online technical communication to help customers confirm whether the 49209542000F is suitable for their existing ATM equipment.

Installation and Maintenance

Easy Replacement

The 49209542000F is supplied as an ATM card-reader assembly. Before replacement, technicians should compare the existing reader's PN, version, connector configuration and mechanical mounting arrangement with the replacement unit.

Ongoing Support

For compatibility questions, customers can provide the existing card reader's label, PN, ATM model and product photos. This information can be used to verify the required version before shipment and reduce the risk of ordering an incompatible reader.

 Frequently Asked Questions

Q1: What is the Diebold 49209542000F?

The 49209542000F is a Diebold ATM card reader assembly, also identified as 49-209542-000F. Its documented PN description identifies magnetic-stripe Track 1/2/3 processing, read/write capability, HICO, ICC and STRP functions. It is used as an ATM card-reader replacement component.

Q2: What is the part number of this Diebold card reader?

The primary part number is 49209542000F, while the corresponding Diebold-style PN is 49-209542-000F. Public ATM parts references also associate this reader with 00-104380-000K and 49-209542-0-00-F. Customers should compare the PN on their existing unit before ordering.

Q3: What functions does 49209542000F support?

The documented function description is CD RDR, MTZ, TRK1/2/3, RD/WRT, HICO, ICC, STRP. This indicates a card reader with magnetic-stripe Track 1/2/3 processing, read/write functionality, HICO and ICC-related functionality.

Q4: Is 49209542000F compatible with Diebold Opteva ATMs?

The part is identified as a Diebold Opteva Card Reader F Version in multiple industry references. However, publicly available official Diebold documentation does not provide enough information to establish a complete model-by-model compatibility list. Therefore, the customer's existing PN should be checked before replacement.

Q5: What is the warranty period?

The warranty period for this product in your current offer is 180 days. The warranty applies according to the agreed sales terms and the actual condition of the supplied unit. Customers should confirm the warranty conditions with the supplier before placing an order.

Q6: Can you provide technical support after purchase?

Yes. Online technical support can be provided for product identification, PN confirmation, compatibility checking and replacement-related questions. Customers can provide the existing reader's PN, label or photos to help verify the correct version before installation.

Q7: What is the MOQ for 49209542000F?

The standard MOQ can be 1 PC. This is suitable for maintenance, replacement and sample orders. Actual availability and lead time should be confirmed according to current inventory before placing an order. Public industry listings also show MOQ of 1 PC for this part.

Q8: Do you provide other Diebold ATM spare parts?

Yes. We can supply various Diebold ATM spare parts and modules, including card readers, cash dispensing components, printers, keypads, sensors, motors and other ATM mechanism components. Customers can provide the ATM model or original PN for part identification and sourcing.
